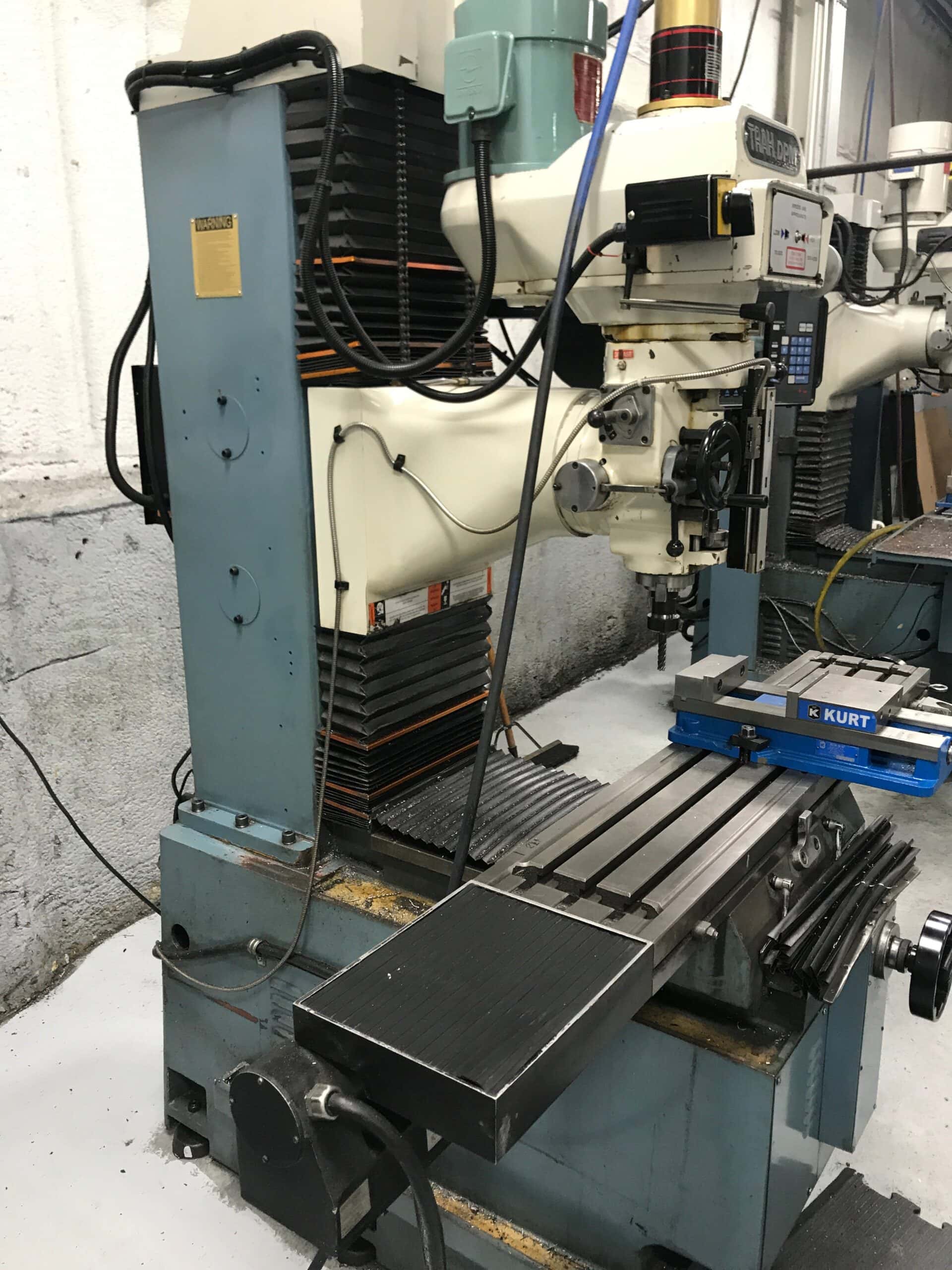

SouthWestern Industries SWI Trak DPMS3, CNC Knee Mill, 2004 – ProtoTrak SM
$13,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size – 50″ x 10″
Max Table Weight – 1320 lb
X axis – 30″
Y axis – 17″
Z axis – 23.5″
Quill Trvel – 5″
Quill Diameter – 3 15/16″
Spindle Taper – NST 40
Spindle Speed – 70-4200 rpm
Spindle Center to Column Face – 19″
Spindle Motor – 3HP
Power Requirements – 220V 3Phase
Height of Table from Bottom of bed – 38″
Max Spindle nose to table – 23.5″
Minimum Height – 85″
Maximum Height – 95″
Dimensions – 73″x76″
Weight – 4400 lb
Max Work Capacities – Drilling, 1″ dia; Tapping, 3/4″; Milling, 3″3/min (Mild Steel)
Maximum Rapid Feed – 150 IPM
Equipped With:
Proto Trak SM CNC control
Work Lamp
