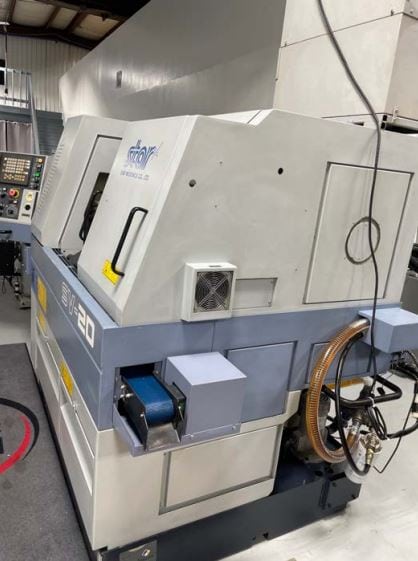

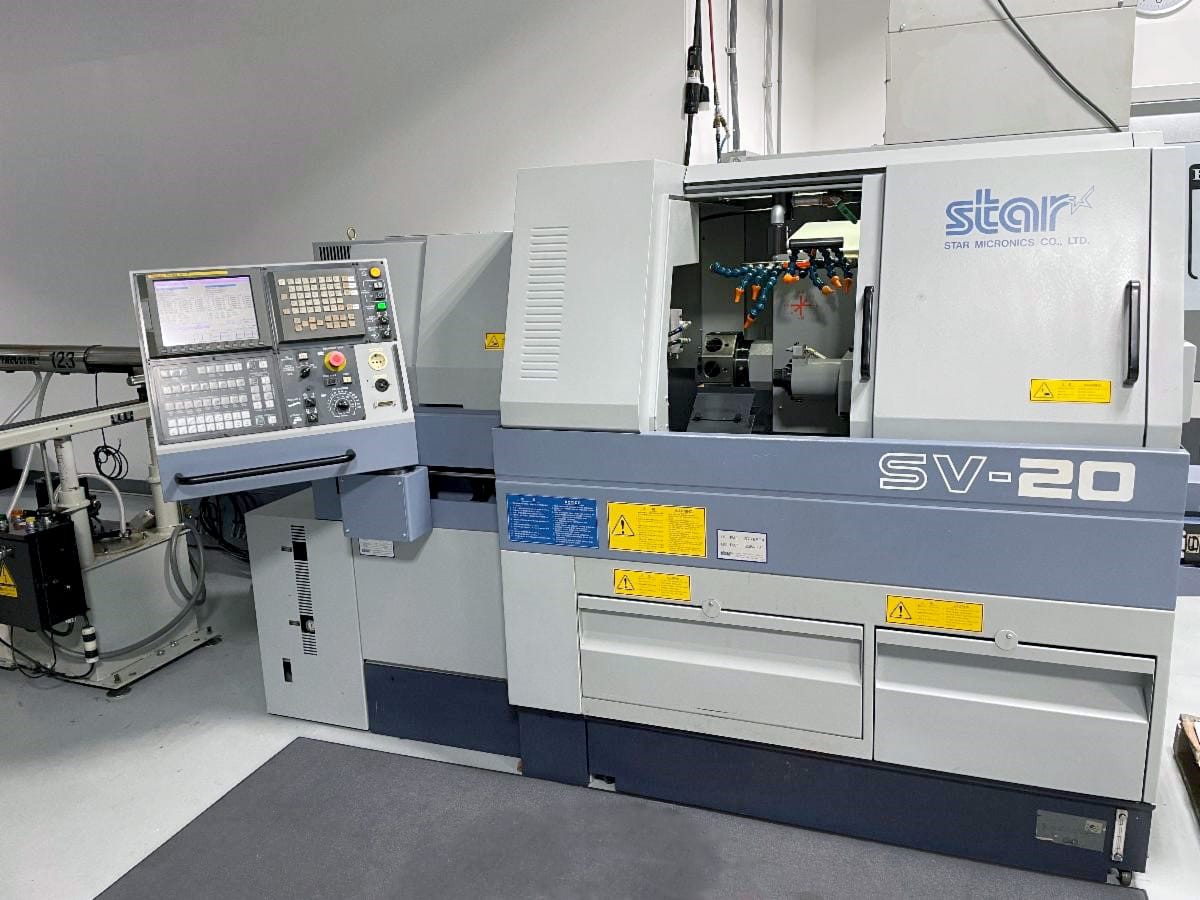

Star SV-20 CNC 7-Axis Swiss Lathe, 2001- Refurbished, Live Tooling, Spego Bar Feed, Fanuc Warranty
$99,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Maximum Bar Diameter: 0.787″
Maximum Machining Length: 7.677″
Spindle Speed: 10,000 RPM
Spindle Motor Power: 5 HP
Tool Turret: 8 Positions
Tool Shank Size: 0.472″
Rapid Traverse Rate (X/Z axes): 32/32 m/min (1260/1260 inches/min)
Main Spindle Indexing Angle: 0.001 Degree
Machine Dimensions: 87″ x 45.3″ x 69.3″
Machine Weight: 3,400
New Parts Installed:
New Main Spindle & Sub Spindle Bearings
New Guide Bushing Bearings and Sleeve
New Y Axis Ball Screw
Full Inspection Completed – All Axis and Bearings Pass
1 year Fanuc Warranty – Covers Parts and Service
Full Machine Alignment Completed
Equipped With:
FANUC 16i CNC Control

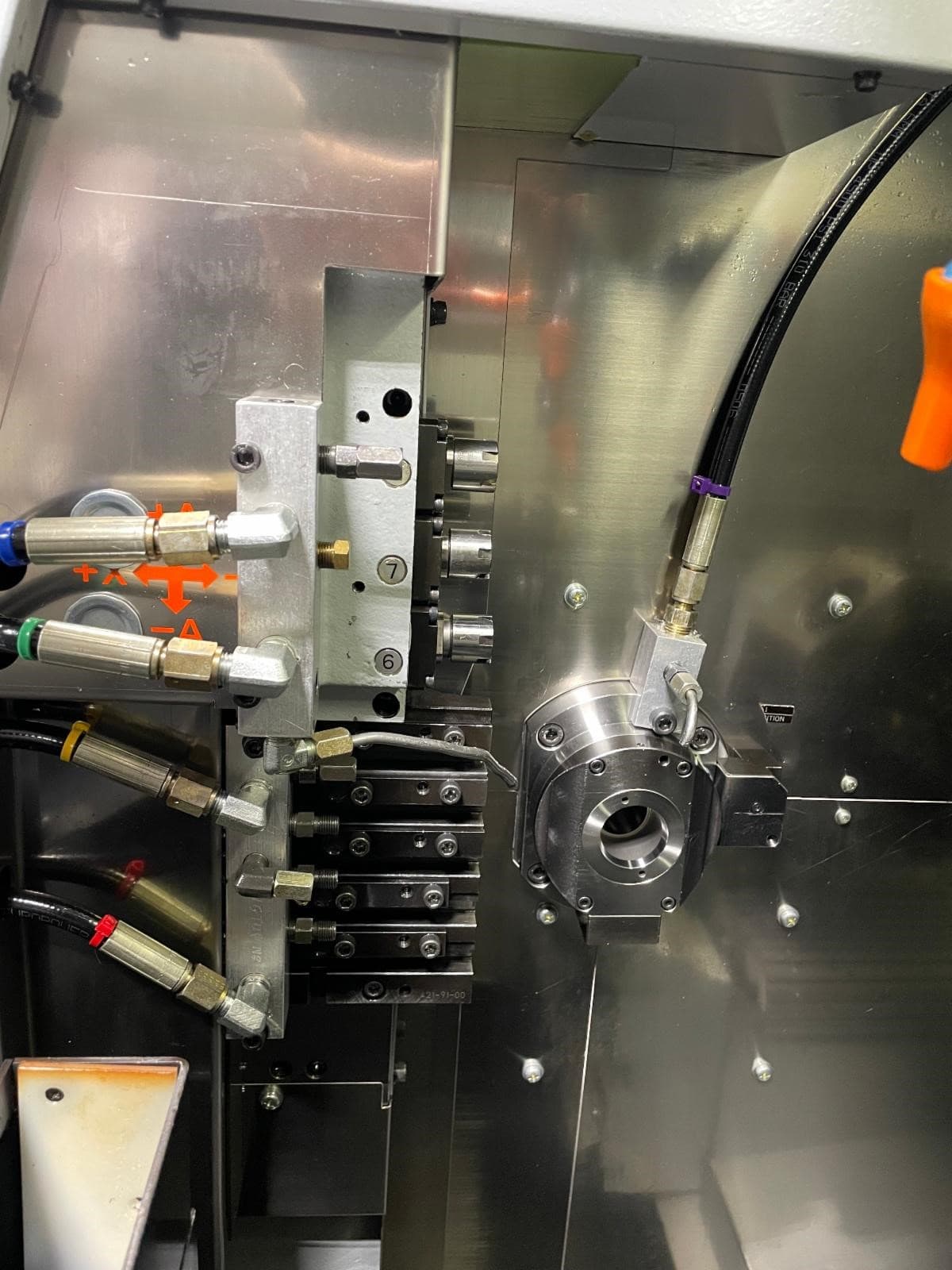

2-Axis Controlled Gang Tool Post
Power-Driven Live Tooling Capable
Full C-Axis Sub Spindle Indexing
Controlled Y, B and E Axes
Spego Bar Feeder
New Tri-Mist Unit
Used NJ-1750 4 Line HP Pump

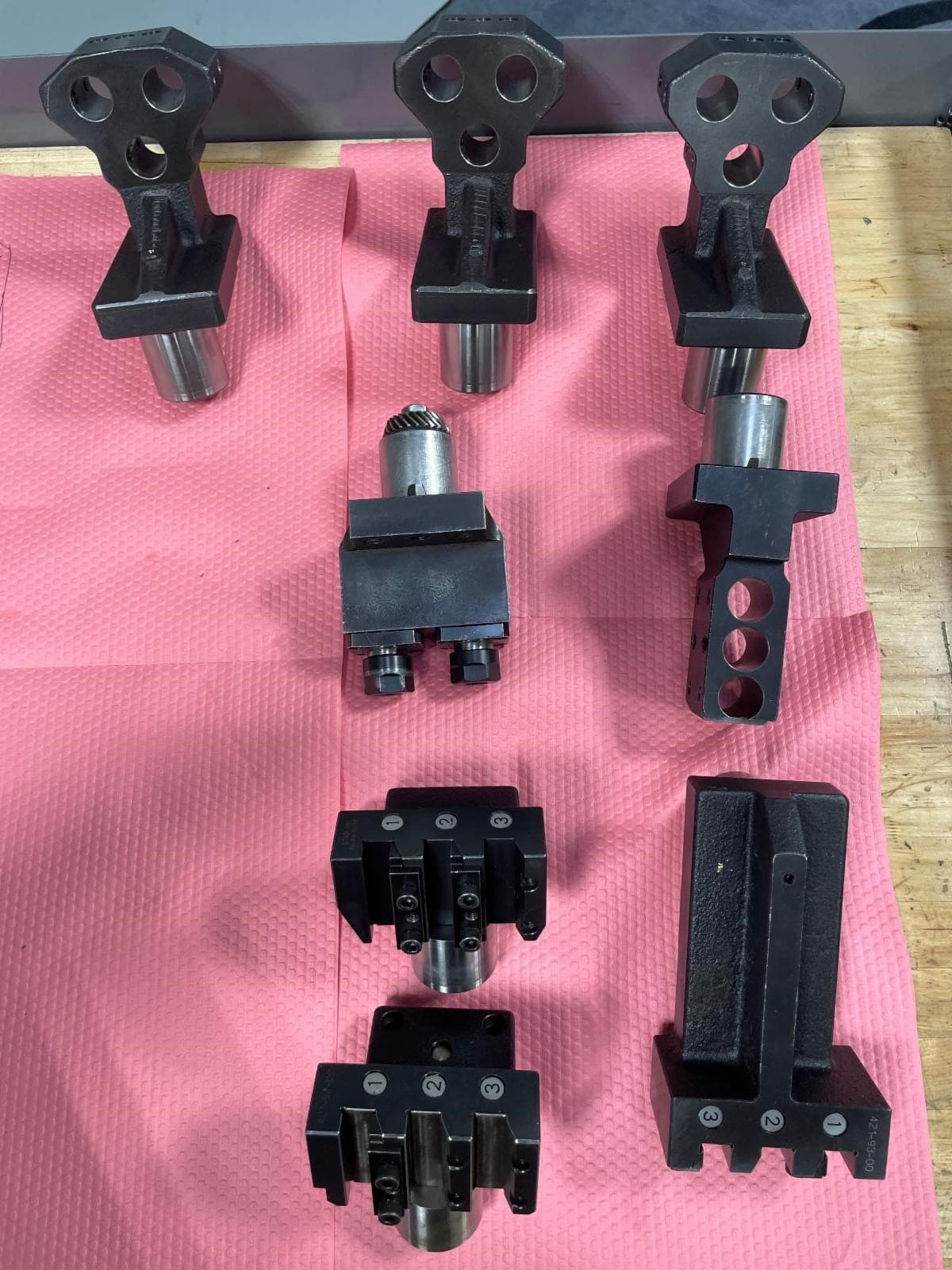

Tool Presetter and Drill Holders
Available Misc Tooling
