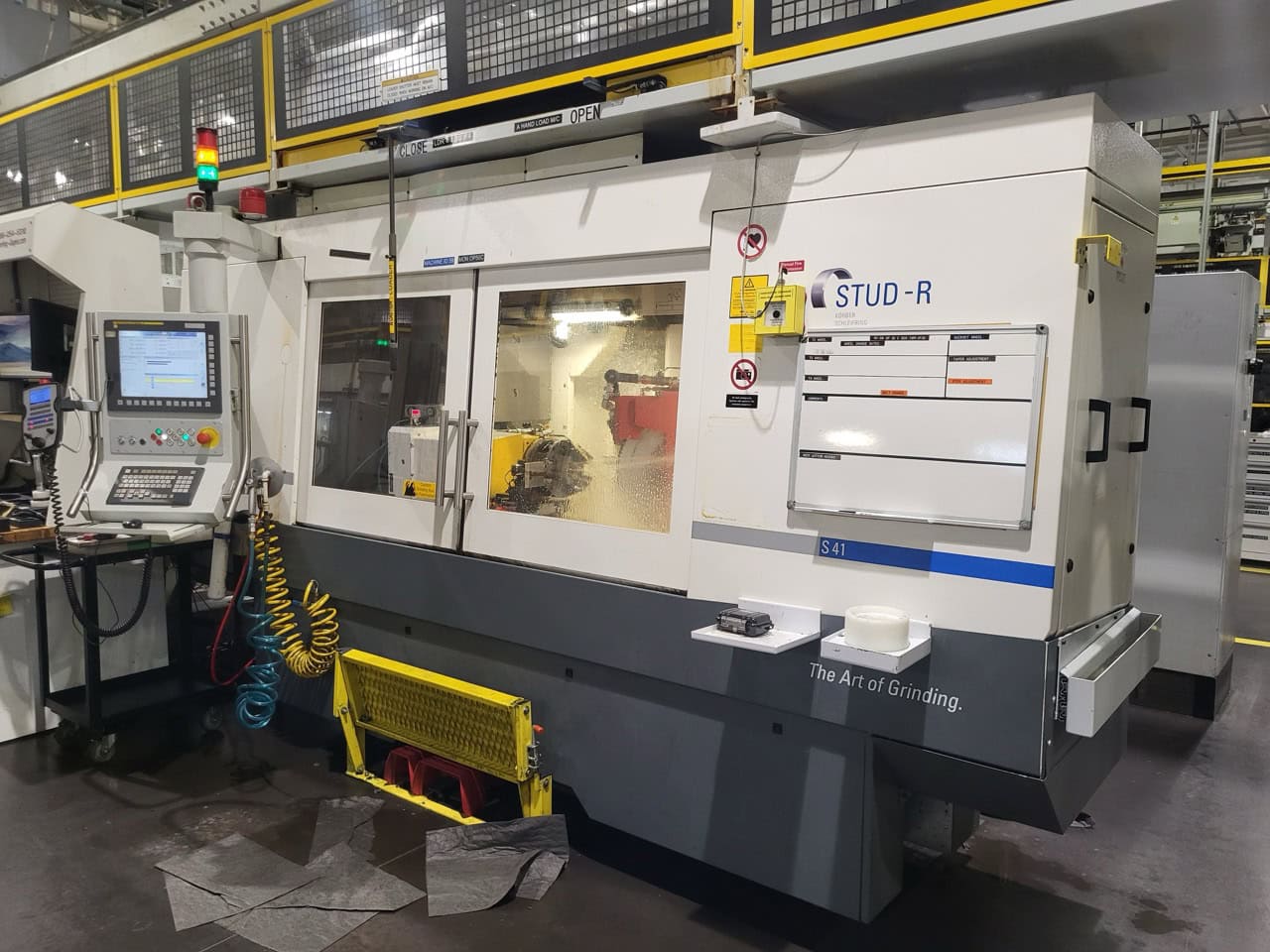

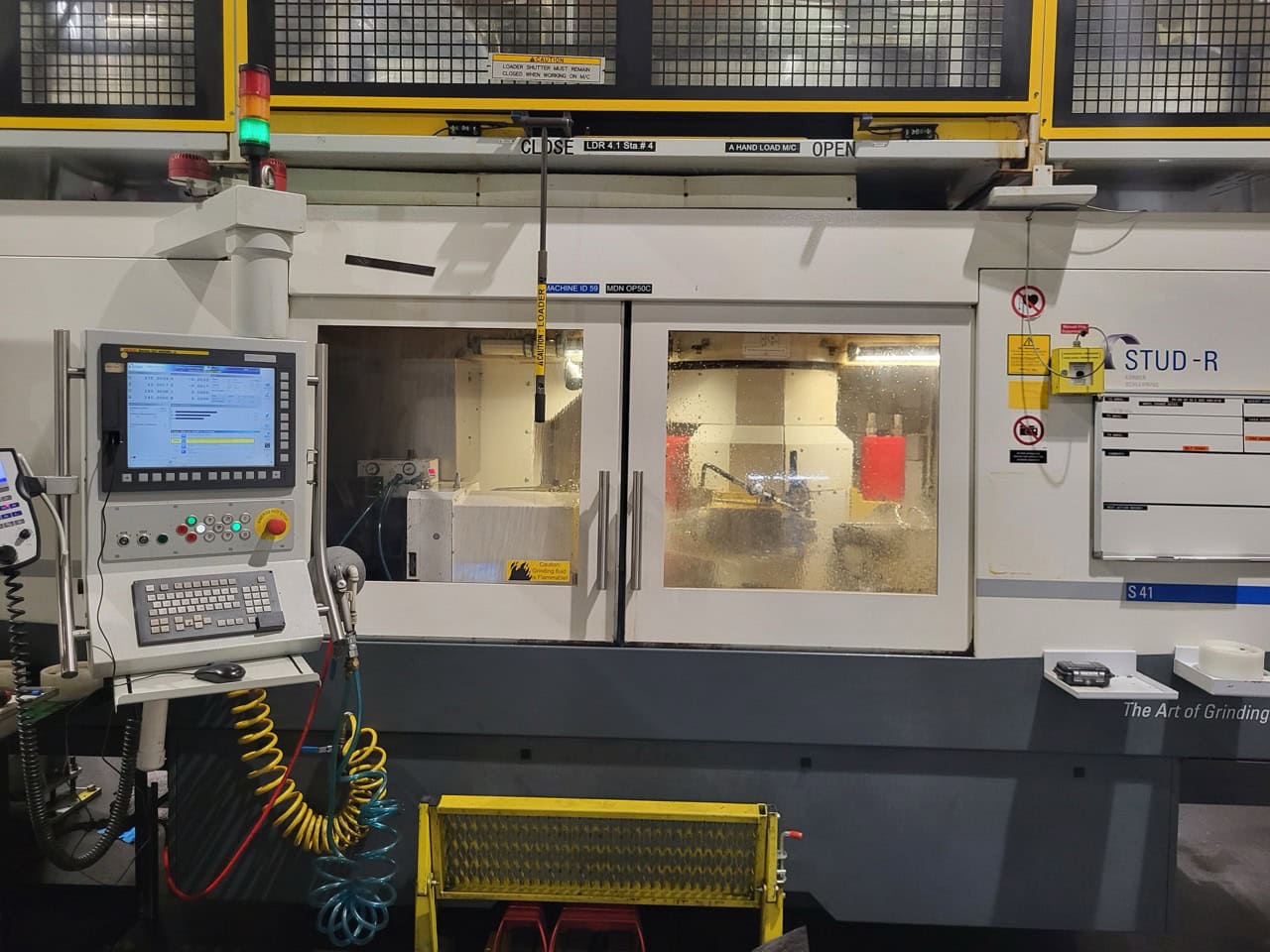

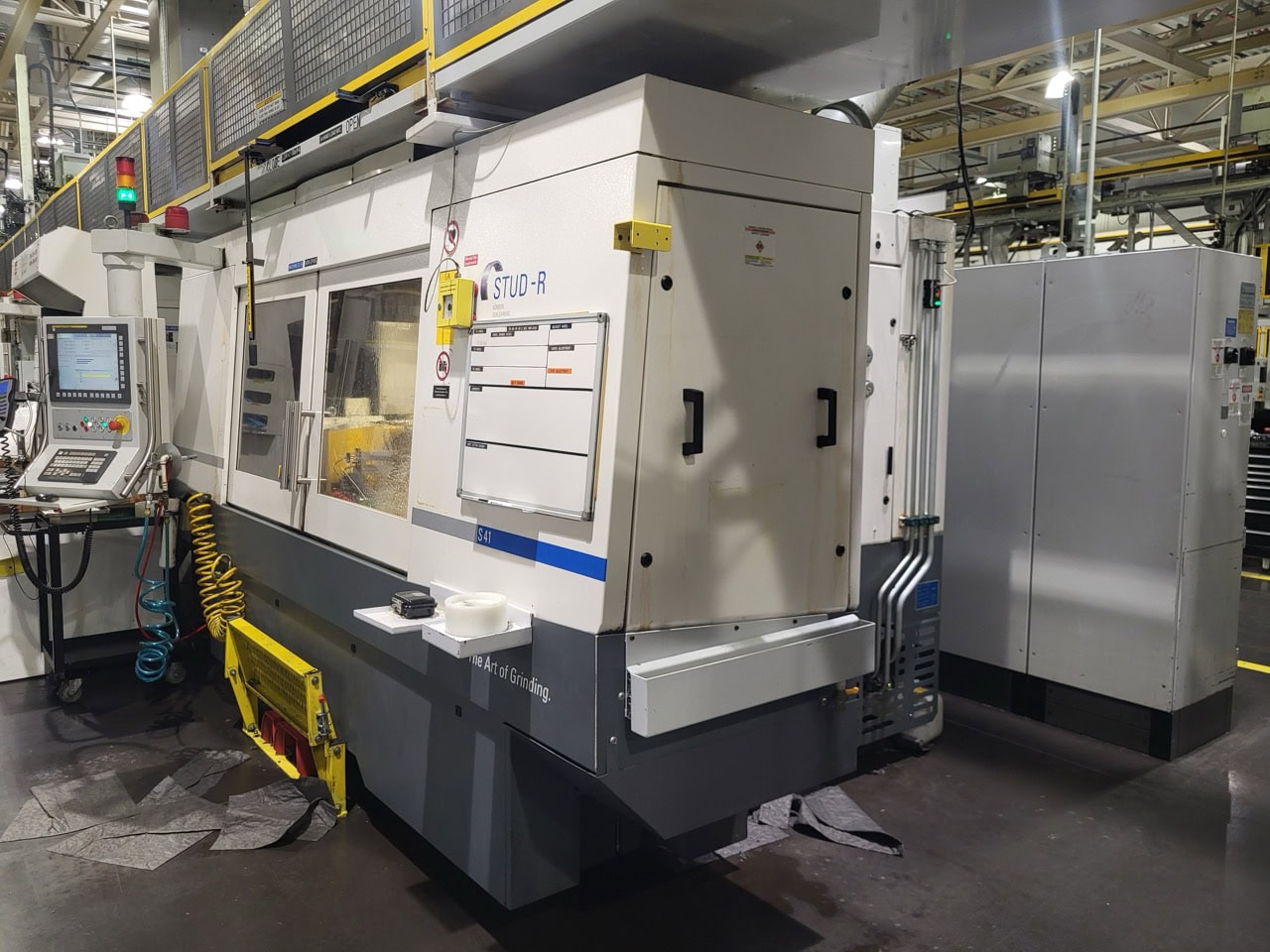

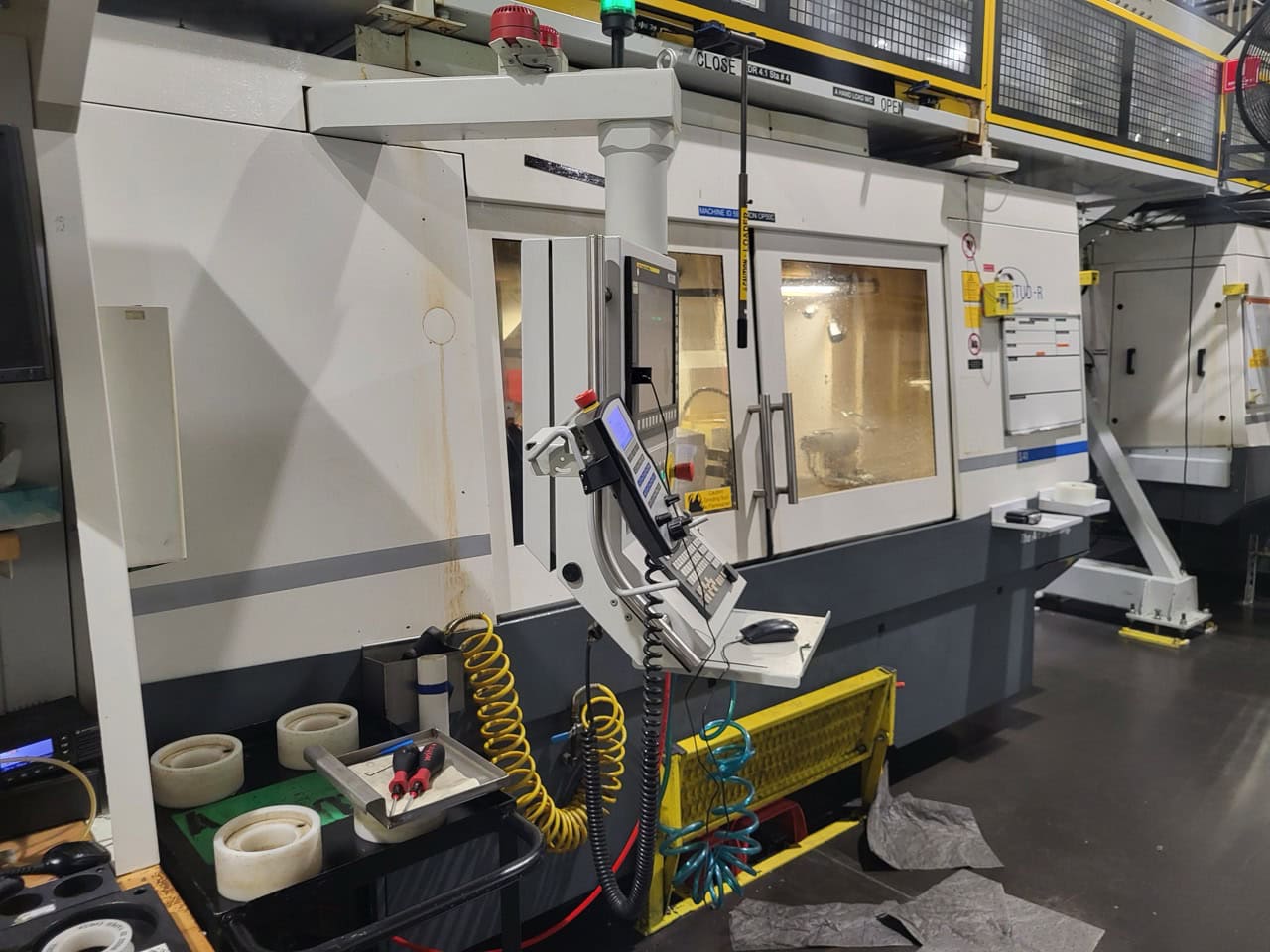

Studer S41 CNC Universal Cylindrical Grinding Machine, 2013
$299,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity:
Distance Between Centers : 1600mm (63โณ)
Center Height : 225mm (8.86โณ)
Weight Between Centers : 250kg (551 lbs)
Strokes (Z/X) : 1.750 x 350mm (68.9โณ x 13.78โณ)
Feeds Max. (Z/X) : 20.000 mm/min (787 ipm)

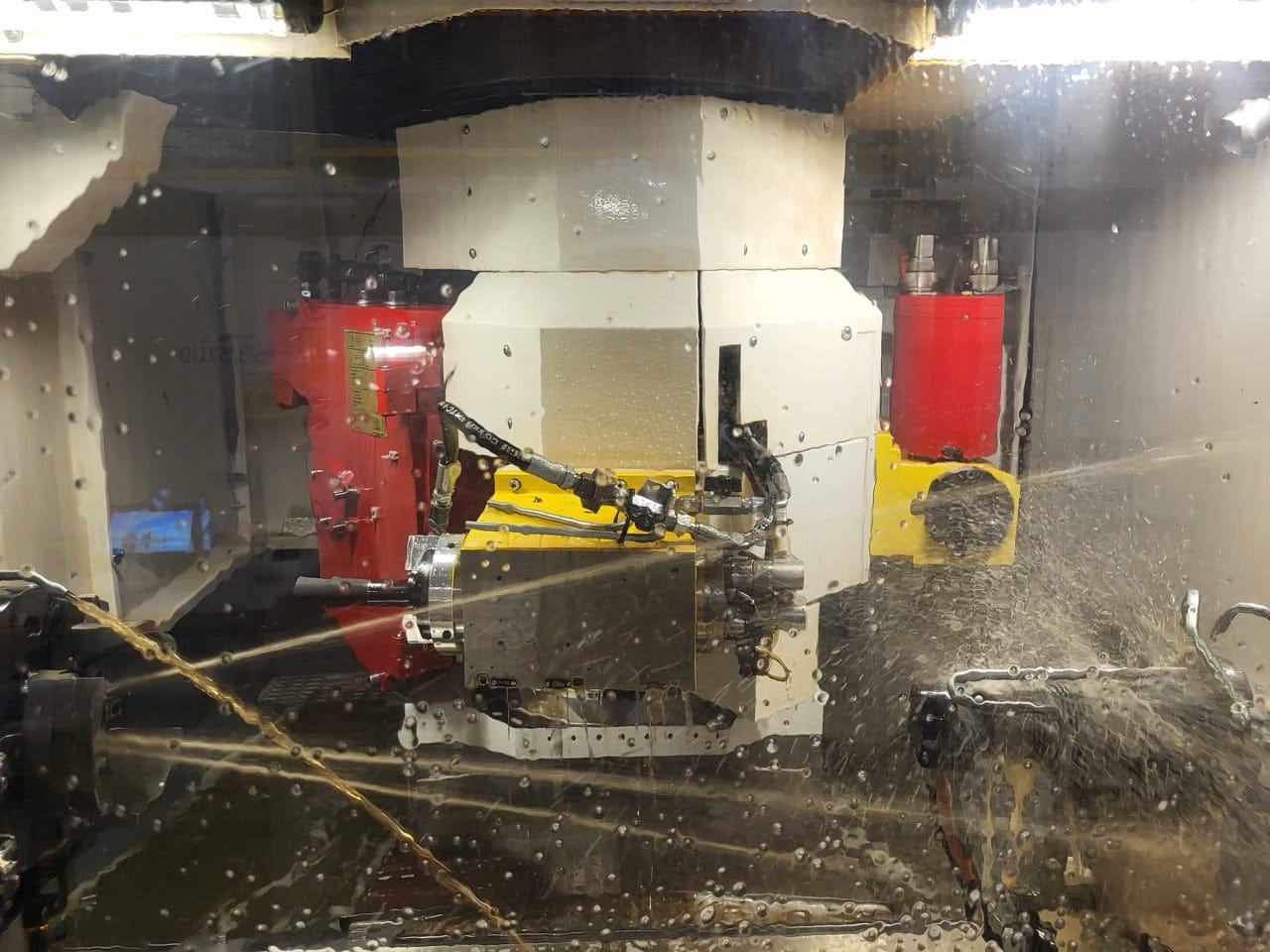

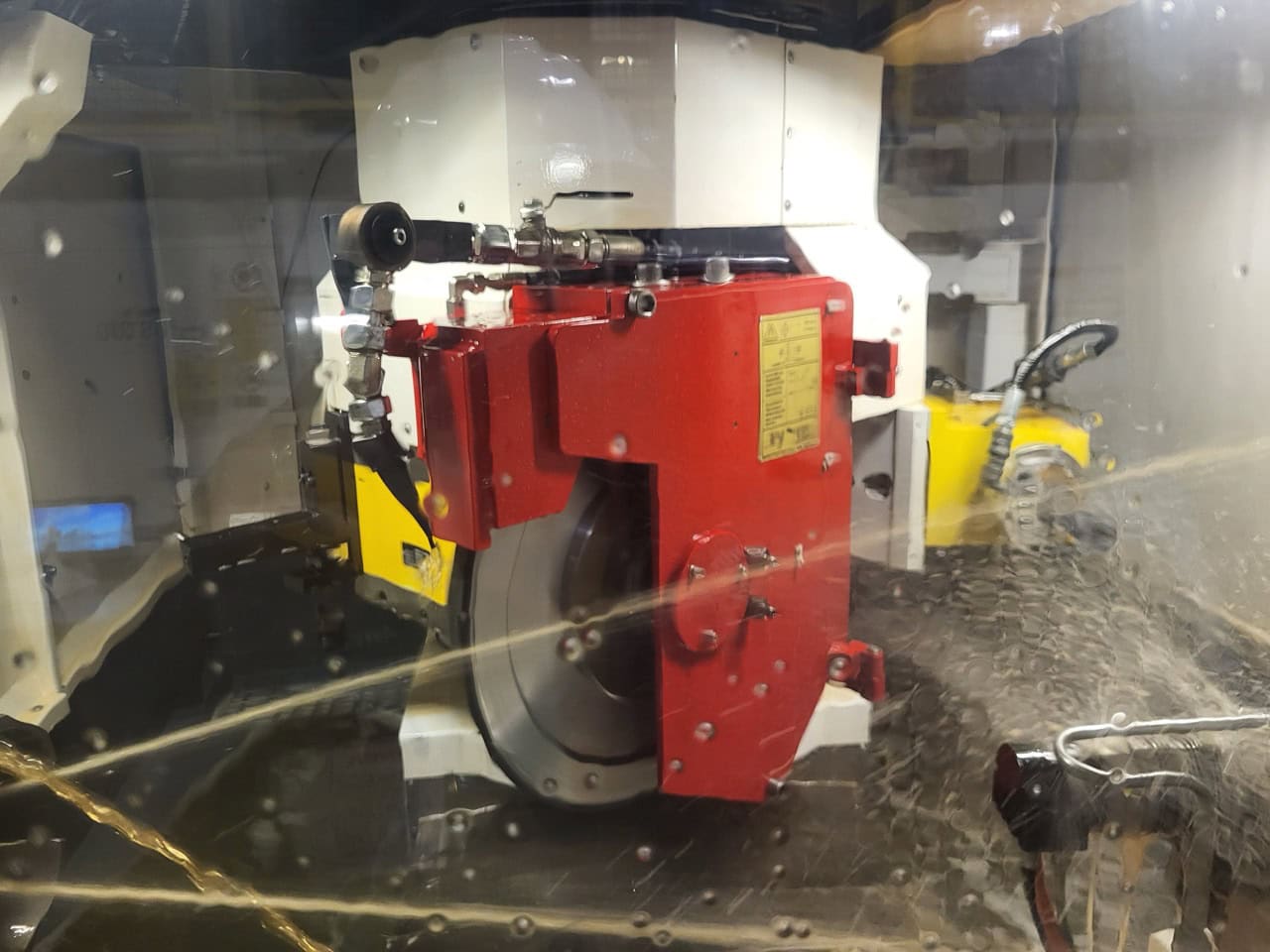

Wheelhead:
Type : 2 OD wheels (left/right), 2 ID spindles
Stroke B-Axis : -45ยฐ / +225ยฐ
Indexing Precision B-Axis : 0,001ยฐ
Wheel Dimensions (ร x width x bore) T1 : 500 x 80 x 203 mm (19.69โณx3.15โณx7.99โณ)
Wheel Dimensions (ร x width x bore) T2 : 500 x 80 x 203 mm (19.69โณx3.15โณx7.99โณ)
Motor Power : 15 kW (20 hp)
Wheel Speeds : 750 โ 4.500 rpm

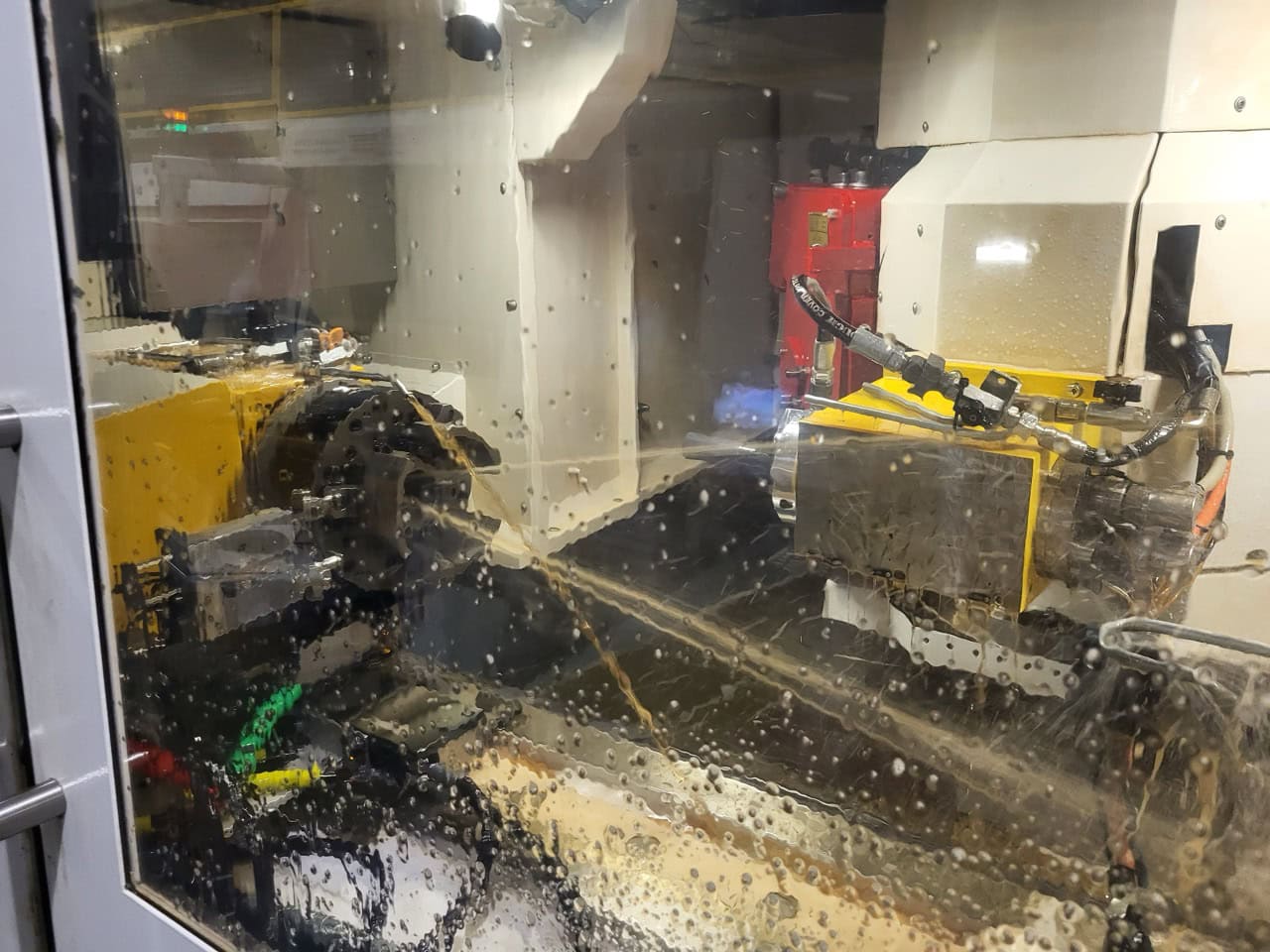

Workhead:
Type : direct drive
Type of Cone: ISO 50
Speeds : 1 โ 1.500 rpm
Power : 10 kW (13 hp)
Tailstock:
Type of Cone: MT4
Quill Stroke : 80mm (3.15โณ)
Dimensions:
Floor Space : 5.200 x 3.800 mm (204.7โณx149.6โณ)
Height : 2.107 mm (82.96โณ)
โ weight : 10.200 kg (22.487 lbs)
Electrics:
Voltage : 400 V
Frequence : 50 Hz
Installed Power : 30 kVA
