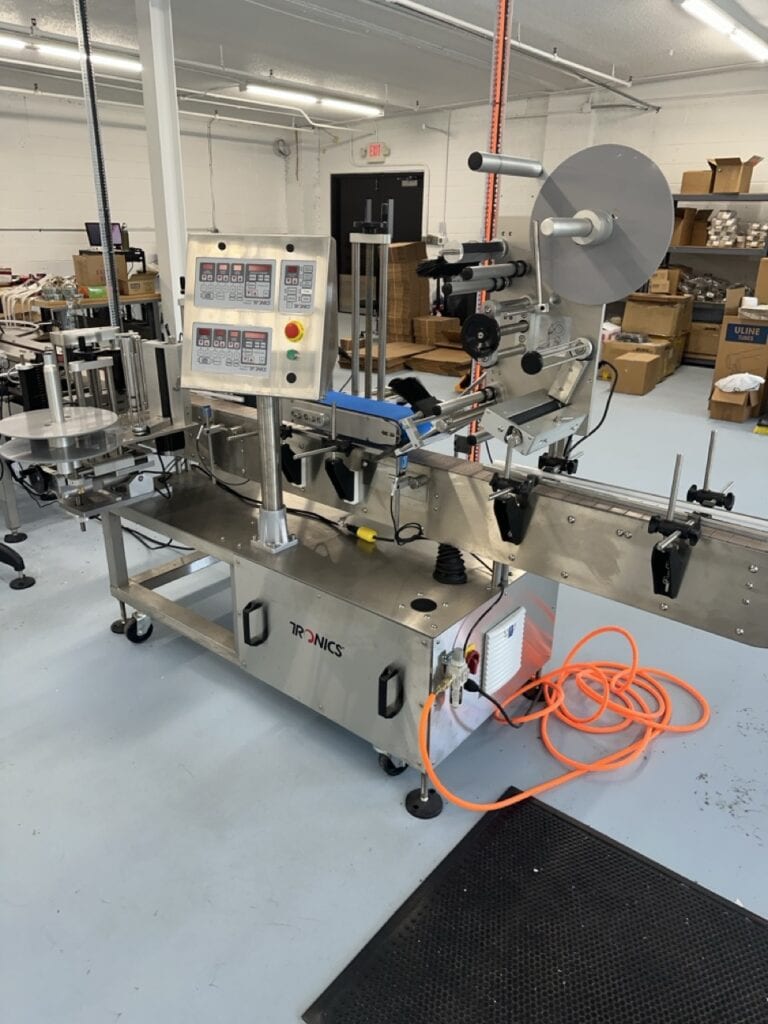

Tronics S30TP Wraparound and Top Labeler, 2018

Tronics S30TP Wraparound and Top Labeler, 2018:

– Speed – 1,200 inches of label per minute
– Accuracy – Up to + or – 1/32nd of label placement accuracy (This is exclusive of variations of the product and label.)
– Weight – Approximately 1,200 pounds depending on configuration.
– Electrical – Standard 110v, single phase, 50-60hz, 20amps

Label Size:
– Min. 1⁄2” x 1⁄2”
– Max: 12″ wide label web x 39″ length label (this is an upgraded option, the standard S30 has a maximum 9″ wide label web)

S3O Labeler Dimensions:
– Overall Length with Conveyor – 9 foot 10 inches or 3,000 millimeters
– Maximum Depth – 5 foot 5 inches or 1,648 millimeters
– Maximum Height – 5 foot 1 inch or 1,554 millimeters
