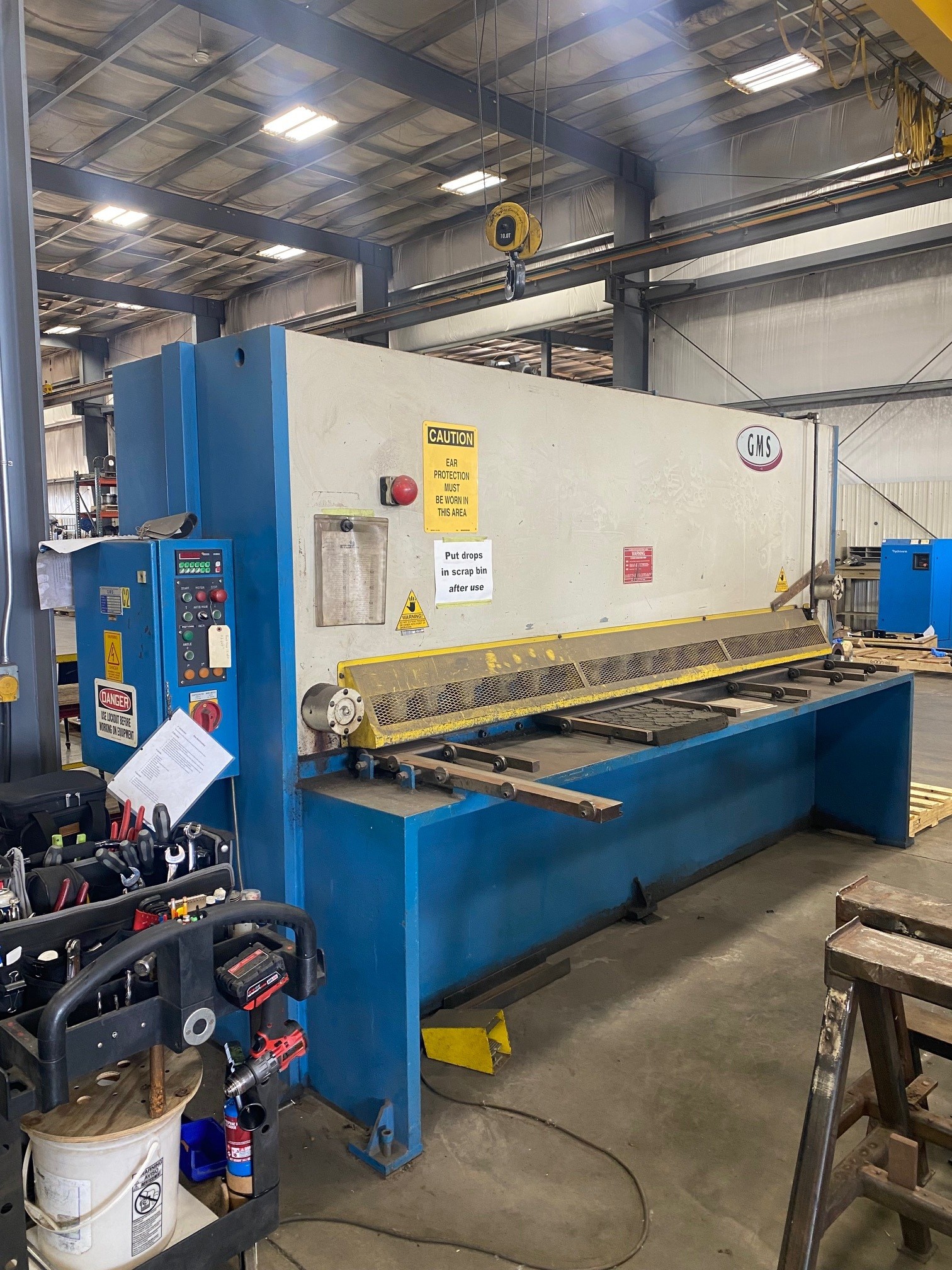

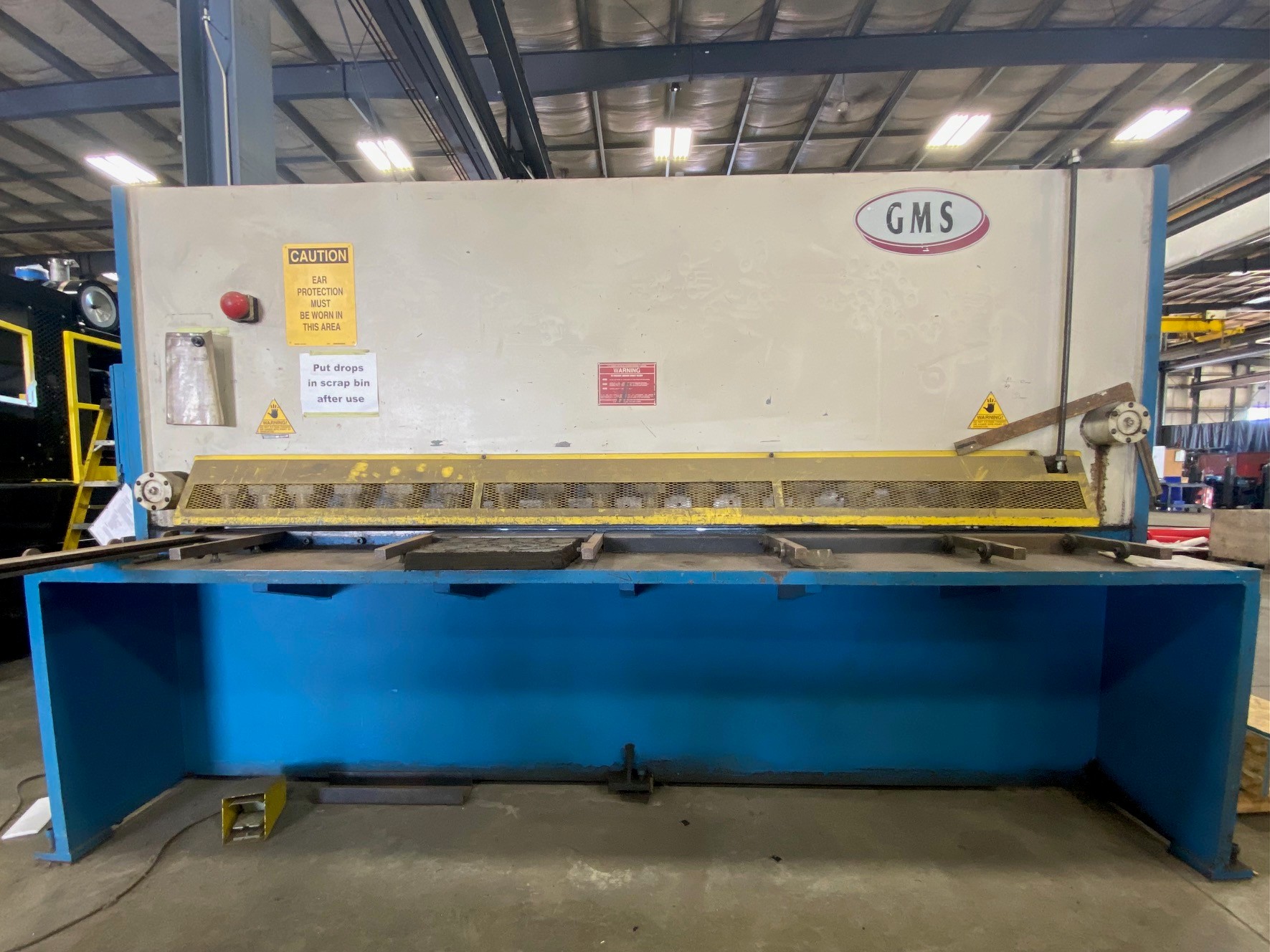

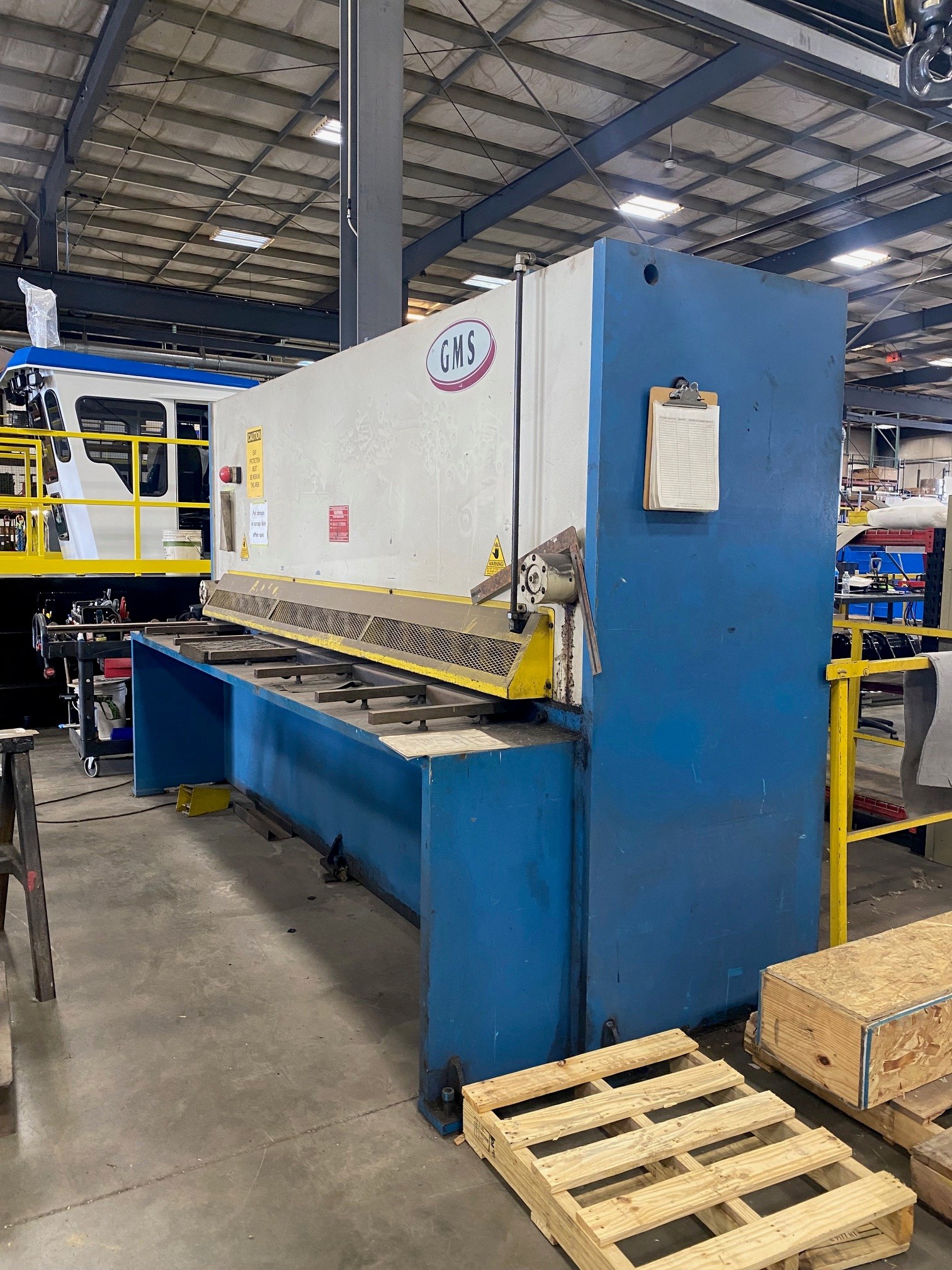

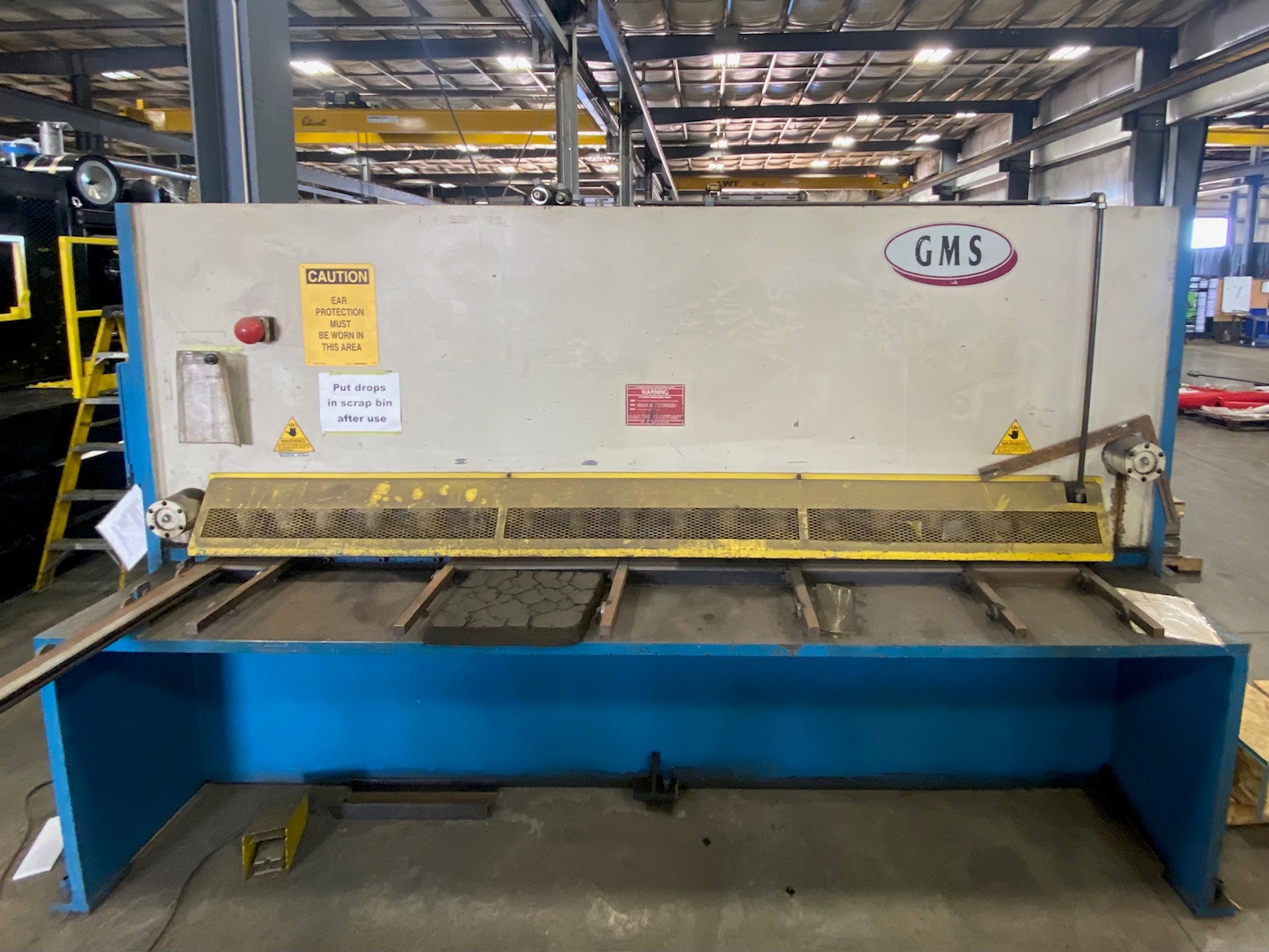

1/2″ x 10′ GMS GMV 3013 Hydraulic Guillotine Shear, 2002 – Backgauge

Cutting Capacity (400 N/mm²): 1/2″
Cutting Length: 120.1″
Variable Cutting Angle: 1°–3°
No. of Plate Holders: 18 pcs
Strokes per Minute (SPM): 5–9
Backgauge Stroke: 31″
Motor: 30 HP
Oil Tank: 45 Gal
Electric: 220V, 60 Hz
Weight (Approx): 20,900 lbs
Working Height: 38.4″
Overall Height: 94″
Overall Width: 72″
Overall Length: 151″

Equipped With
– PGP 401 Single Axis NC Controller

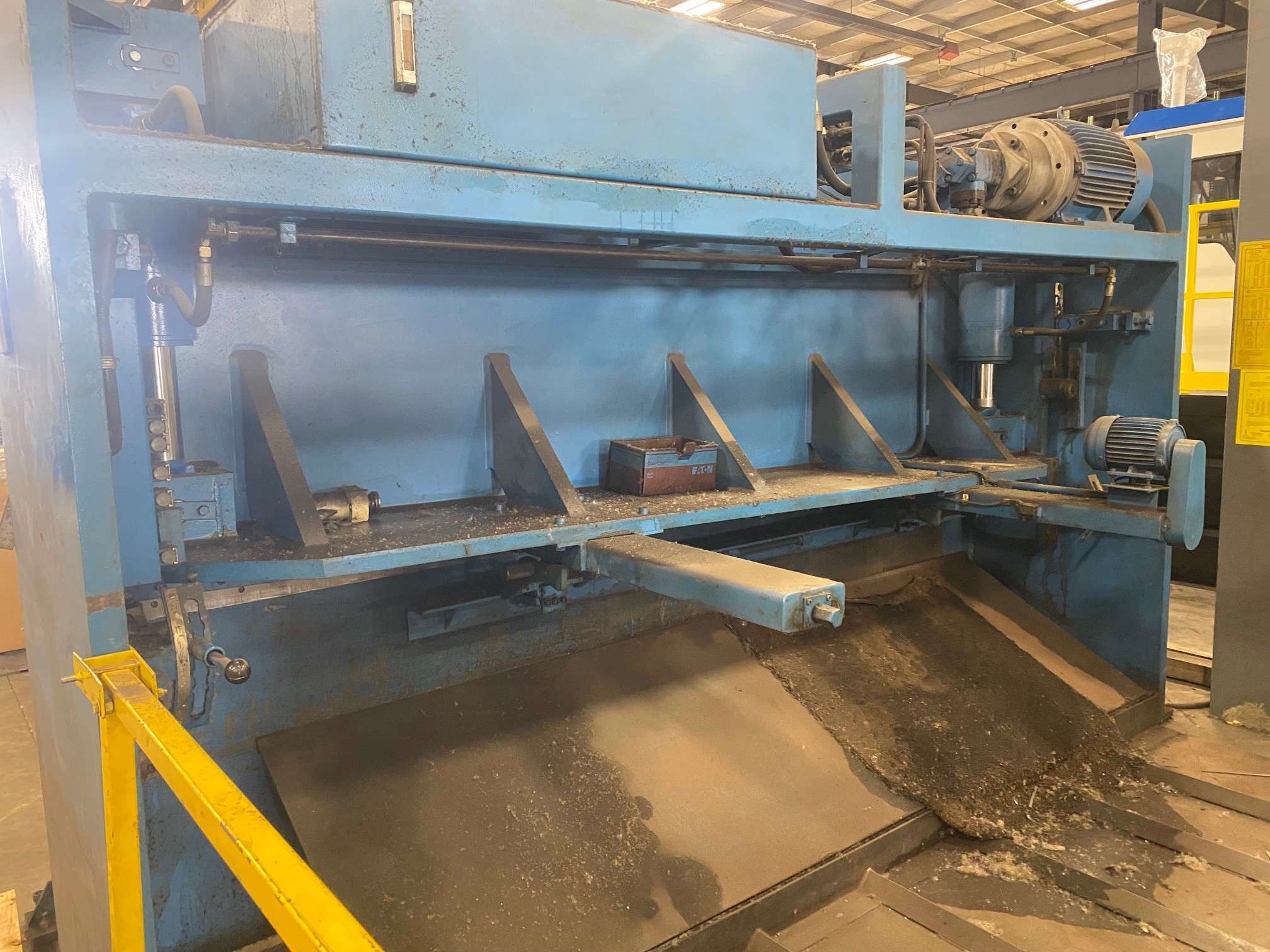

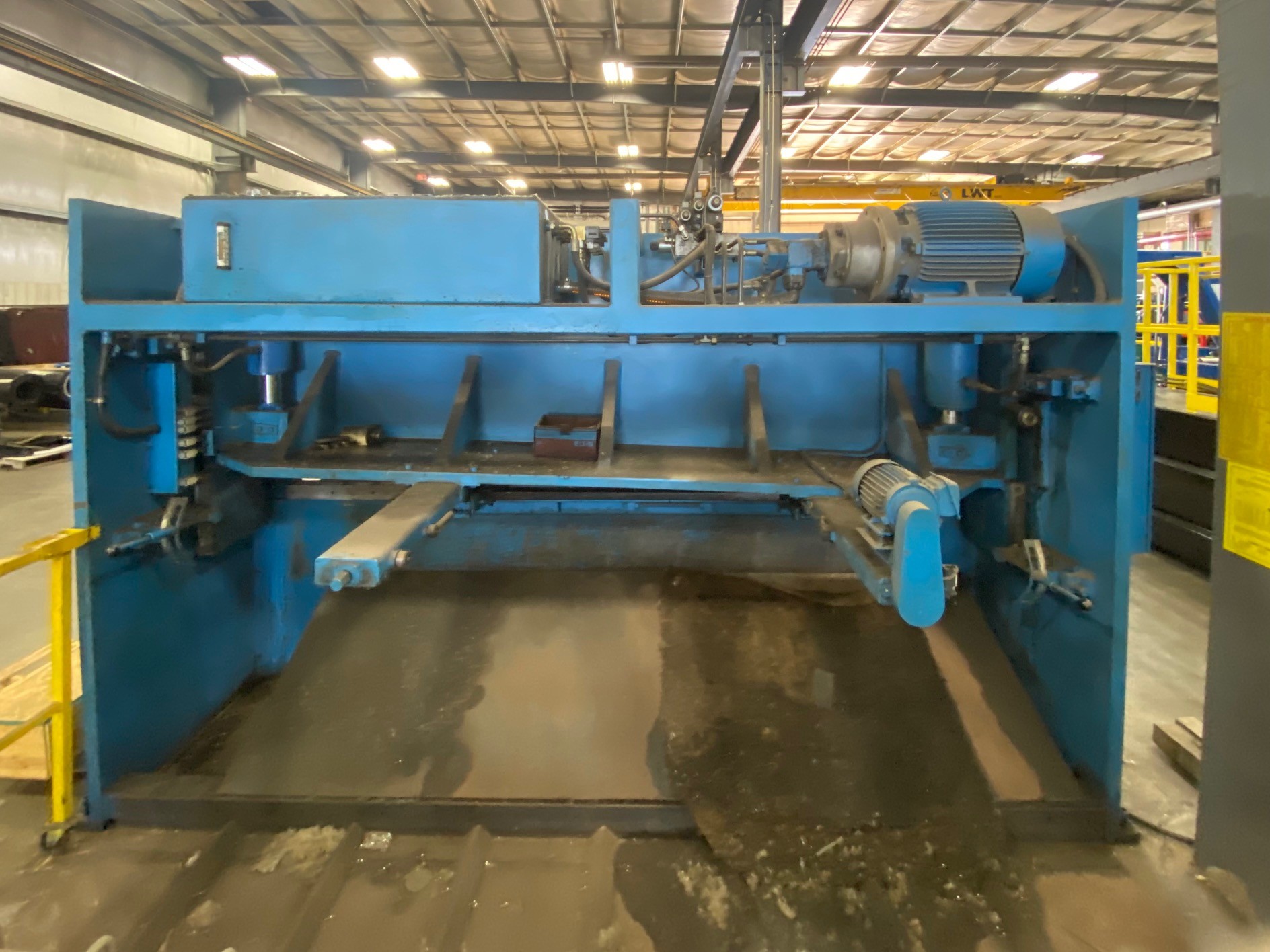

– Backgauge
– Foot Pedal Control
