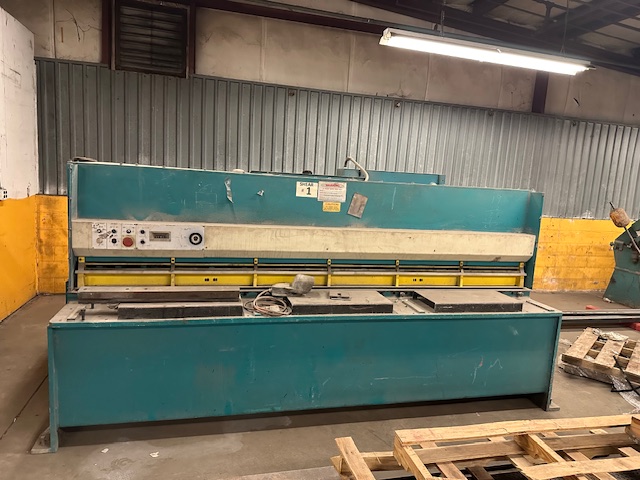

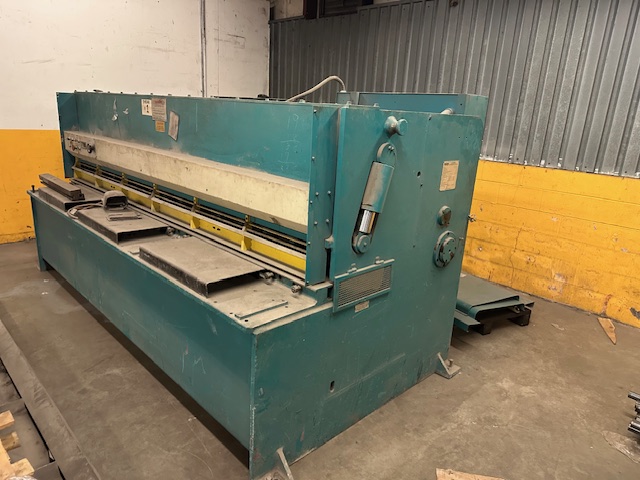

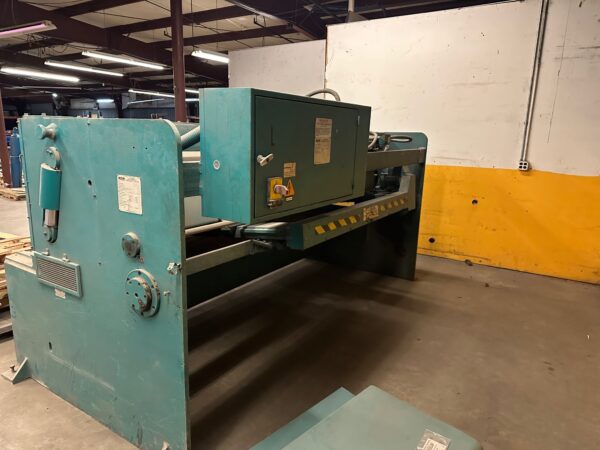

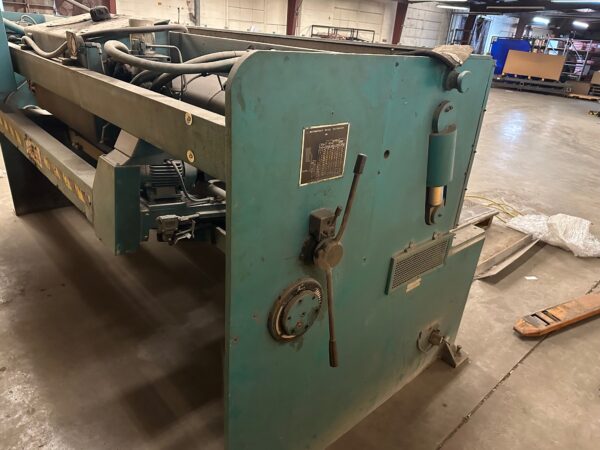

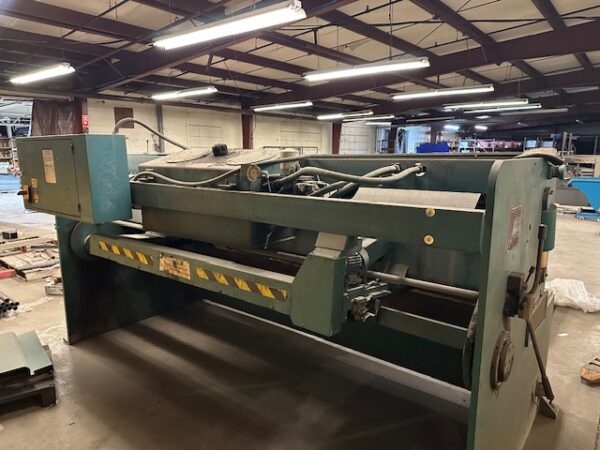

1/4″ x 10″ Adira GHS-0630 Hydraulic Power Squaring Shear, 1999 – Backgauge, Squaring Arm

Maximum Cutting Thickness: 1/4″
Maximum Cutting Length: 120″
Back Gauge Depth: 29″
Number Of Hydraulic Holddowns: 16
Blade size: 0.25″ x 2.5″ x 122″
Throat Depth: 12″
Table Height: 34″
Rake Angle, Fixed: 1-1/4 Deg
Gap adjustment(12): .002” – .043”
Main Motor: 12 HP
Electrics: 220/440 V, 3 PH
Electrics, As currently Wired: 440 V, 3 PH
Approx. Dimensions, No Arms: 140” x 68” x 69”
Approx. Weight: 12,350 lbs

EQUIPPED WITH:

Adiramatic 2011 Self Positioning Back Gauge Control Readout
40″ Back Gauge with LED
Squaring Arm
Adjustable Stroke Length
Infinitely Variable Blade Gap Adjustment
Flush Floor (No Pit)
