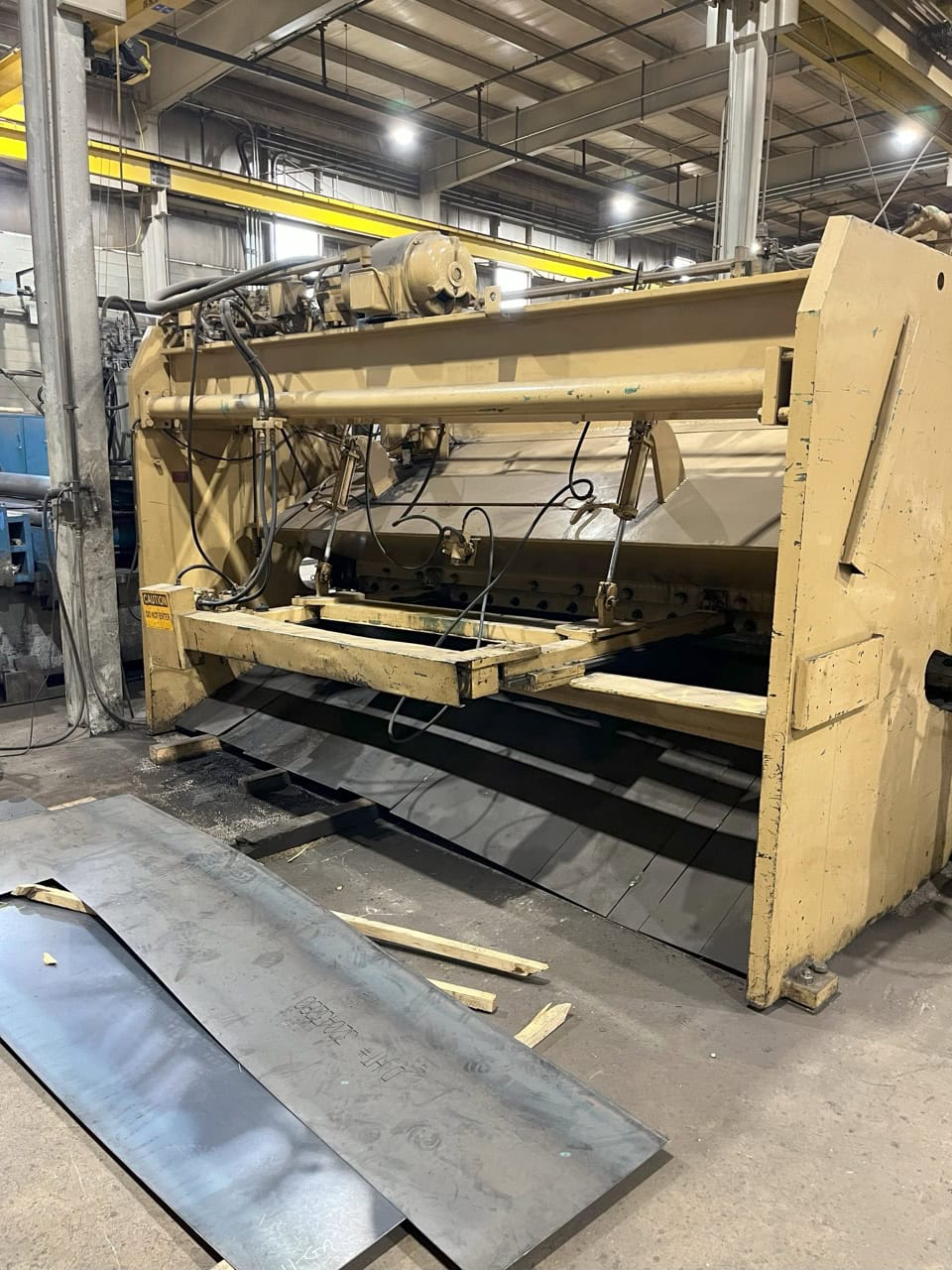

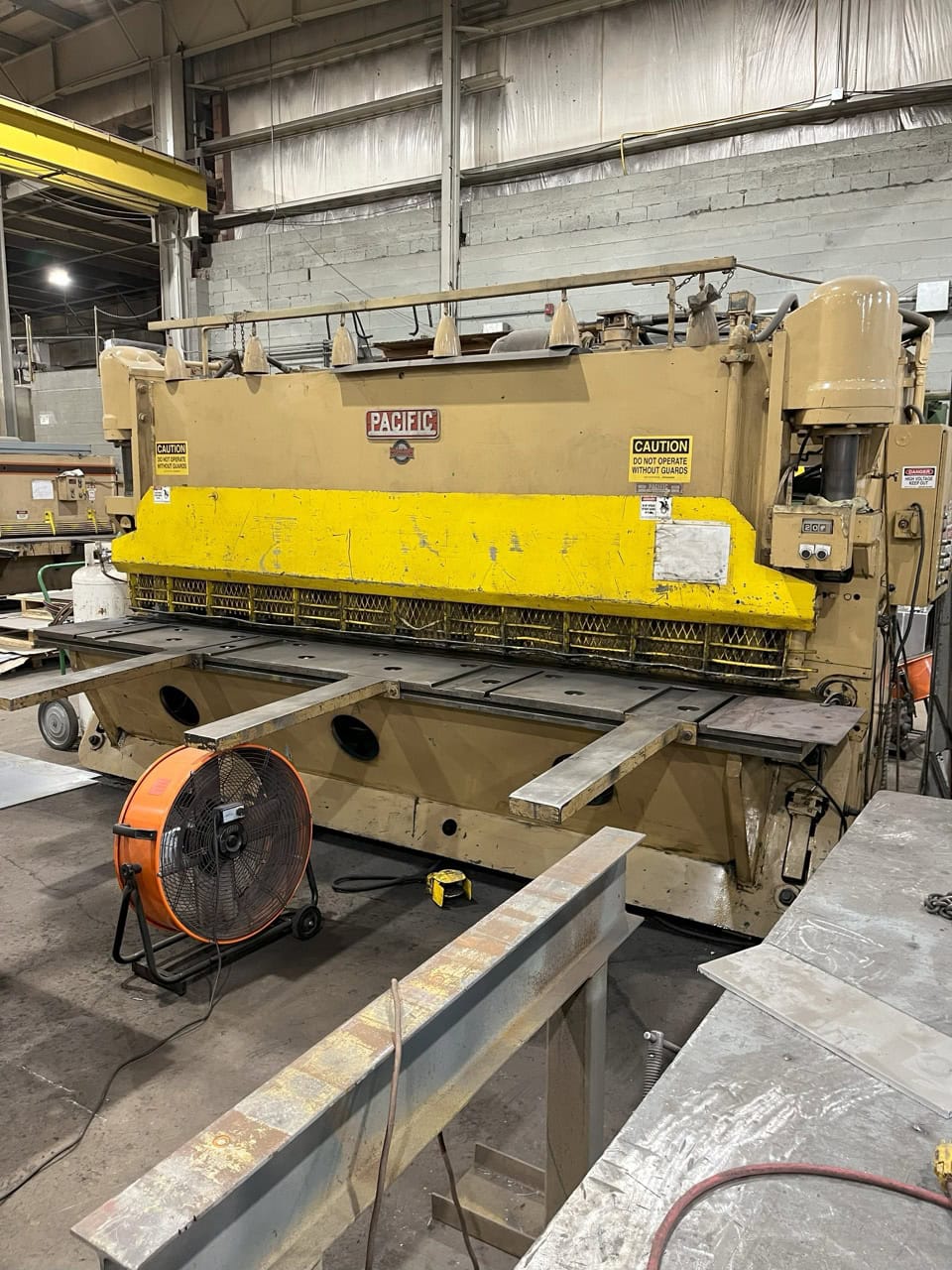

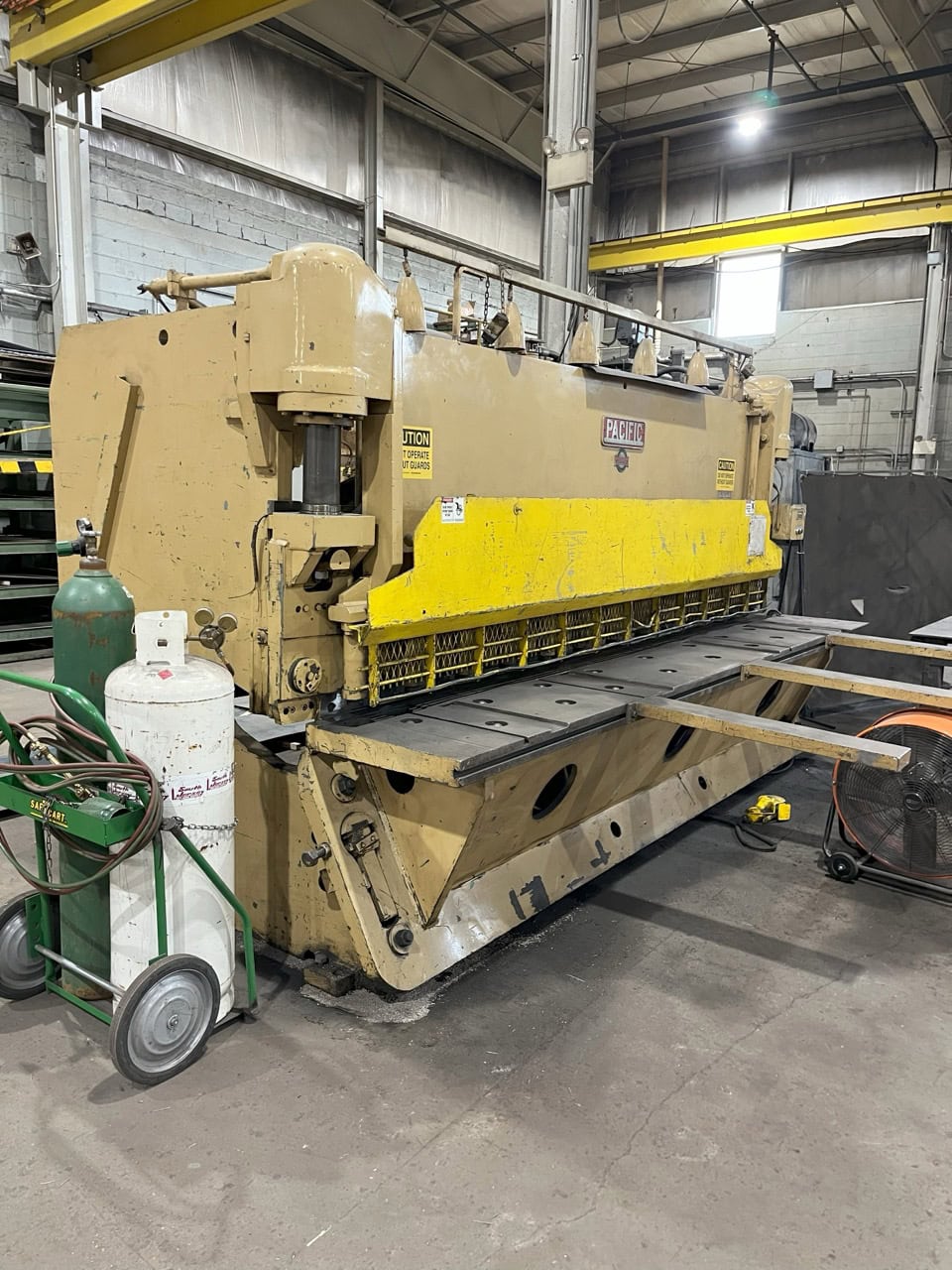

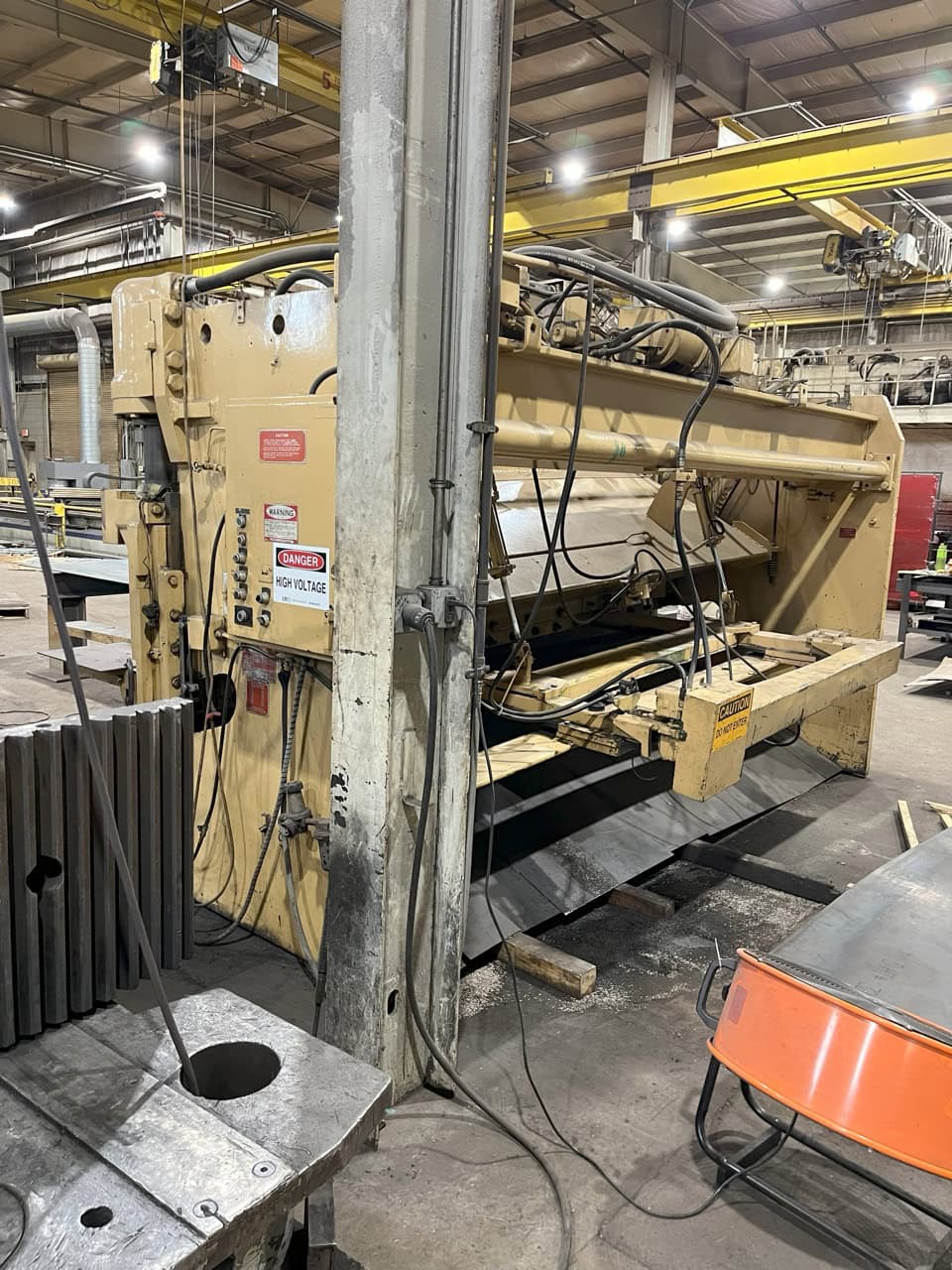

3/8” x 12’ Pacific Model 375R12 Hydraulic Power Squaring Shear, 1980

Rated Rake Angle: 5/16″/FT
Capacity @ Rated Rake (MS): 3/8″ X 12′
Max Rake Angle: 1/2″/FT
Capacity @ Max Rake (MS): 1/2″ X 12′
Distance Between Housings: 12’3″
Knife Size: 1″ X 4″ X 148″
Back Gauge Range: 36″
Hold Down Tonnage: 32
Strokes Per Minute: 14.5 – 42 SPM
Motor Horsepower: 25 HP
Approximate Overall Weight: 39,000 Lbs.

Equipped With:
Foot Pedal
Front-Operated Power Backgauge
