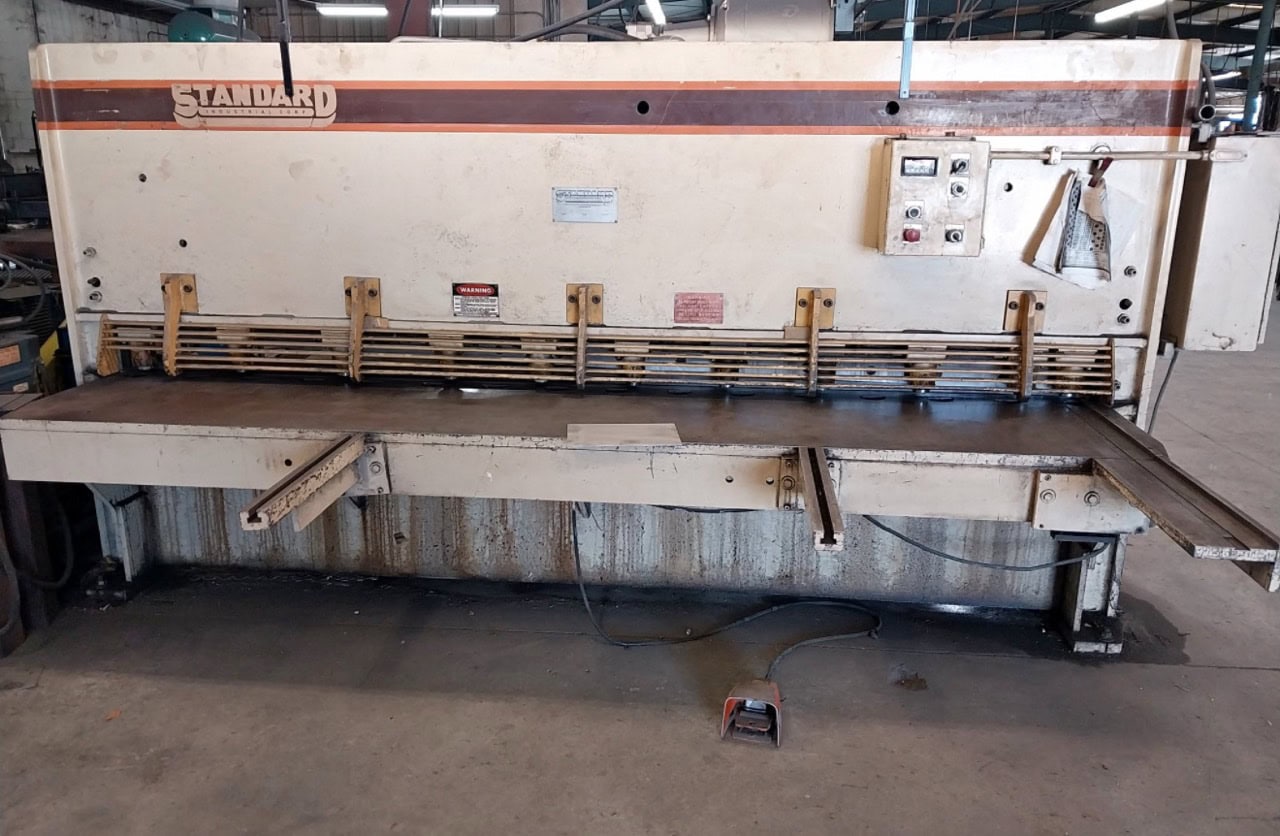

1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993
1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993 - Image 2
1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993 - Image 3
TK
38465370662

1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993

$19,900.00

1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993
1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993 - Image 2
1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993 - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Shears
Make: Standard
Model: AS250-10
Year: 1993
Capacity: 0.25” x 10‘
Machine Location: Florida
Stock #: 370662

Capacity: 1/4″ x 10′
Available Shearing Force: 36 tons
Hold Downs: 11 cylinders
Hold-Down Force: 31 tons total
Blade Size: 1″ × 3″ × 124″
Rake Angle: 0.25″ per foot (≈ 3° rake)
Ram Speed: 110 IPM (down), 173 IPM (up)
Strokes Per Minute: 16 full‑width strokes; 36 at 12″ width
Motor Power: 20 HP

Equipped with:
Adjustable blade gap
squaring arm
Powered back Gauge

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
