10′ x 60′ Lone star Commander III CNC Plasma Oxygen Fuel System, Water Jet Pipe Cutting and Steel Beam Machine, 2020

$359,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Plasmas
Make: Lone Star
Model: Commander 3
Year: 2020
Capacity: 10‘ x 60‘
Machine Location: Upon Request
Stock #: 528179

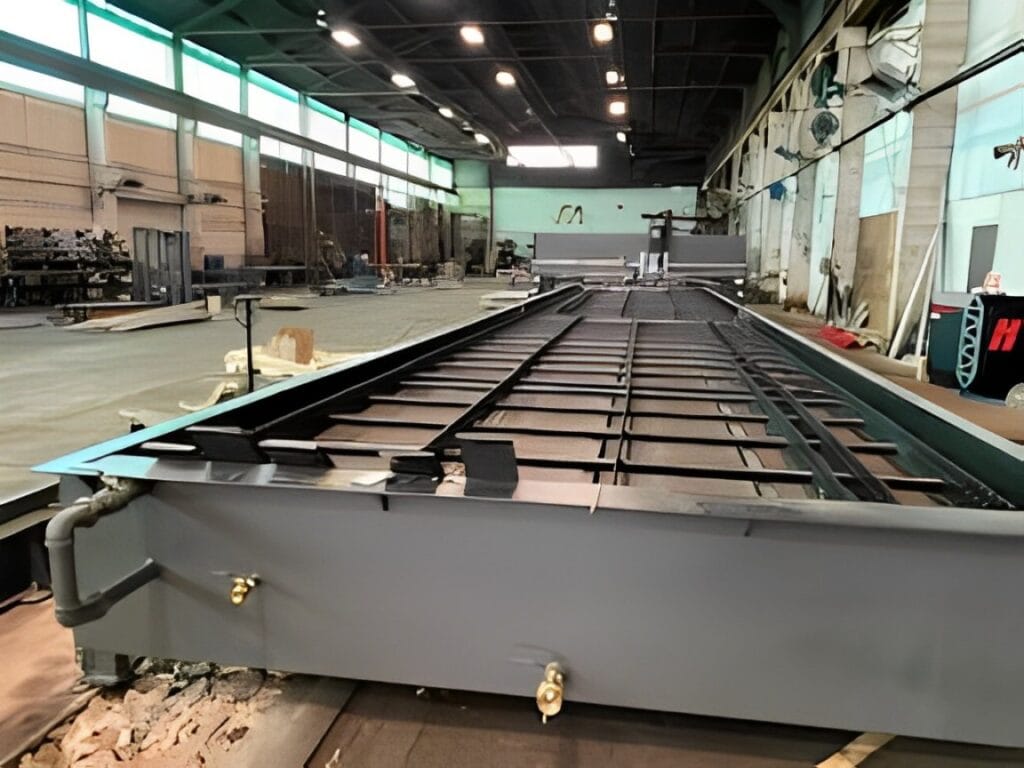

60FT CRANE RAIL, SINGLE ZONE WATER TABLE.
HYPERTHERM EDGE CONNECT TC CNC AND SOFTWARE, HYPERTHERM SENSOR TORCH W/LIFTER AND XPR170 PLASMA SYSTEM VWI.
PRONEST PLASMA PKG.
MANUAL BEVEL HEAD FOR PLASMA STATION AND MAX 100CO DRILL PKG.

Effective cutting width: 10 ft. 11 inches
Distance between inside main H-Beam to inside Subordinate H-Beam: 14ft. 11 inches
Table Size 10′ x 60′
Max Thickness Cut:
Mild steel (argon assist) 1-9/16โ€ณ (40 mm)
Mild steel (standard air) 1-3/8โ€ณ (35 mm)
Stainless steel 7/8โ€ณ (22 mm)
Aluminum 1โ€ณ (25 mm)
Rapid Traverse Speed: 1500 ipm
Max Number of Plasma Stations: 3
Max number of oxy fuel other other tools: 5
Voltage: 110V 20A, 120V 20A, 230V 15 A

Machine Upgrades include: Pneumatic braking system, holds machine still while in the drilling process Upgrades machine to 35mm HiWin linear bearings and rails on all axes
Upgraded gantry to double beam construction. Beams have antivibration foam inside Upgrades the motors to 1.75KW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
