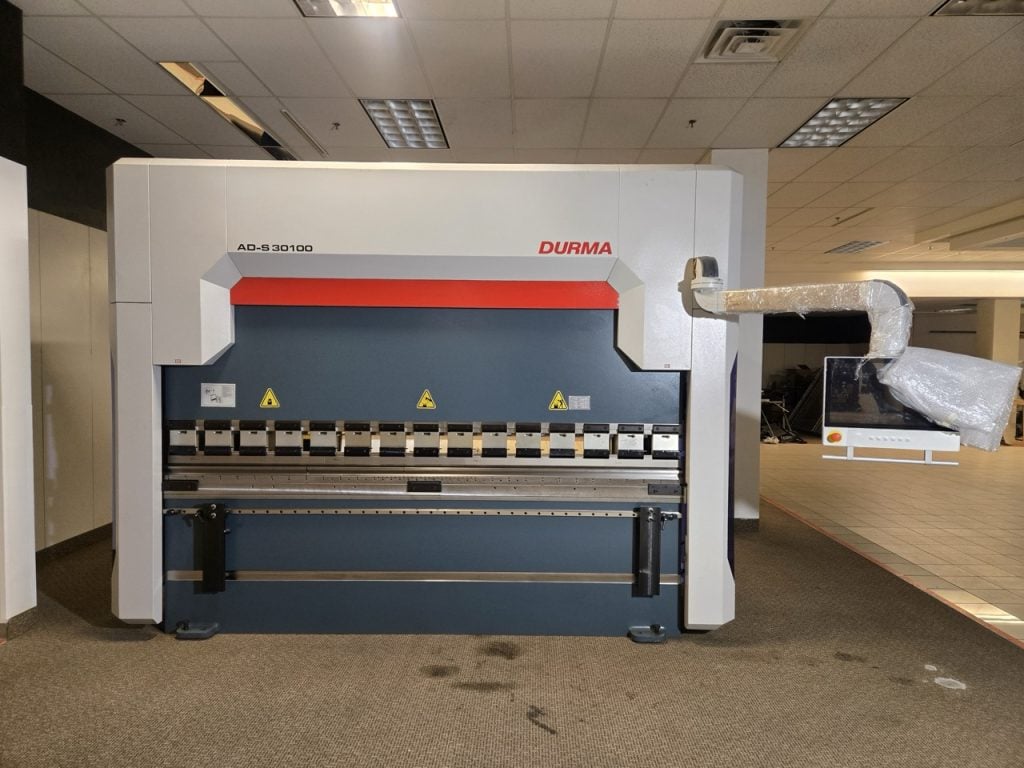

110 Ton x 10′ Durma AD-S 30100 Hydraulic Press Brake, 2022 – 4 Axis Backgauge

Bending Force: 110 Tons
Bending Length: 120.08″
Distance Between Columns: 102.36″
Stroke: 10.43″
Y Rapid Speed: 0.39 in/sec
Daylight: 4.72″
Throat Depth: 16.14″
Y Working Speed: 0.43 in/sec
Y Return Speed: 5.91 in/sec
Motor Power: 15 HP
Length: 165.35″
Width: 65.75″
Height: 108.27″
Weight: 18,739 lbs

Equipped With:

Sky 22 Control Unit
4 Axis Backgauge (Y1, Y2, X, R)
European / universal Type Tool Holding System
Sliding Front Arms Slide on Full-Length Linear Slides with T-Channel & Locking
Motorized bending controlled via CNC Unit
