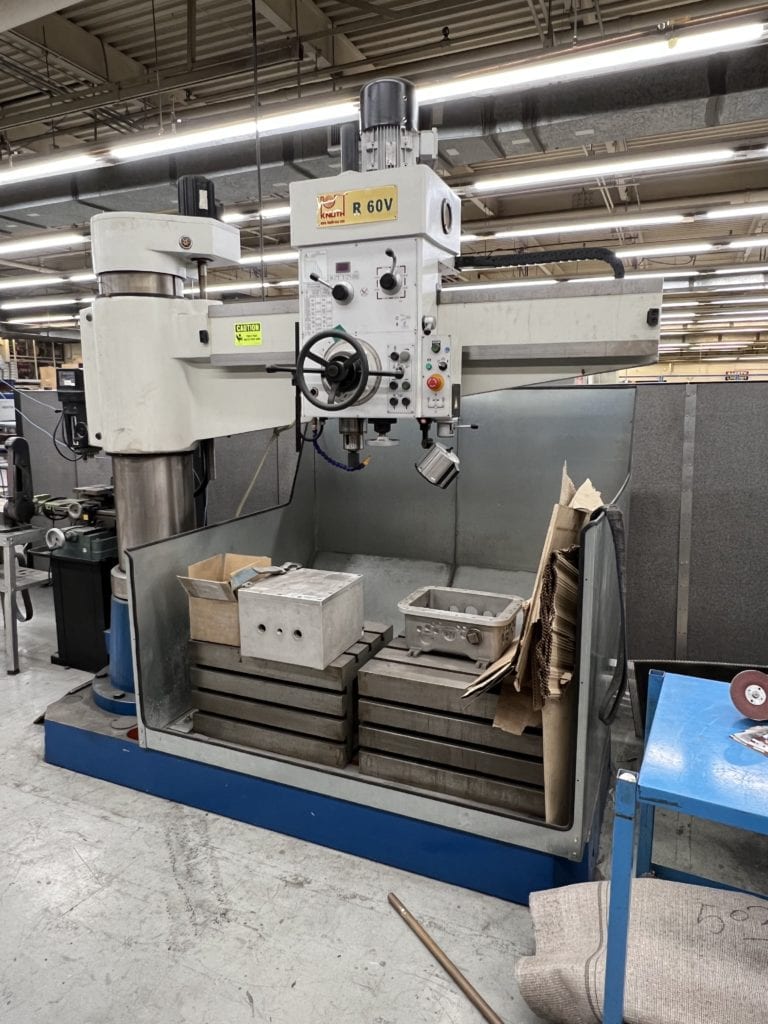

12″ Knuth R60V Radial Drill, 2014 – Tooling Available

Drilling Capacity: 2.44”
Tapping Capacity, Cast-Iron: M 52
Tapping Capacity, Steel: M 46
Drilling Depth (Max.): 12”
Throat: 14” – 63”
Spindle Nose-To-Table Surface Distance: 14” – 49”
Column Diameter: 14”
Machine Table Dimensions: 94” X 39” X 8”
Cube Table Dimensions: 30” X 20” X 20”
Arm Stroke (Vertical): 23”
Travels
Drill Head Travel (Horizontal): 49”
Headstock
Speed Range: 38 Rpm – 2000 Rpm
Spindle Mount: Mt 5
Feed
Feeds: 0”/R – 0.04”/R
Drive Capacity
Motor Rating Main Drive: 5.4 Hp
Stroke Motor: 2 Hp
Measures And Weights
Overall Dimensions (Length X Width X Height): 99” X 42” X 110”
Weight: 8,360 lbs.

Equipped With:
Tool Holders Available
Coolant System
LED Work Lamp
