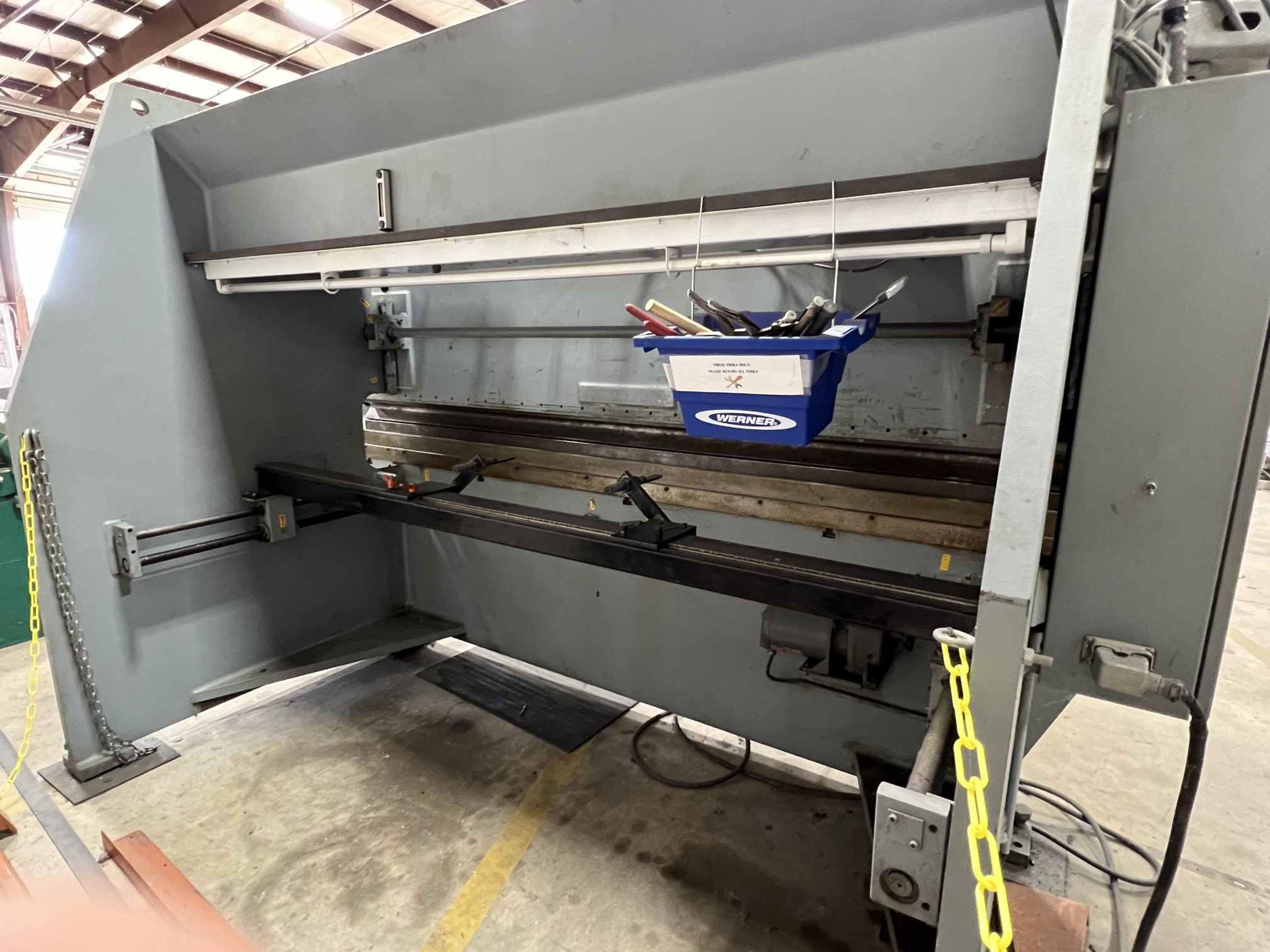

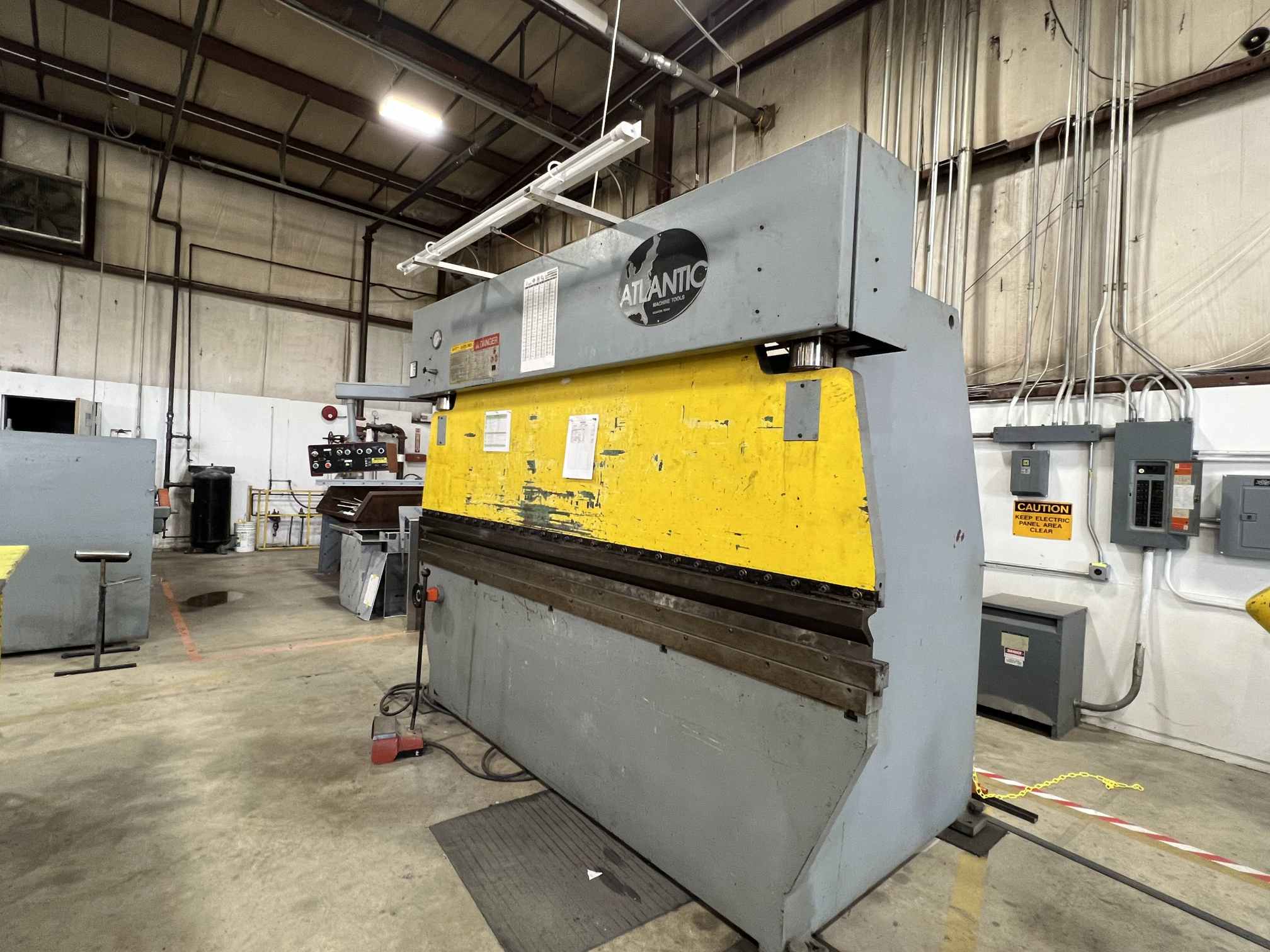

120 Ton X 10′ Atlantic HDE, Press Brake – Lots Of Tooling Included, Back-Gauge

$19,900.00

120 Ton X 10' Atlantic HDE, Press Brake
120 Ton X 10' Atlantic HDE, Press Brake
120 Ton X 10' Atlantic HDE, Press Brake
120 Ton X 10' Atlantic HDE, Press Brake
120 Ton X 10' Atlantic HDE, Press Brake
120 Ton X 10' Atlantic HDE, Press Brake
120 Ton X 10' Atlantic HDE, Press Brake
120 Ton X 10' Atlantic HDE, Press Brake
120 Ton X 10' Atlantic HDE, Press Brake

Request a Quote to Instantly See Pricing

Machine Type: Hydraulic Press Brakes
Make: Atlantic
Model: HDE
Year:
Capacity: 120 Ton x 10‘
Machine Location: New York
Stock #: 266139

Working Length: 122″
Capacity: 120 US Tons
Distance Between Side Frames: 102″
Gap: 9.84″
Open Height: 12.80″
Ram Stroke: 4.72″
Table Height: 34.45″
Fast Approach Speed: 165″/min
Max. Working Speed: 16.5″/min
Fast Return Speed: 141″/min
Motor Power: 7.5HP

Equipped With:

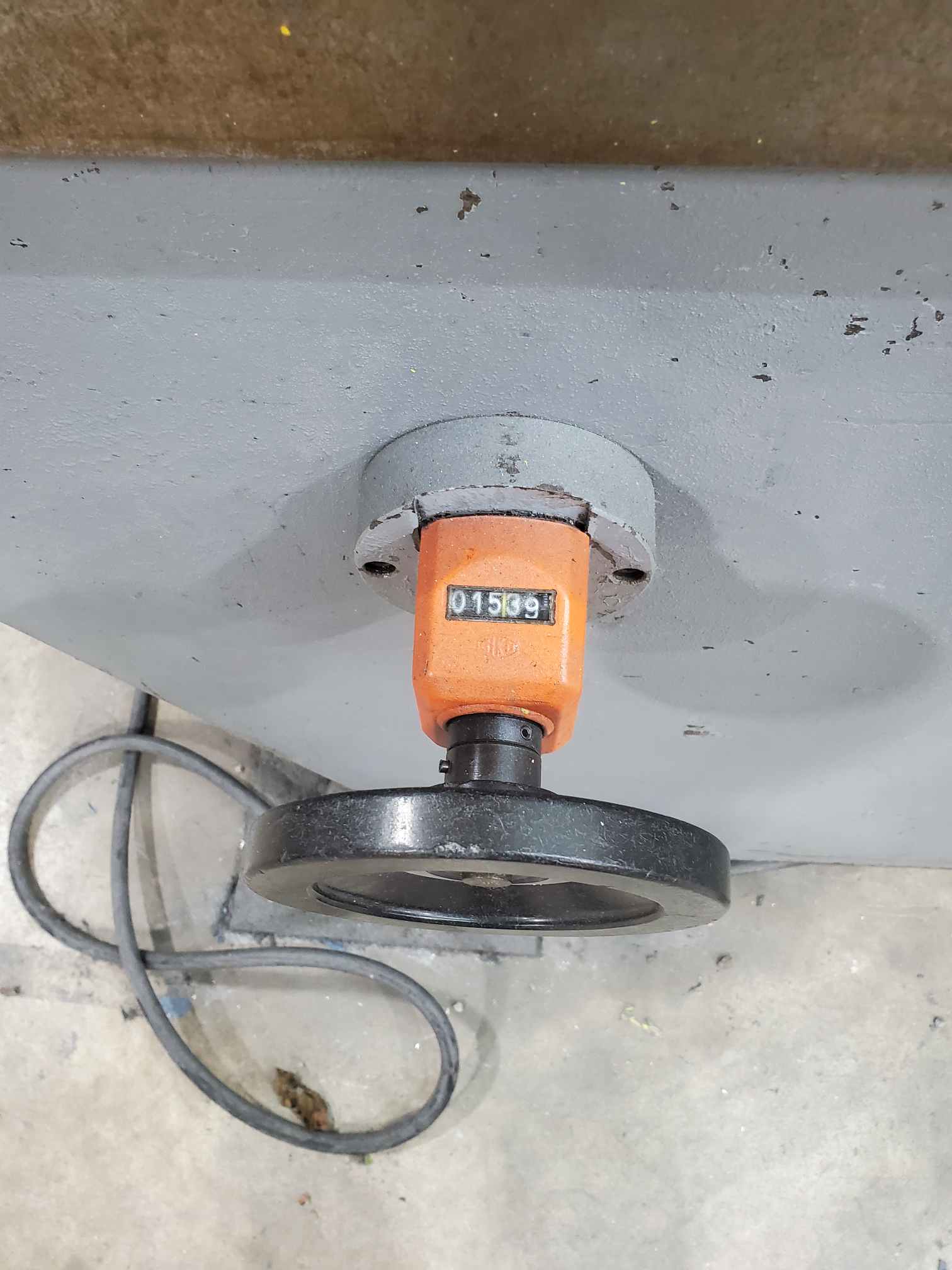

Backgauge
Lots of tooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
