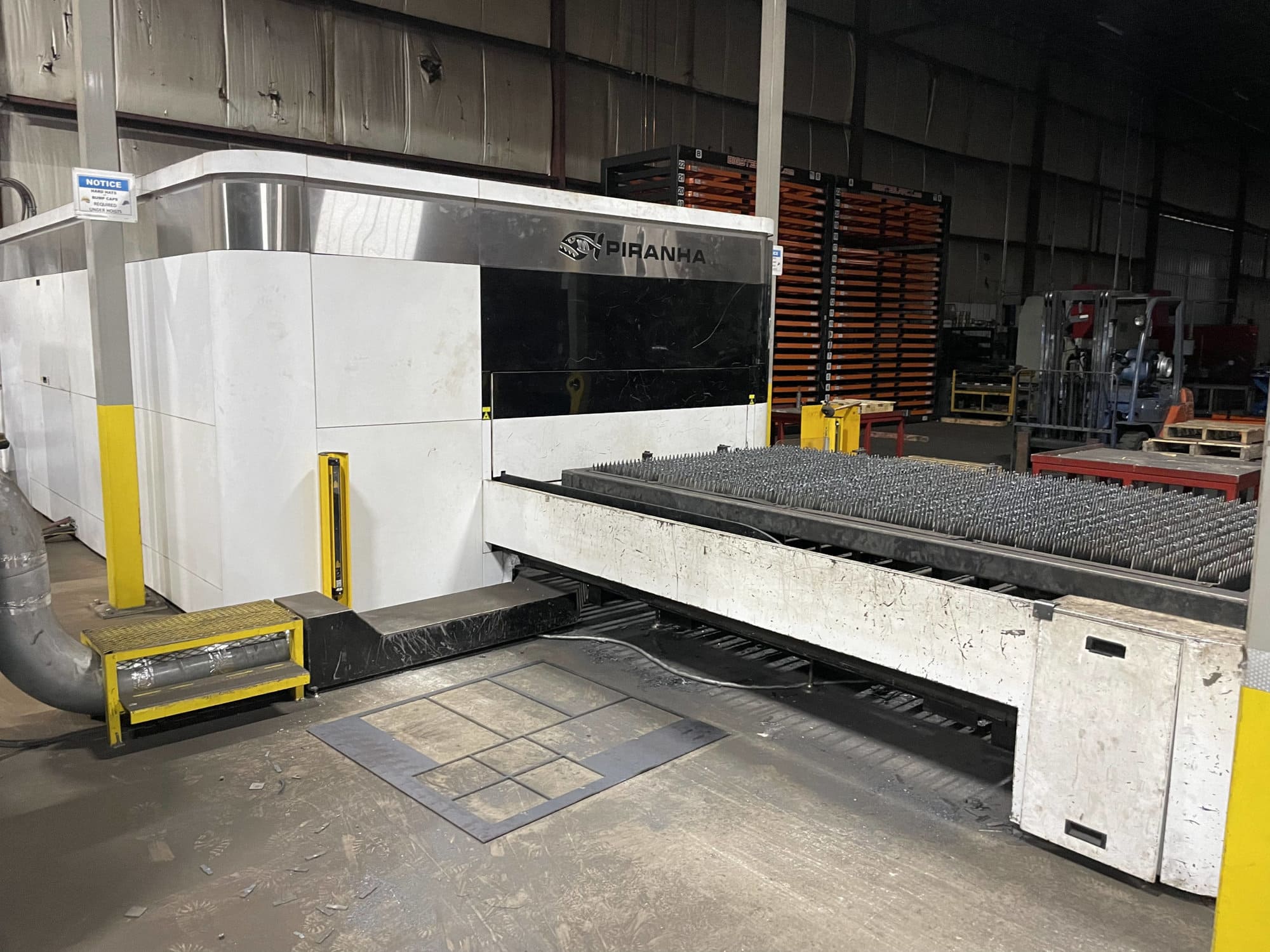

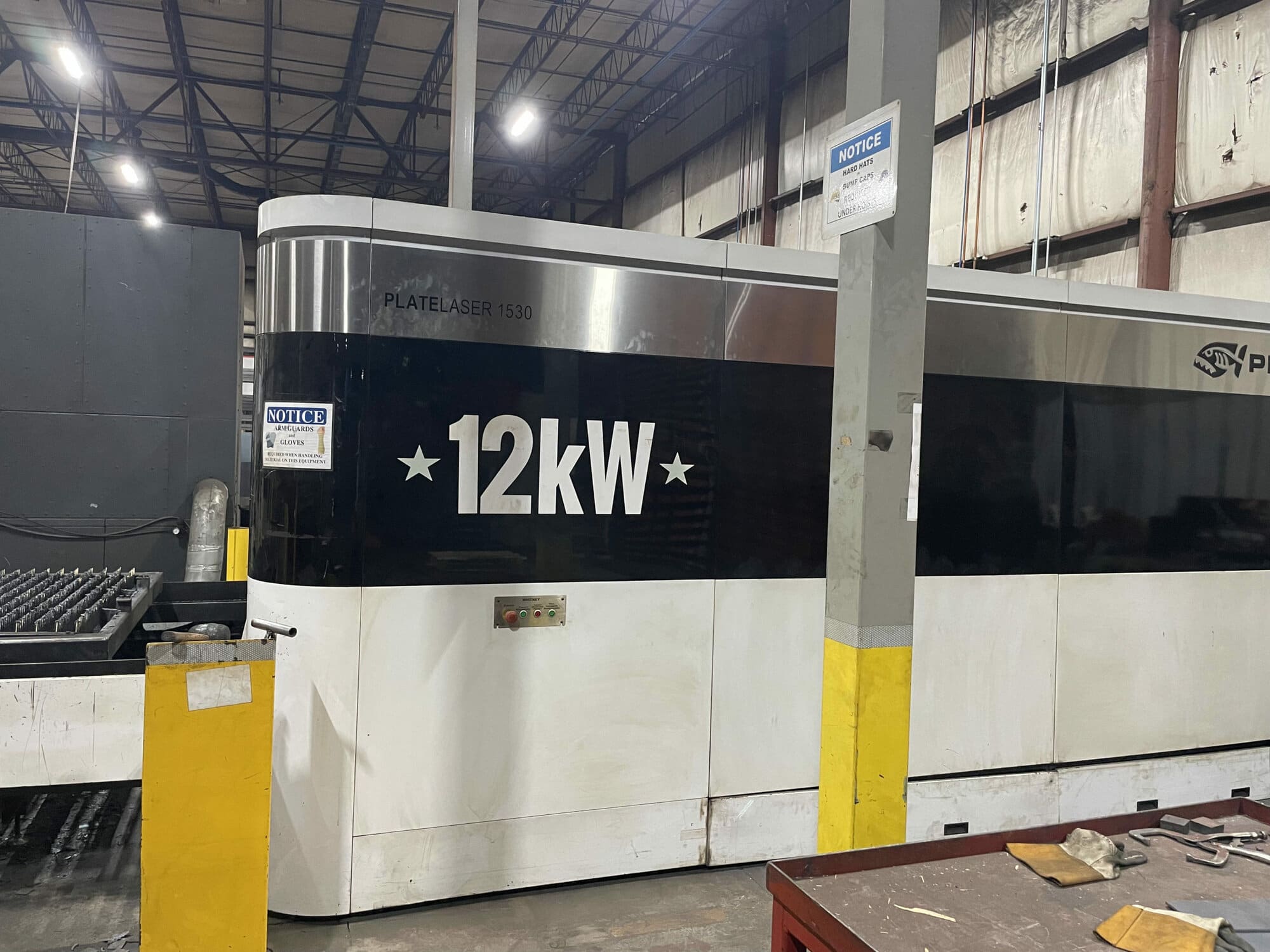

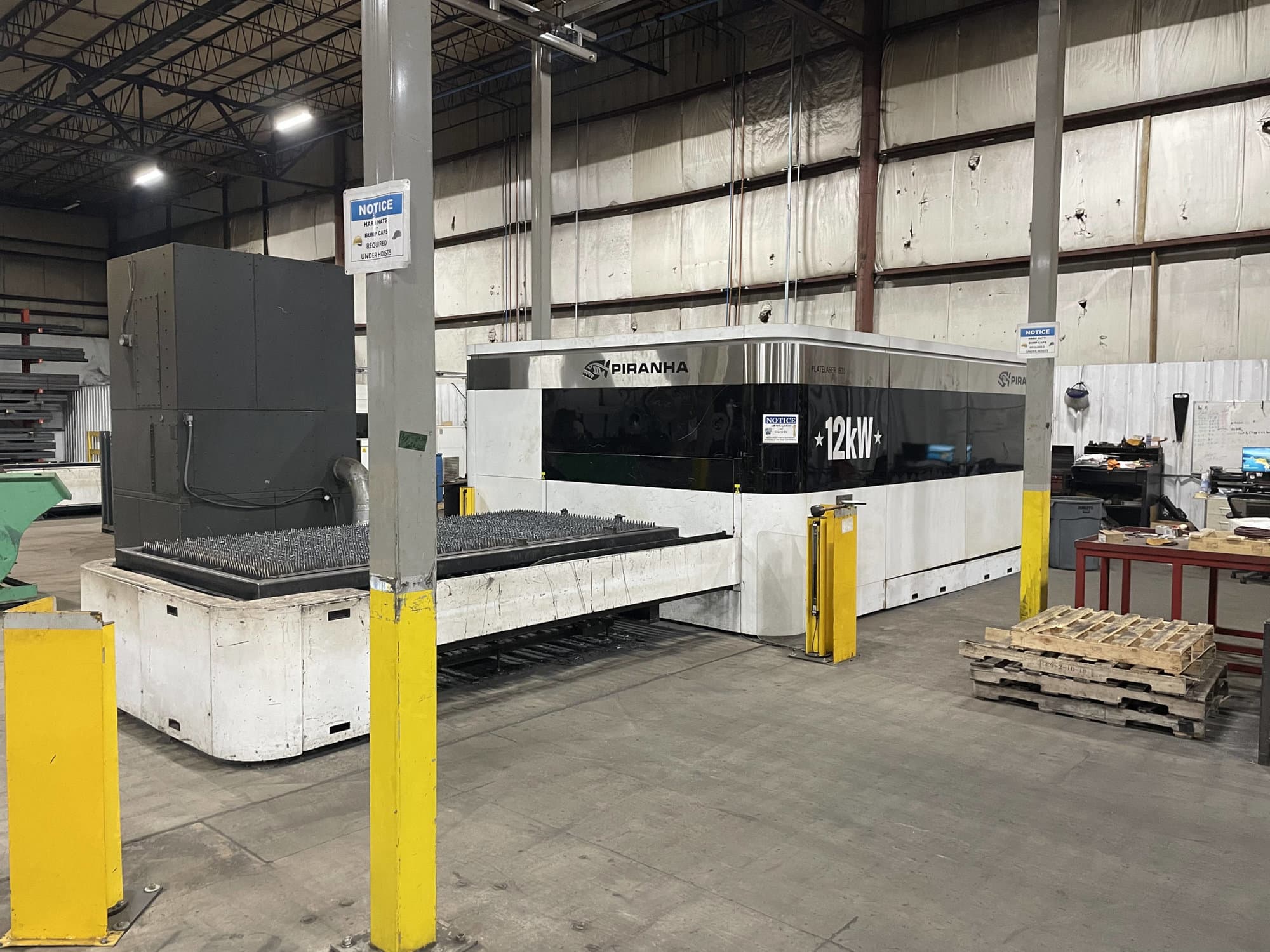

12,000 Watt Piranha 1530 Fiber Laser, 2017 – 5′ x 10′ Table
$424,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Laser Type: Fiber
Resonator: IPG YLS-120000 YTTERBIUM Fiber
Max Power: 12KW

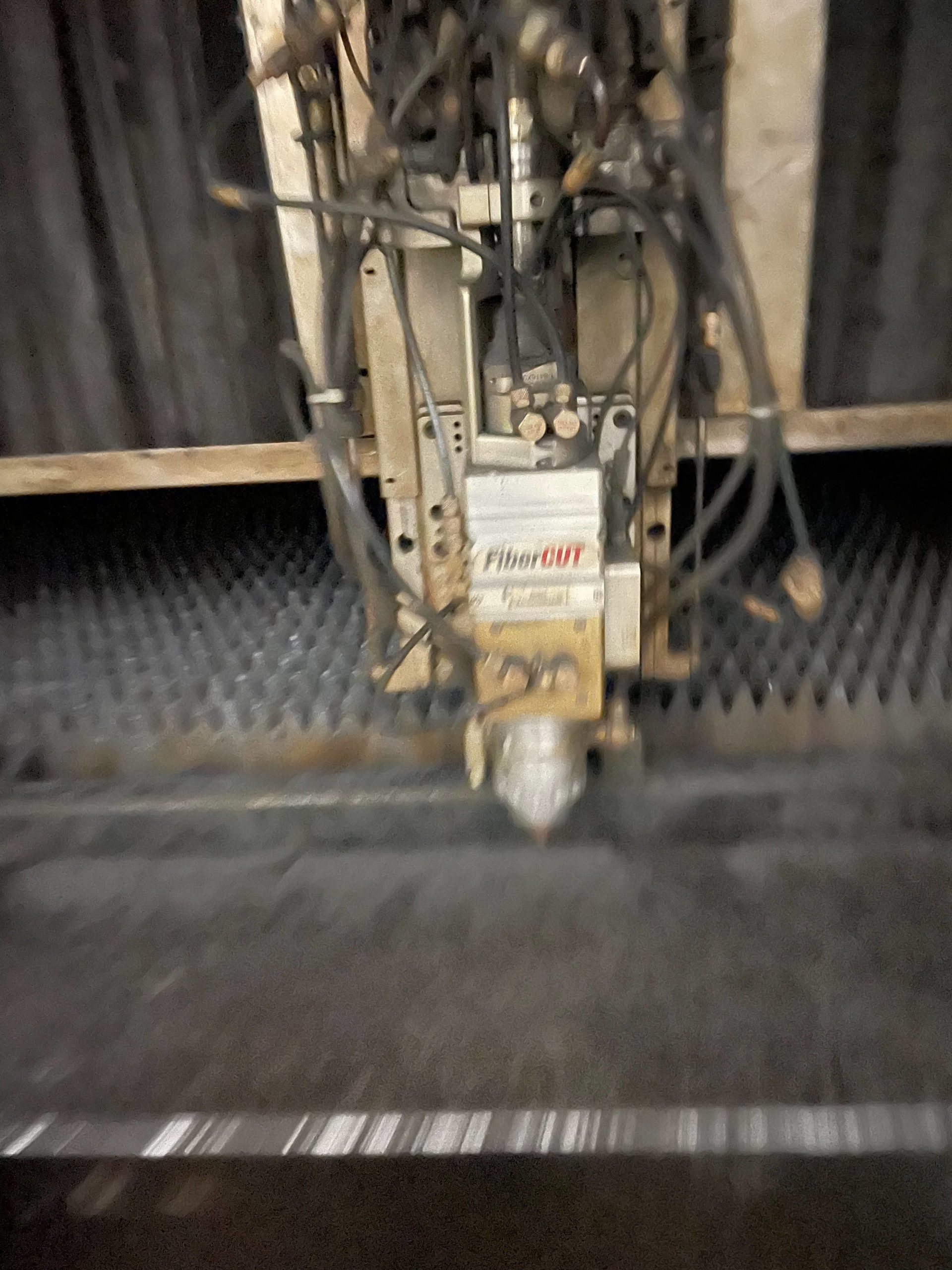

Cutting Head: Lasermech Fibercut HR
Max Working Area: 61″ X 122″
Approx. System Footprint: 14.4′ X 35.2′
Z Axis Range: 6″
Drive Type: Linear X, Y & Z Axes
Repeatability: 0.002 +/- Inch
Repeatability: X & Y Axis 0.001 +/- Inch
Max. Axis Positioning Speed: (X, Y) 9,055 IPM
Max. Positioning Speed: (Z) 10,000 IPM
Positioning Accuracy: X, Y AXIS 0.001 +/- Inch
Accelerations: X AND Y AXIS 2.3 G
Repeatability: Y1 0.002 +/- Inch
Max Weight of Processed Material: 2,000 Lbs.
Max Cut Aluminum: 0.75โ
Max Cut Stainless Steel: 1.0โ
Max Cut Carbon Steel: 1.0โ
Max Cut Brass: 0.50โ
Max Cut Copper: 0.50โ
Equipped With:

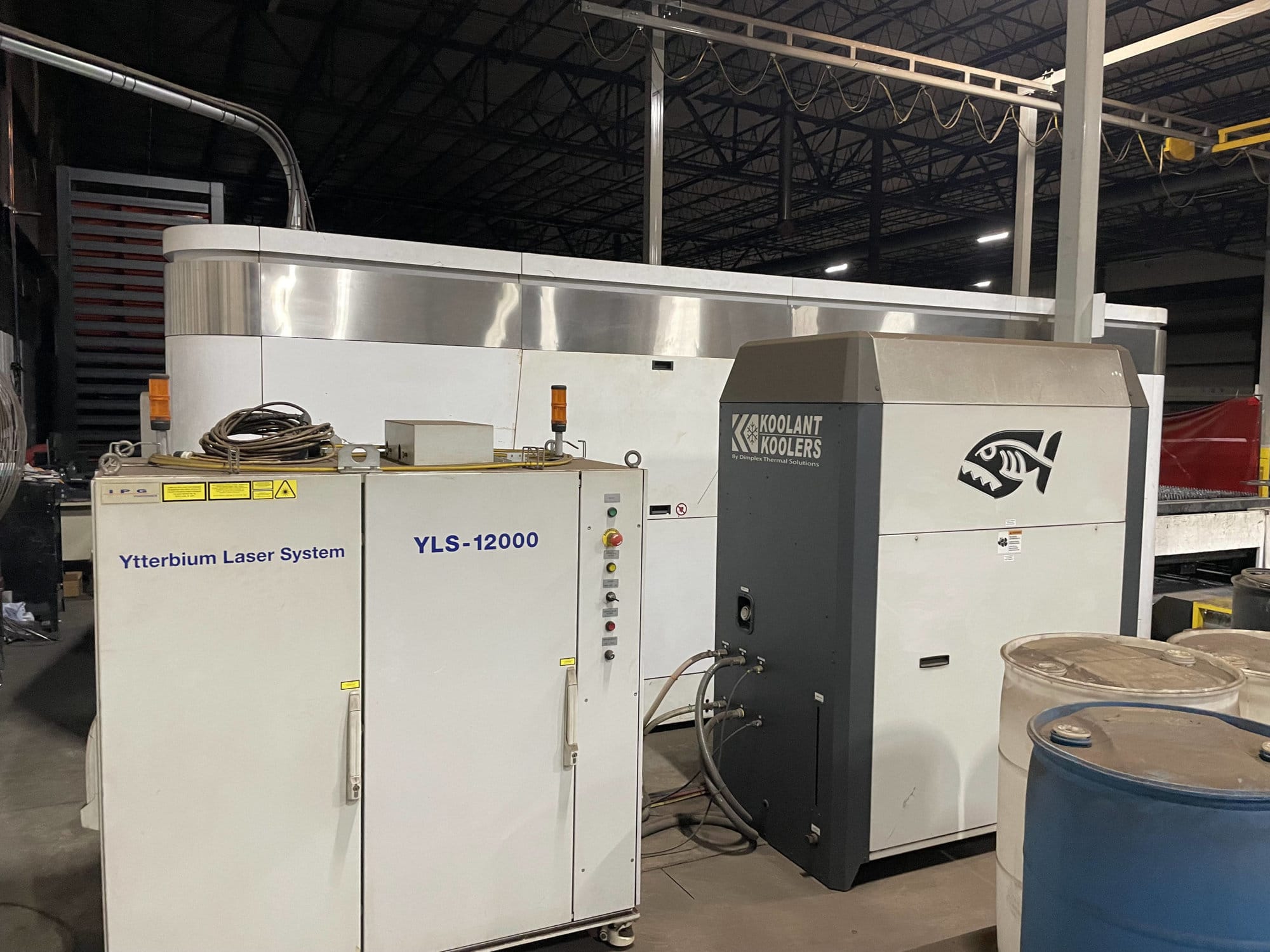

IPG YLS-120000 12.0-KW YTTERBIUM Fiber Laser System Lasermech Fibercut HR Cutting Head
Linear Drives โ X
Y & Z Axes
Polymer Granite Machine Base
Carbon Fiber Gantry โ Cantilever Design
Siemens 840 DSL CNC Control
Auto Focus Cutting Head
Dual Pallet Shuttle System
Donaldson Torit DFO3-9 Dust Collection System
Ball Transfer Table
Koolant Koolers Chiller
Automatic Nozzle Changer
Resonator Hours: 33,457
***6 Modules Need Replaced***
