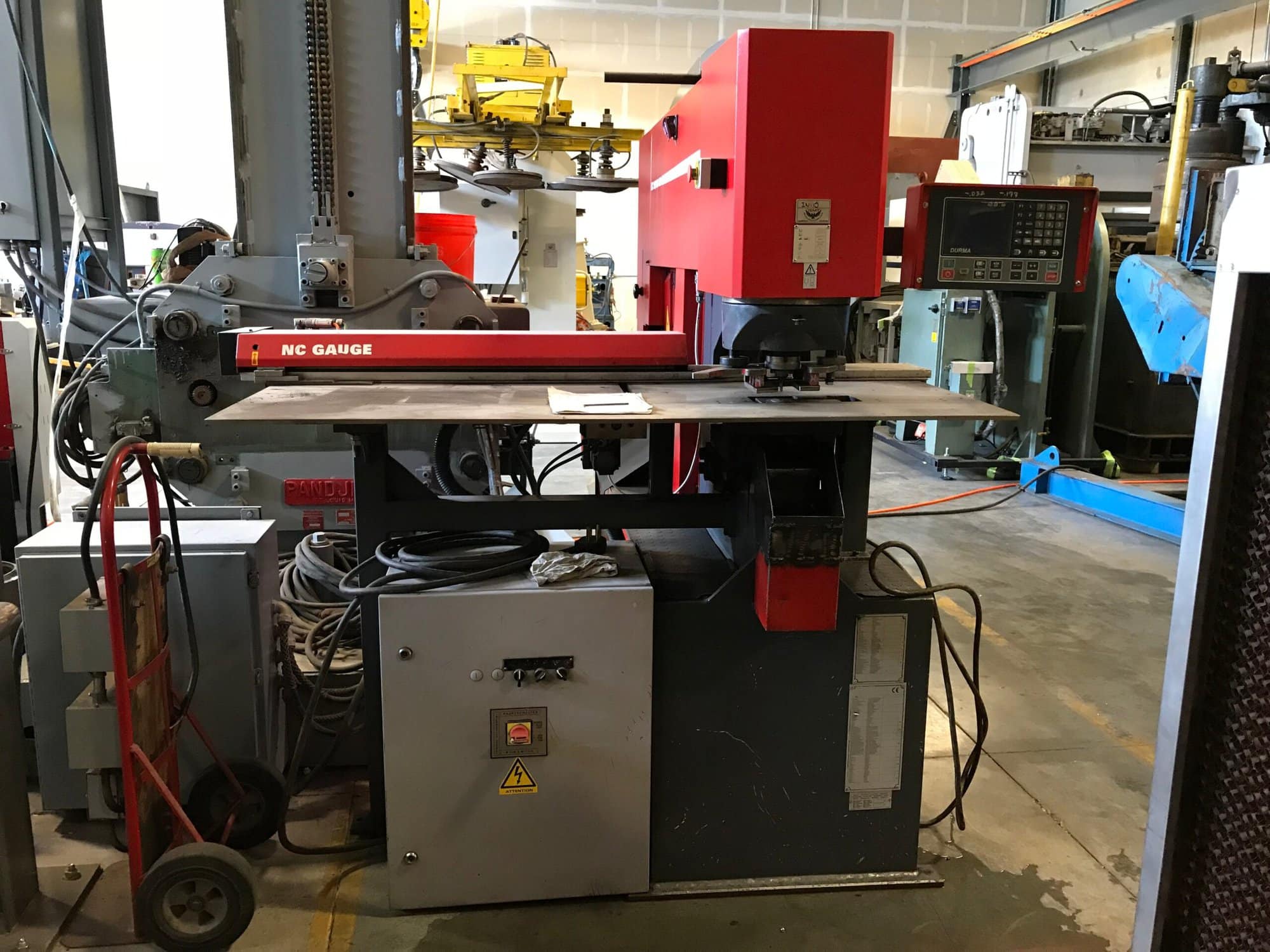

121 Ton JMT/Durma IW 110/180 BTD Ironworker, 2012 – NC Punch Table

$26,900.00

Request a Quote to Instantly See Pricing

Machine Type: Ironworkers
Model: IW 110/180 BTD
Make: JMT
Year: 2012
Capacity: 121 Ton

3PHASE 460V
15HP
-100″x44″x90″
-121 Ton Punching Press
-1.6″ Dia x 3/4 Thick Punching Capacity
-24″ Throat Depth
-31″ Stroke Length
-28 Cycles per Minute
-49.6″ Working Height

FLAT SHEAR
-16″ x 3/4″ Flat Bar
-24″ x 5/8″ Flat Bar Max Width
-42 3/4″ Working Height

ANGLE SHEAR
-6″ x 6″ x 1/2″ @ 90 Degree Shearing
-3″ x 3″ 1/4″ @ 45 Degree Shearing
-51.4″ Working Height

BAR SHEARING
-2″ Round and Square bare Shear
-54.4 Working Height

NOTCHING
-1/2″ Material
-2″ Wide 3-1/2″ Depth Notcher

Dimensions 100″ x 44″ x 90″
Weight 4775 Lbs

Equipped With:
NC table with Siemens Control
X axis travel: 40″
Y axis travel: 15″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
