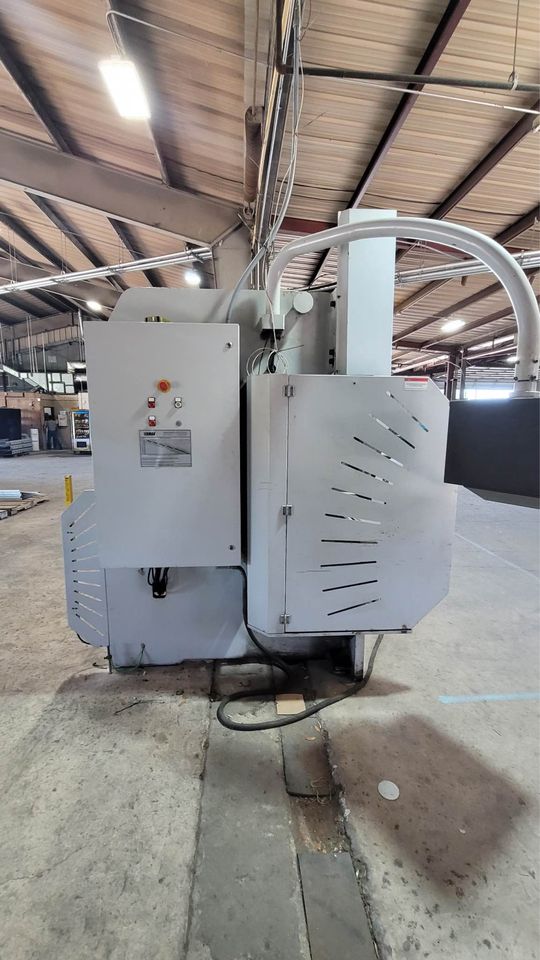

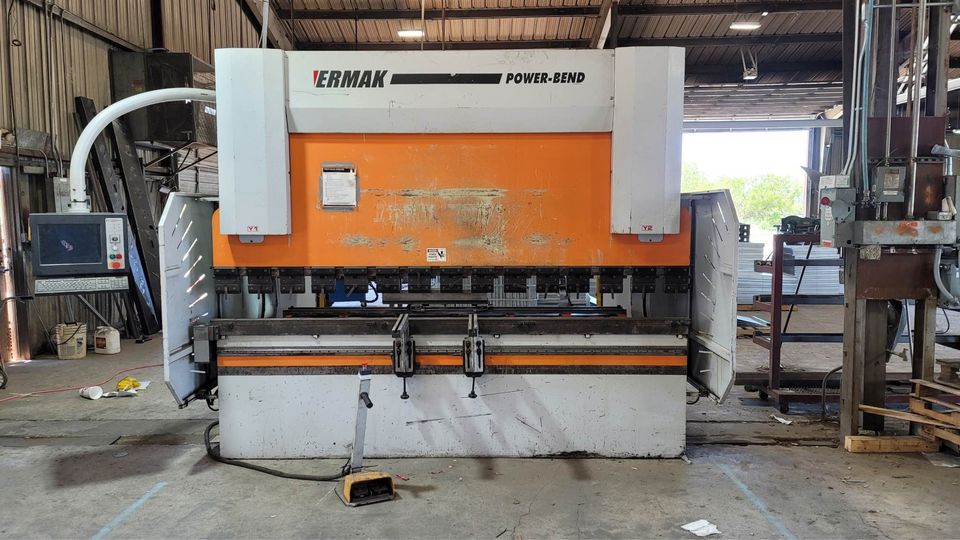

132 Ton x 10′ Ermak Power-Bend CNC Press Brake, 2012

$44,900.00

Request a Quote to Instantly See Pricing

Machine Type: Hydraulic Press Brakes
Model: PB 10X32
Make: Ermak
Year: 2012
Capacity: Ton x ‘

Capacity: 132 Tons
Overall Bending Length: 10.17″
Distance Between Housings: 102.4″
Y Rapid Speed: 7.87″
Y Working Speed: .39″
Y Return Speed: 4.72″
Travel in X Axis: 31.5″
Speed of X Axis: 19.7″
Throat: 16.1″
Daylight: 21.7″
Stroke: 10.8″

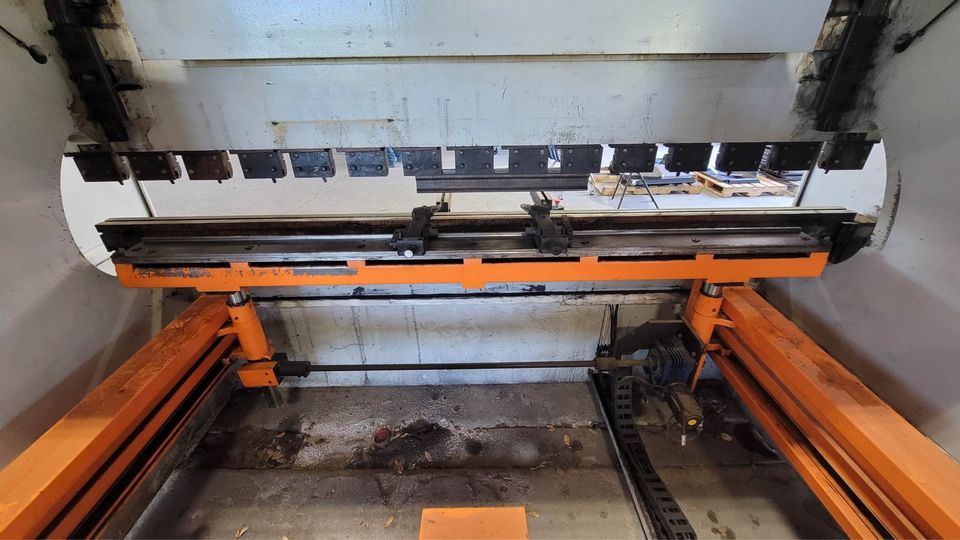

Back Gauge Travel: 31.5″
Back Gauge Speed: 9.1 IPS

Equipped With:

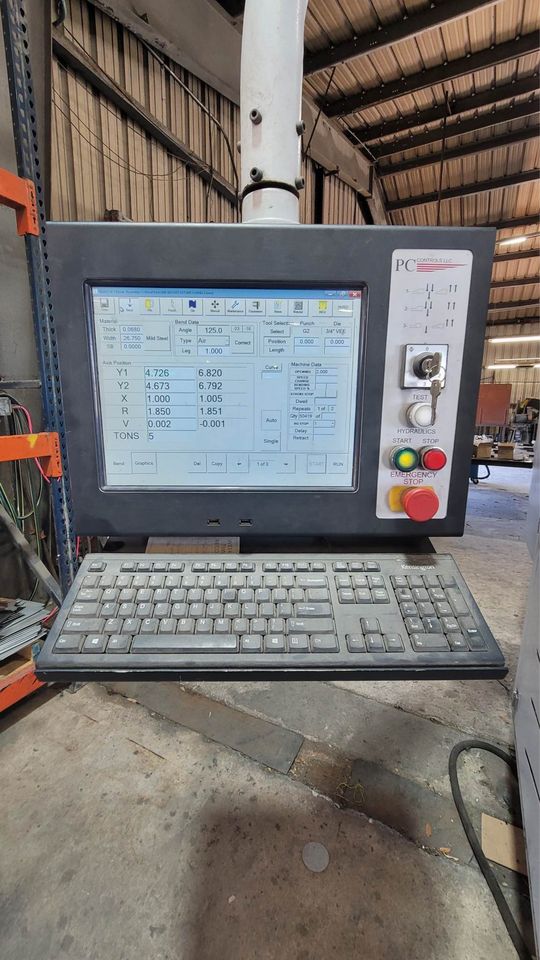

PC Control
Y1,Y2,X,R Axes
CNC Crowning

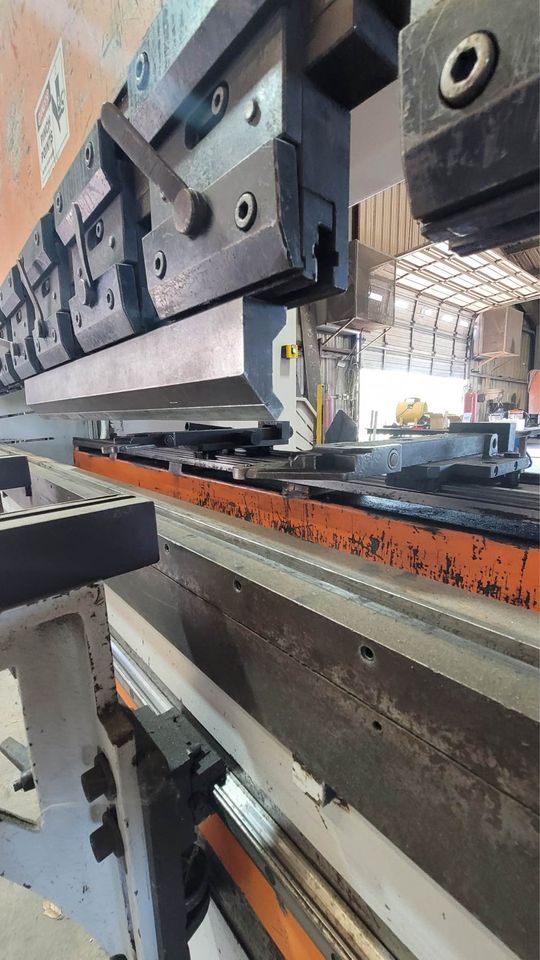

Full Set of Punch Holders
[2] Sheet Support Arms
Foot Pedal

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
