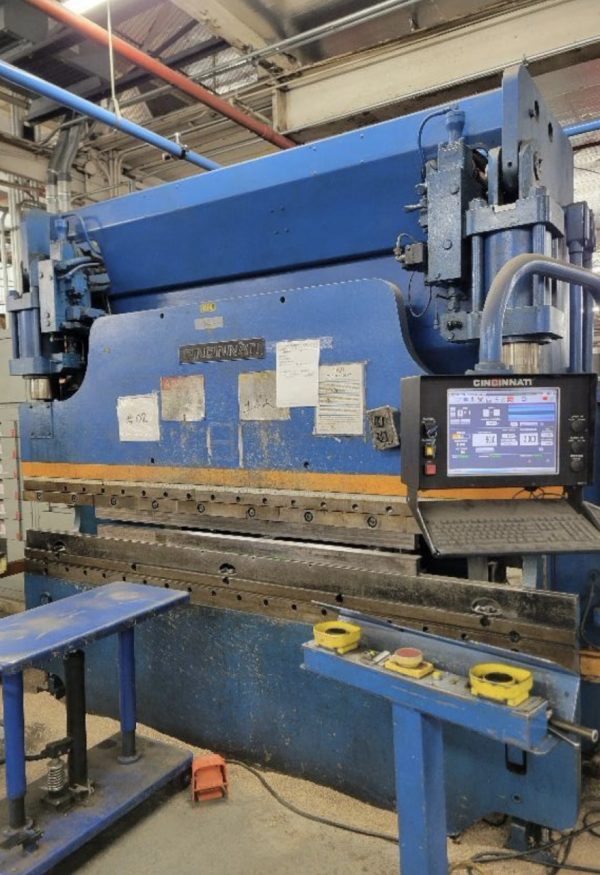

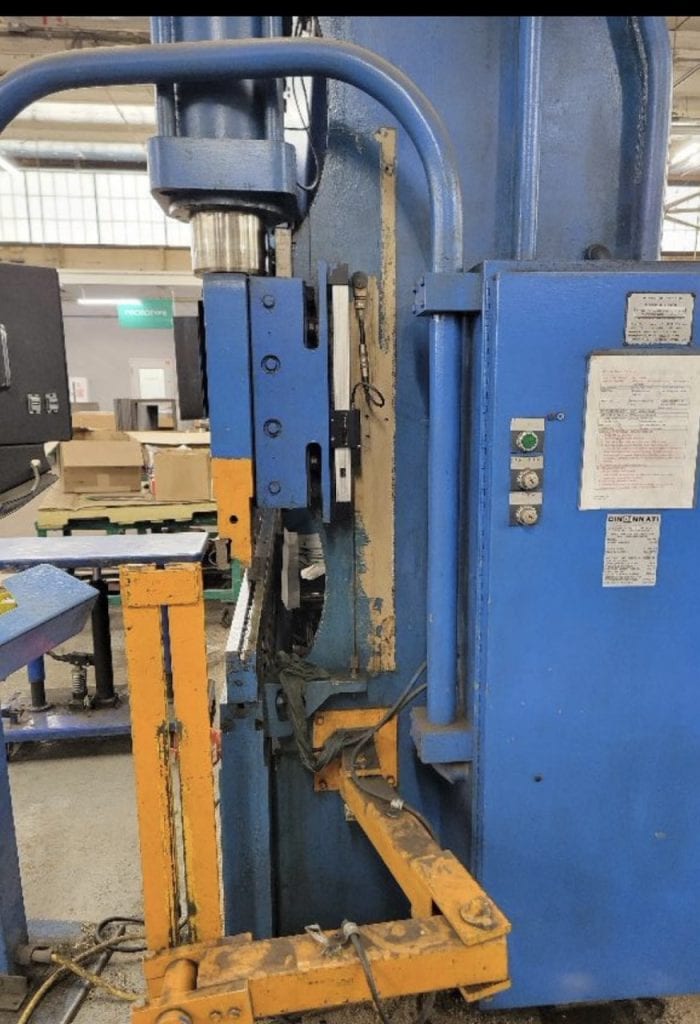

135 Ton x 8′ Cincinnati FMII CNC Hydraulic Press Brake, 1990

Tonnage Capacity: 135 Tons
Bending Length: 96 inches (8 feet)
Maximum Material Thickness: 0.375 inches (3/8″ mild steel)
Stroke Length: 6.5 inches
Open Height (Daylight): 19.0 inches
Throat Depth: 12.0 inches
Backgauge Travel (X-Axis): 24 inches
Backgauge Depth (R-Axis): 10 inches
Ram Speed:
– 0.25 inches/sec (approach)
– 0.75 inches/sec (press)
– 2.5 inches/sec (return)
Motor Power: 10 HP
Machine Weight: 17,000 lbs
Control System: Cincinnati Form Master II CNC
Electrical Supply: 3-phase, 480V AC
Hydraulic System Pressure: 3,000 PSI
Machine Dimensions (L x W x H) 118″ x 54″ x 84″
