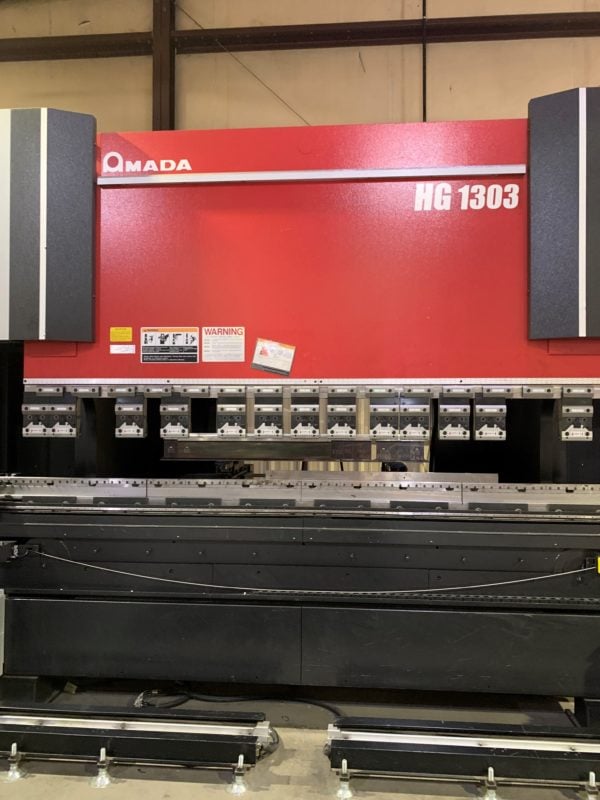

150 Ton x 10′ Amada HG1303 RM Press Brake with Automated Bending System, 2018
$529,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
An Optimal Robotic Bending System for Large Parts
Key Features:
– 143- Ton Capacity Servo/Hydraulic Drive System
– Amnc 3i Control With Vertical 18.5″ Multi-Touch Display
– 7-Axis Robot Performs Consistent Unmanned Bending Operations

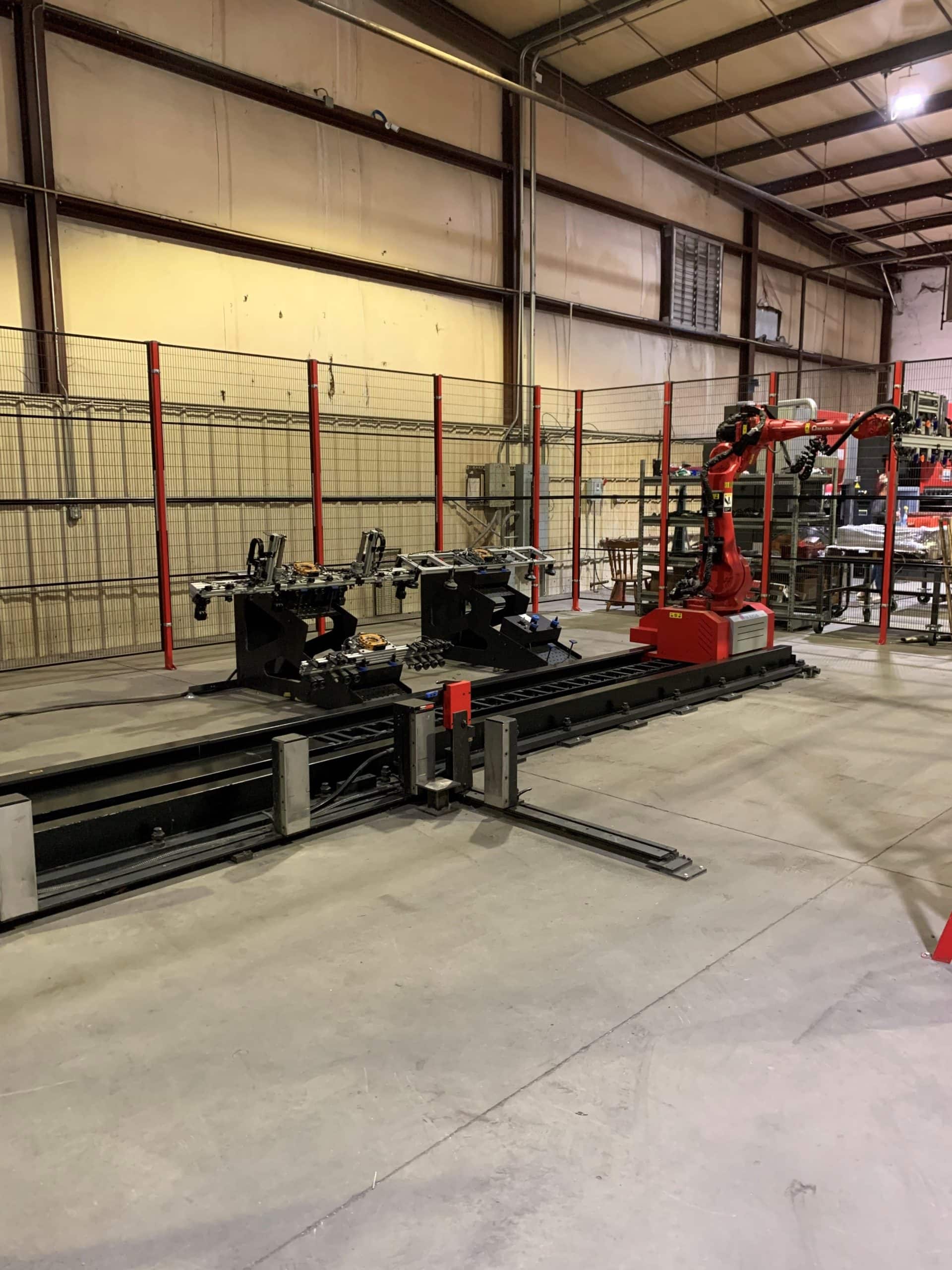

– Multi-Axis Robot with 8-Meter Track Provides Versatile Loading And Unloading Options
– Potentiometer Back Gauge System Ensures High-Precision Bending Operations.
– Intuitive Offline Programming Software

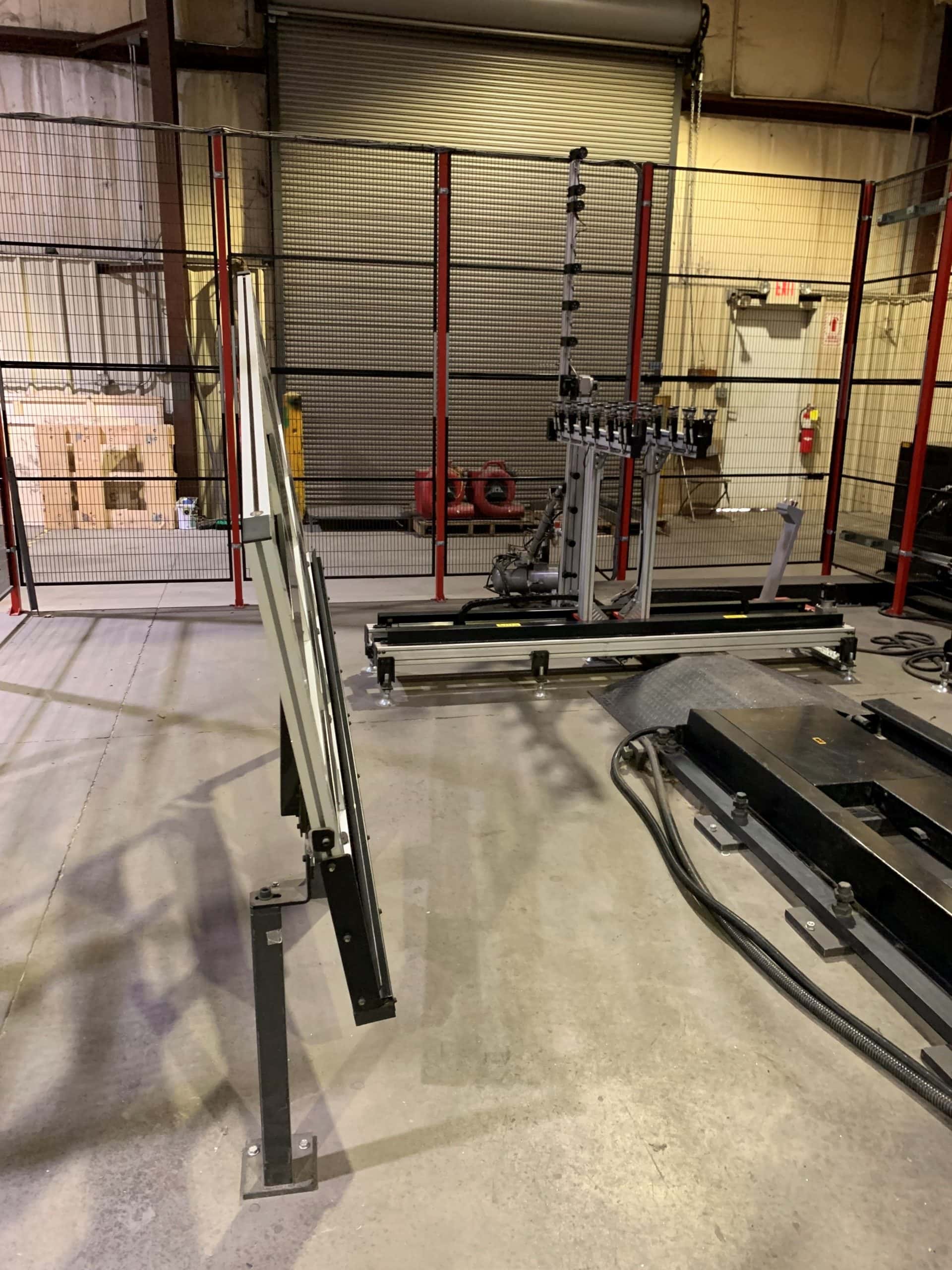

– 2×2 Gripper Station Allows Robot to Automatically Change Hands Between Jobs.
Robot Max Load: 176 lbs.

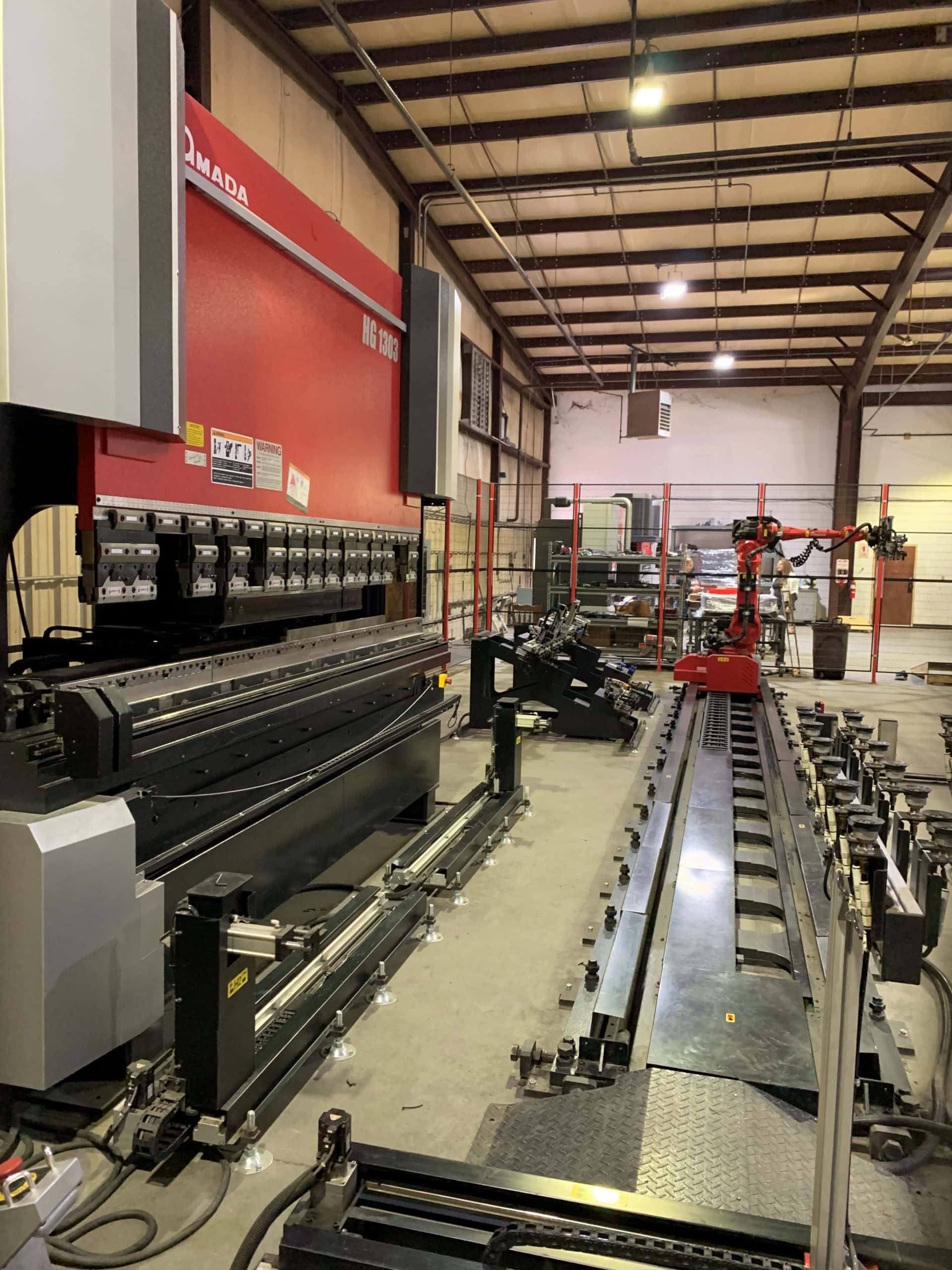

Press Brake Specifications:
Tonnage: 143
Open Height: 20.5″
Stroke: 9.8″
Overall Length: 13″
Distance Between Frames: 106.3″
Backgauge: 6 Axis Plus 2 Axis L-Shift
Oil Capacity: 19 gal
Max Approach Speed: 8.7″/sec
Max Bending Speed: 0.79″/sec
Max Return Speed; 9.8″/sec
Control: AMNC 3i

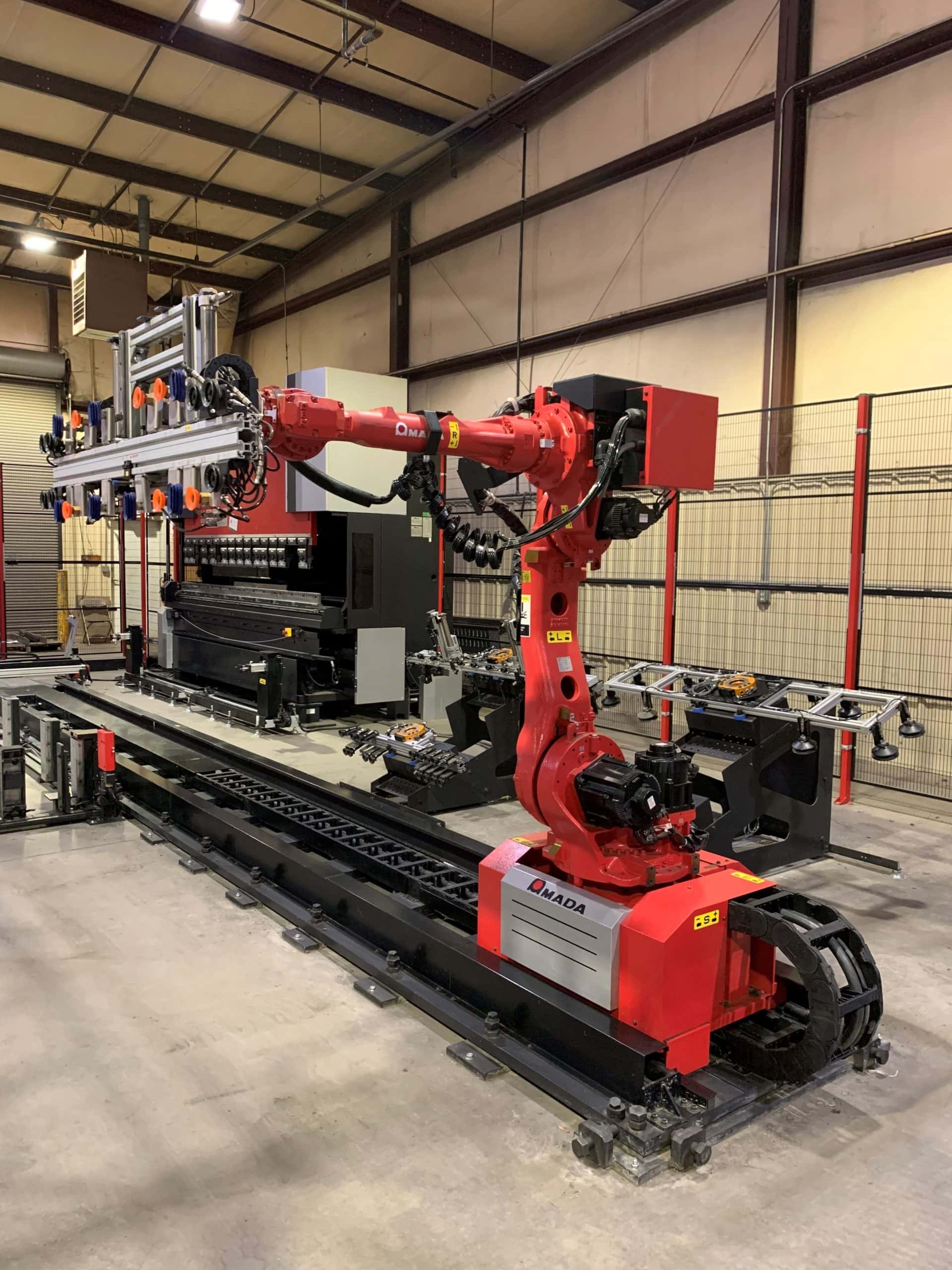

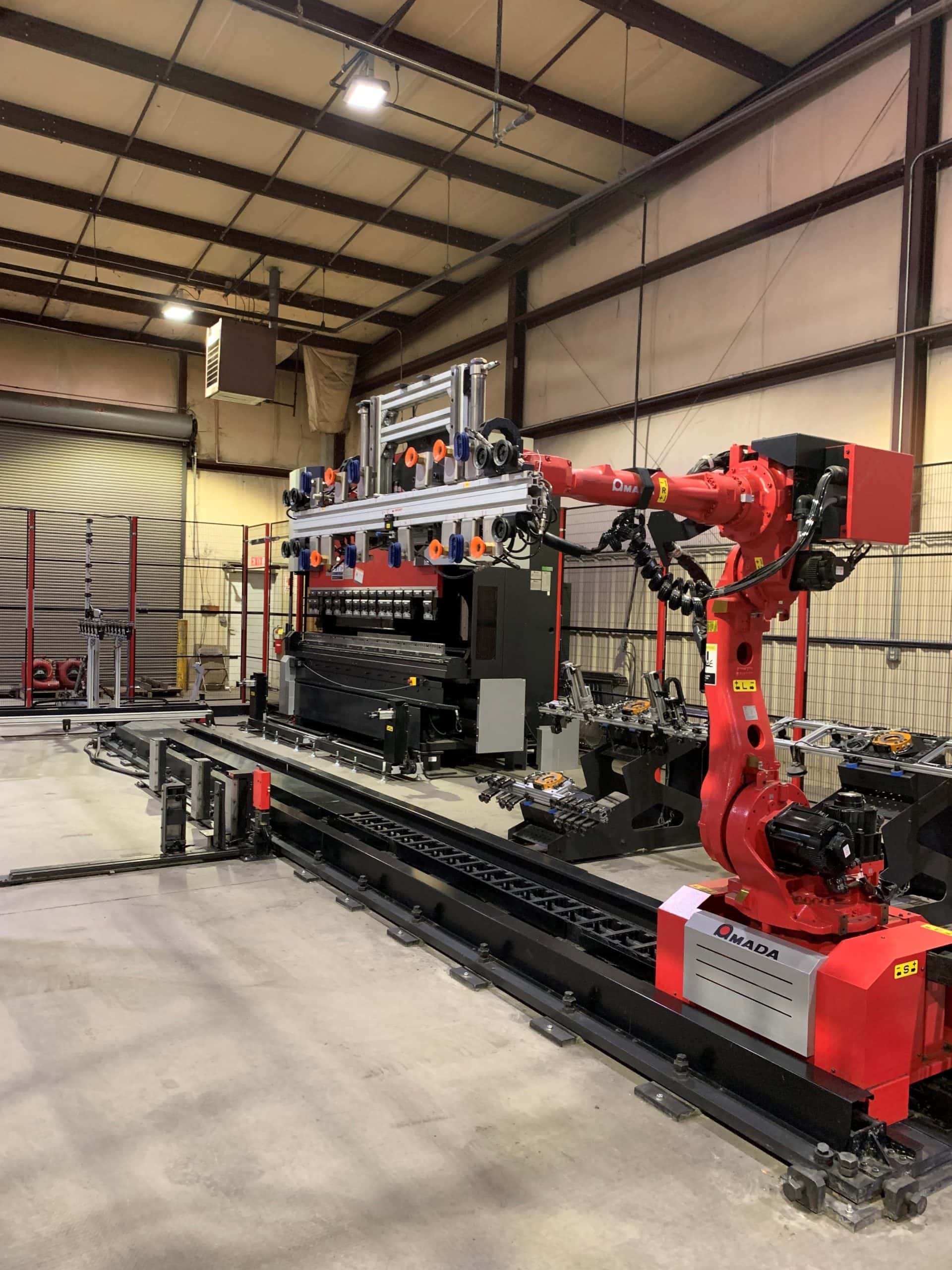

Bending Robot Specifications:
Model: Yaskawa
Load Capacity 176lbs Including Gripper
Axis Configuration: Robot: 6-axis, Traveling 1- axis
Traveling Axis: 26.2′
Automatic Gripper Station: Includes 4 Standard Grippers (mechanical and suction-type)
Part Processing Range
Thickness Range: 0.02″ to 0.24″
Max Part Size: 49.2″ x 98.4″
Min Part Size: 3.1″x19.7″
