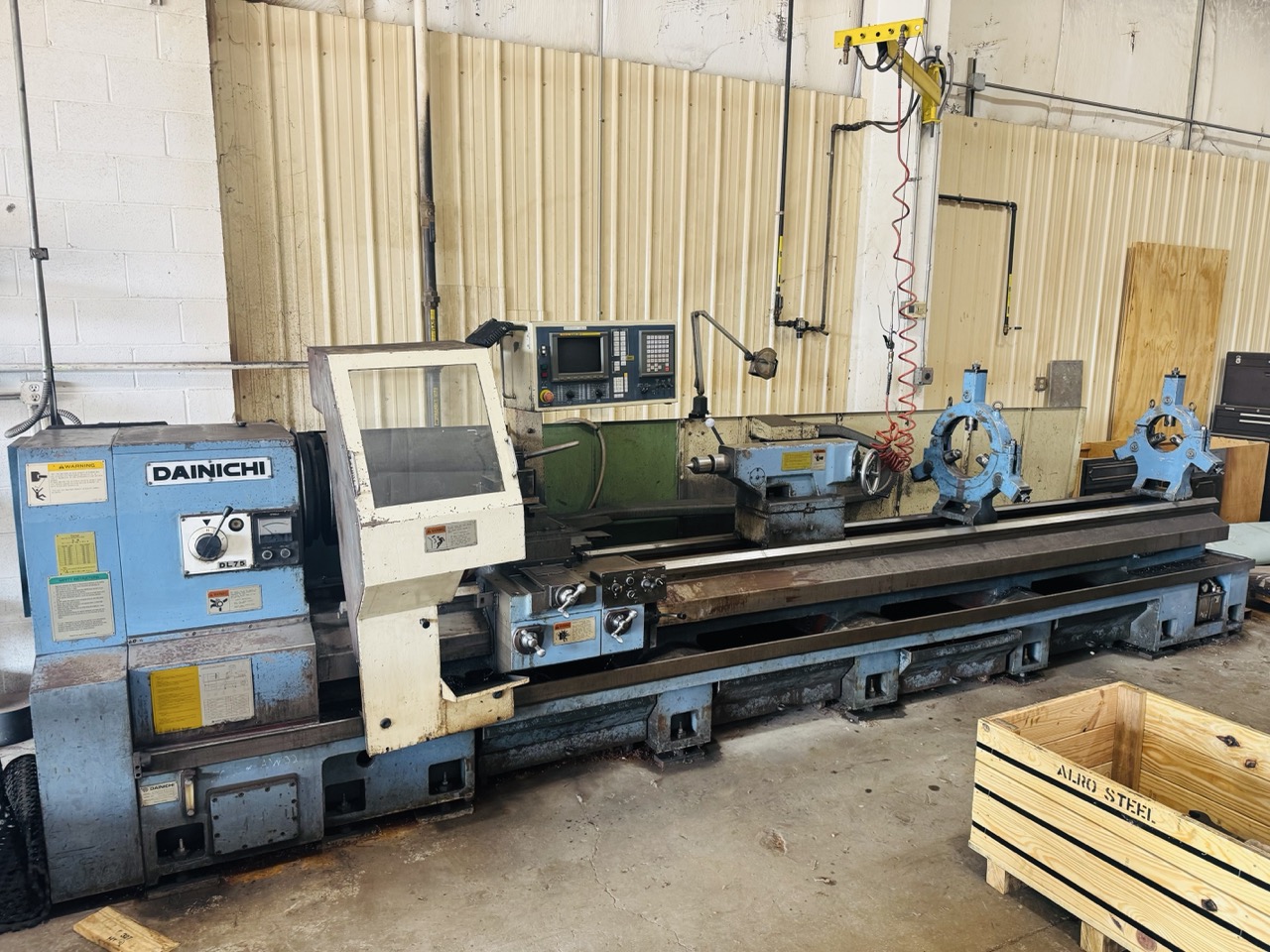

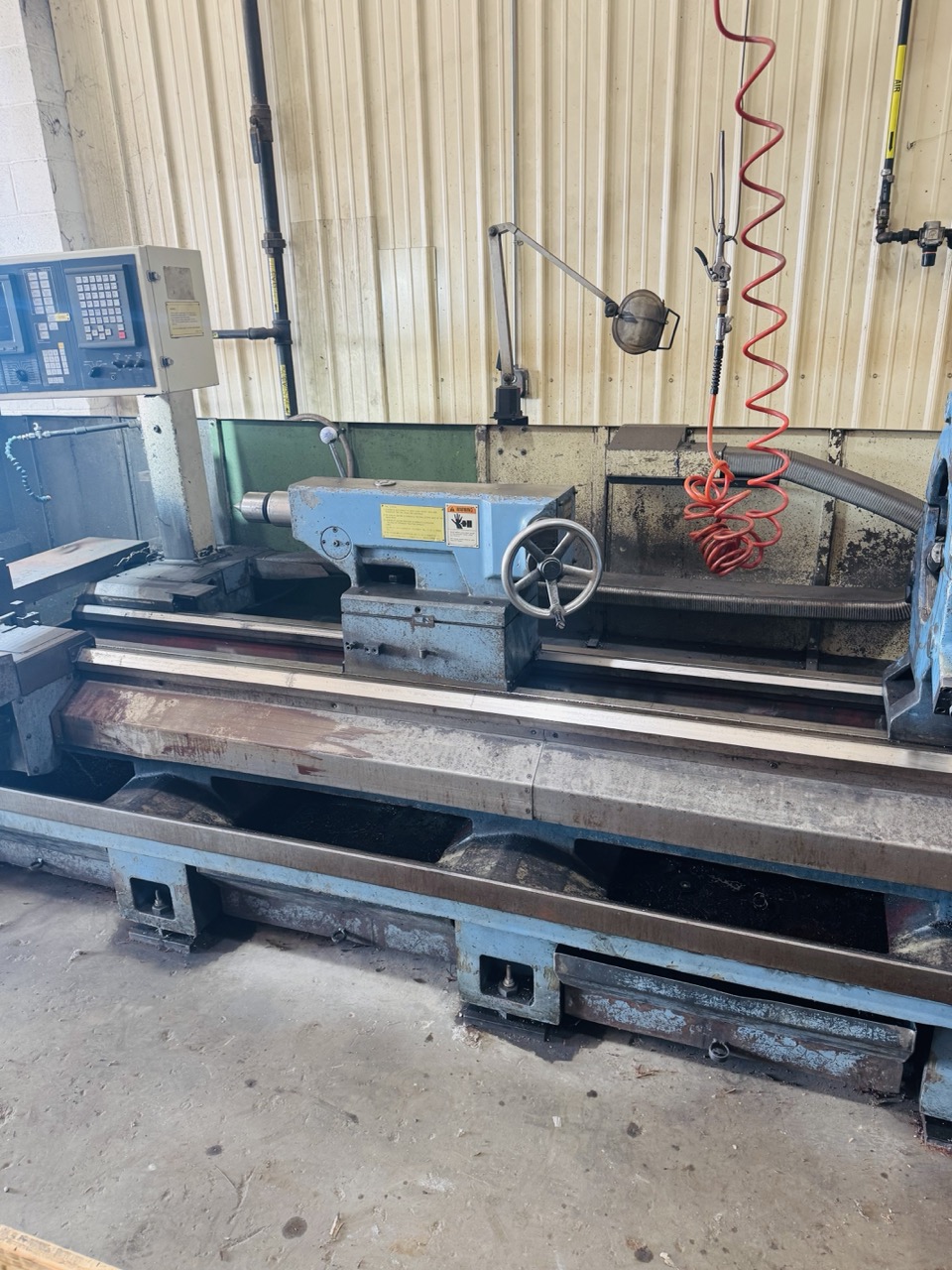

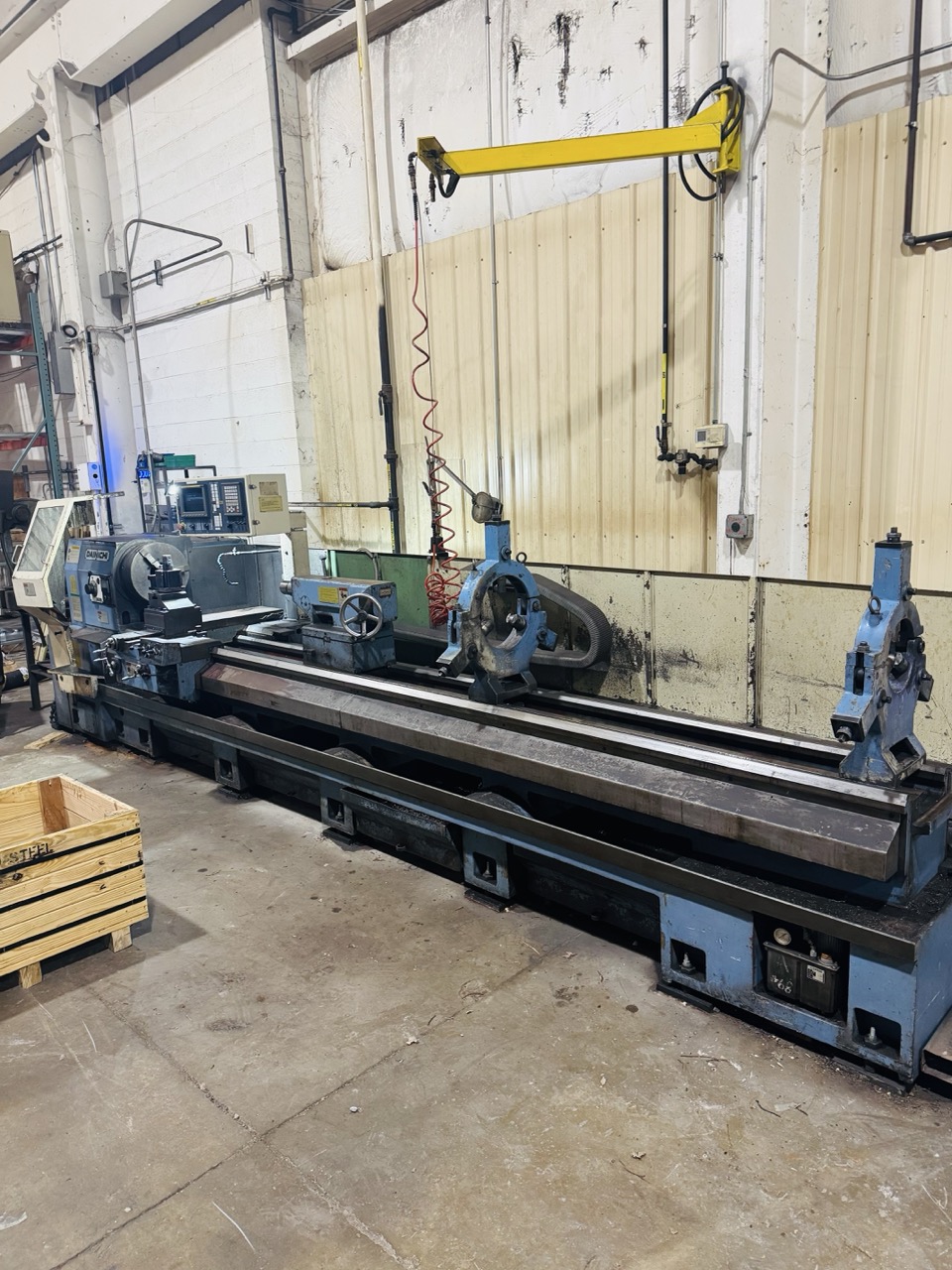

157.5″ Dainichi DL75x400 Engine Lathe, 1996 – Fanuc CNC Control, Tailstock, Steady Rests
$34,900.00
Machine Type: Engine Lathes
Make: Dainichi
Model: DL75x400
Year: 1996
Machine Location: Ohio
Stock #: 367734
Maximum Turning Diameter: 28.8″
Maximum Turning Length: 157″
Distance Between Centers: 157.5″
Swing Over Bed: 29.5″
Swing Over Carriage: 18.9″
X-Axis Travel: 17.7″
Z-Axis Travel: 160.2″
Spindle Bore: 3.35″
Maximum Bar Capacity: 3.35″
Spindle Speed: 12–1,120 RPM
Spindle Motor: 15/10 HP
Chuck Size: 12″
Tailstock Taper: MT No. 5
Rapid Traverse: Equipped
Electronic Positioning: DRO System
Coolant System: Yes
Maximum Workpiece Weight Between Centers: 3,307 Lbs.
Approximate Machine Weight: 12,100 Lbs.
Equipped With:

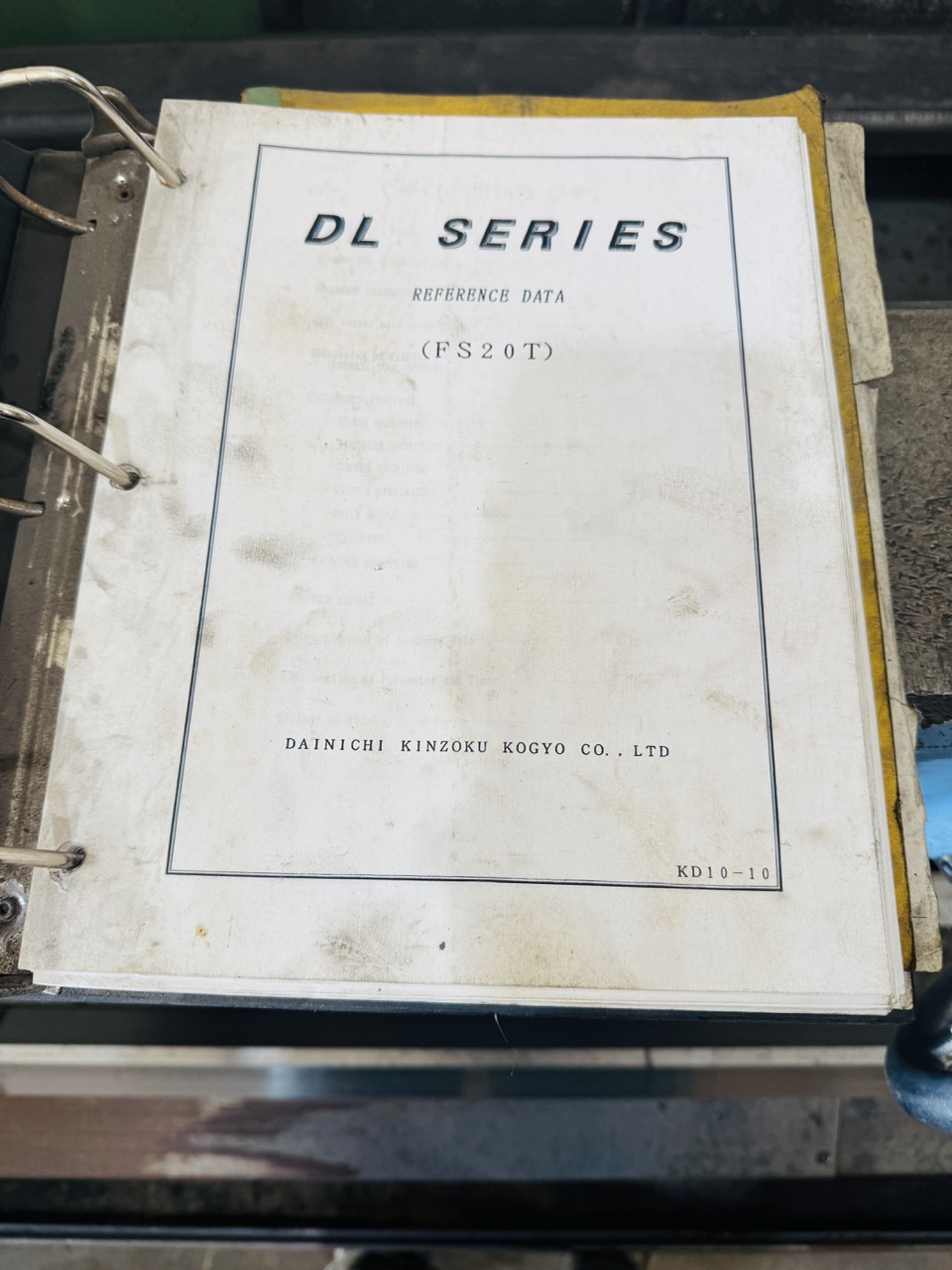

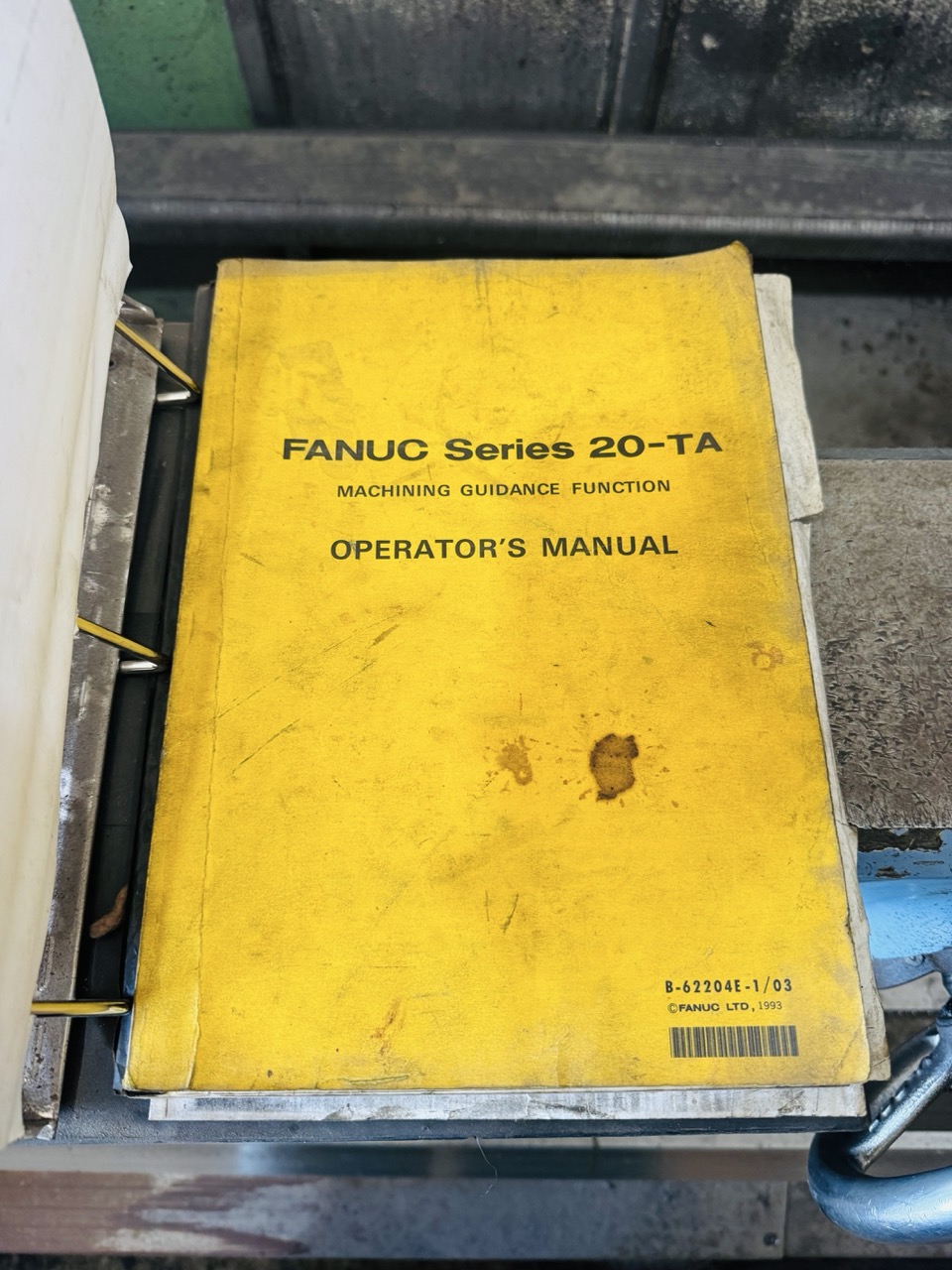

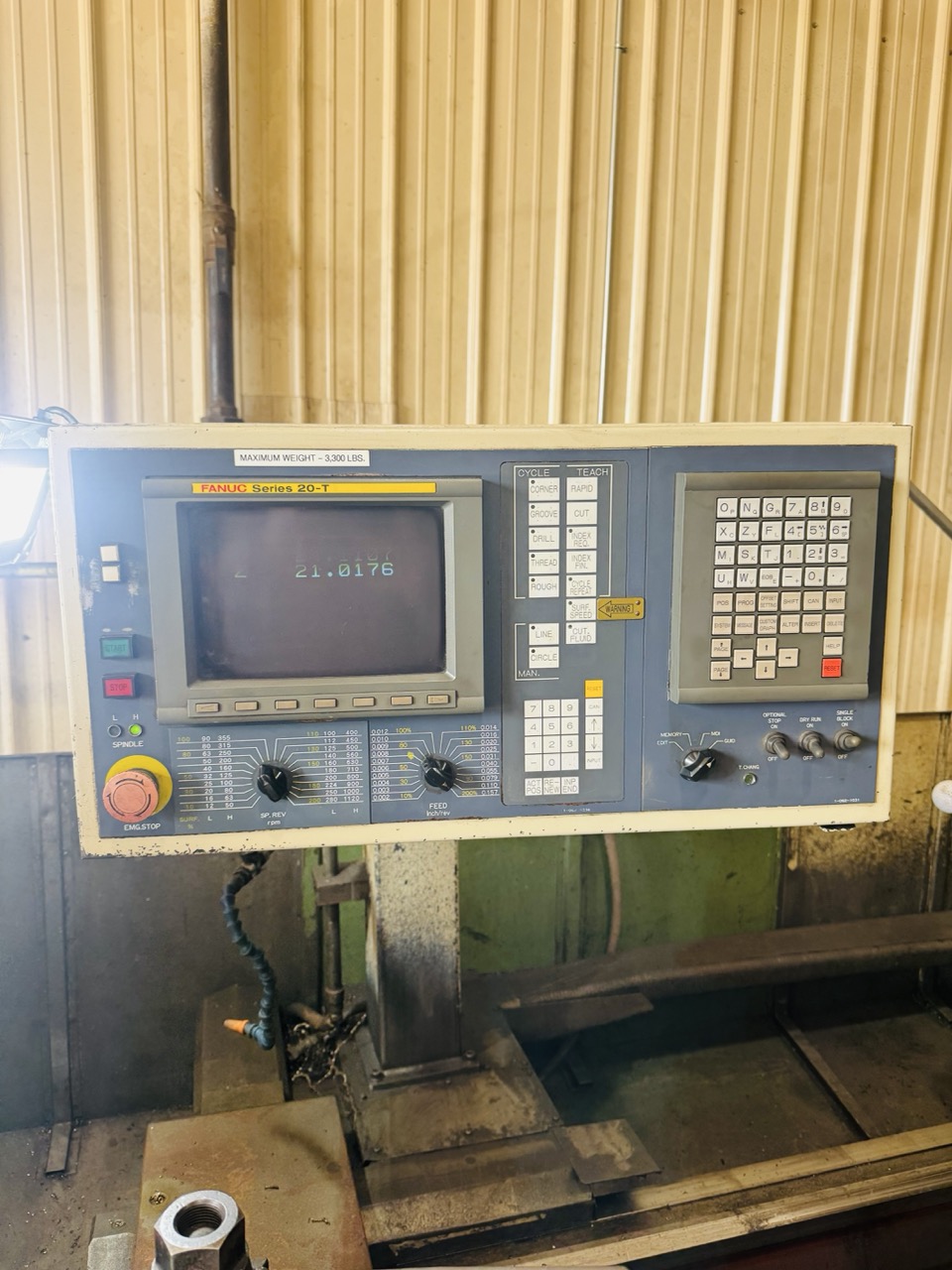

Fanuc Series 20-T CNC Control

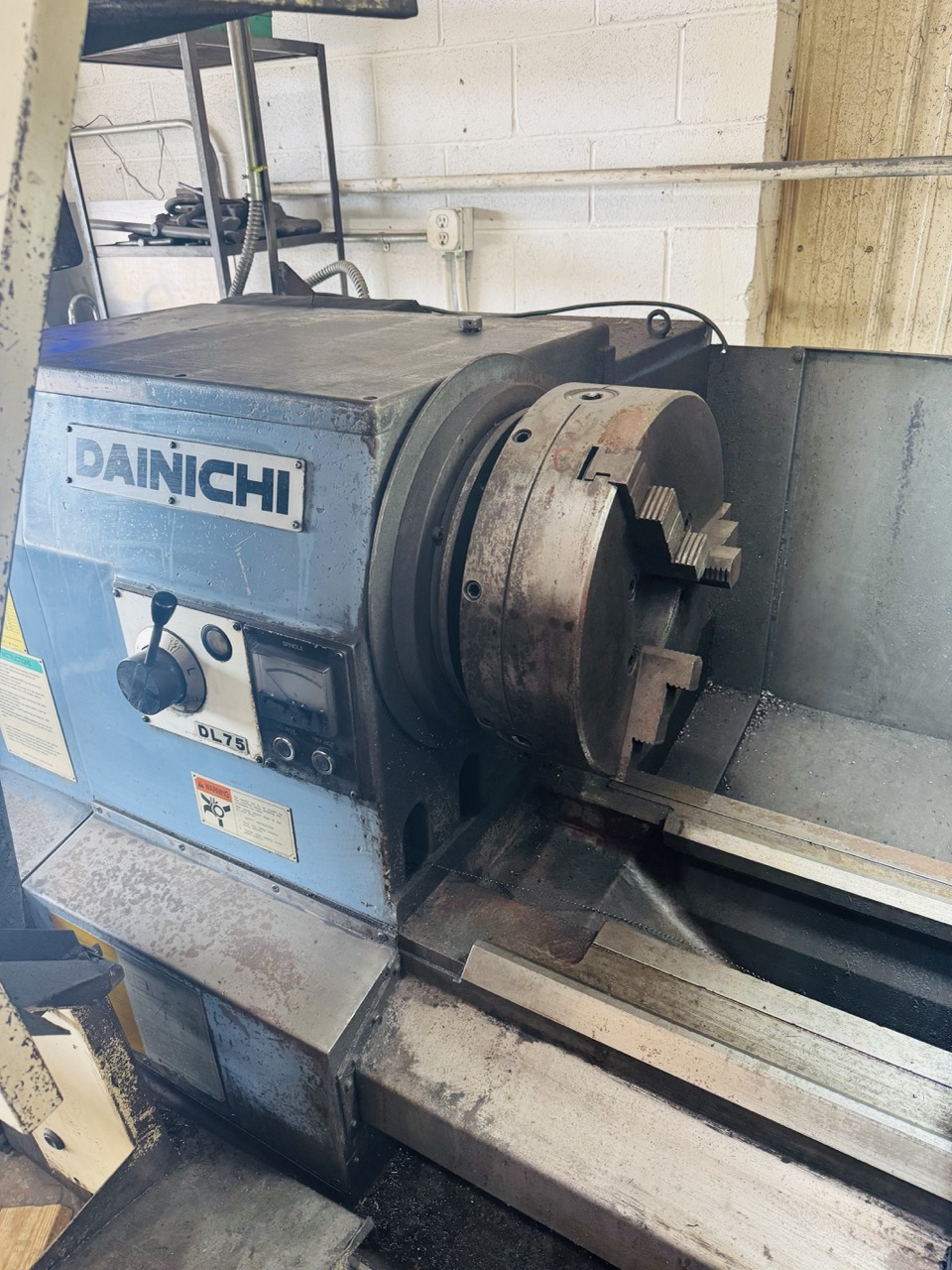

12″ 3-Jaw Chuck
Tailstock

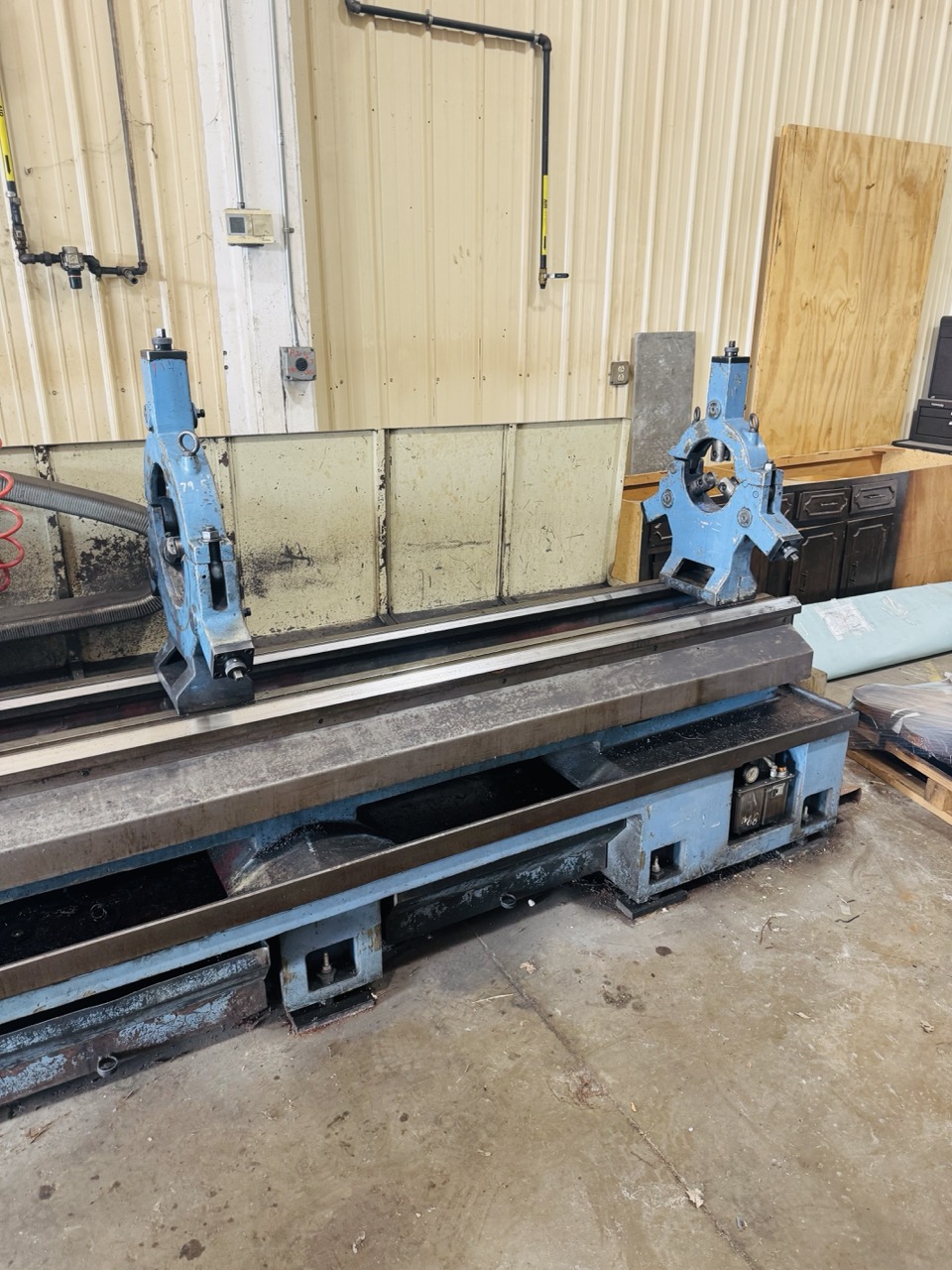

(2) Factory Steady Rests
Rapid Traverse
Coolant System
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
