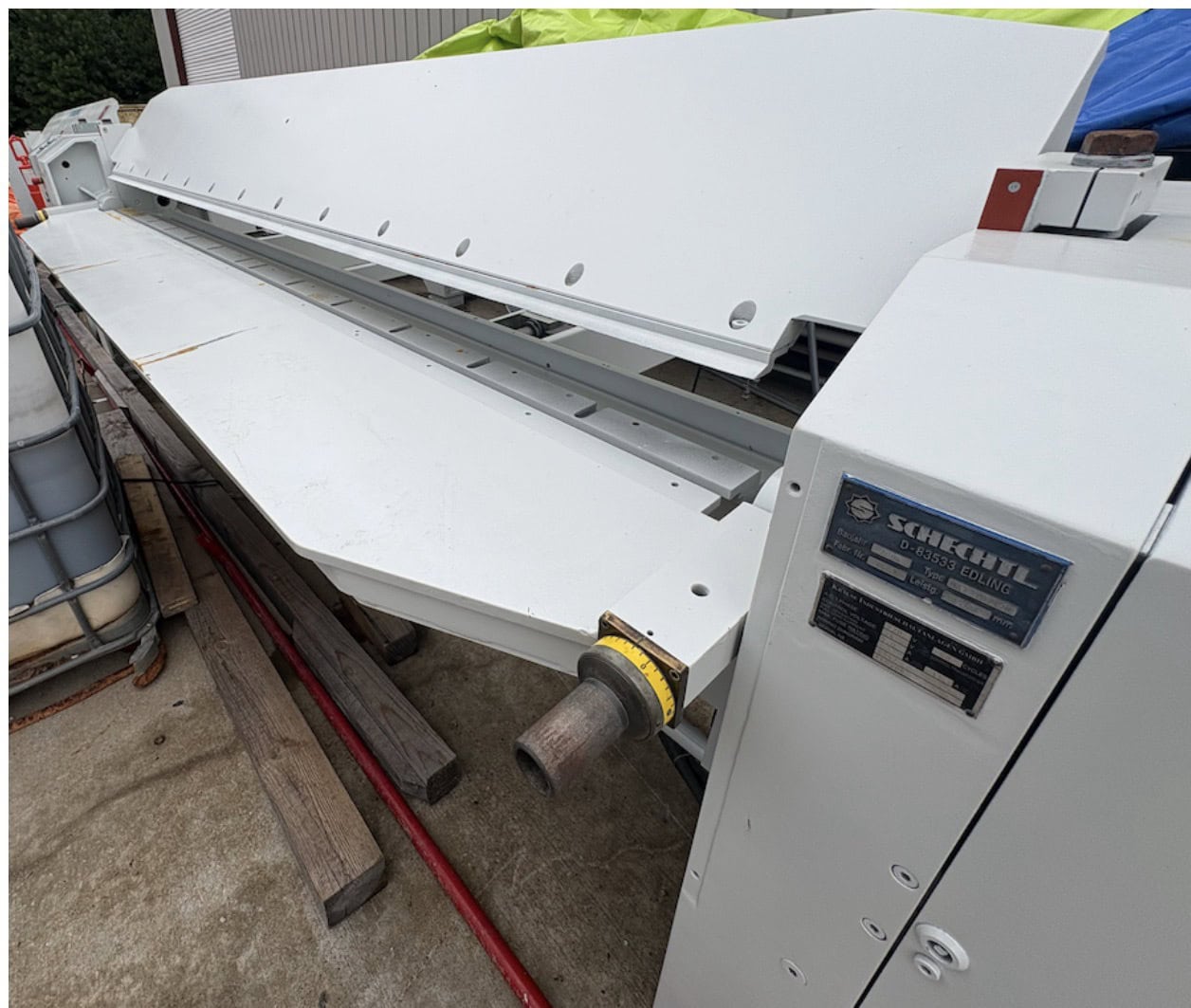

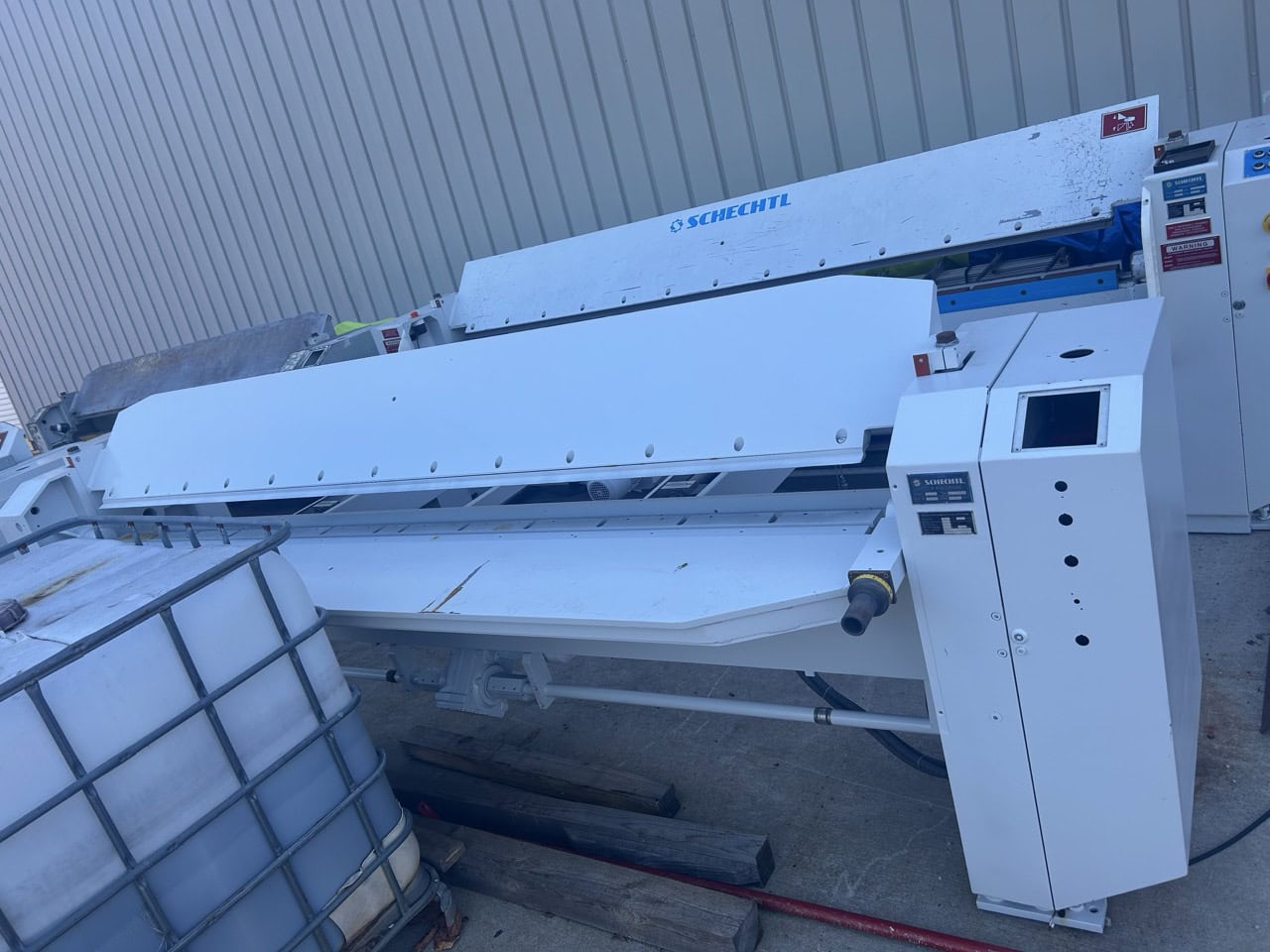

16 Gauge x 10′ Schechtl MAX3100, 2006 – Painted – New Control, New Tooling, New Decals

Working Length: 122″ (3,100 mm)
Bending Capacity (Mild Steel): 16 Gauge (1.5 mm)
Bending Capacity (Aluminum): 13 Gauge (2.0 mm)
Bending Capacity (Stainless Steel): 20 Gauge (1.0 mm)
Maximum Closed Hem Capacity: 24 Gauge
Clamping Beam Stroke / Opening Height: 5.5″ (140 mm)
Folding Beam Speed: 70° to 80° per second
Upper Clamping Beam Speed: 2.8″ (50 mm) per second
Folding Beam Arc: 0 to 160 degrees
Motorized Backgauge Depth: 39.5″
Backgauge Accuracy: ±0.004″
Power Requirements: 230V, 3-Phase, 60Hz, 20 Amps
Approximate Machine Weight: 5,450 lbs (2,472 kg)
Physical Footprint Dimensions (L x W x H): 151″ x 71″ x 55
