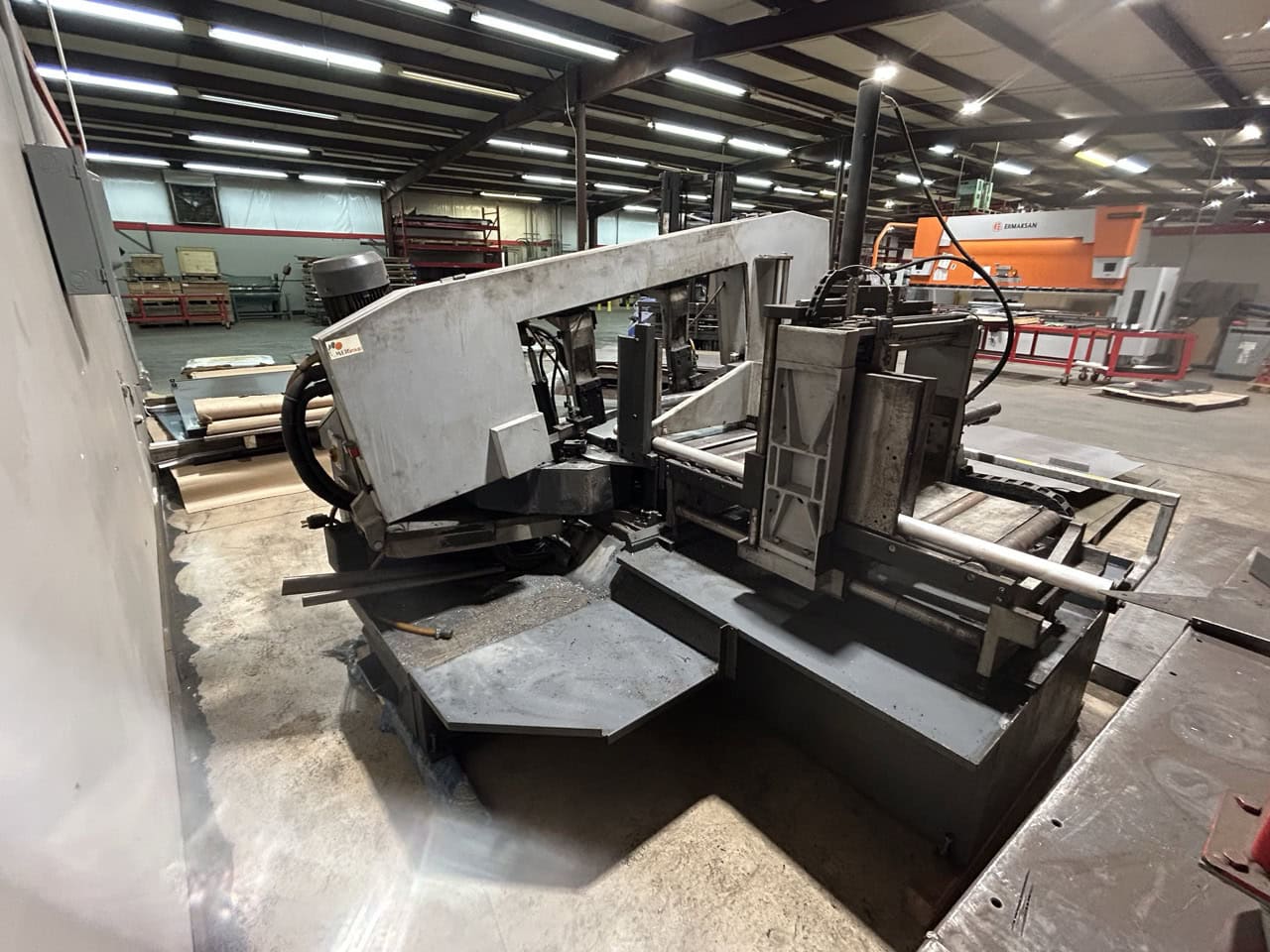

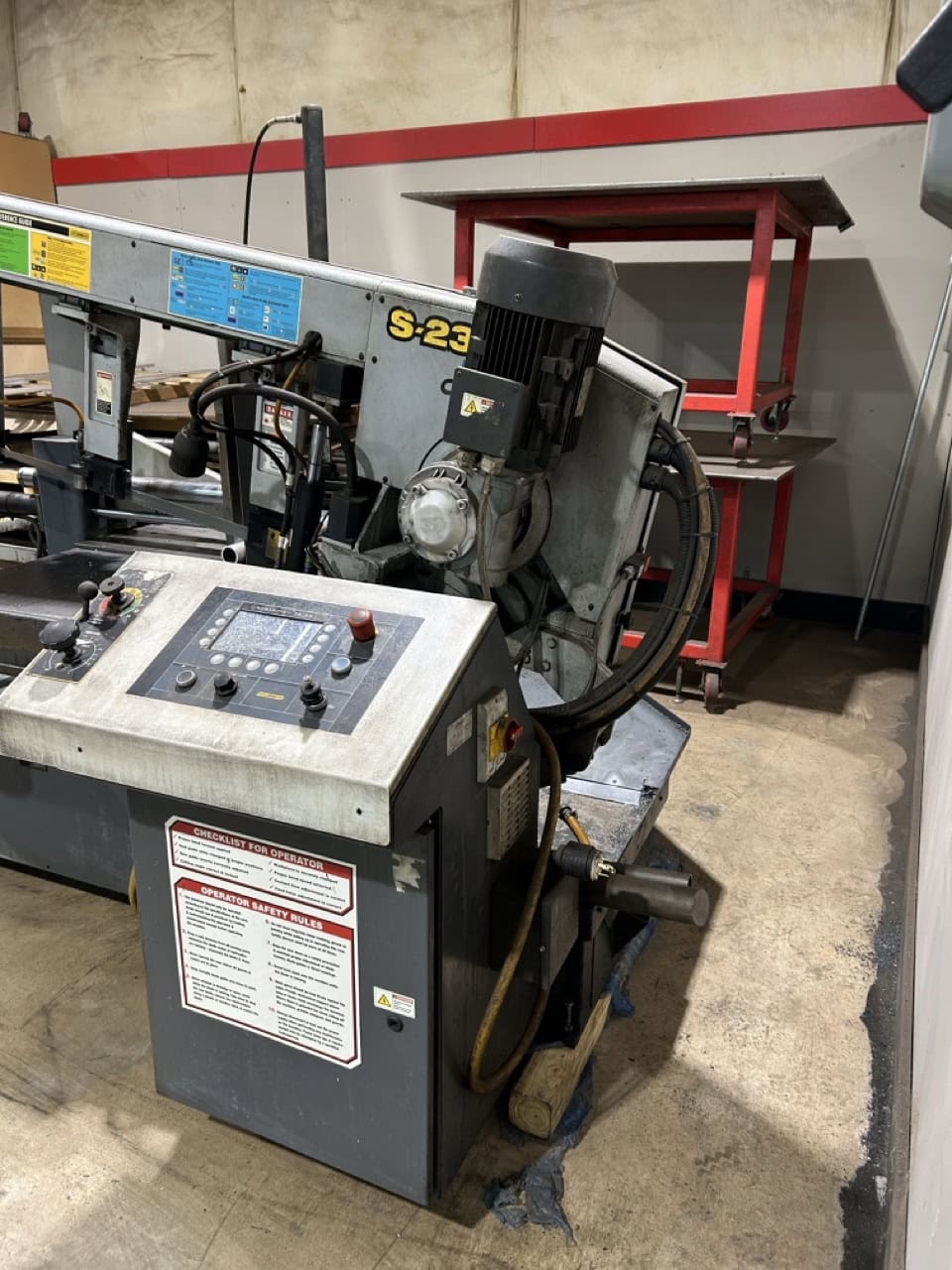

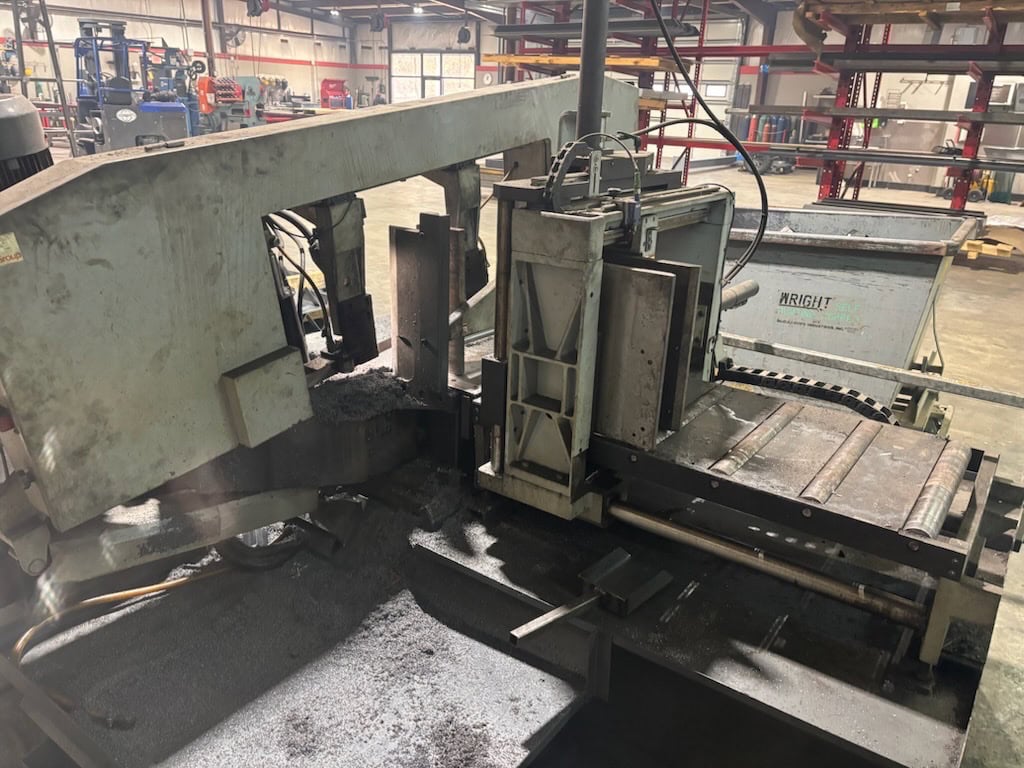

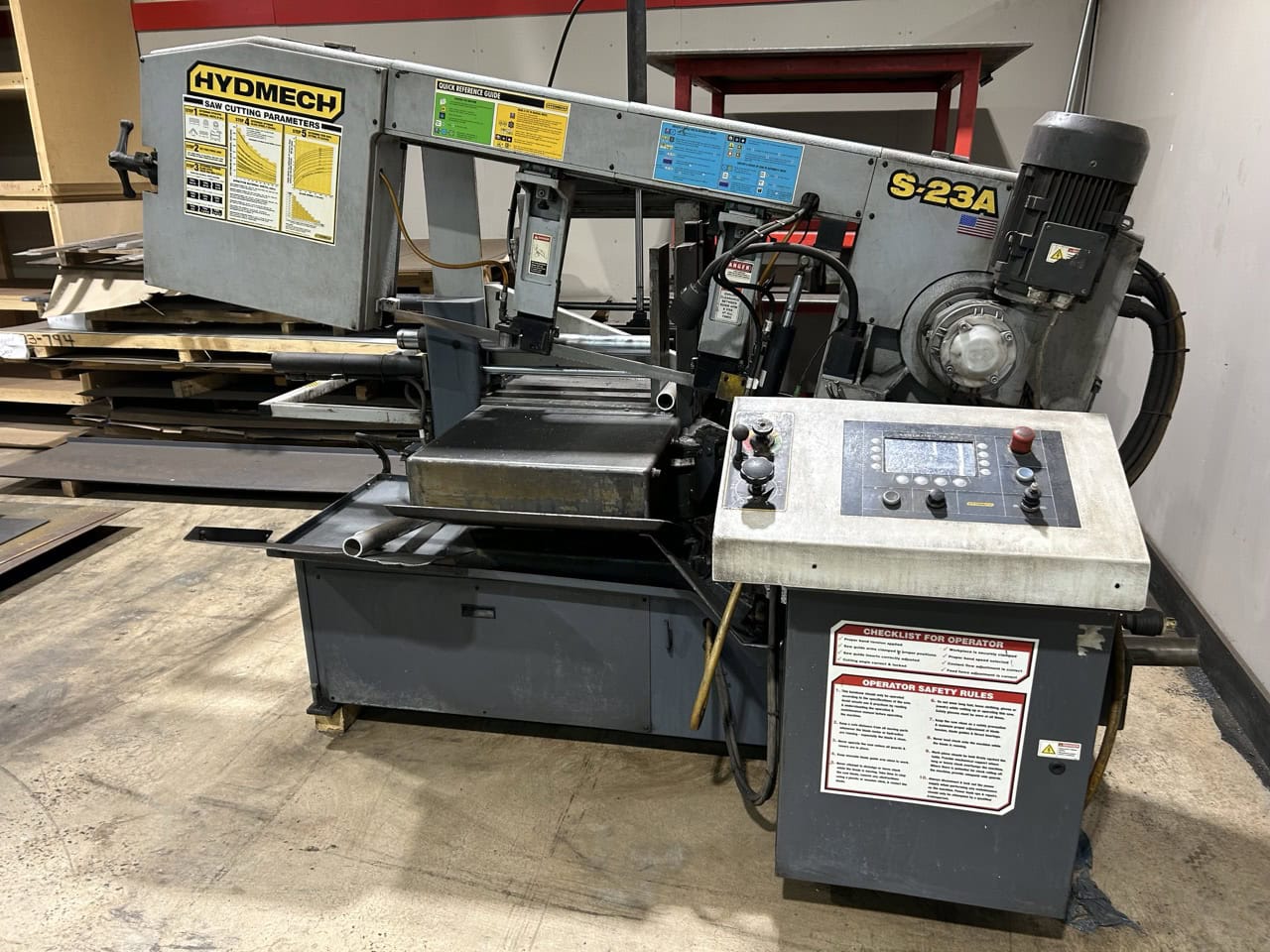

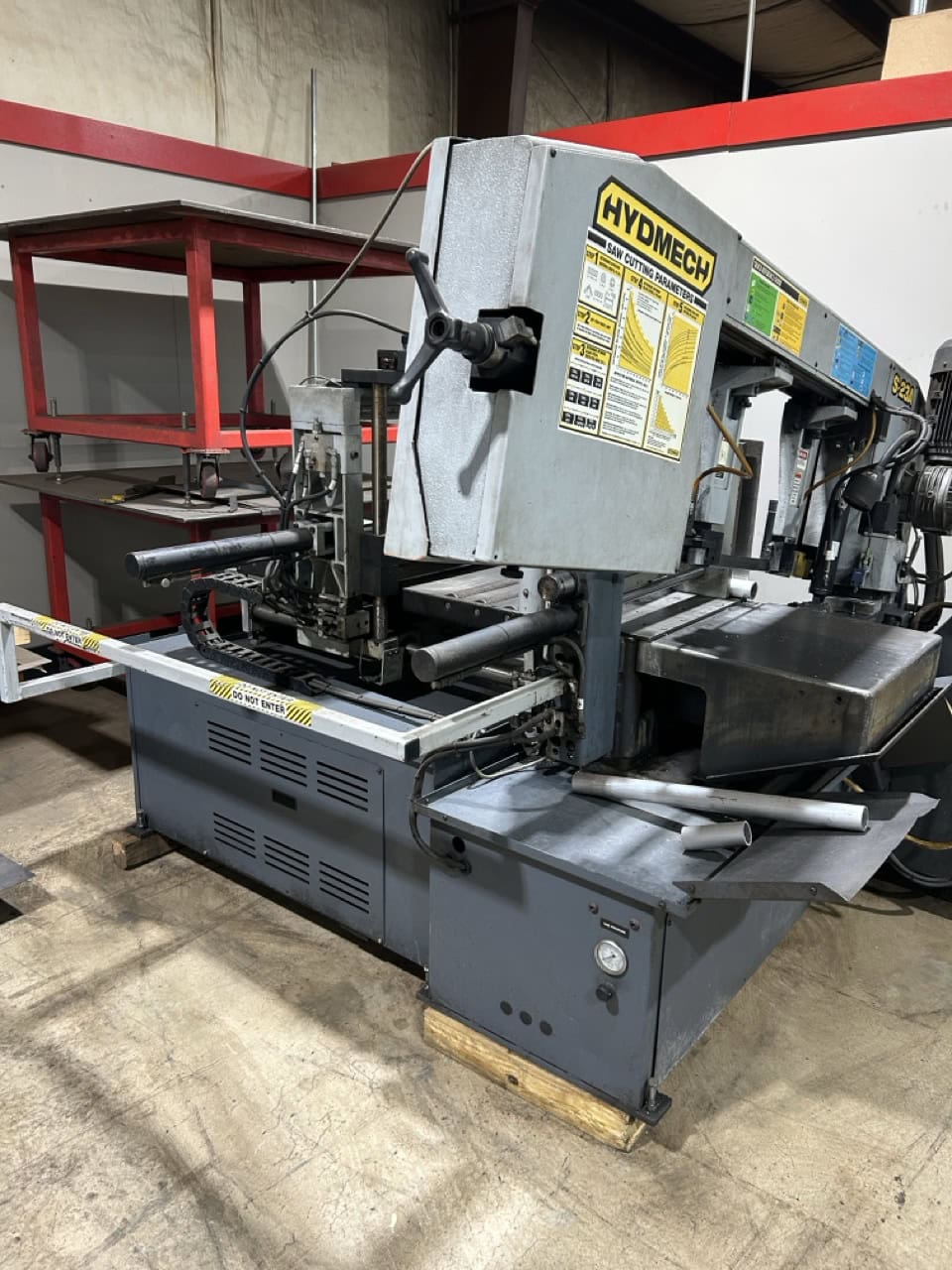

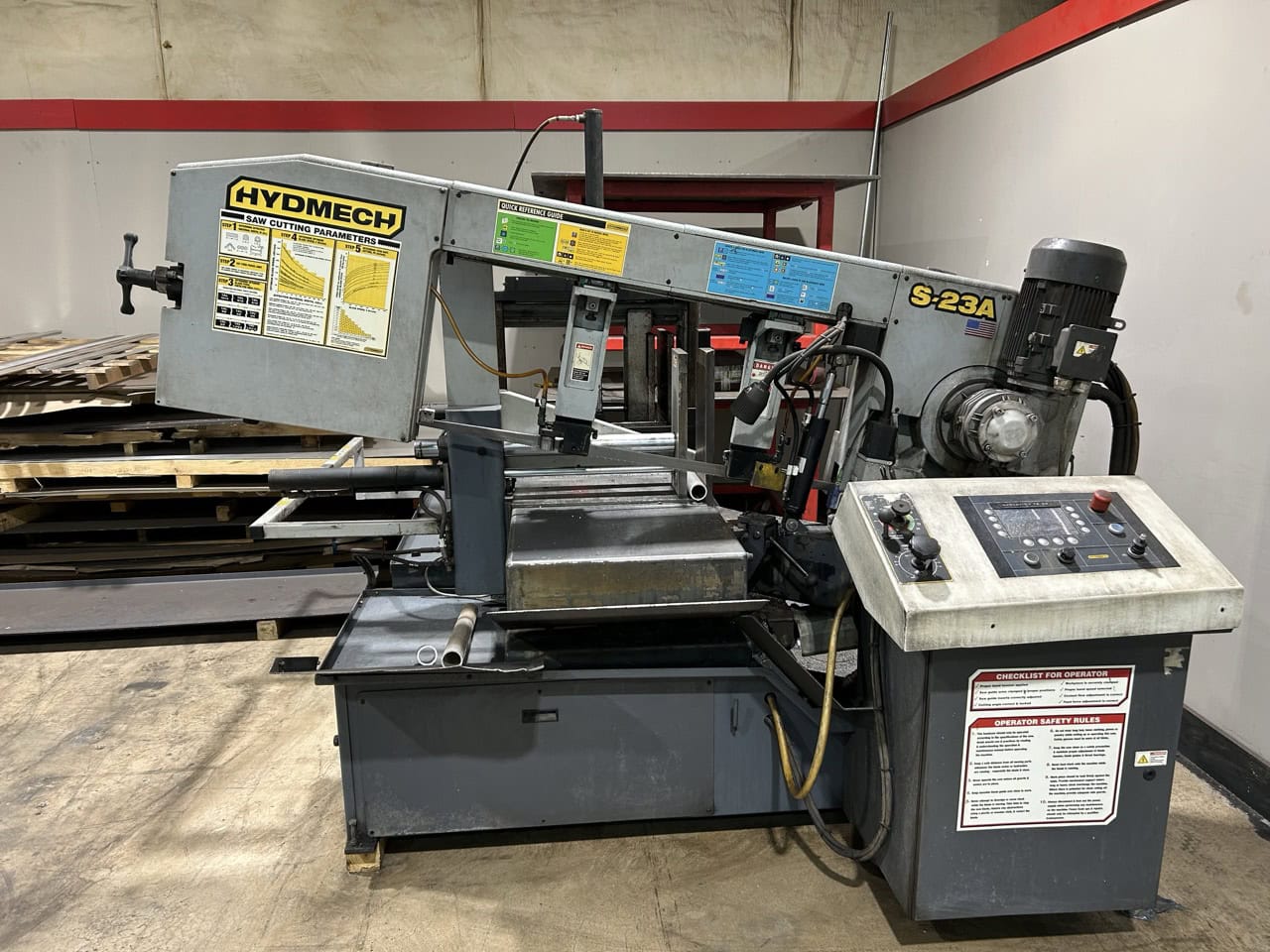

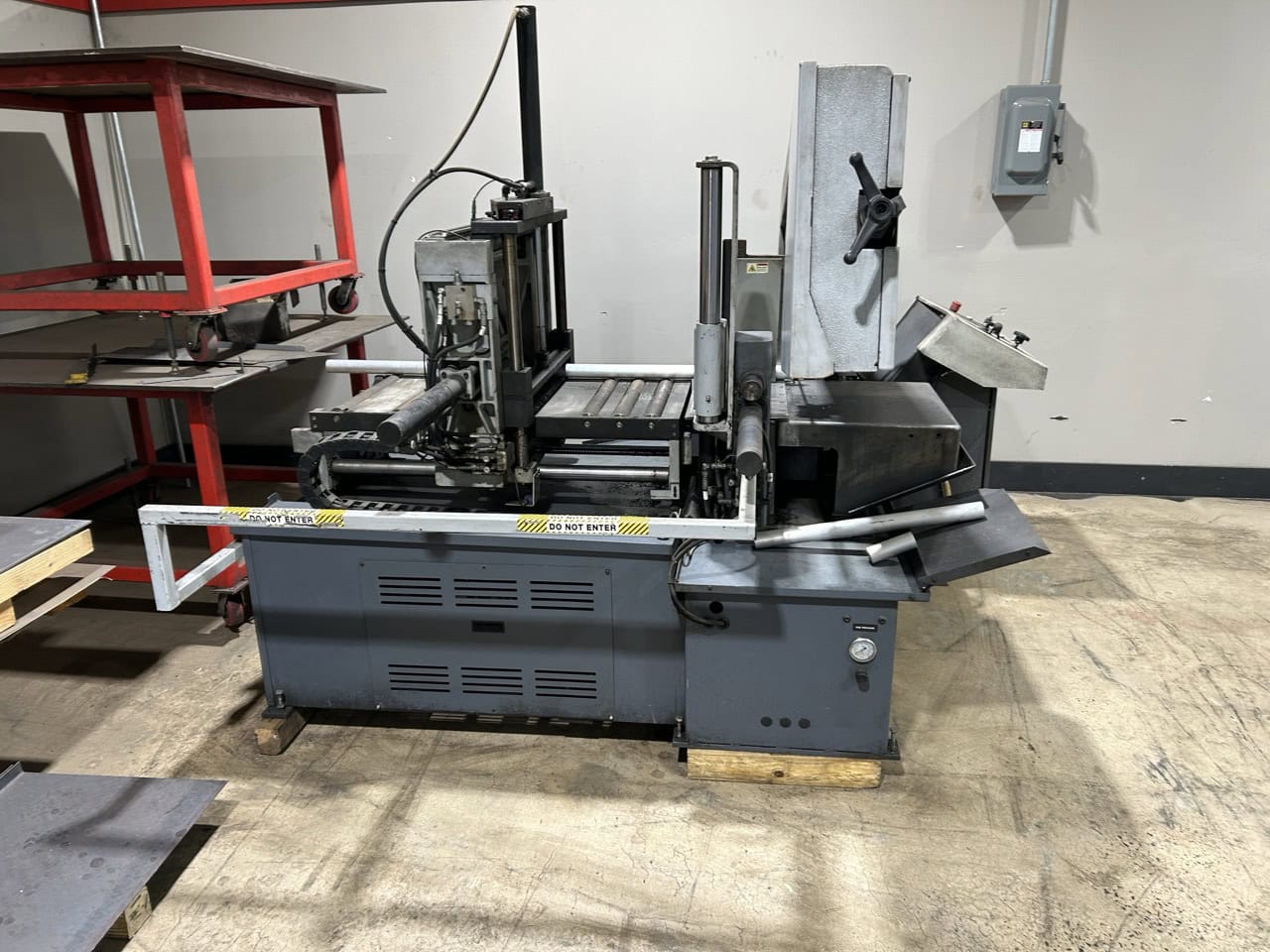

16″ x 18″ Hydmech S-23A Horizontal Saw, 2016 – Video Available
$37,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Cutting Capacity
Rectangular: 16″ High x 18″ Wide
Round: 16″ Diameter
13″ Diameter @ 45 Degrees
Blade Size: 15’6″ x 1.25″ (Actual Measurement 1.350″ including teeth)
Blade Thickness: .042″
Blade Speed: 75-400 Surface Feet/Minute
Blage Guides: Carbide
Blade Wheel Diameter: 19″
Table Height: 31″

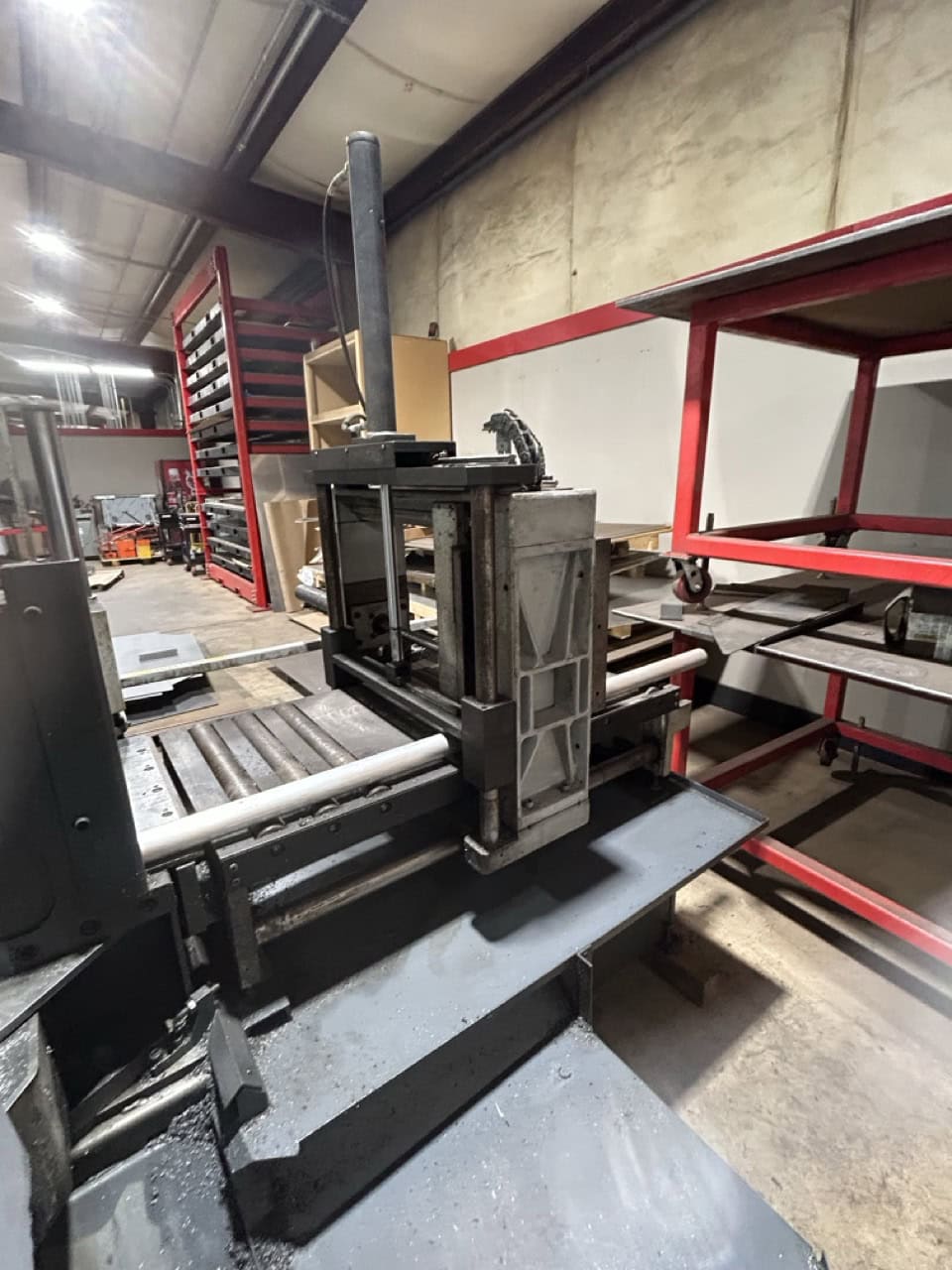

Shuttle Stroke: 29″
Max Workload: 5,000 LBS
Coolant Pump: 3.5 Gallons Per Minute
Coolant Reservoir: 6 Gallons
Machine Weight: 3,500 LBS
Overal Dimensions: 122″ x 105″ x 63″
