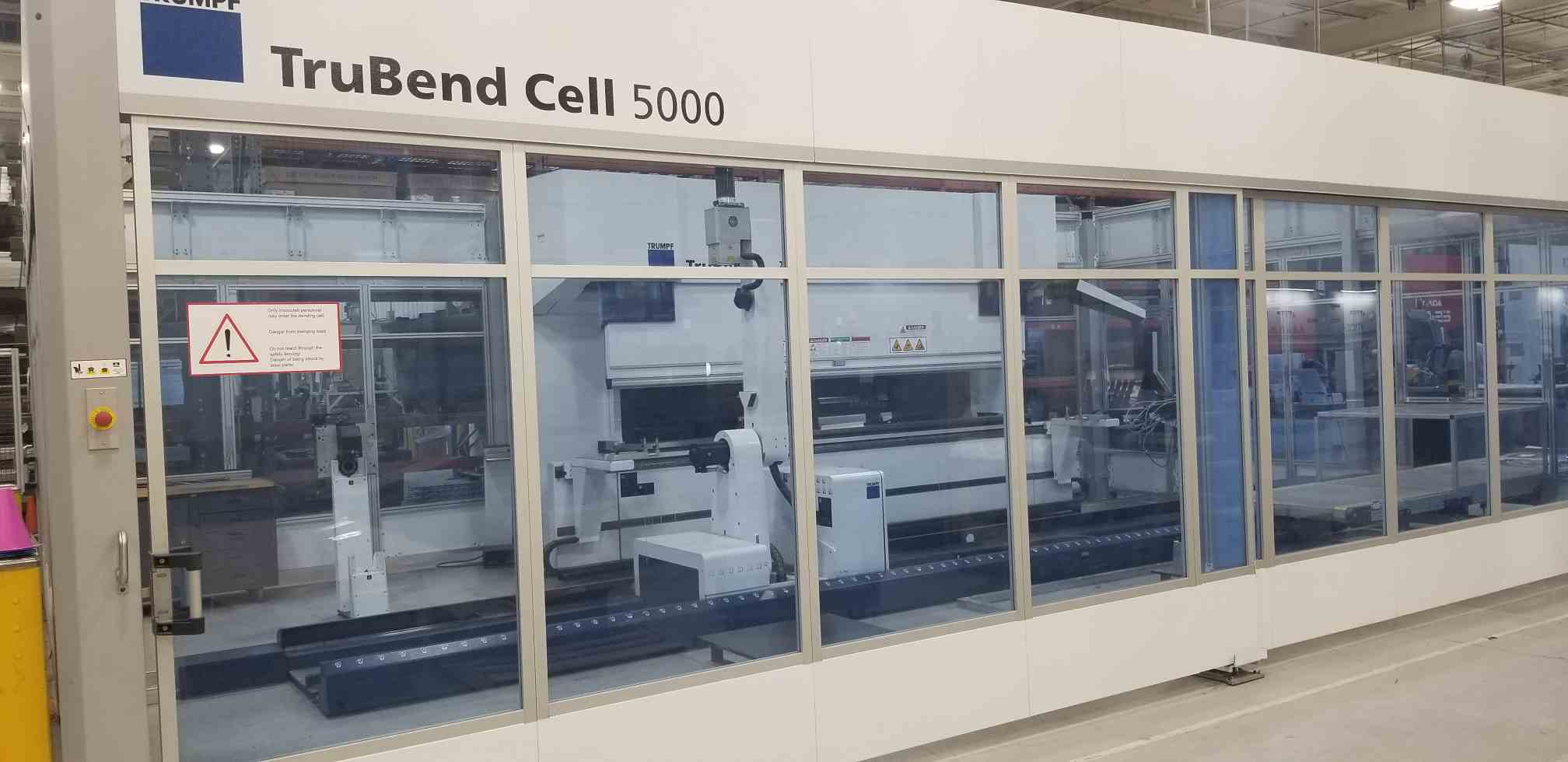

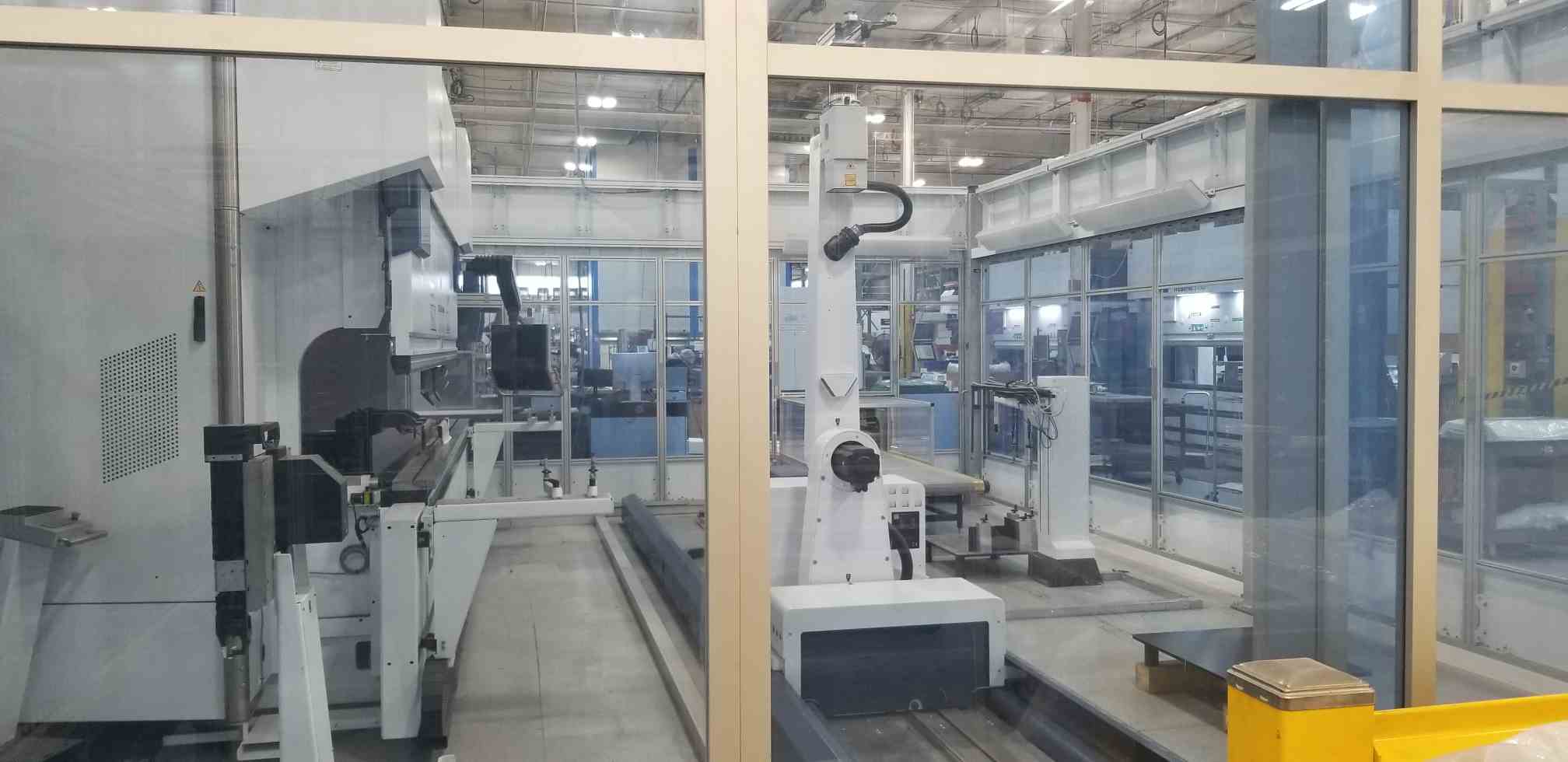

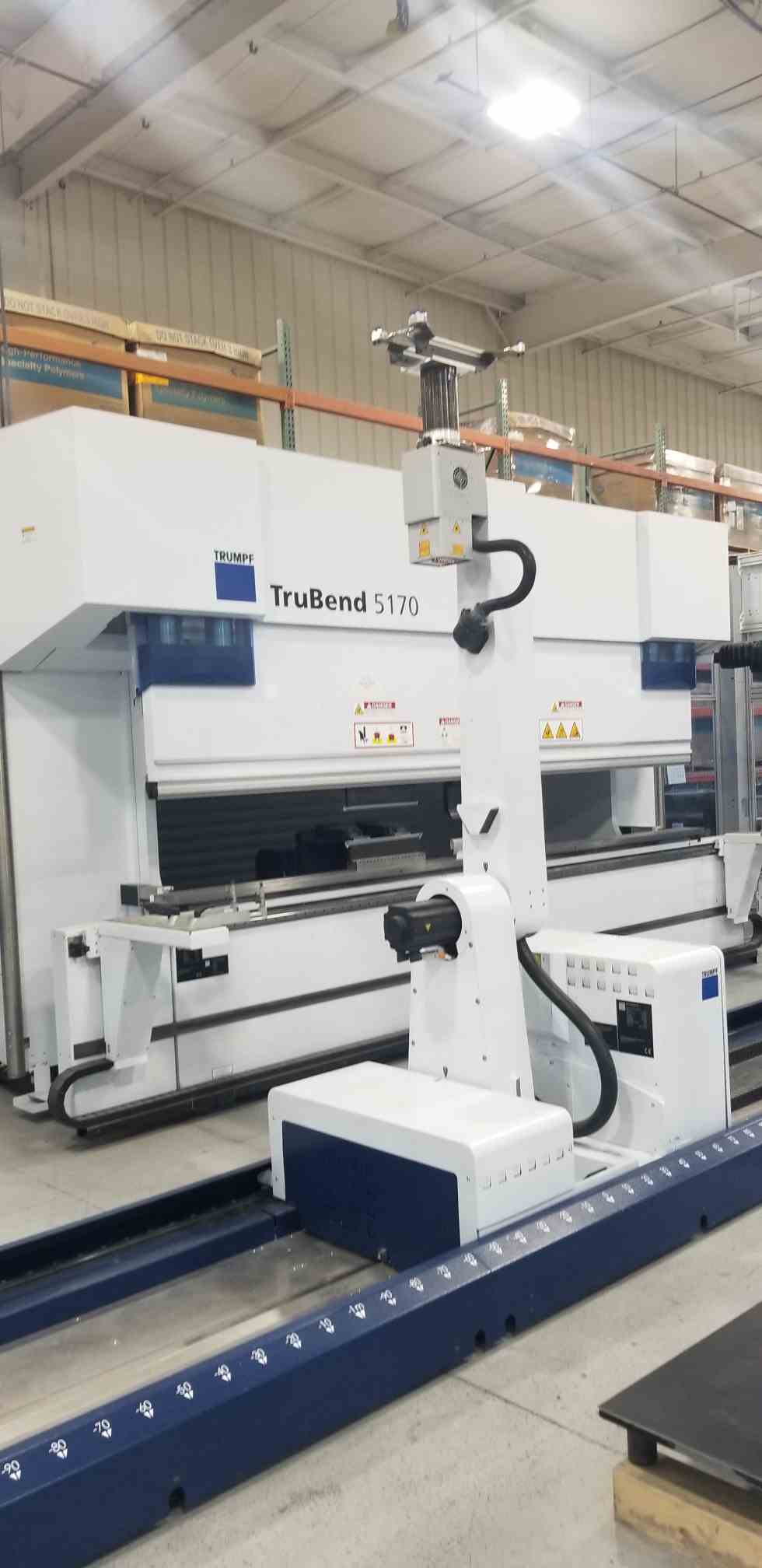

170 Ton x 14′ Trumpf TruBend Cell 5170S Hydraulic Press Brake, 2019 – Trumpf TruBend 5170S, Trumpf BendMaster (60), Trumpf Bendcell Assembly

$575,000.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Press Force: 170 Tons
Bending Length:  167″
Width Between Columns: 144″
Usable Open Height: 24″
Throat Depth: 16″
Rapid Downward Movement: 8″/Sec
Maximum Y Press Operation: 0.39″/Sec
Weight of Basic Machine: 39,352 Lb.
TruBend Machine Dimensions: 195″ x 74″ x 118″

Bendmaster (60)
Maximum Carrying Capacity: 132 Lb.
Maximum Sheet Weight: 88 Lb.
Maximum Blank Dimension: 39″ x 78″
Maximum Sheet Thickness: 0.027″

Equipped With:
Bendmaster (60)
Trumpf Trubend 5170
Trumpf TASC 6000 Controller
6-Axis Backgauge Sytem
Hydraulic Upper Tool Holder
CNC Crowning
Optical Setting and Positioning Aid
Rear Work Illumination
Front Work Illumination
MobileControl
Extension of Floor Tracks to 8m
6 Axis Backgauge Sensor
Automatic Gripper Change Module
Conveyor Belt for Unloading 157″ x 39″
Conveyor Belt Control Unit
Vacuum Gripper
Vacuum Gripper Kit
Special Gripper
Mechanical Gripper
Sheet Loader
