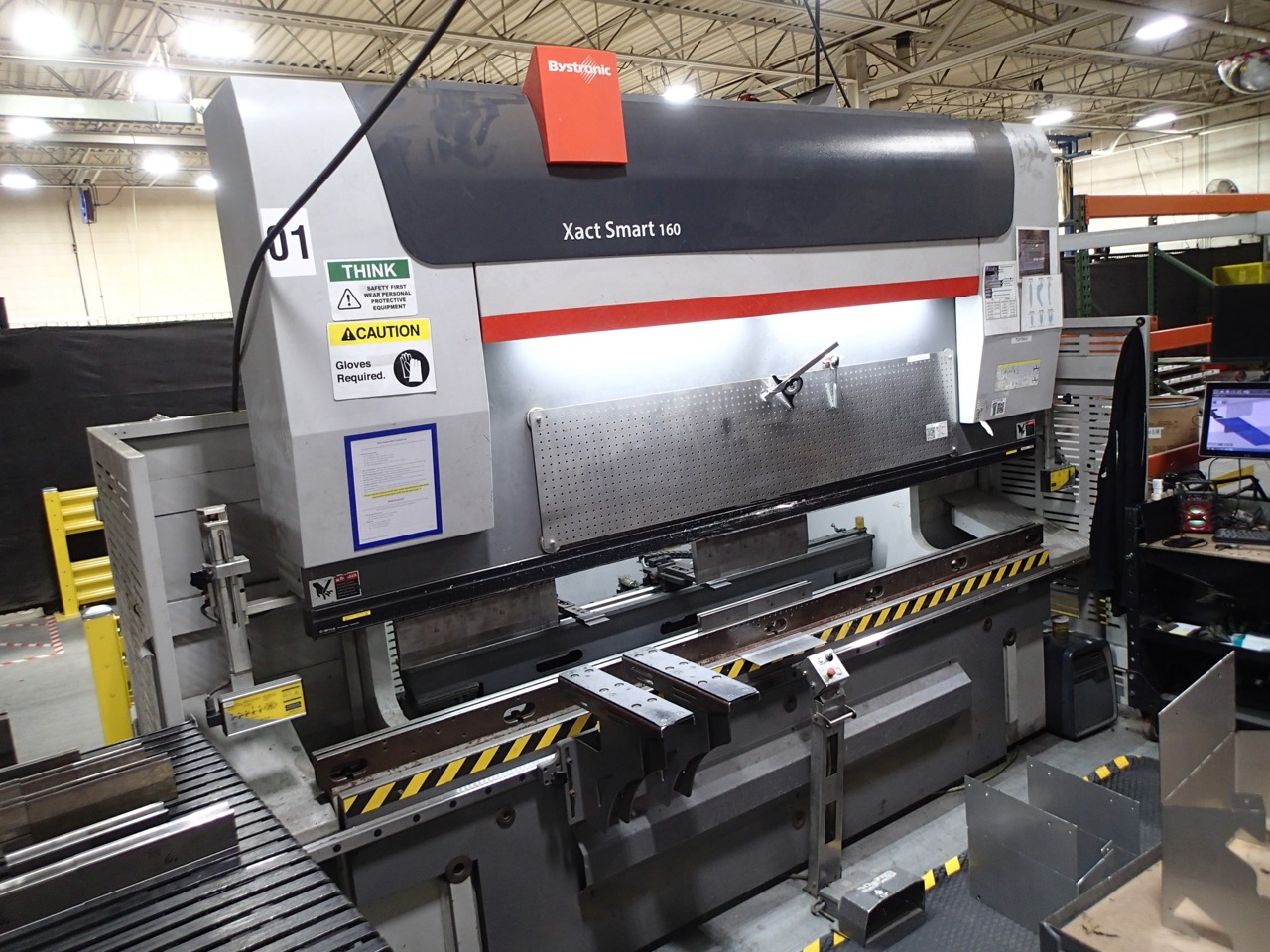

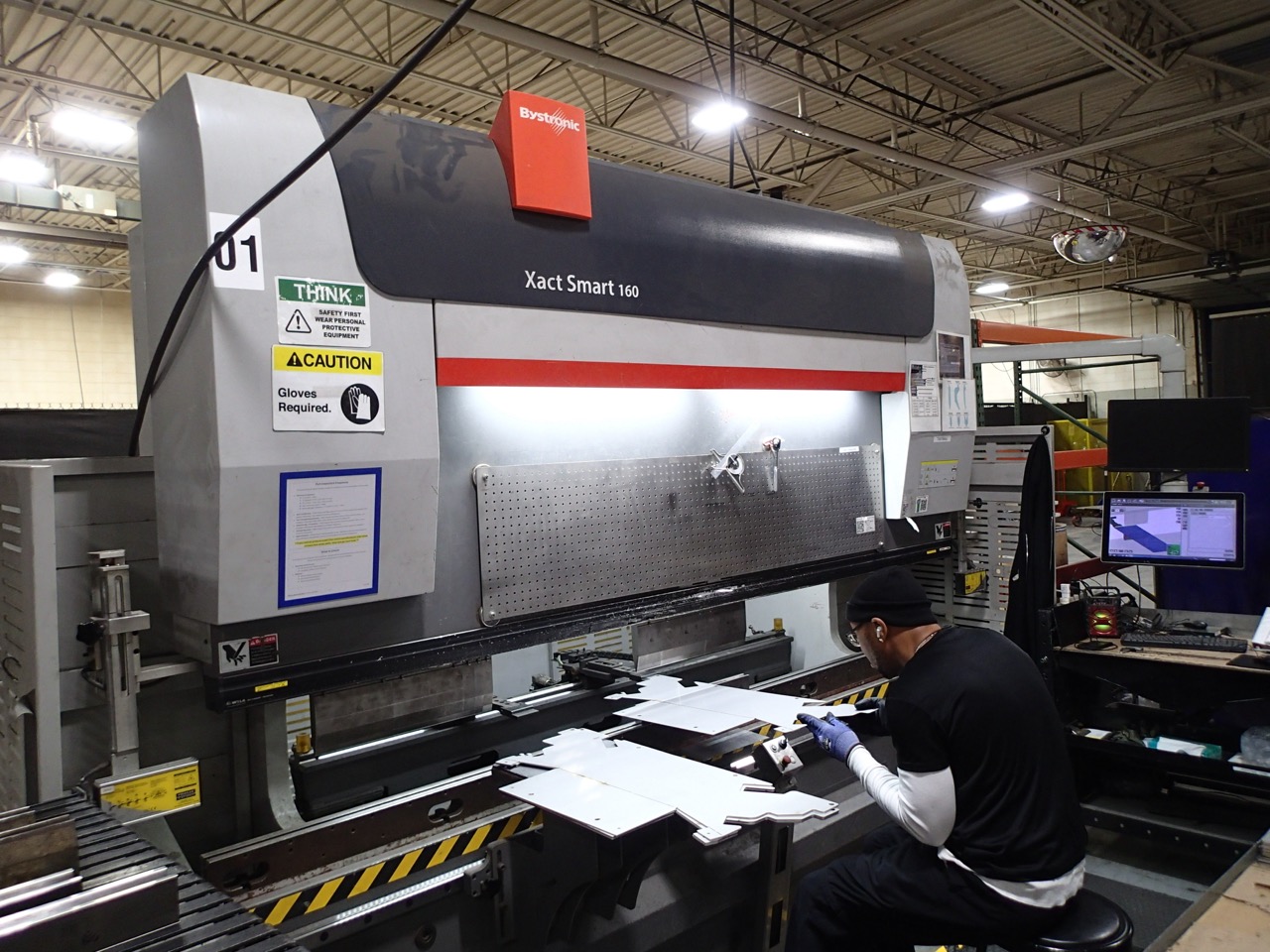

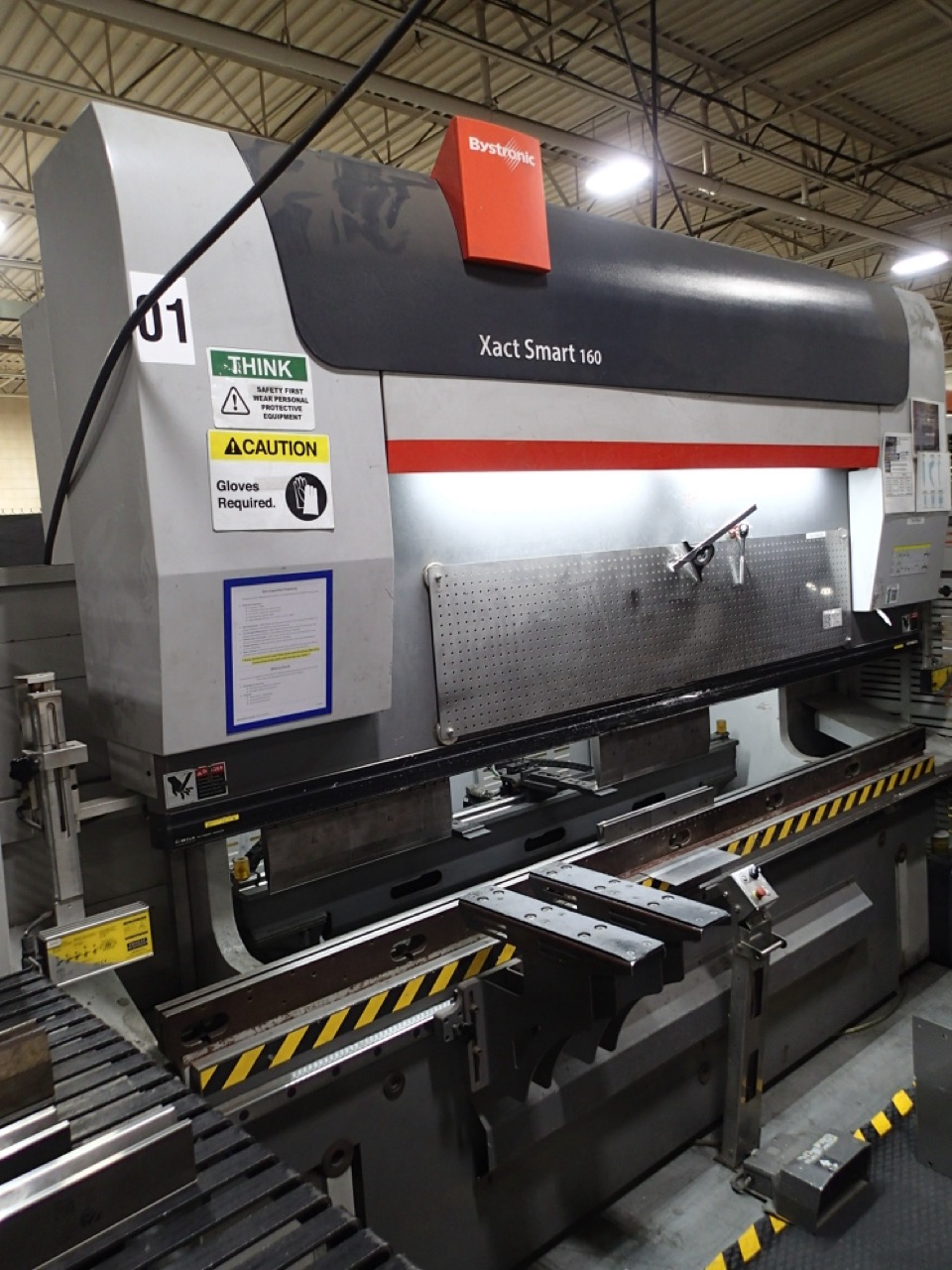

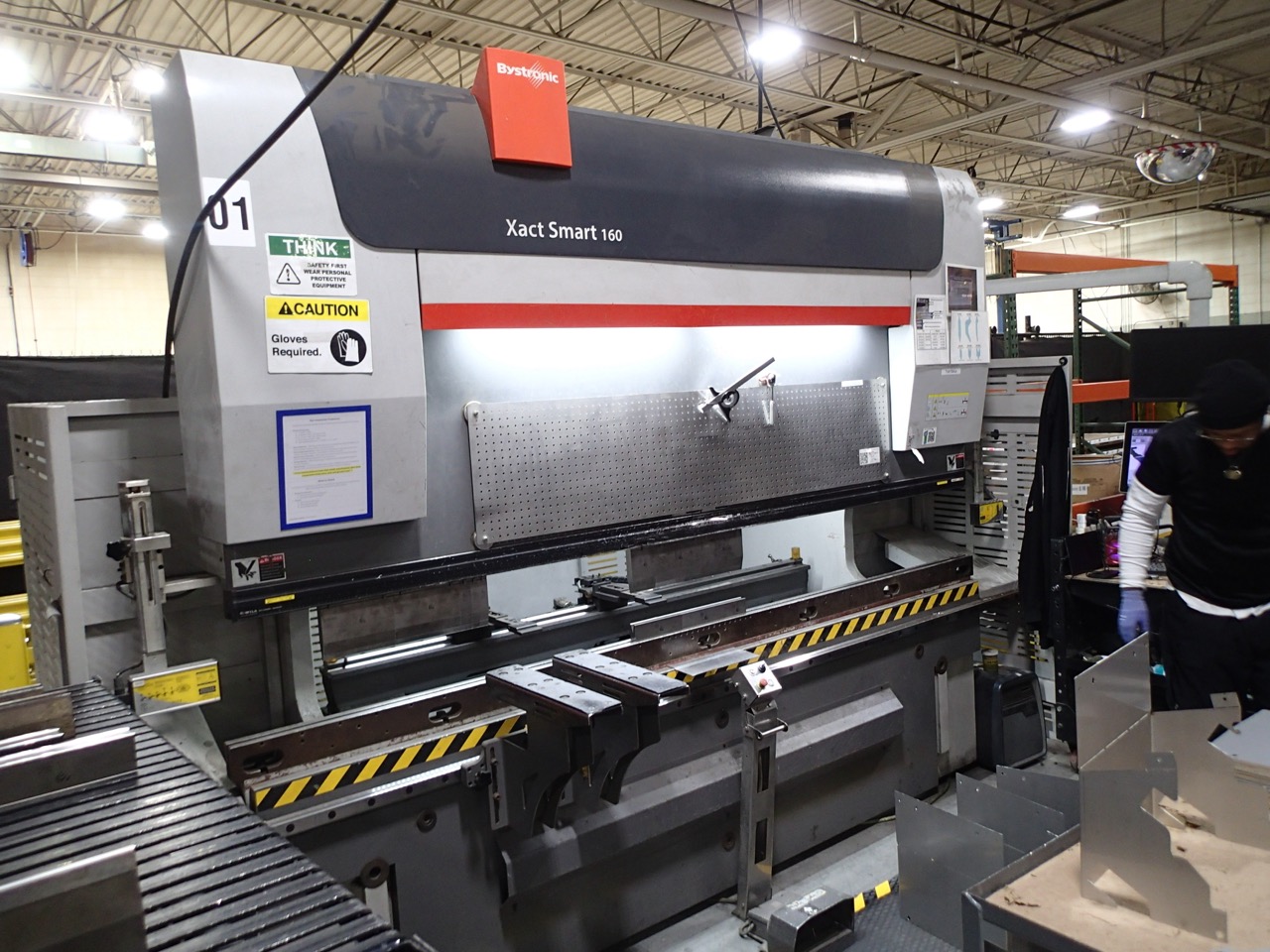

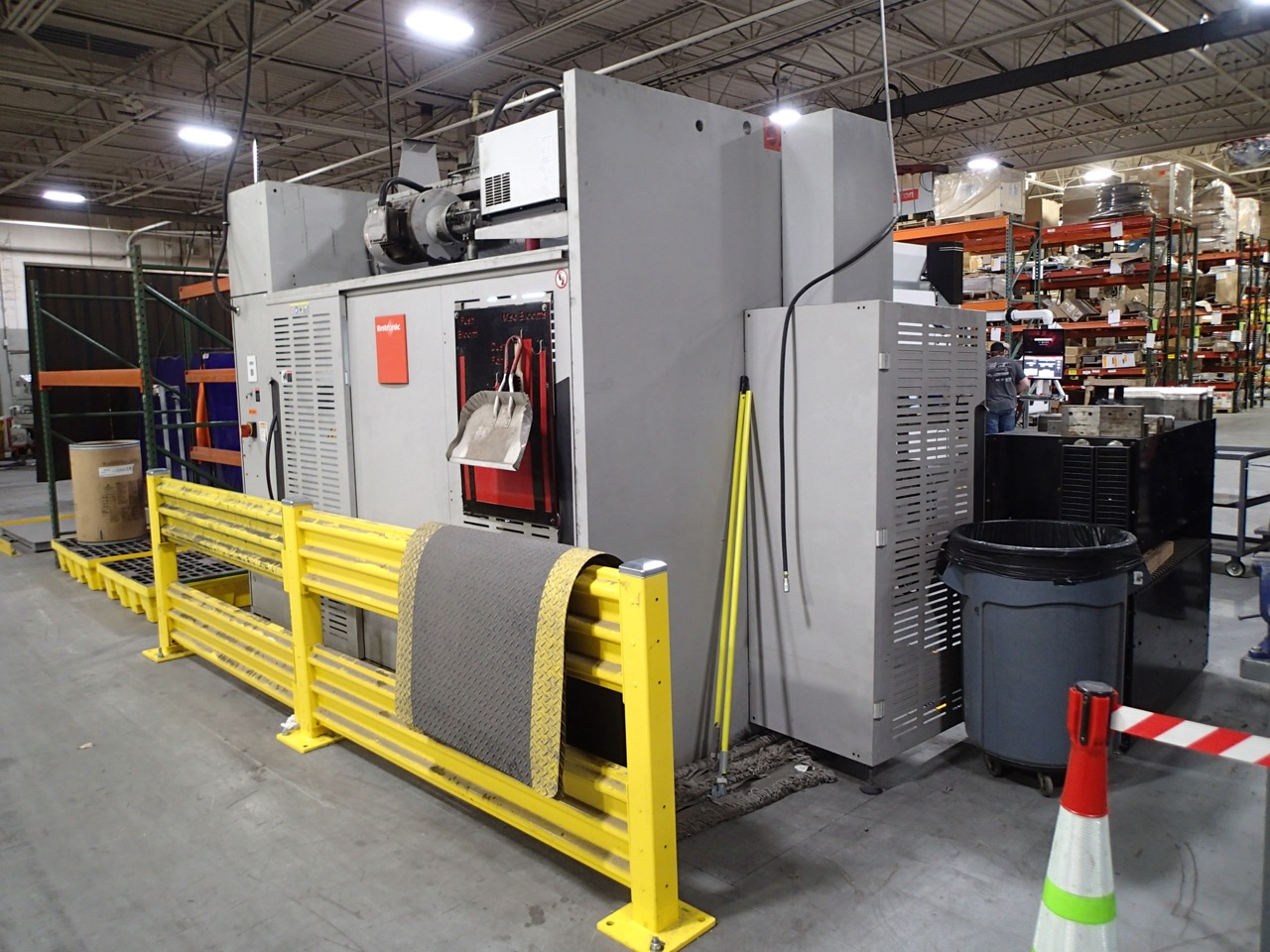

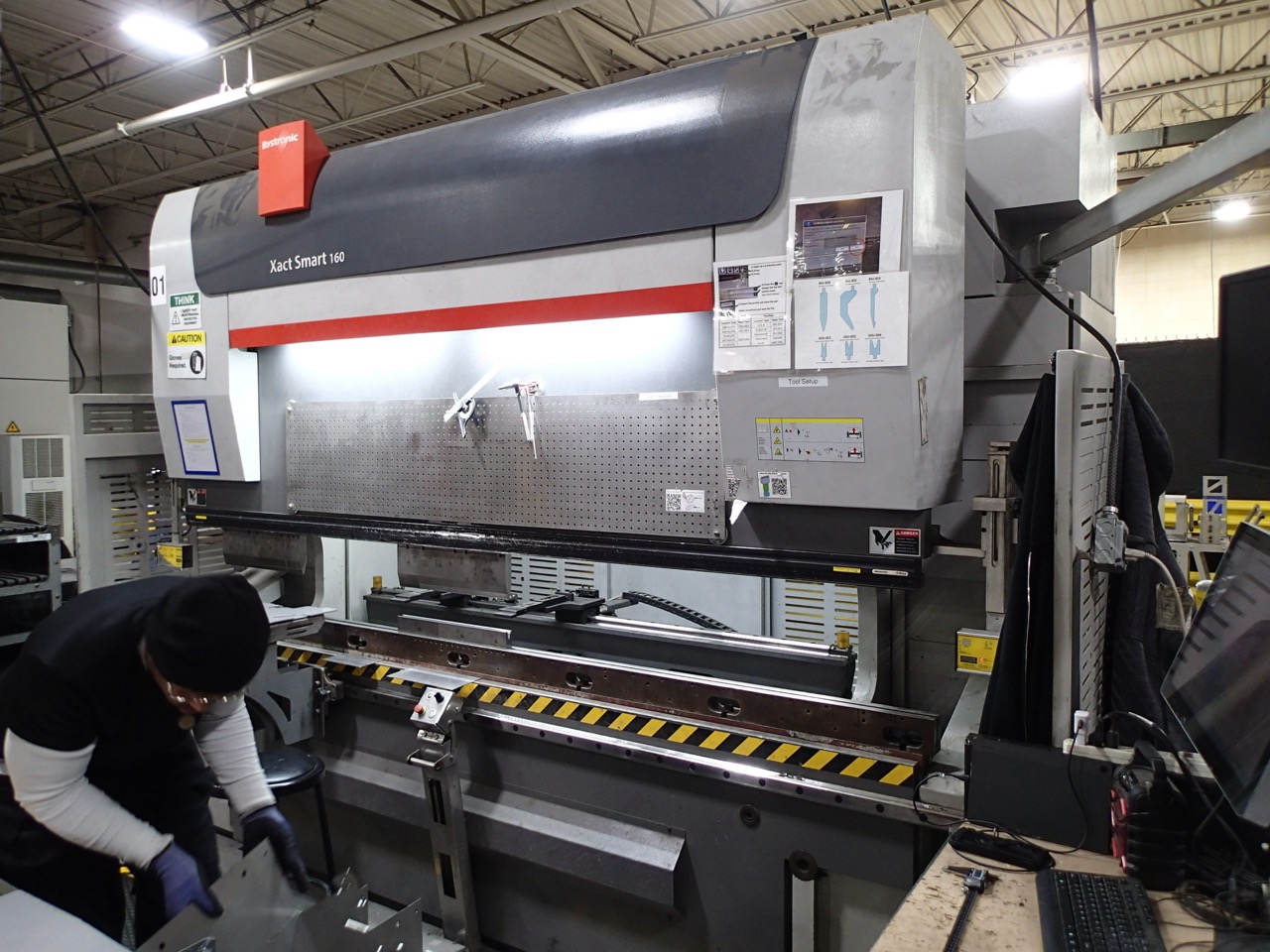

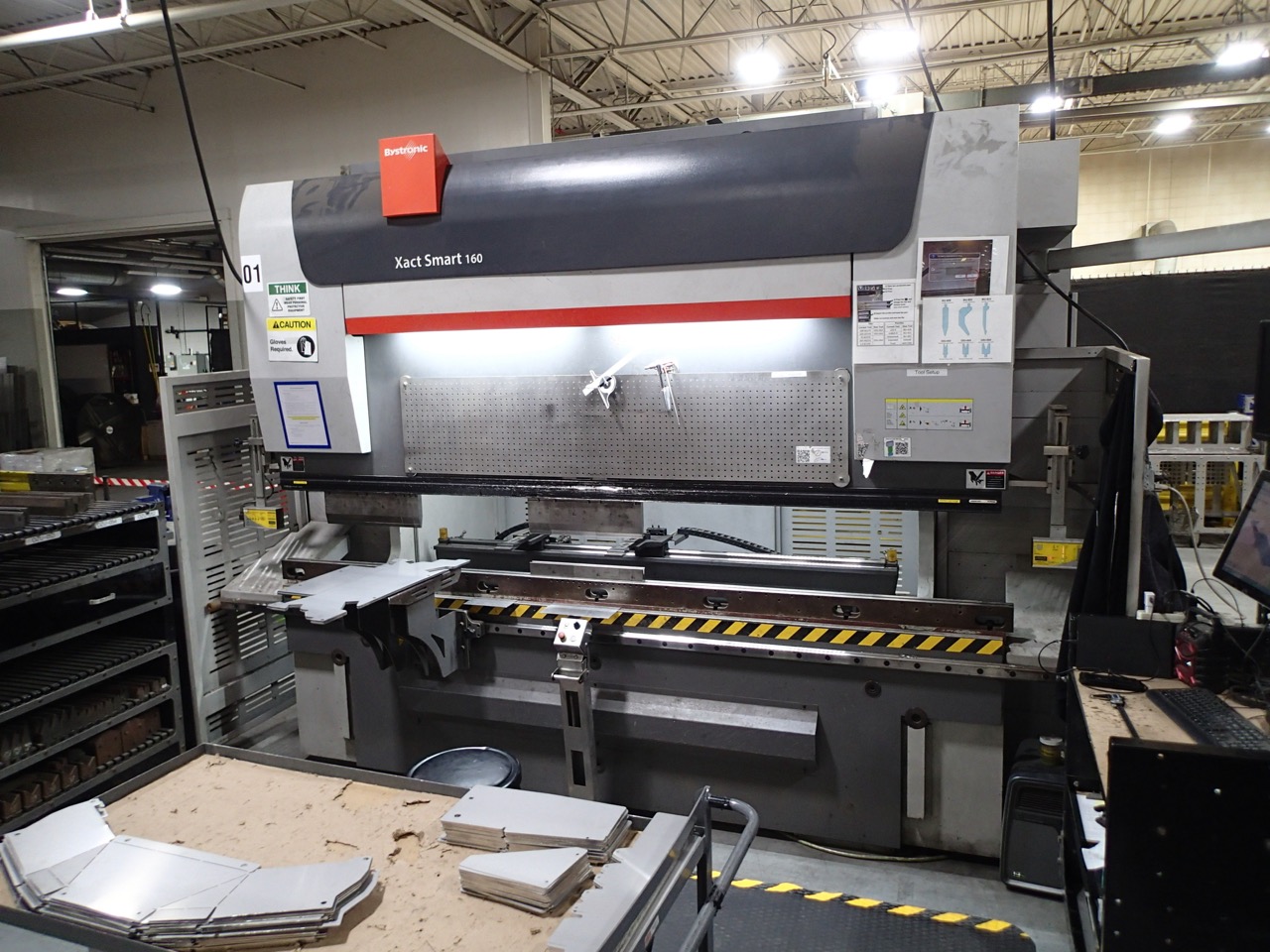

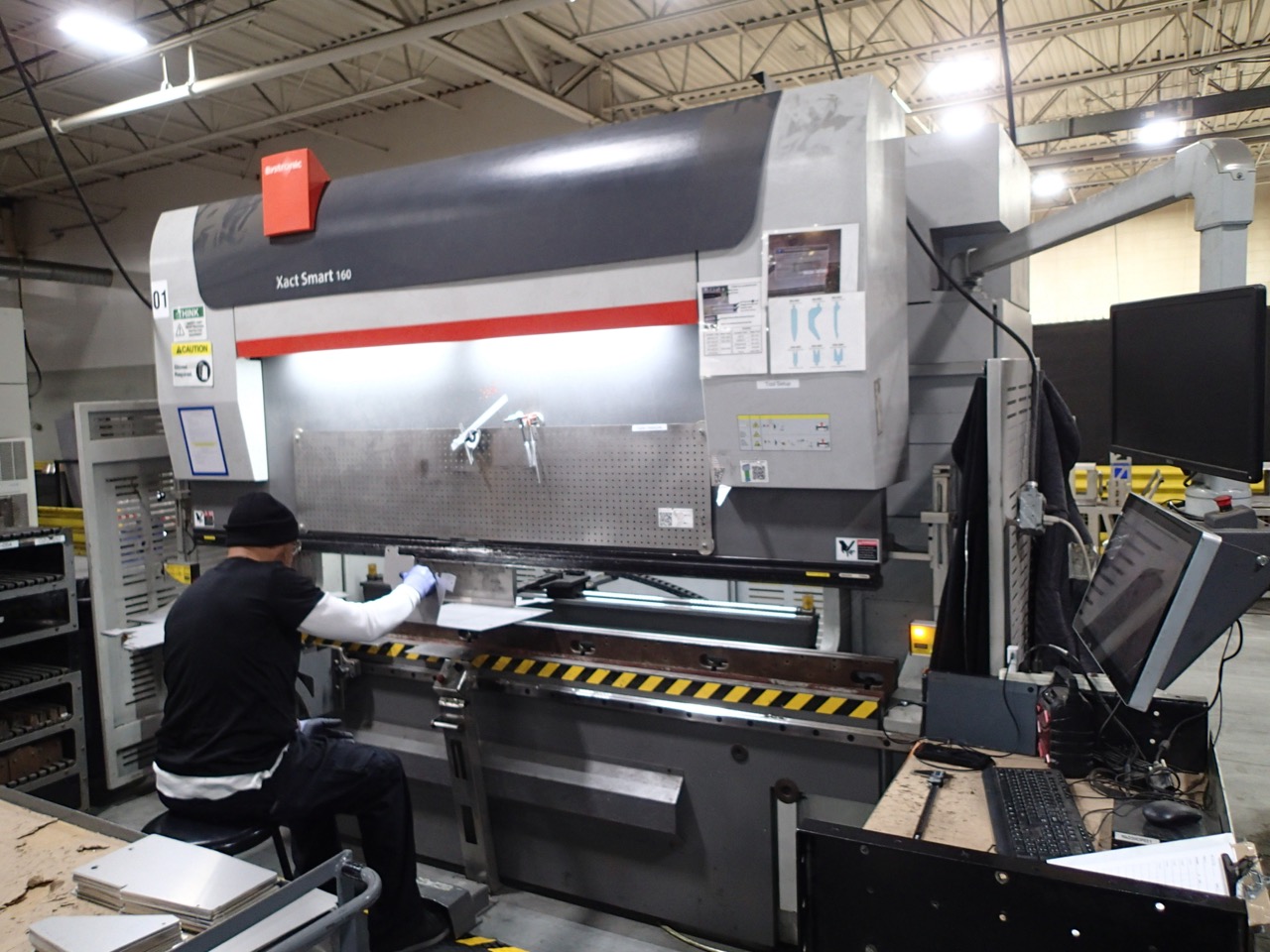

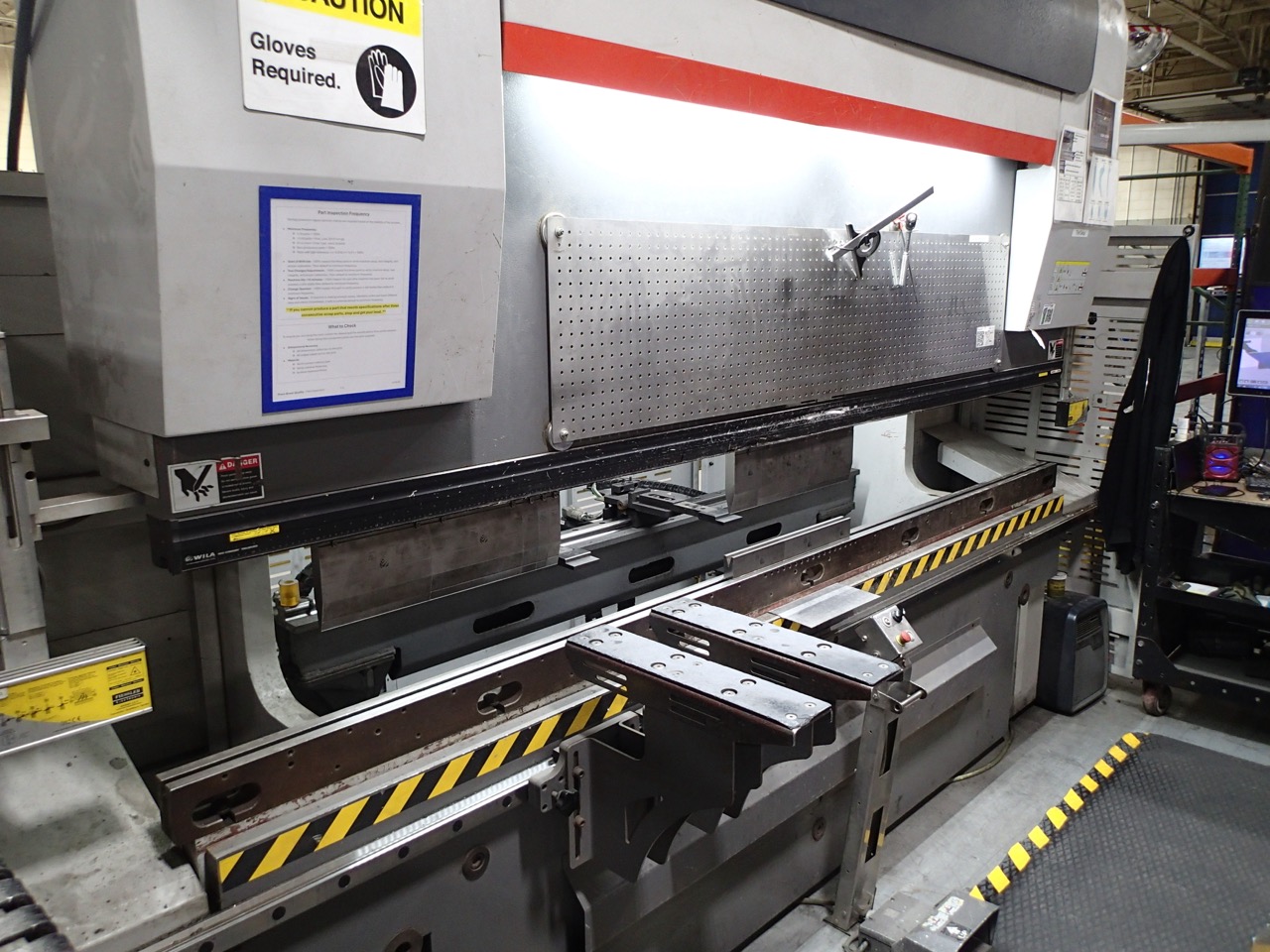

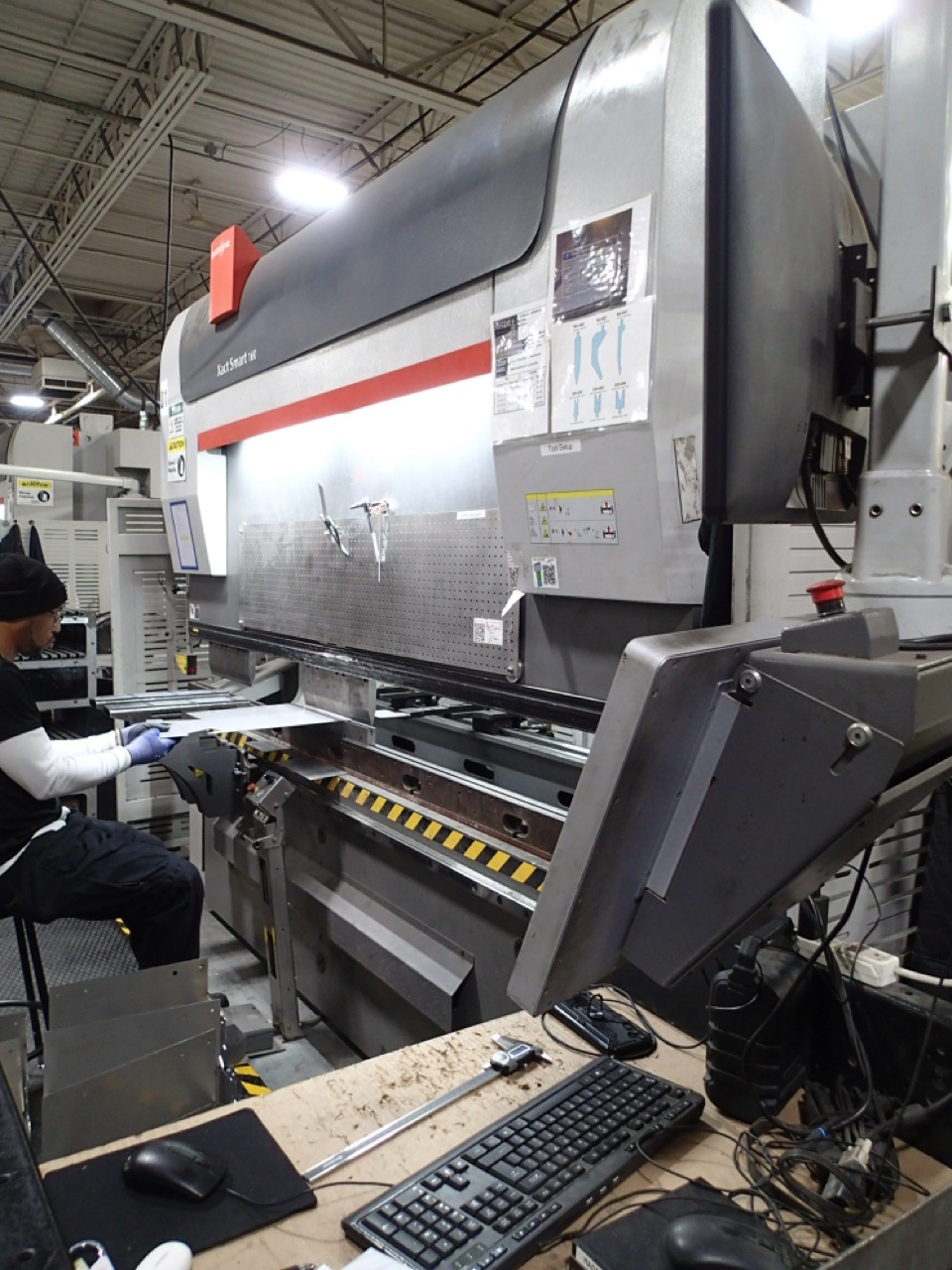

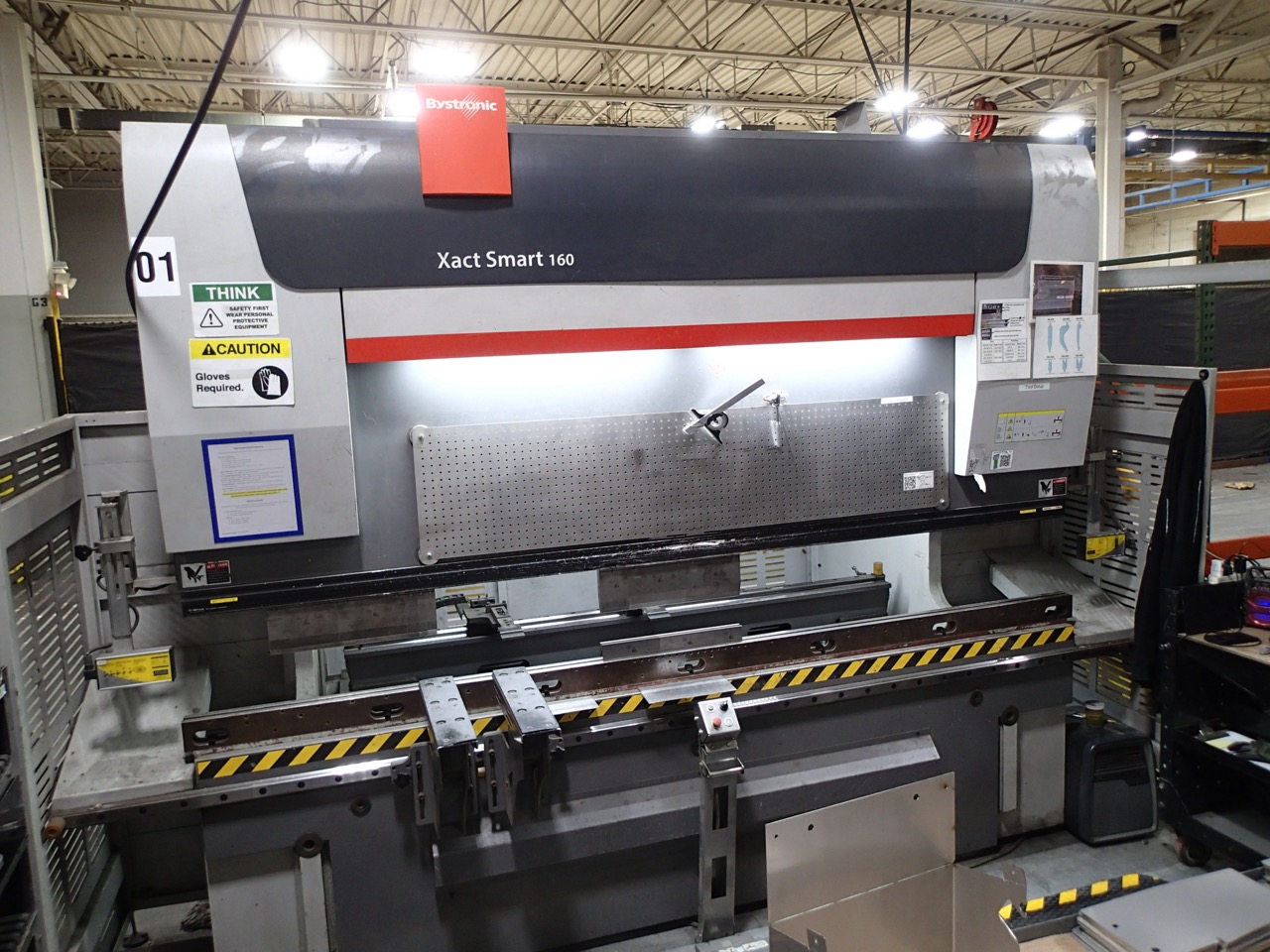

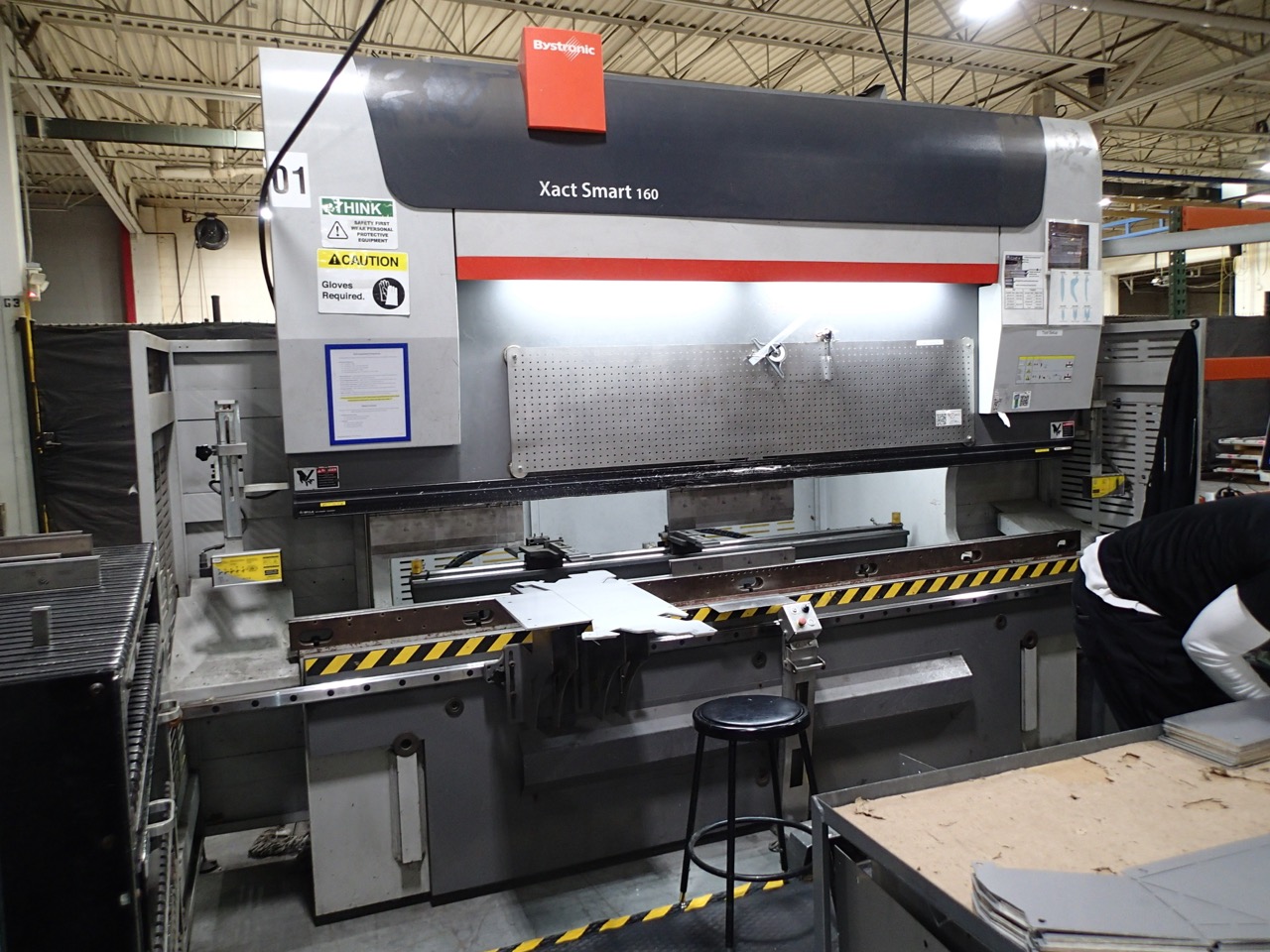

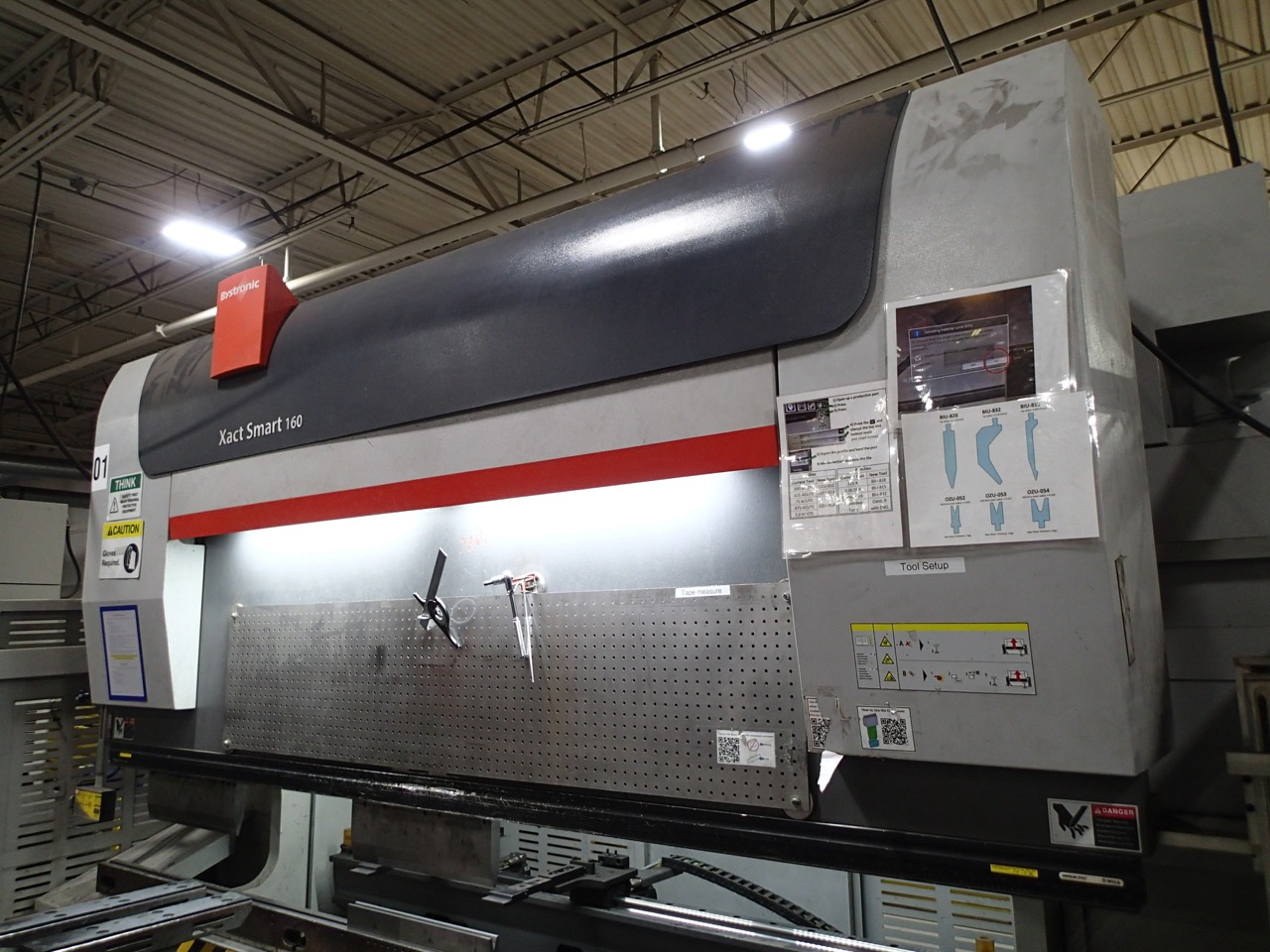

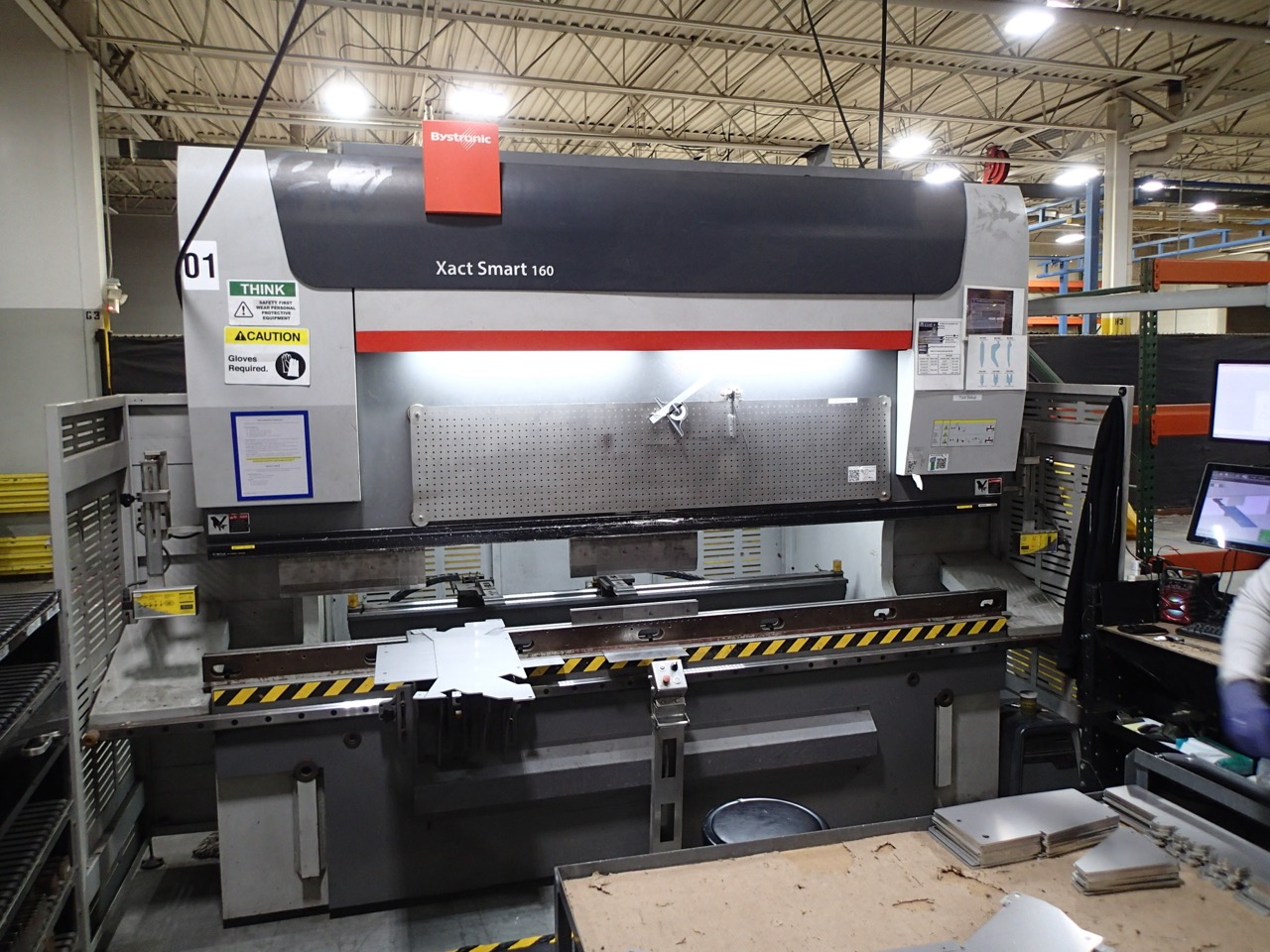

176 Ton x 10′ Bystronic Xact Smart 160 CNC Press Brake, 2017
$99,900.00
Machine Type: Hydraulic Press Brakes
Make: Bystronic
Model: Xact Smart 160/3100
Year: 2017
Capacity: 176 Ton x 10‘
Machine Location: Michigan
Stock #: 768076
Press Force: 176 Tons
Bending Length: 122″
Standard Stroke: 7.9″
Open Height: 18.9″
Distance Between Side Frames: 96.5″
Throat: 15.8″
Table Width: 2.4″

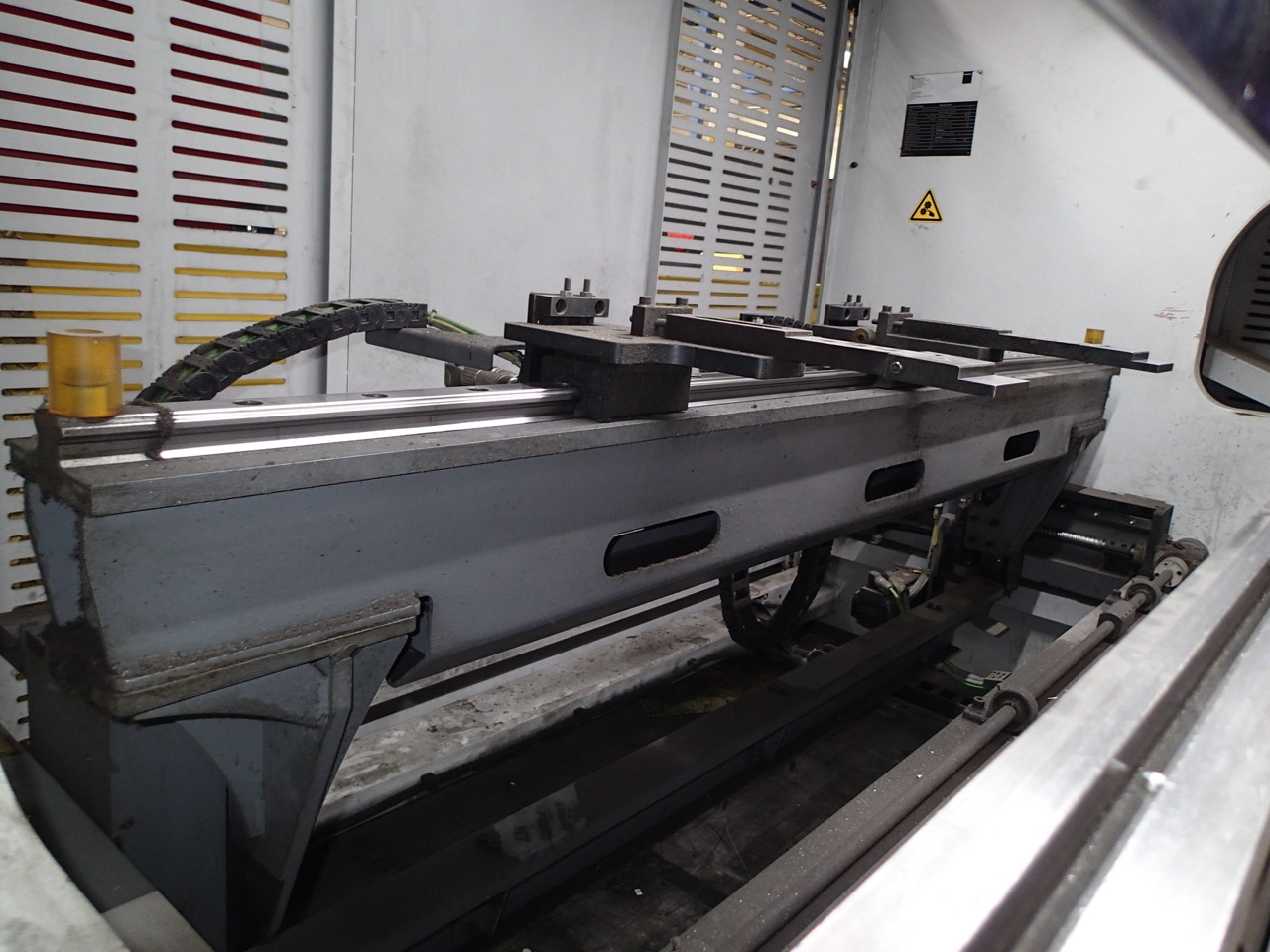

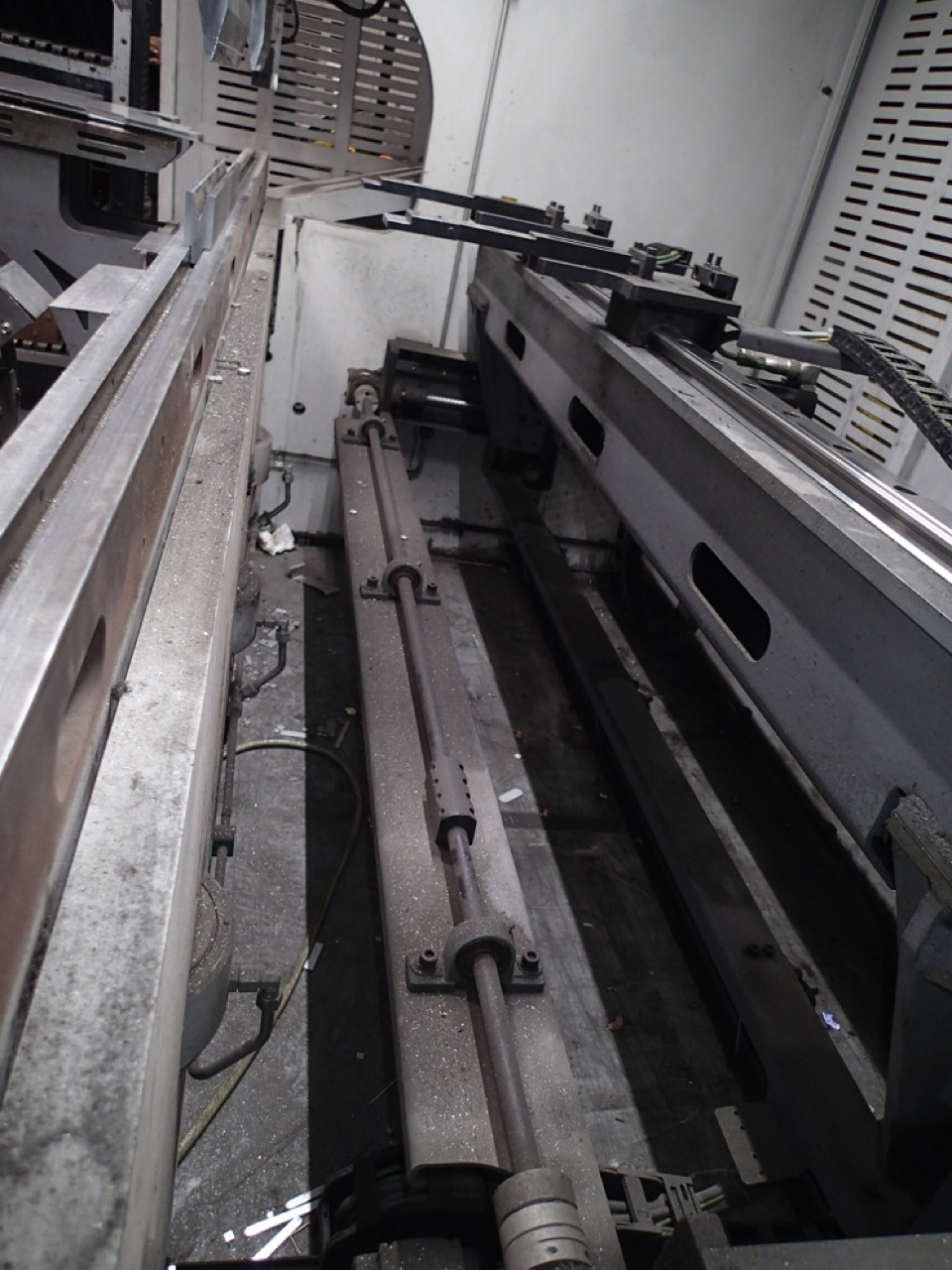

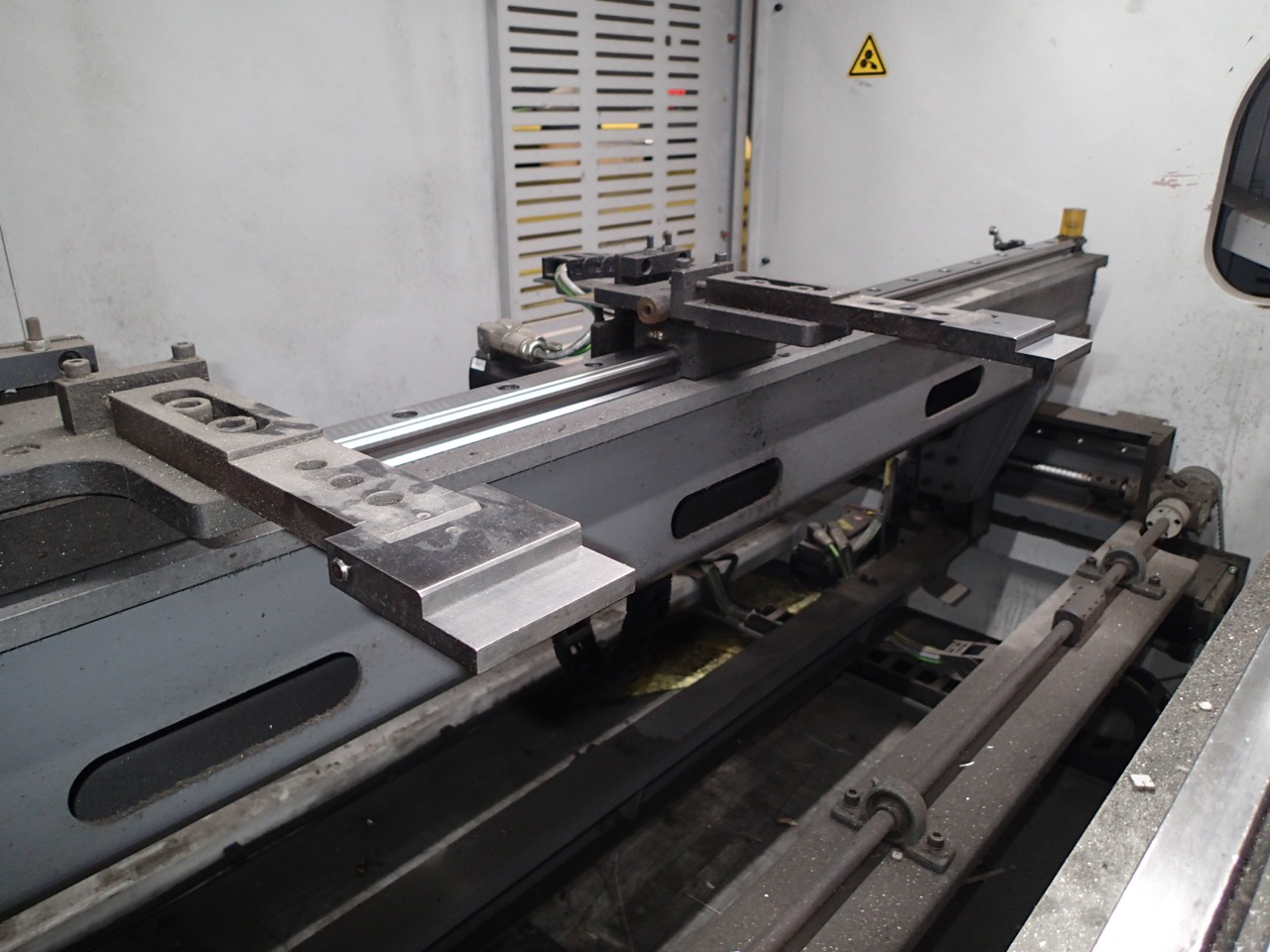

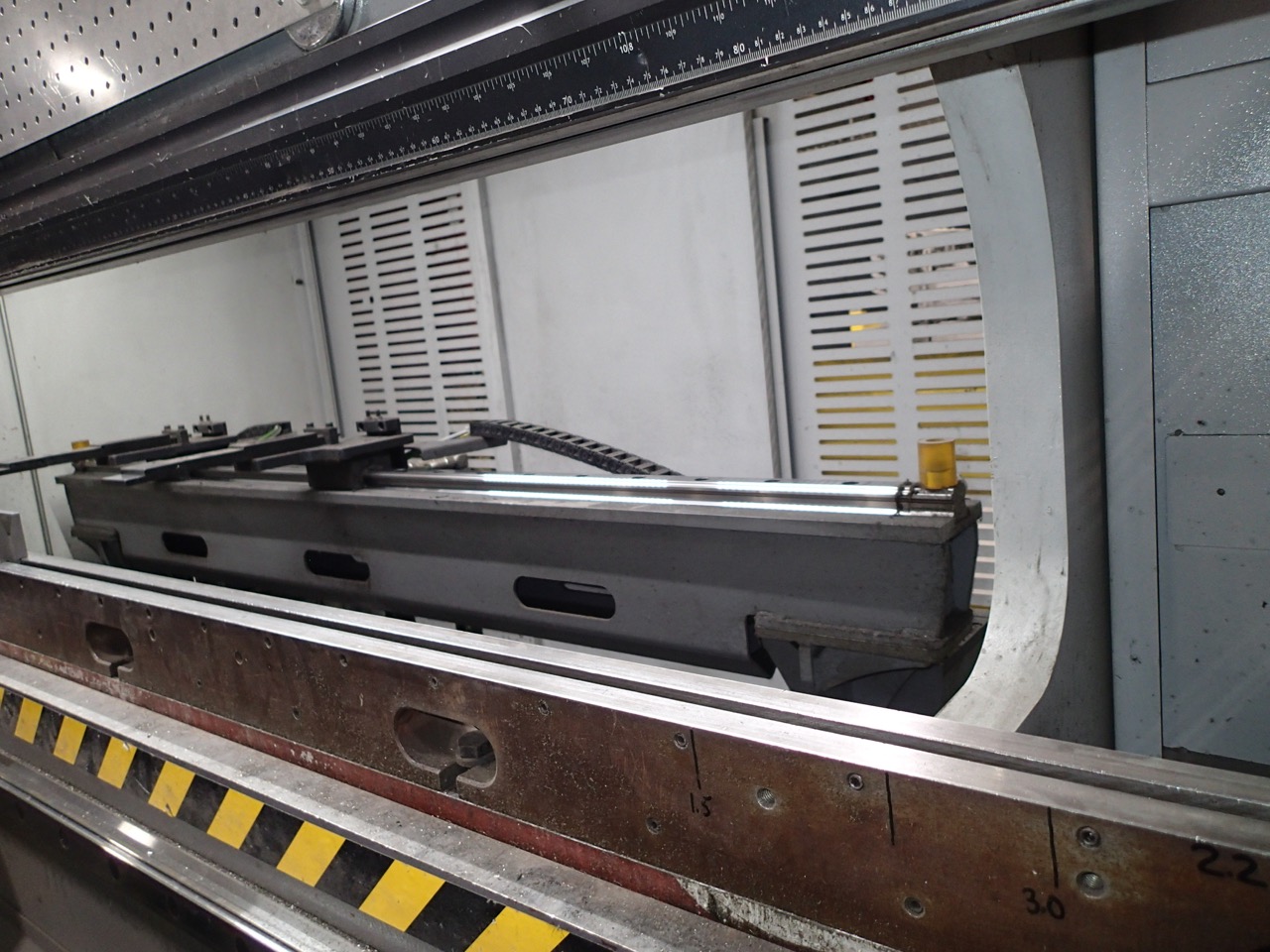

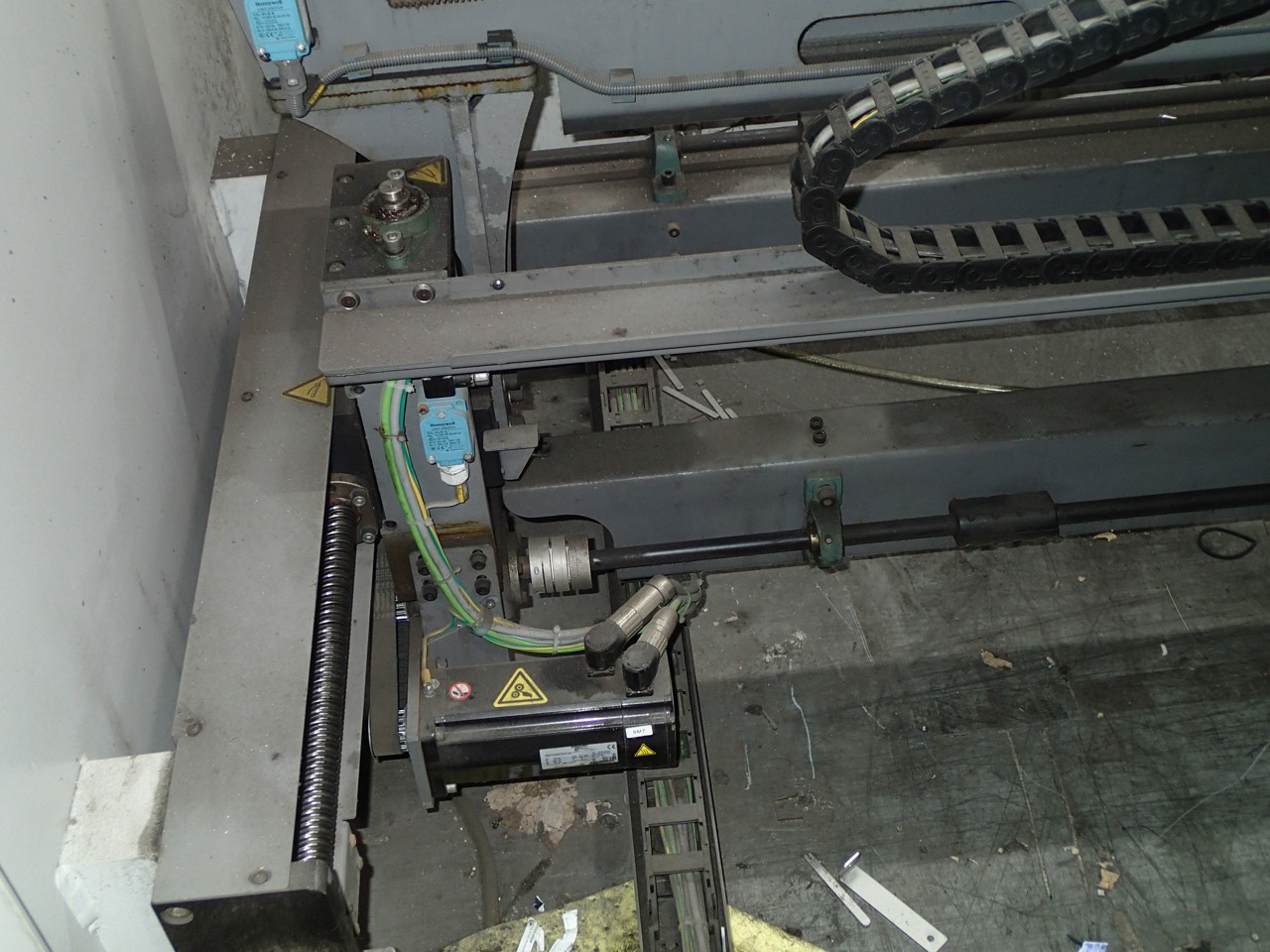

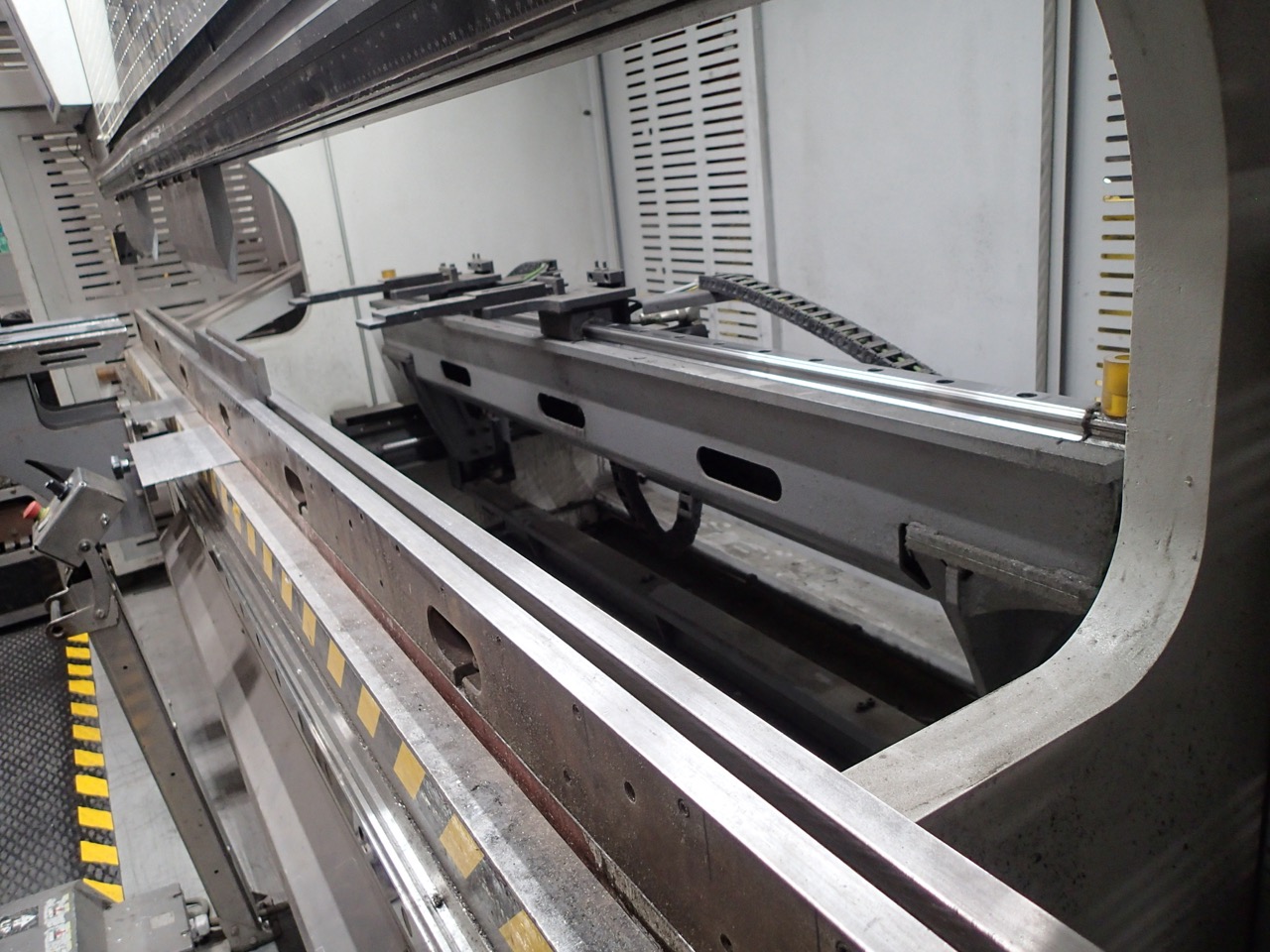

Travels
X-Axis: 23.6″
R-Axis: 5.9″
Z-Axis: 72″

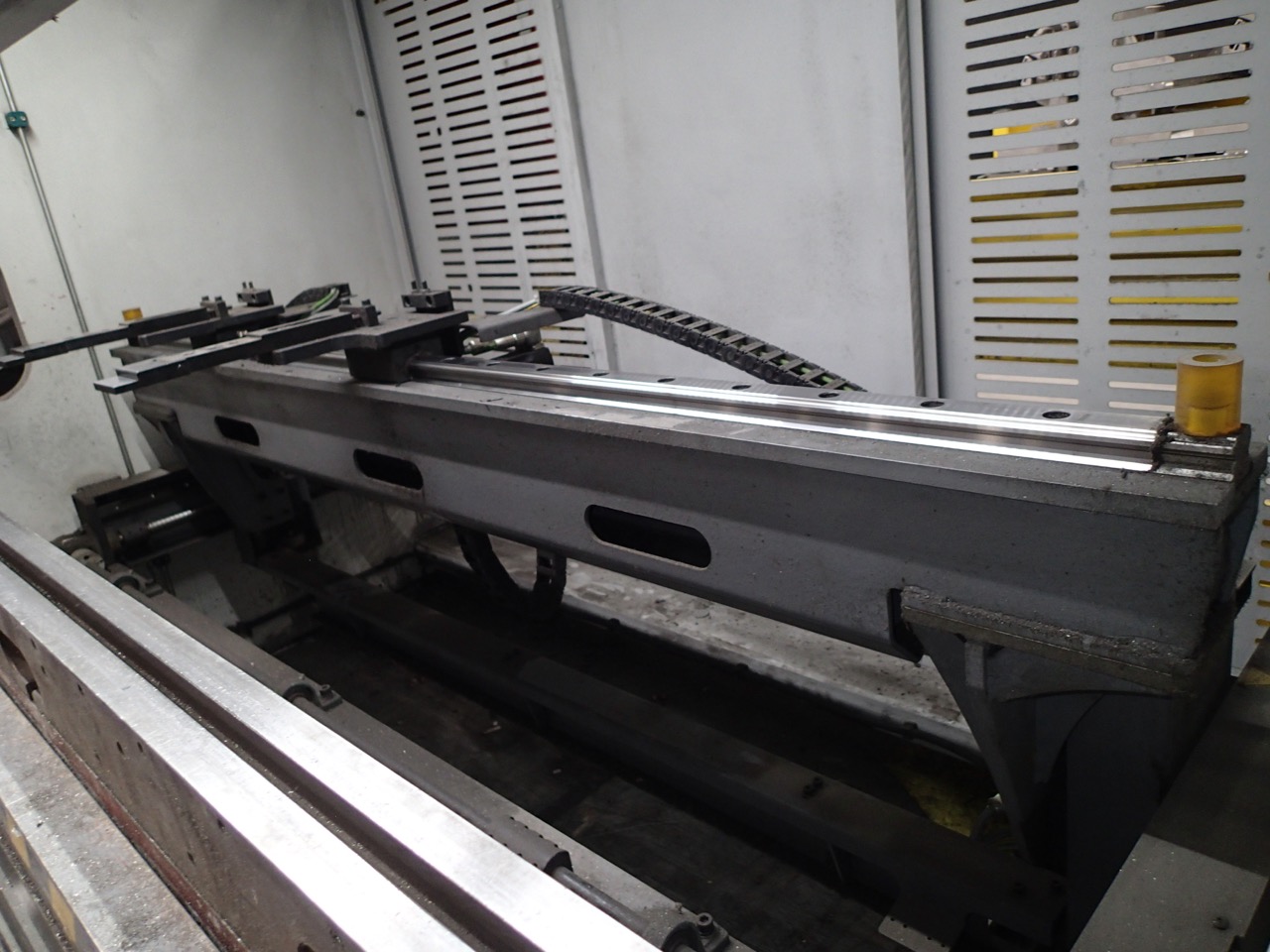

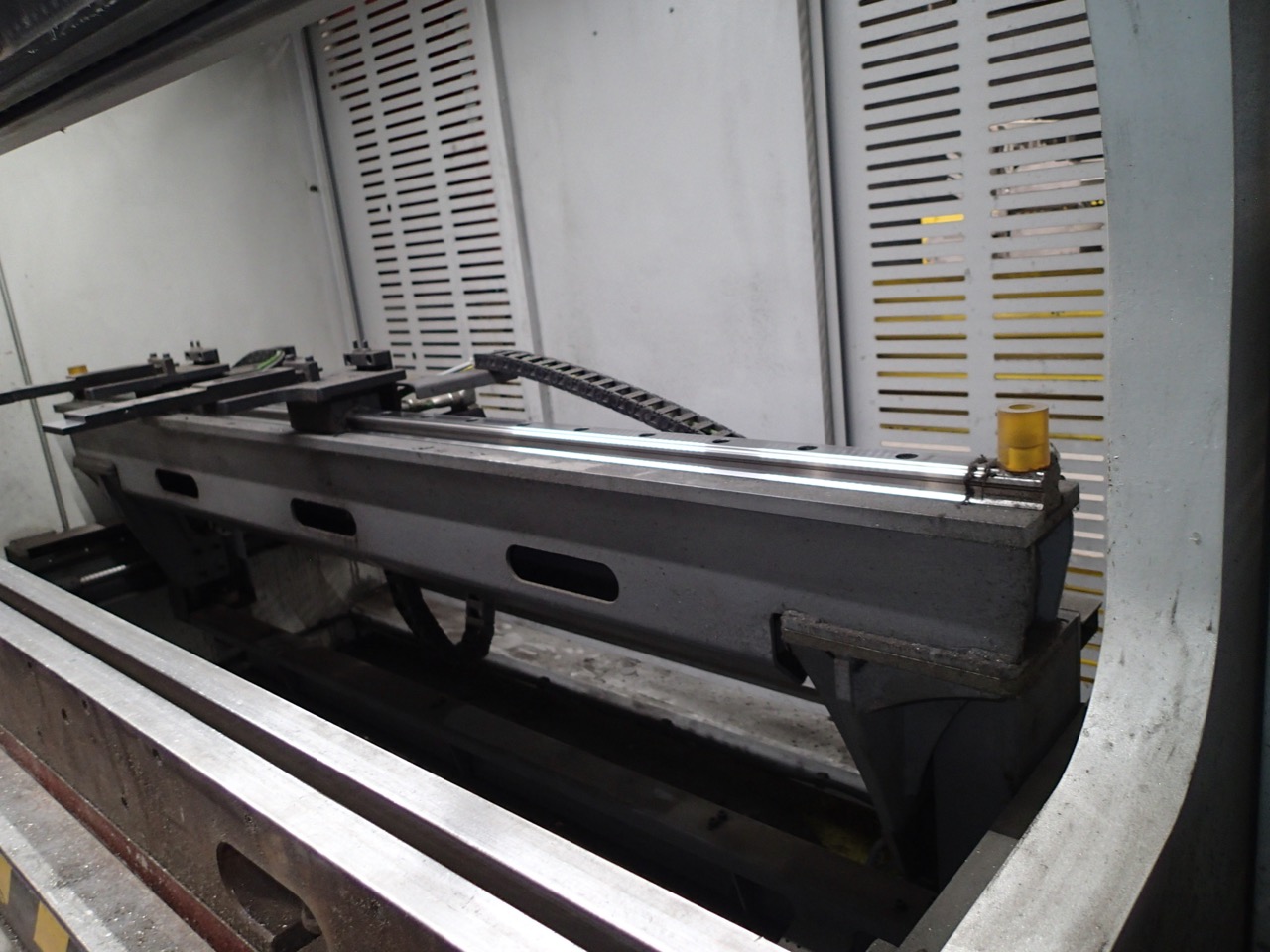

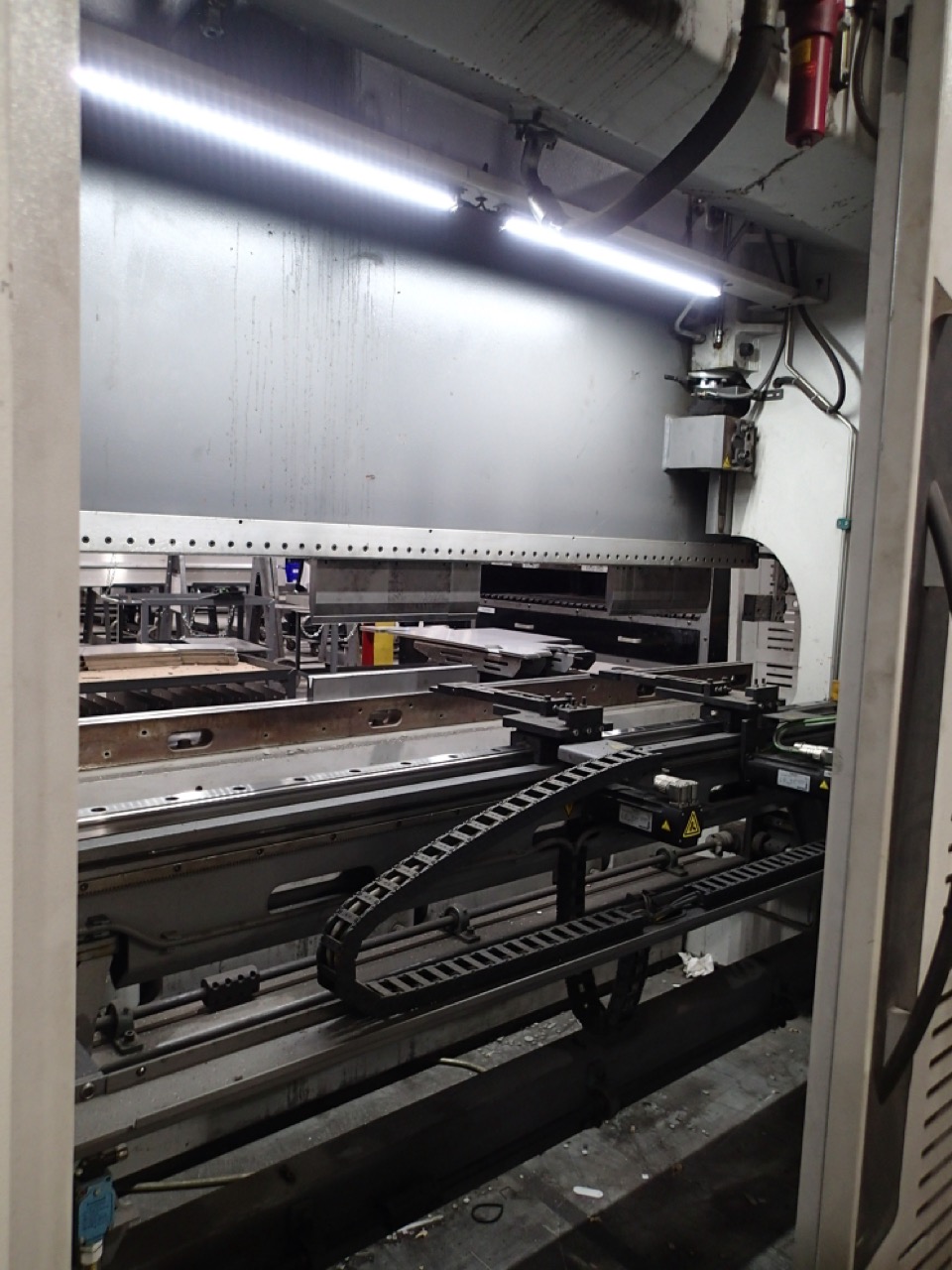

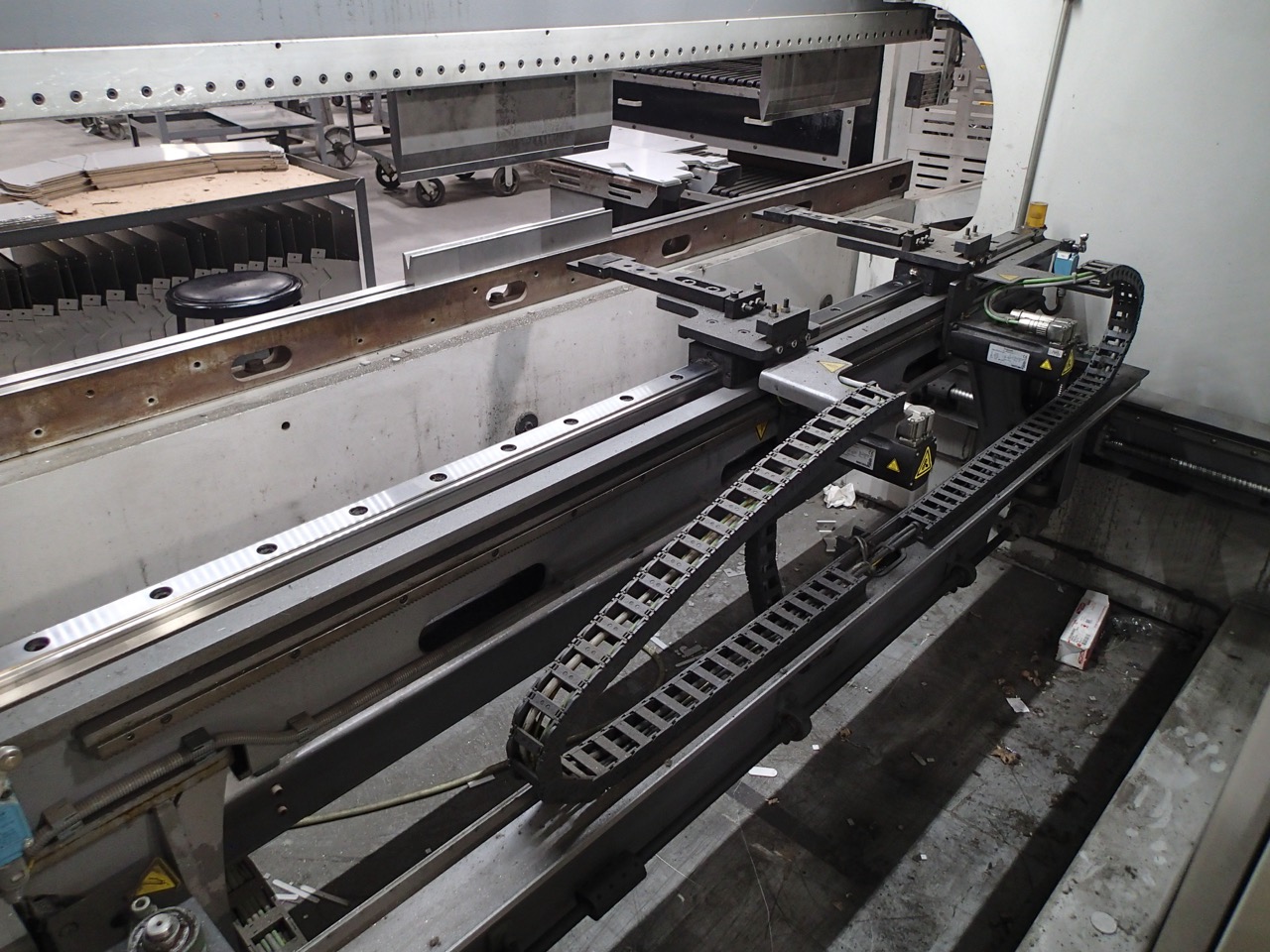

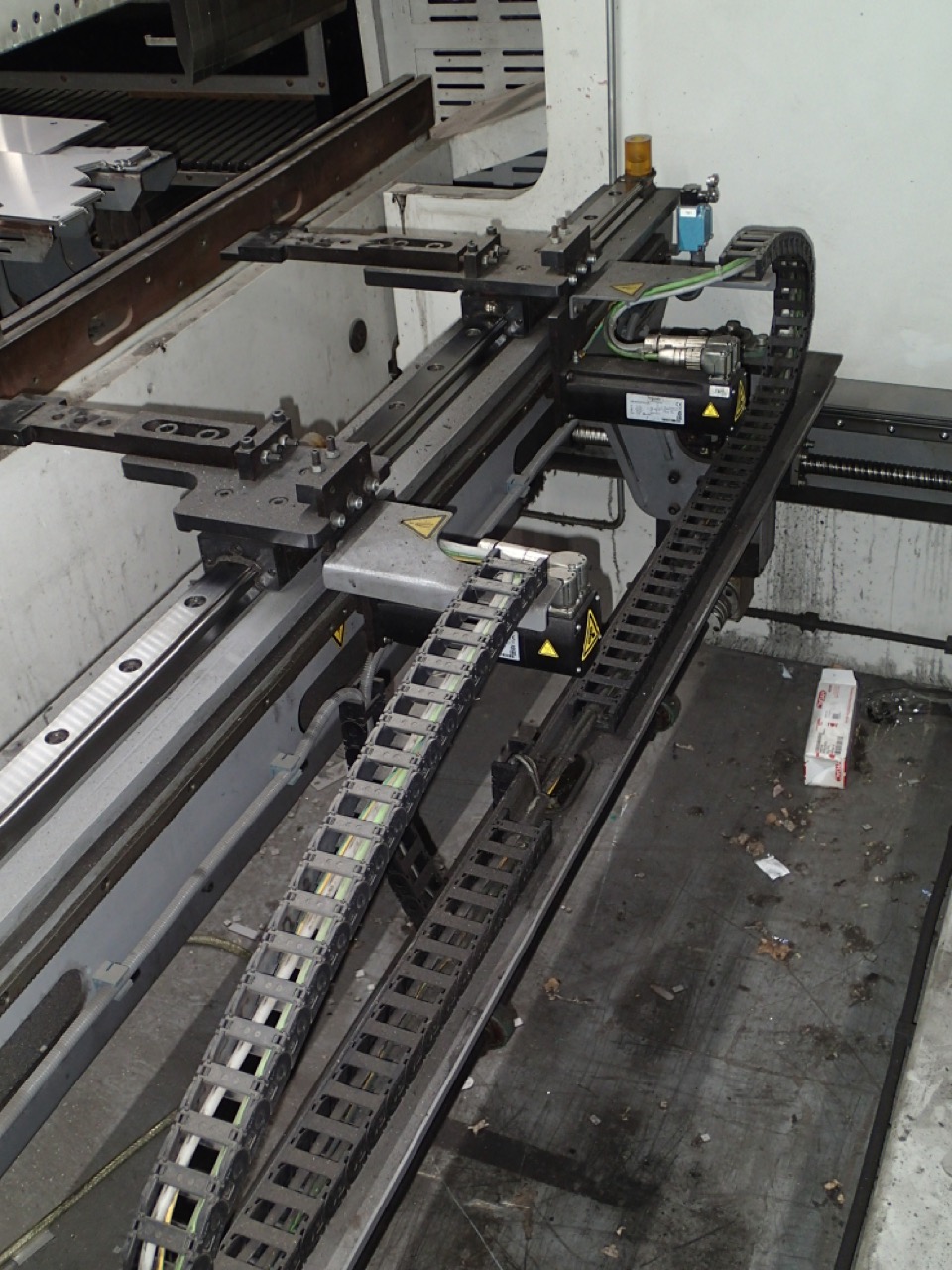

Max Back Gauge Range X-Axis: 33.5″
Speed
X-Axis: 1417.3 ipm
R-Axis: 472.4 ipm
Z-Axis: 2362.2 ipm
Max Y-Approach Speed: 330.7 ipm
Max Y-Working Speed: 23.6 ipm
Position Accuracy
X-Axis: 0.002″
R-Axis: 0.002″
Y-Axis: 0.0004″

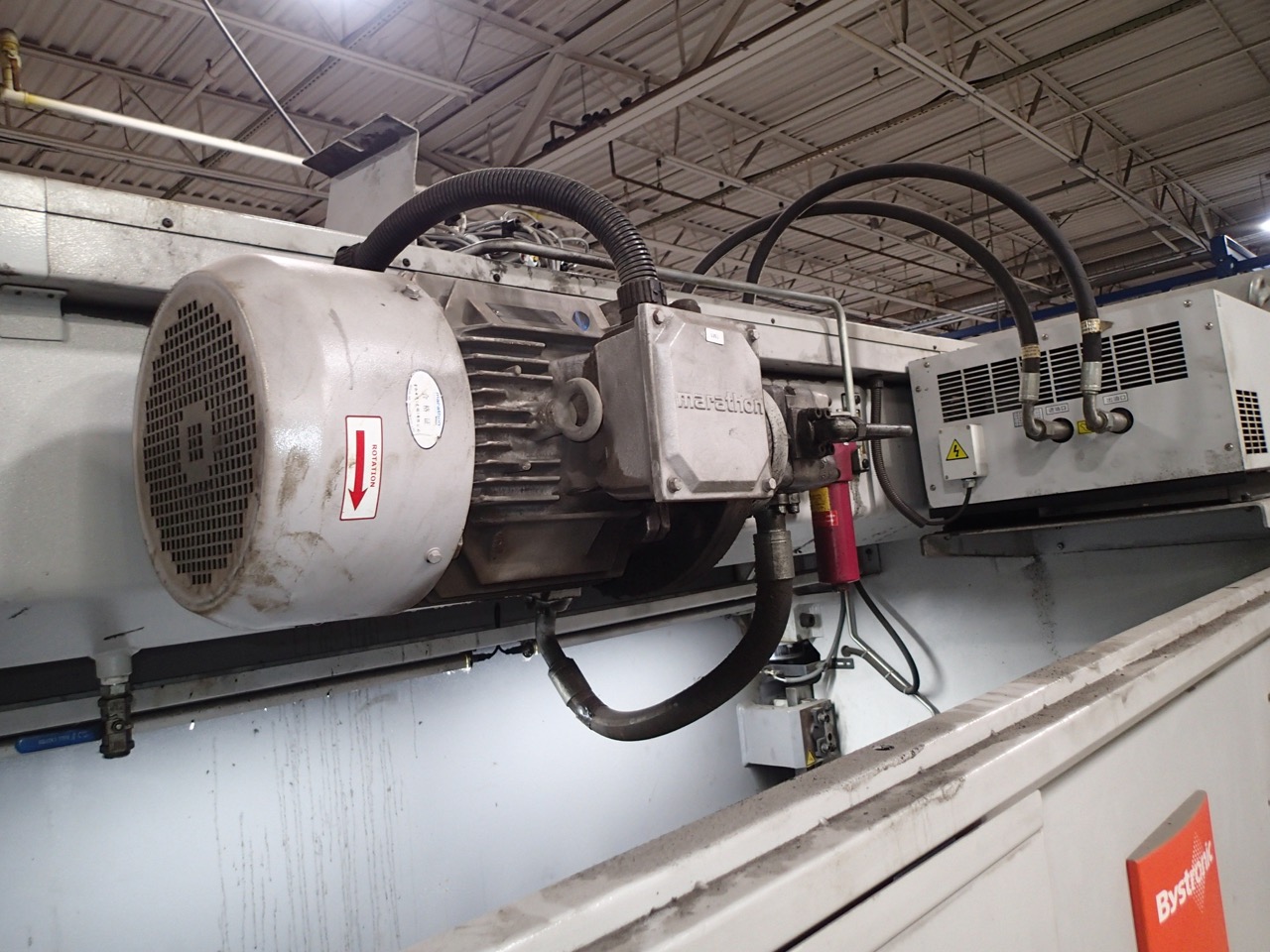

Main Motor Power: 14.8 HP
Equipped With

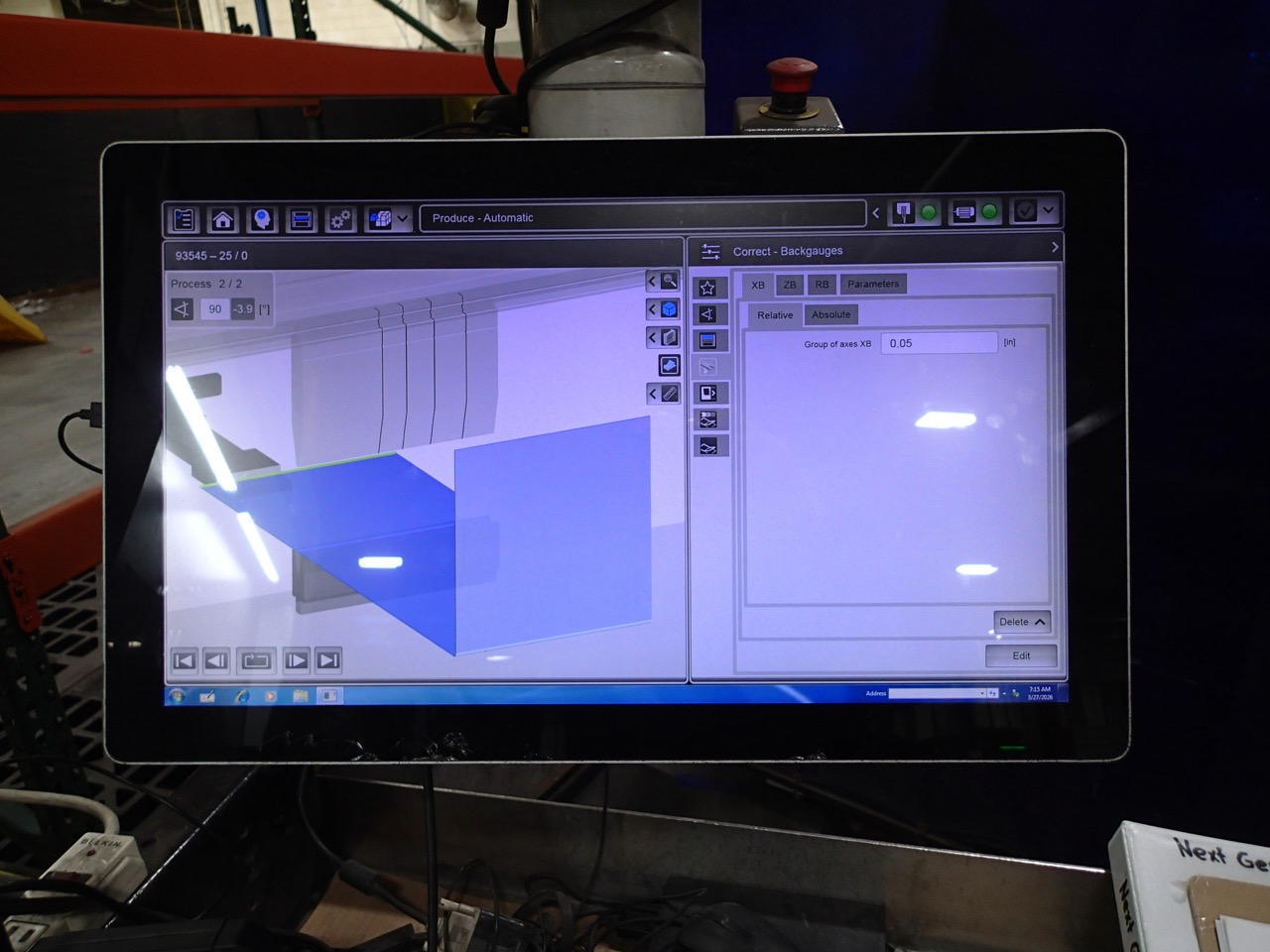

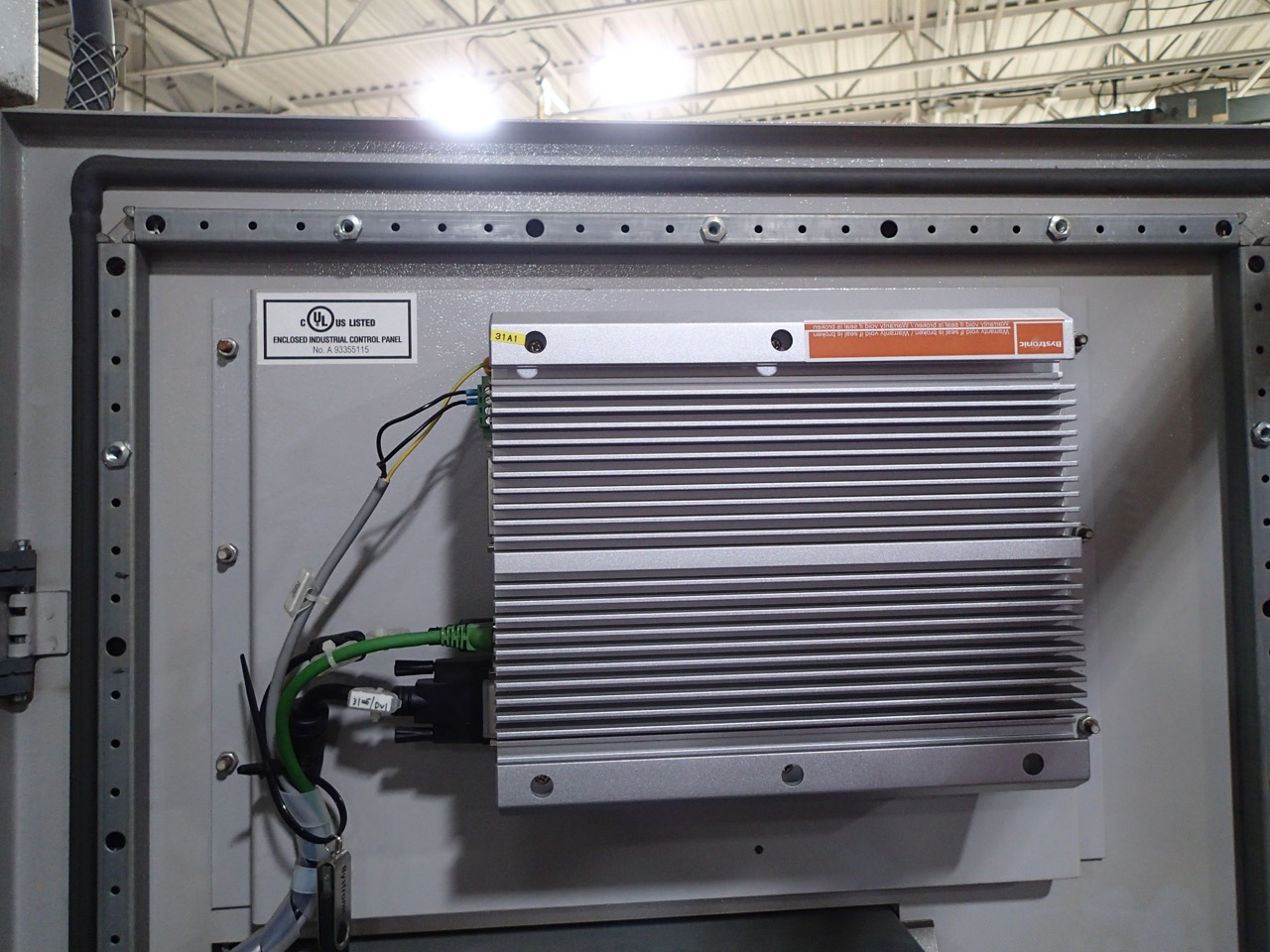

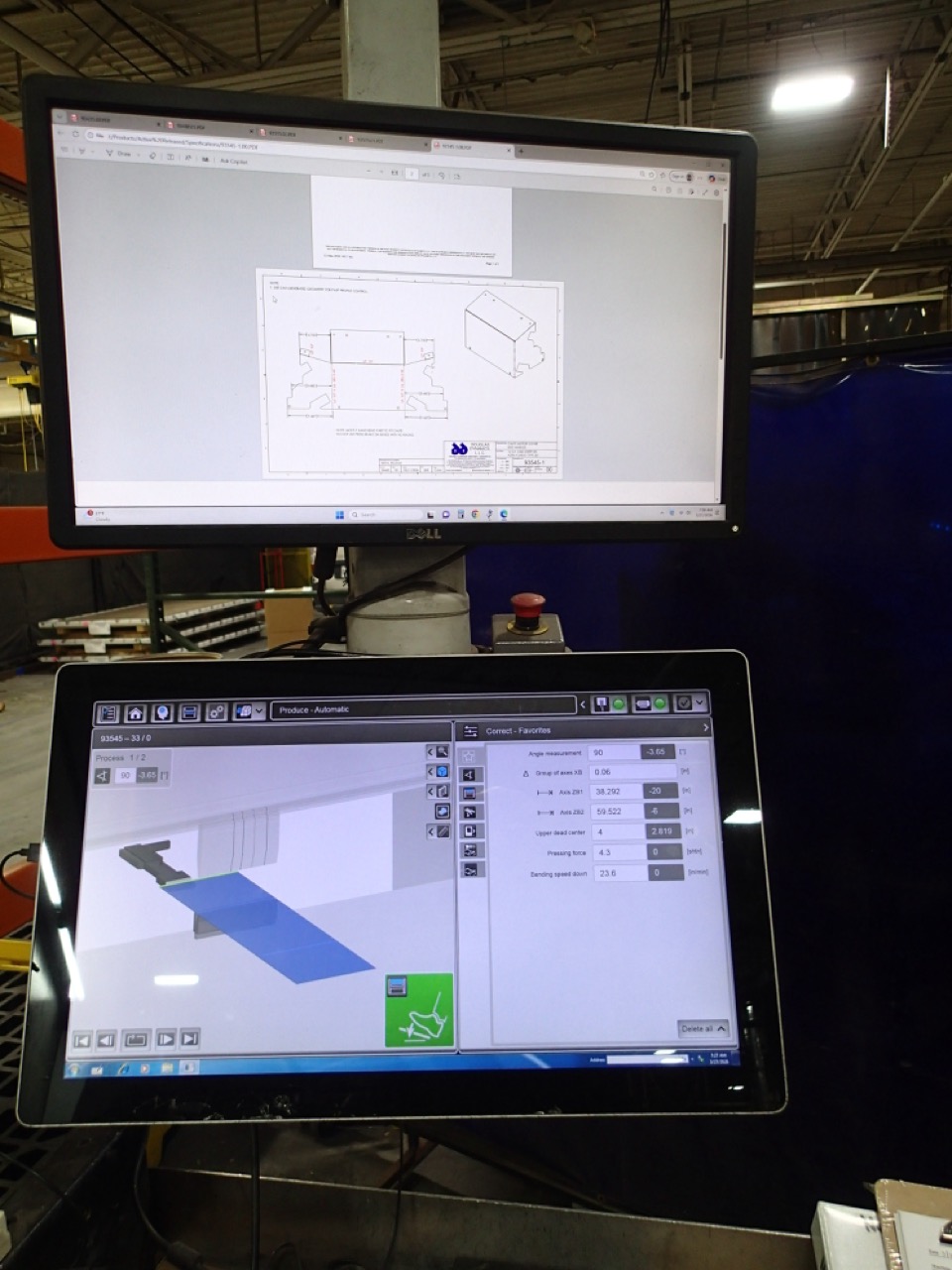

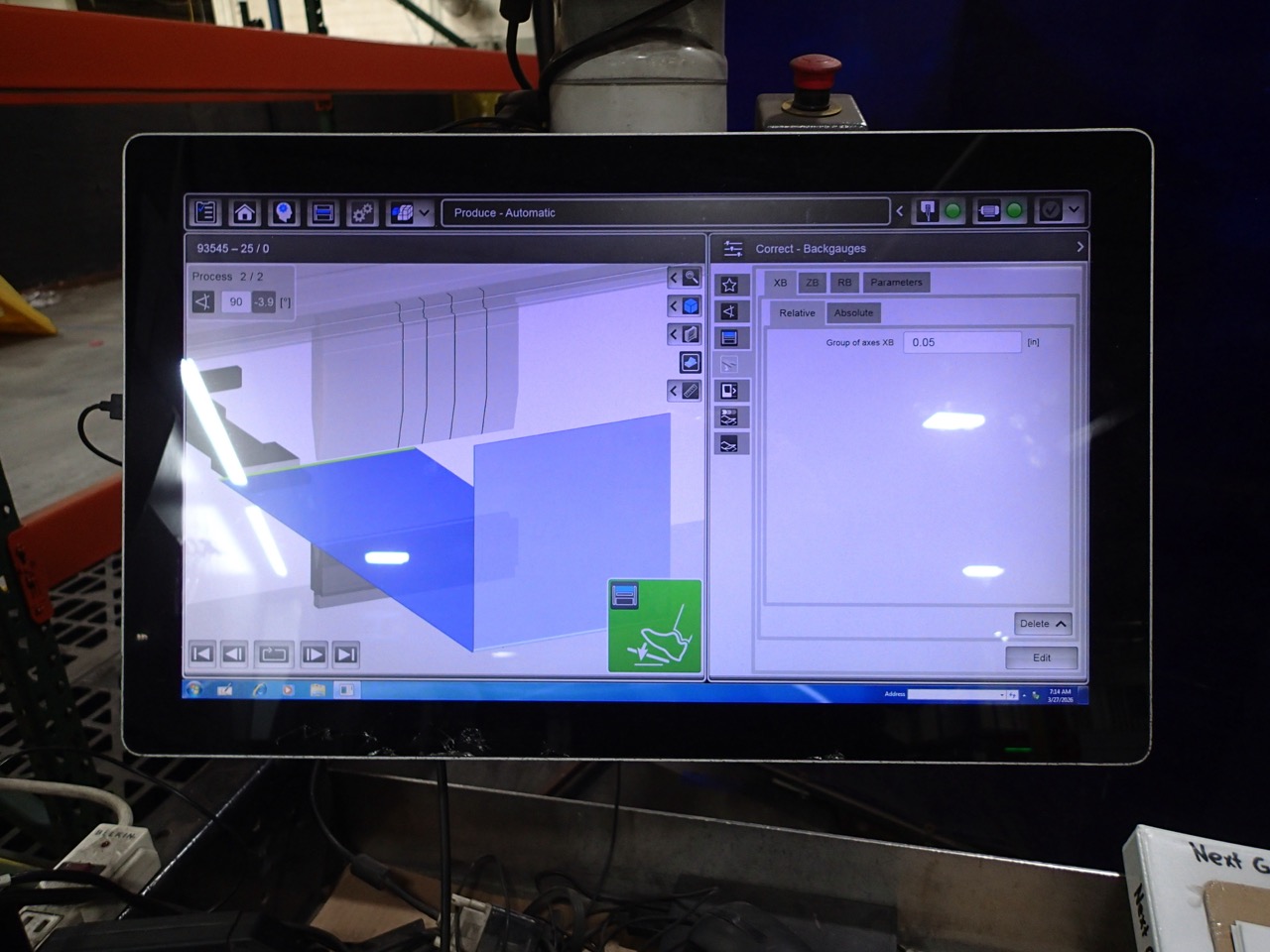

ByVision Bending CNC Control
Dimensions: 154″ x 74″ x 107″
Weight: 23,148 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
