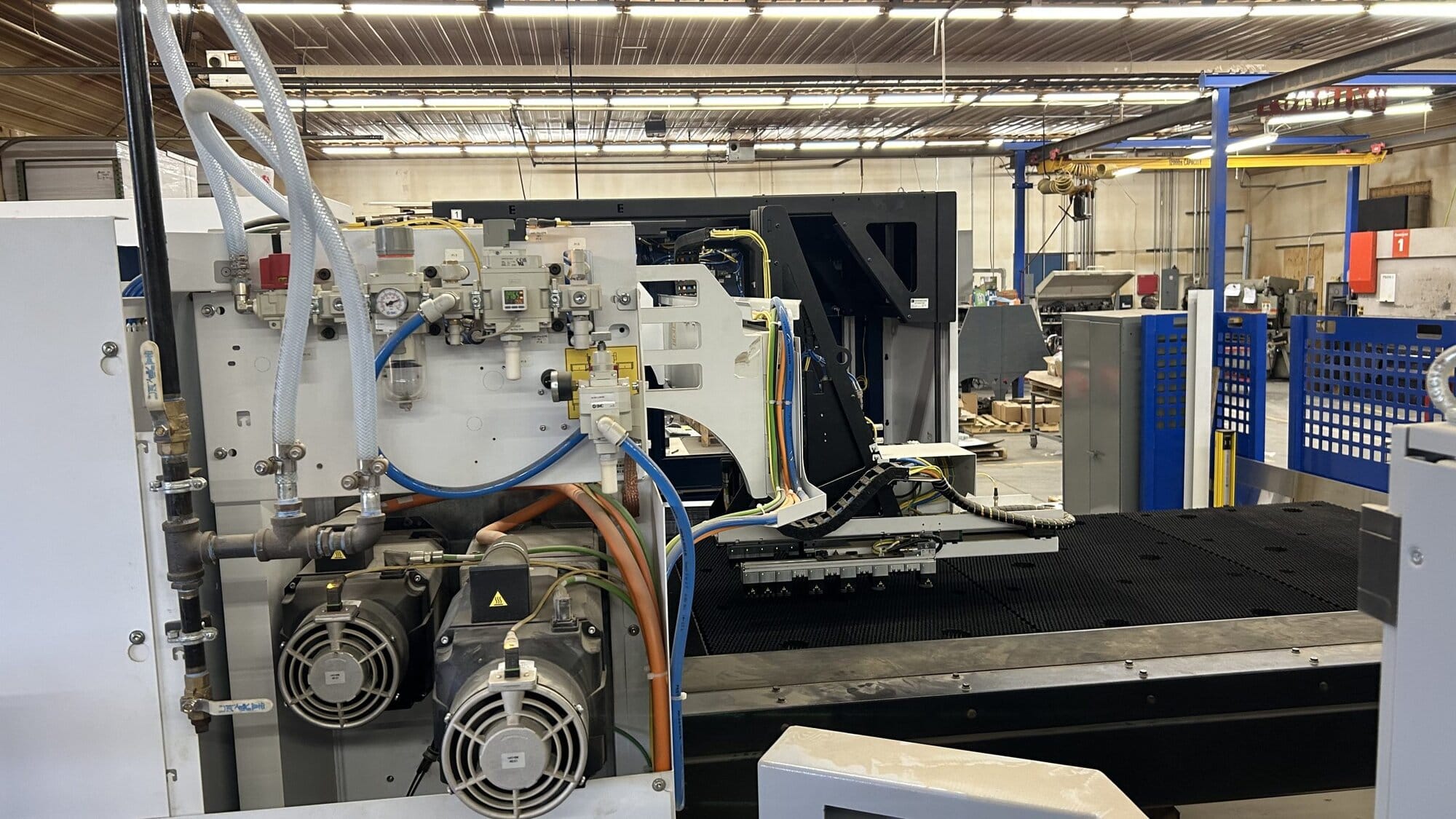

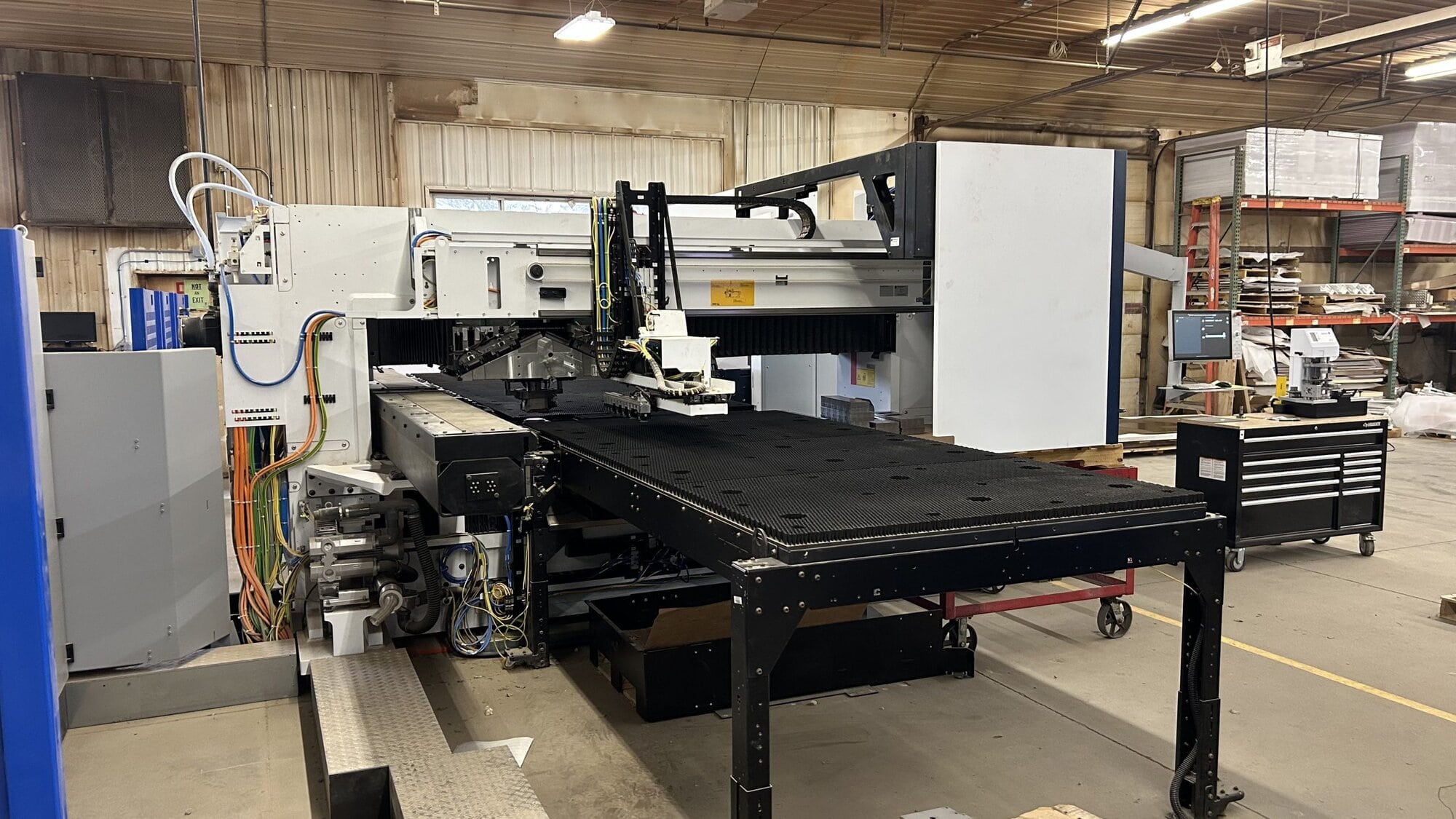

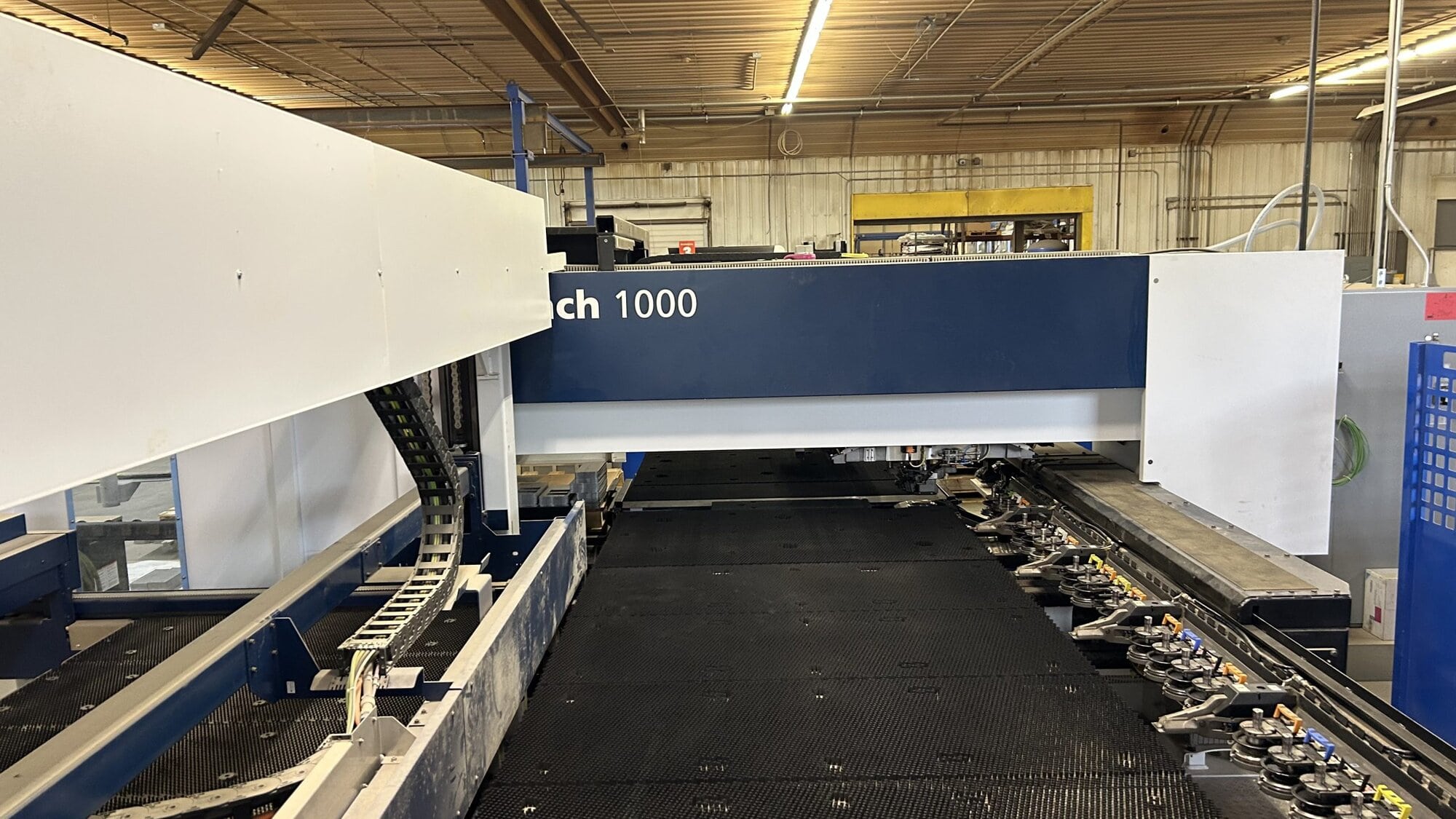

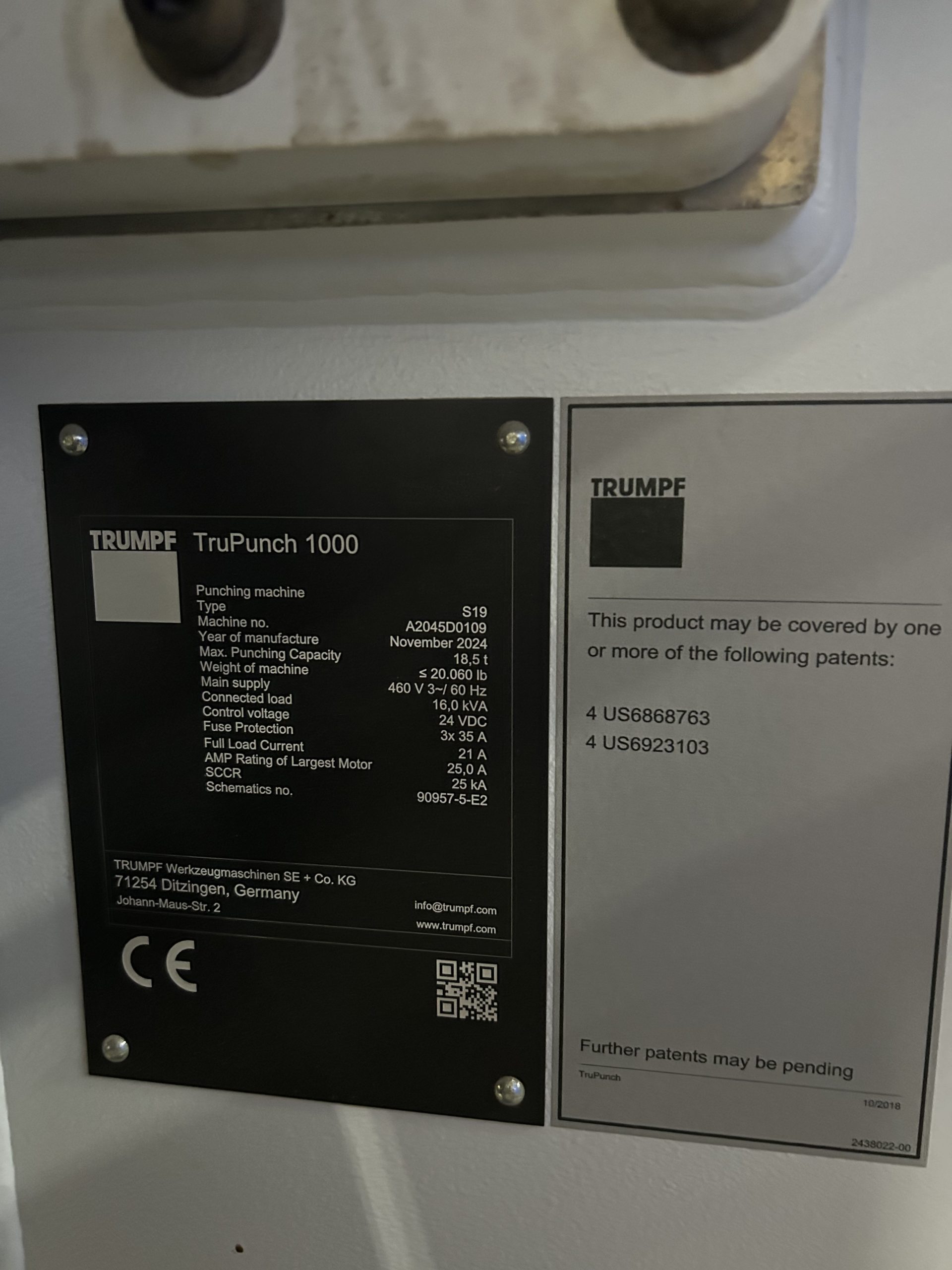

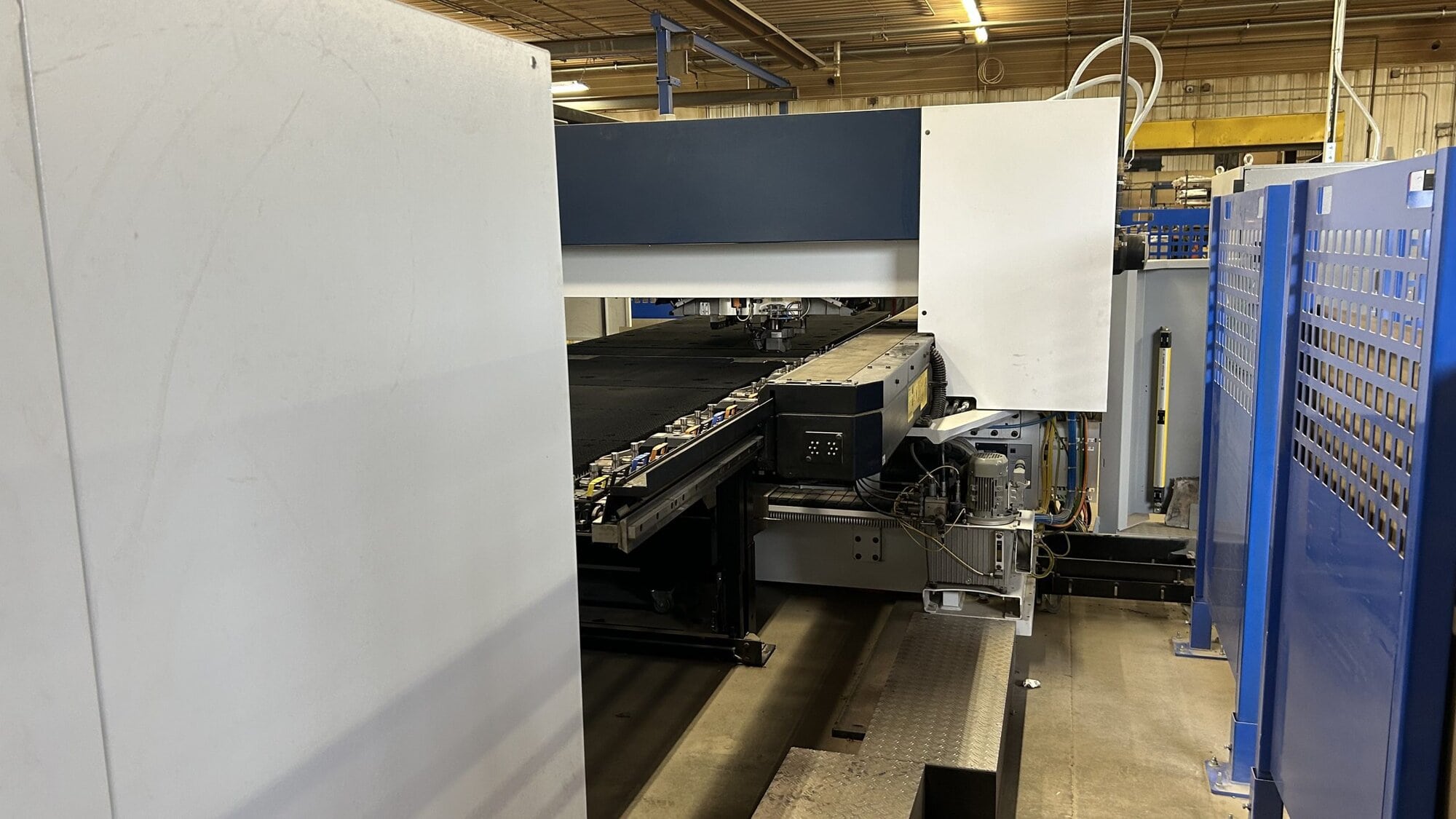

18 Ton Trumpf TruPunch 1000 – 2024, Low Hours, Extremely Clean- 5’x 10′
$649,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Working area and capacity
Working Range (X-axis): 3000 mm
Working Range (Y-axis): 1500 mm
Maximum Sheet Thickness: 6.4 mm
Maximum Workpiece Weight: 150 kg
Maximum Punching Force: 165 kN (18.5 Ton)
Performance
Maximum Stroke Rate (Punching): 600 1/min
Maximum Stroke Rate (Marking): 1000 1/min
Max. Axis Acceleration (X/Y): 10 / 8 m/sยฒ
Dimensions and weight
Width: 7644 mm
Depth: 7666 mm
Height: 2195 mm
Machine Weight: Approximately 20060 lbs (9100 kg)
Tooling and part removal
Number of Tools/Clamps: 18 pieces / 2 pieces
MultiTool Tool Changing Time: 2.4 s
Maximum Part Size (Part removal flap): 400 mm x 600 mm
Maximum Part Size (Fixed chute): 180 mm x 180 mm
1150 hrs Main Switch โ 120hrs Run Time

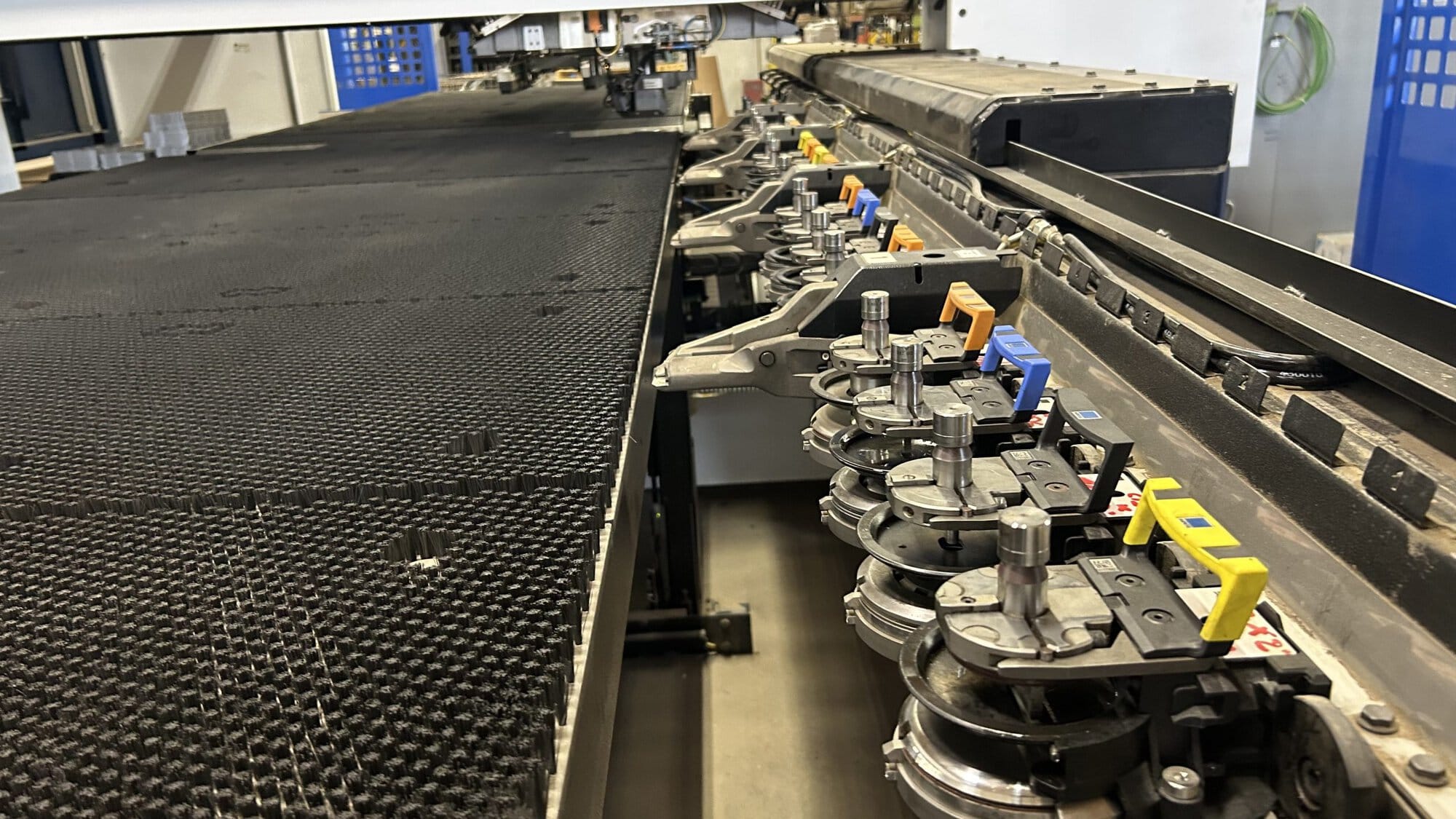

Quick Set tooling pictured included
