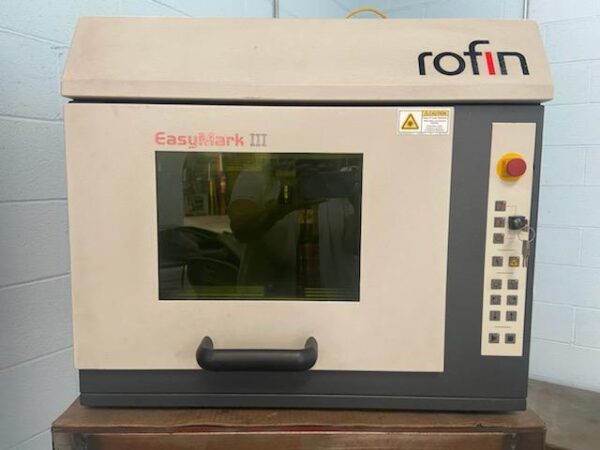

18″ x 11.5″ Rofin Easy Mark III Laser Marker, 2013

$9,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Fabrication
Model:
Easy Mark III
Make:
Rofin
Year:
2013

Laser Type: EasyMark III
Working Area: 18″ x 11.5″
Laser Medium: Nd:YVO4 , Diode Pumped, 1064 nm
Pulse Frequency: 10 kHz- 100 kHz (Programmable)
Electrical Connection: 110-230V +/- 5% 50/60Hz, 1,3 kVA
Positioning Help: Laser Diode Incl. Software For East Adjustment Of The Marking Position On The Workpiece
Electrical Power: 3 m For Electric Cable
Heat Exchanger: Air Heat Exchanger
Ambient Temperature: 18 – 30 C, Non Condensing
Sound Level: 70 dB(A)
“Laser Marking Engraver System”

Beam Expander: RSY LO T5
Expansion 5 x Beam Expander
Marking Head: RSM S10
Lens: f=160 mm / 1064 mm
Field Size: 120mm x 120mm
Computer Configuration: Not Provided

Dimensions: 25.8″x22.7″x26.9″
Weight: 161 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
