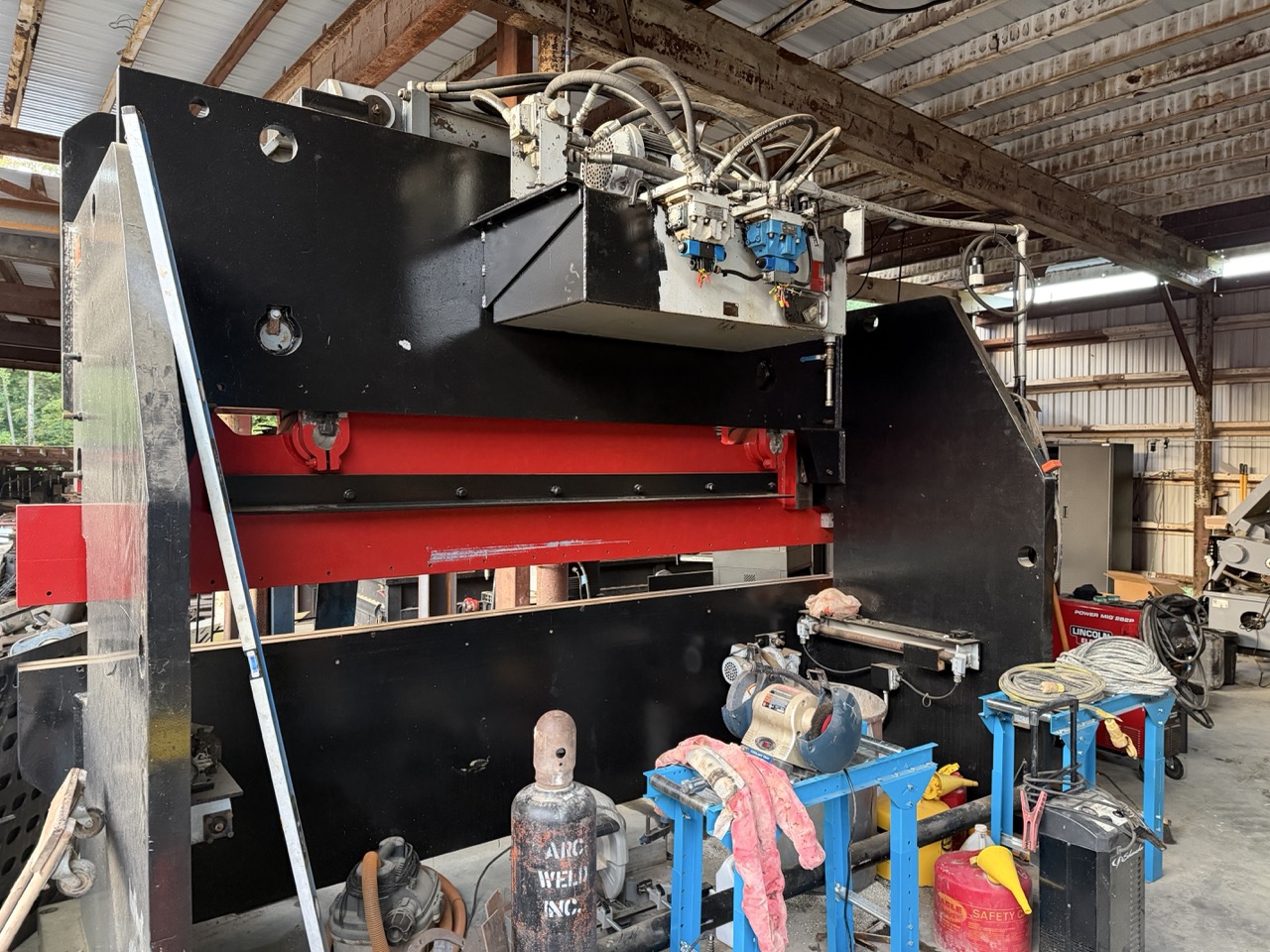

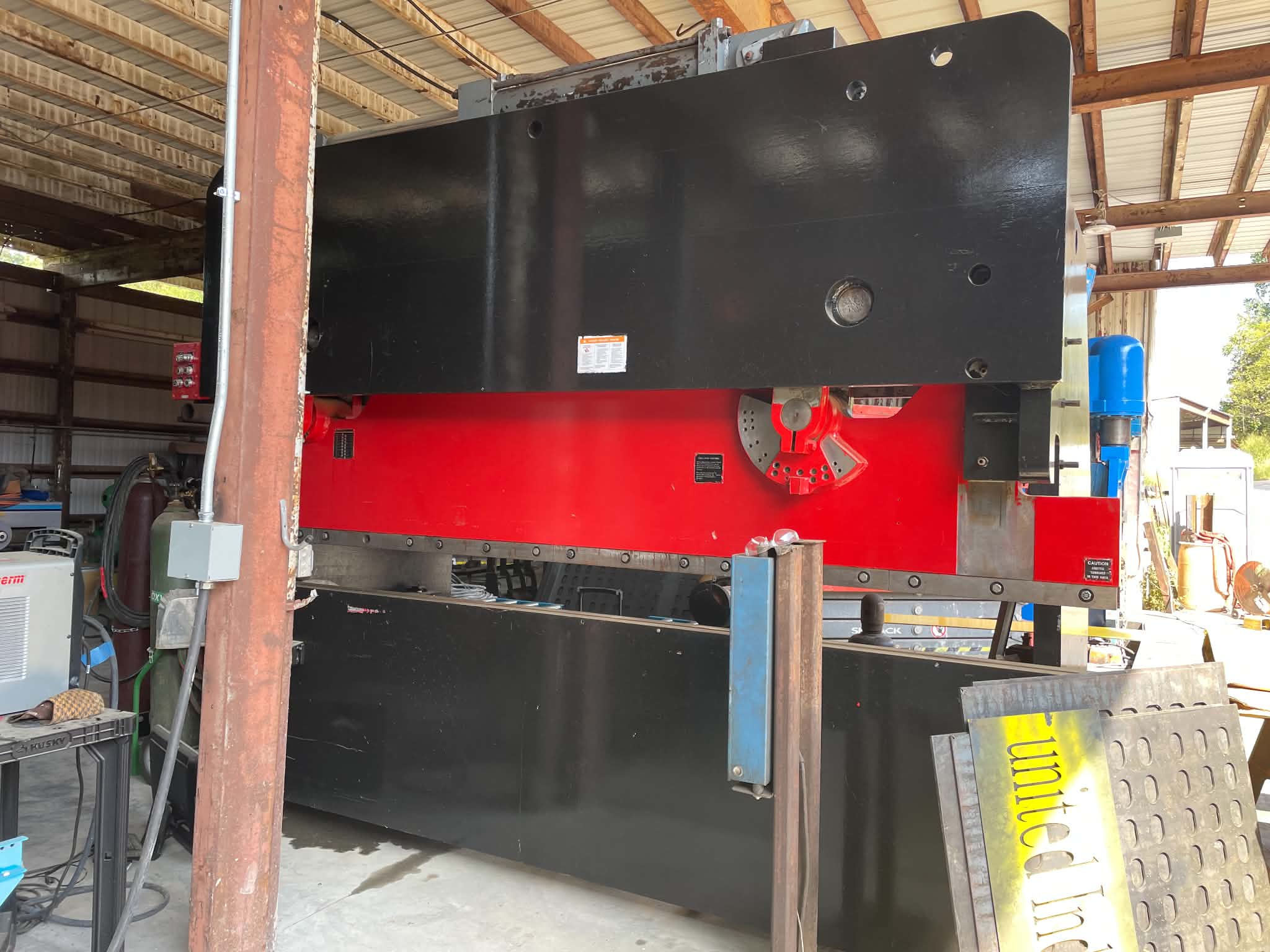

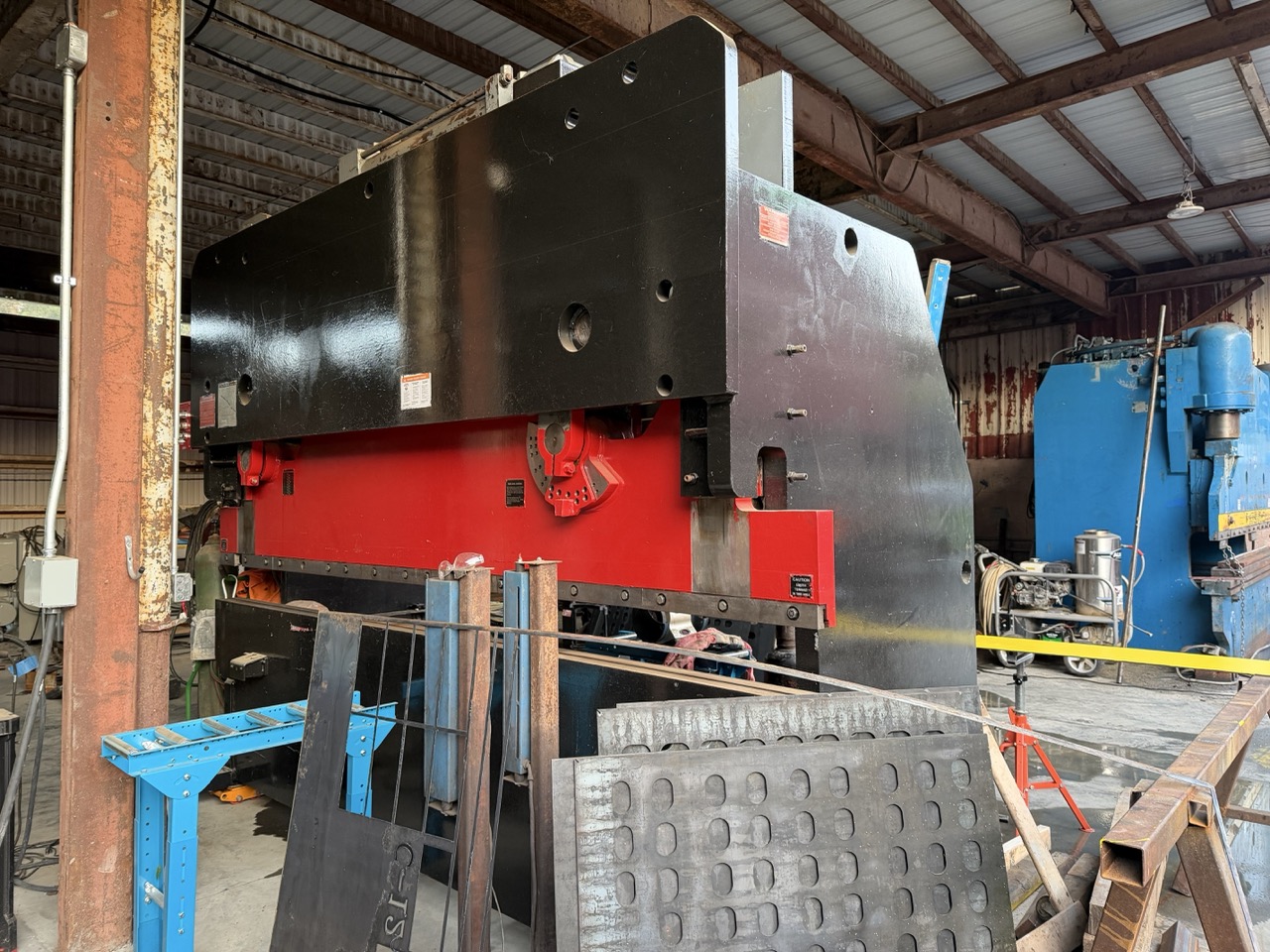

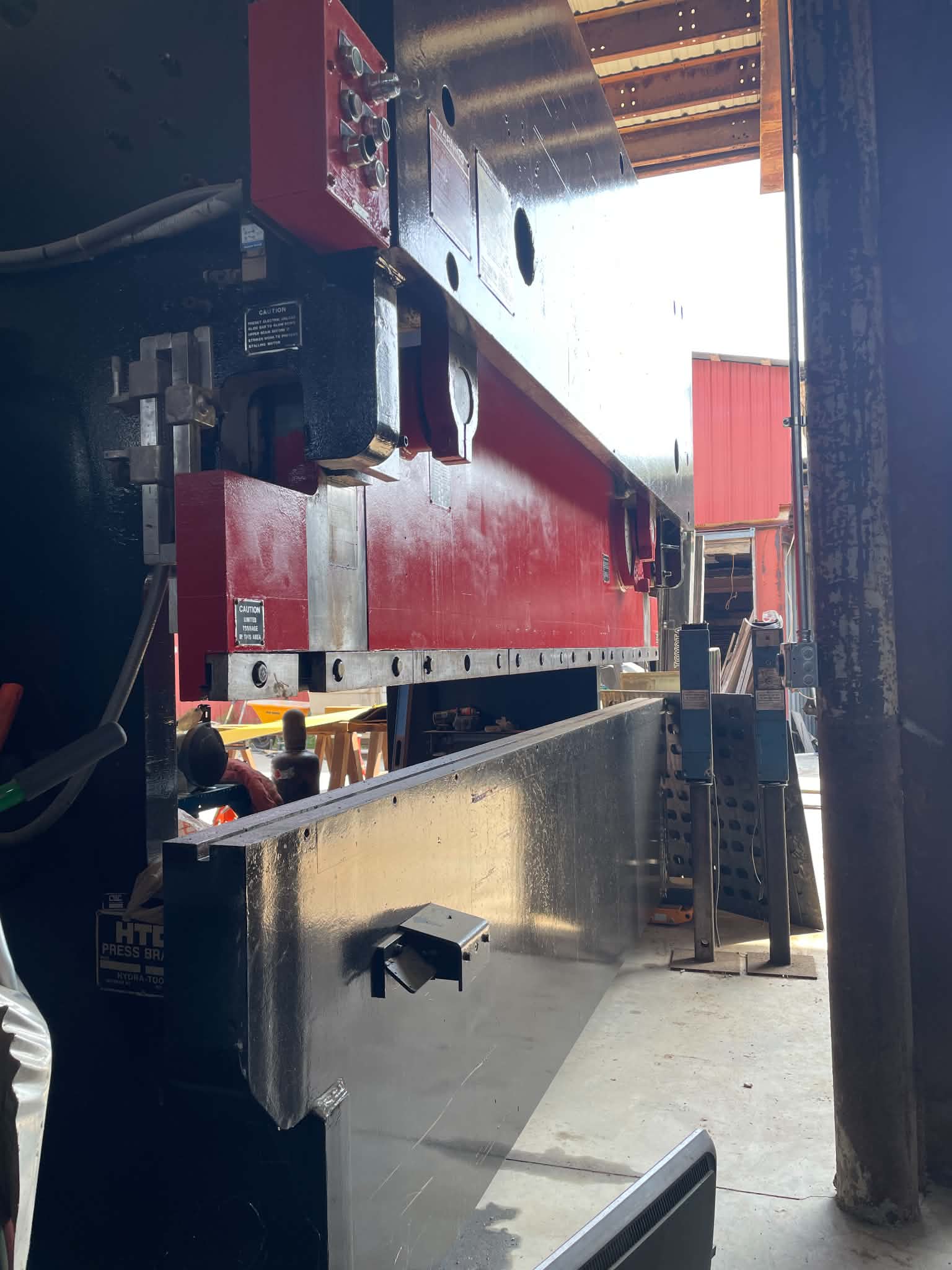

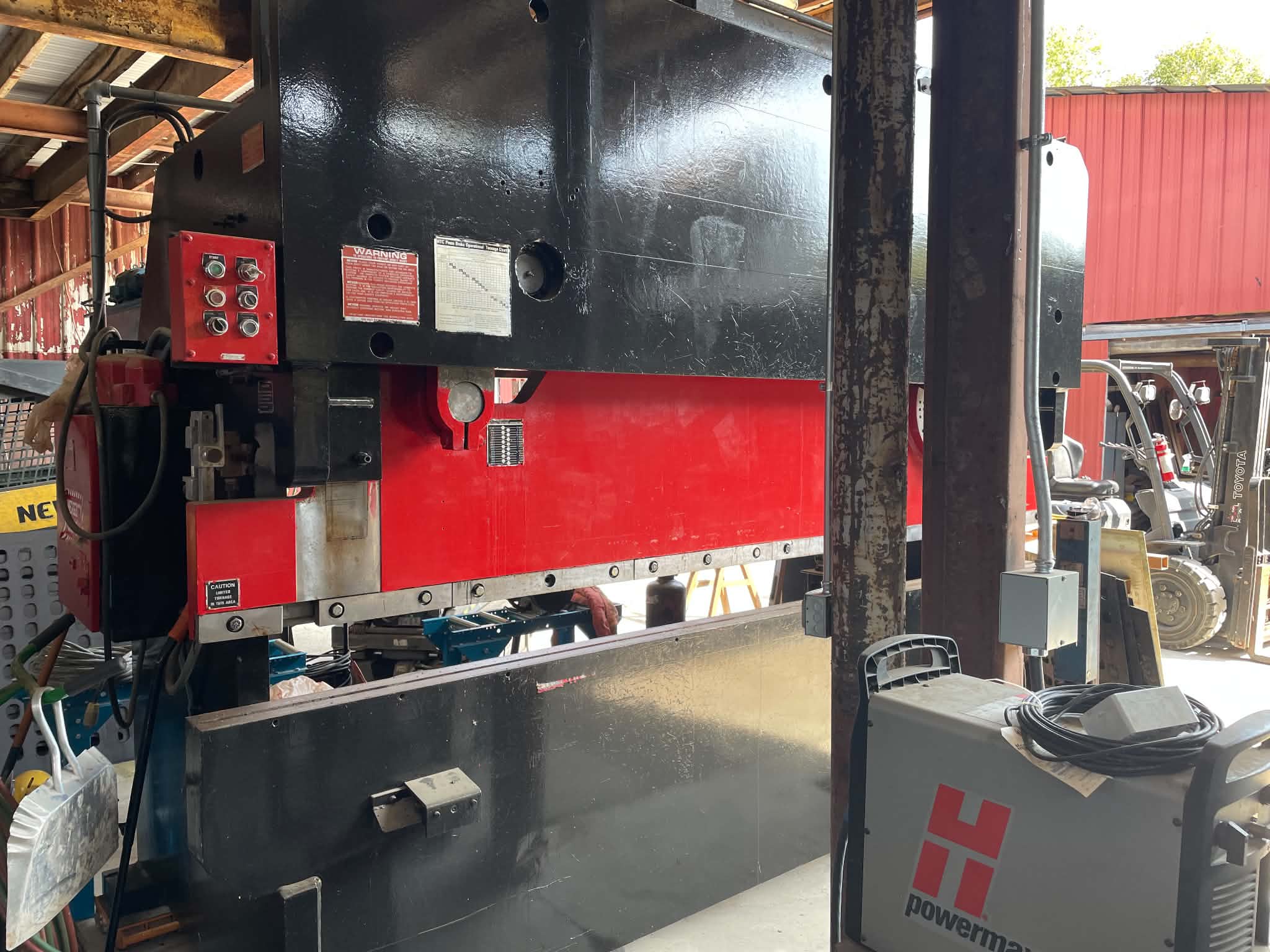

200 Ton x 12′ 200-12H HTC Hydraulic Press Brake, 1980

Tonnage Capacity: 200 Tons
Overall Bed Length: 12′
Distance Between Housings: 10′ 5″
Bending Capacity: 12′ X 1/4″ Mild Steel
Bending Capacity At 10′: 5/16″ Mild Steel
Ram Stroke: 5″
Open Height: 11 1/2″
Closed Height: 6 1/2″
Throat Depth: 8″ – 9″
Main Motor: 20 HP
Motor Speed: 1,750 RPM
Voltage: 230/460 V
Phase: 3 Phase
Frequency: 60 Hz
Approximate Dimensions: 148″ L X 63″ W X 119″ H
Approximate Weight: 30,000 – 32,000 Lbs.

Equipped With:

Electric Foot Control
Adjustable Stroke Length
Manual Ram Adjustment
Sectional Ram Die Clamps
Hydraulic Power Unit
