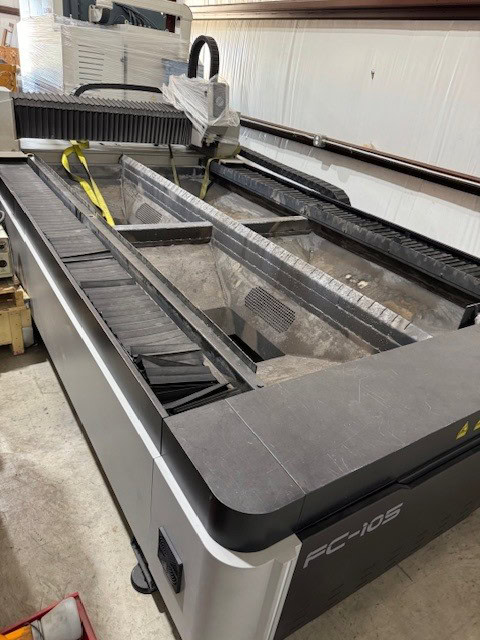

2000 Watt 5' x 10' Omtech FC-105 Fiber Laser Cutting Machine, 2023

54010930028

2000 Watt 5′ x 10′ Omtech FC-105 Fiber Laser Cutting Machine, 2023

Name: 2000 Watt 5' x 10' Omtech FC-105 Fiber Laser Cutting Machine, 2023
SKU: 54010930028

$55,000.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Fiber Lasers
Make: Omtech
Model: Fc-105
Year: 2023
Capacity: 2000 Watt
Machine Location: Upon Request
Stock #: 930028

Power Supply 3-Phase AC380 V 50/60 Hz
Workbed / Table Size: 5′ x 10′
Laser Power: 2 kW (fiber)
Positioning Accuracy (X/Y): ±0.05 mm/m
Repeat Positioning Accuracy: ±0.02 mm
Max Head Speed / Gantry Speed: 1,333 mm/s
Z-Axis Travel / Focusing Range: 100 mm
Maximum Acceleration: 1 G
Machine Size: 182″ x 116″ x 74″
Machine Weight: 6,106lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
