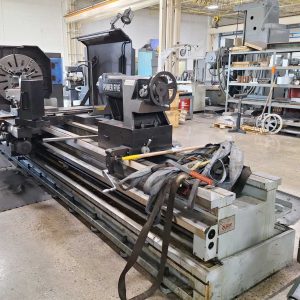

21″ x 100″ Clausing Colchester 8100 Series Engine Lathe, 1982

Specifications (subject to buyer verification):

Spindle Speed: 18 – 1400 RPM
Swing Over Ways: 21″
Swing Over Carriage: 16″
Swing In Gap: 32″
Swing Gap Length: 14″
Distance Between Centers: 100″
Thru Hole: 3.5″

Tailstock Specs:
Taper: MT5
Quill: 5″

Pitch Types:
Metric (40): 0.4 MM – 14 MM
Standard (38): 2 TPI – 72 TPI
Modular (18): .3 – 3.5
Diametrical (27): 8 – 60
Feed Rates: 0.002-0.032 IPM

Power: 230V / 3 Phase / 60 Cycle
Main Motor: 12.5 HP

Overall Equipment Dimensions (Approx.): 182″ L X 36″ W X 56″ H
Overall Equipment Weight (Approx.): 8,500 LBS.
