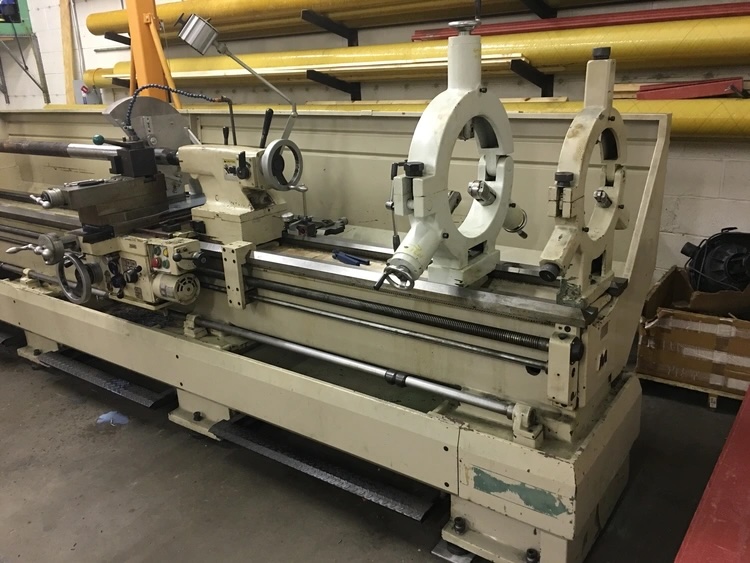

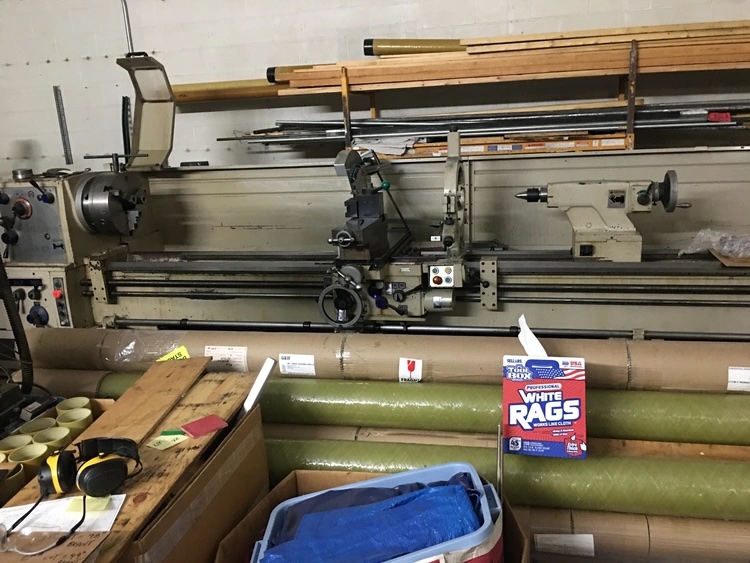

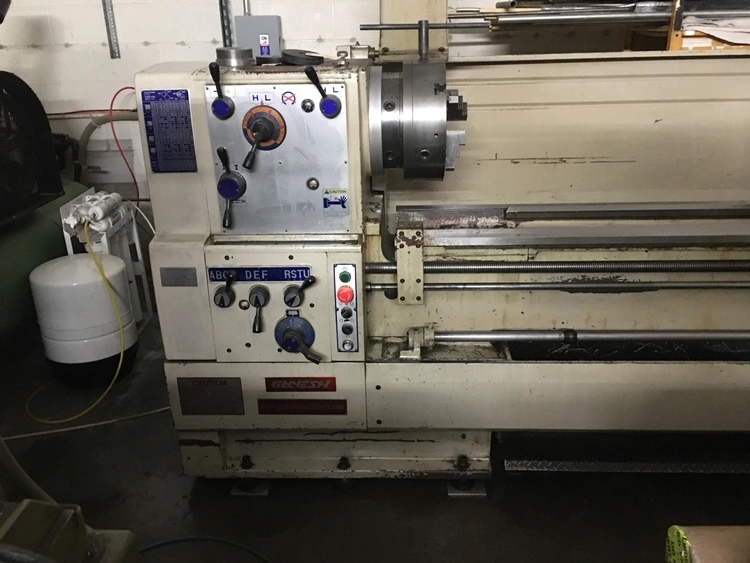

Ganesh GTW-26 Heavy Duty Engine Lathe, 2009 – 26″ x 160″, Tooling, Chucks & Steady Rests

Swing over Bed: 26” (660mm)
Center height: 13” (330mm)
Swing over Cross Slide: 18.06” (460mm)
Swing thru Gap: 33.25” (845mm)
Length of Gap in front of faceplate (D1-11): 6.5” (165mm)
Bed width: 16.125” (400mm)

Spindle Motor Horsepower: 15 HP
Spindle speeds (12-speeds): 15 – 1200 RPM
(High: 1200 120 520 50 860 85
Low: 375 35 160 15 265 25)

Spindle Bore: 4.125” (105mm)
Spindle Nose: D1-11 Camlock (A1-11 optional)
Spindle taper in spindle nose: MT-8 Morse Taper # 8
Spindle taper reduction sleeve: MT-5 MT-8 to MT-5
Spindle Max weight capacity (Chuck only): 660 lbs (300kgs)
Spindle Max weight capacity (Chuck and Tailstock): 1,650 lbs (750kgs)
Spindle Max weight capacity (Chuck, Steady Rest and Tailstock): 3,300 lbs (1,500kgs)

Carriage –
Cross slide travel: 14.96” (380mm)
Cross slide width: 7.09” (180mm)
Cross slide lead screw pitch: .200”/rev.
Cross slide resolution per division: 0.001” (on diameters)
Carriage lead screw diameter: 1.5” (38mm)
Carriage lead screw pitch: 4 TPI (6mm pitch)

Compound- Four T-nut lock-down bolts on compound cross-slide base
Compound top slide travel: 10” (255mm)
Compound top slide width: 4.34” (110mm)
Cutting tool height maximum: 1.0” x 1.0” 25mm x 25mm

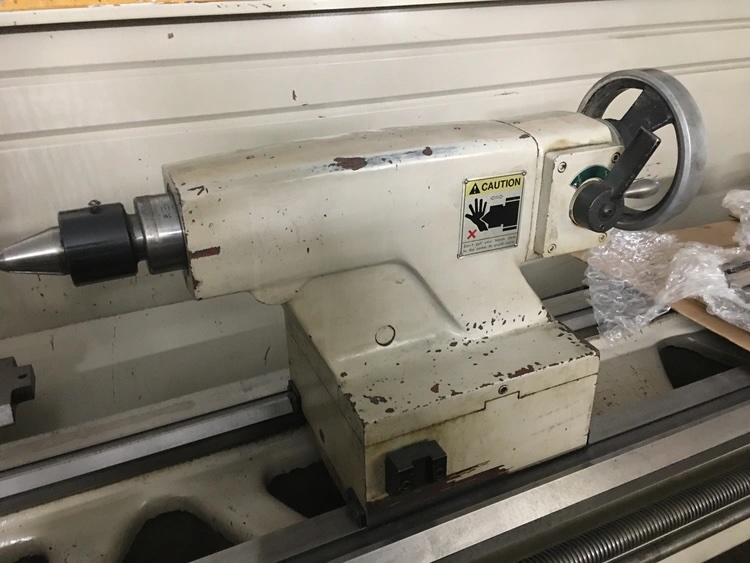

Tailstock- (2-speed quill advance) Engraved with inch / metric quill graduations
Quill diameter: 2.94” (75mm)
Quill stroke: 6.31” (160mm)
Quill taper: MT-5 Morse Taper # 5
Tailstock body set-over adjustment: ± ½” (± 13mm)

Thread Cutting-
Thread cutting range: 60 inch pitches 2 – 112 TPI 2 – 112 TPI
Thread cutting range: 60 metric pitches 0.2 – 14mm 0.2 – 14mm
Thread cutting range: 50 diametral pitches 4 – 112 D.P. 4 – 112 D.P.
Thread cutting range: 50 module pitches 0.2 – 7 M.P. 0.2 – 7 M.P.

Feeds – longitudinal (50 feeds): 0.0014” – 0.0387”/rev. 0.037 – 1.04mm/rev.
Feeds – cross (50 feeds): 0.0007” – 0.01935”/rev. 0.0185” – 0.52mm/rev.

Coolant System: 1/8-HP Pump Motor, 5 gallon (20L) tank capacity
Power Requirements: 220 vac, 3-Phase, 42-amps (440vac optional)

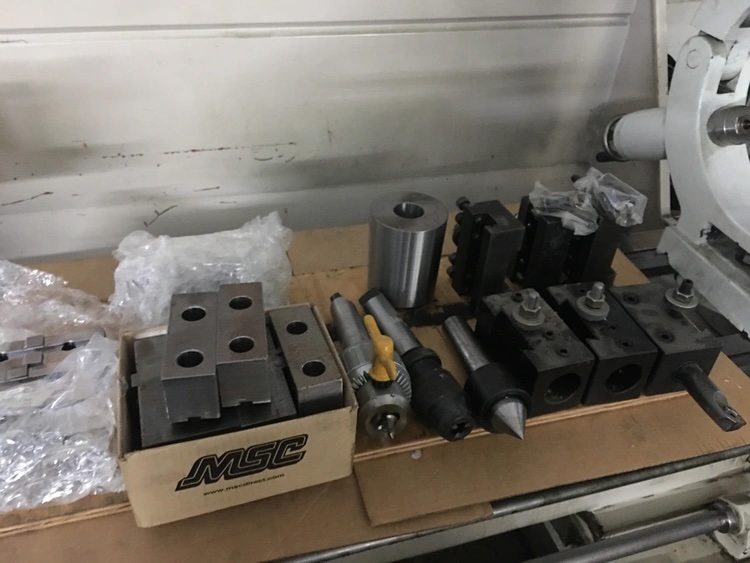

Equipped with:

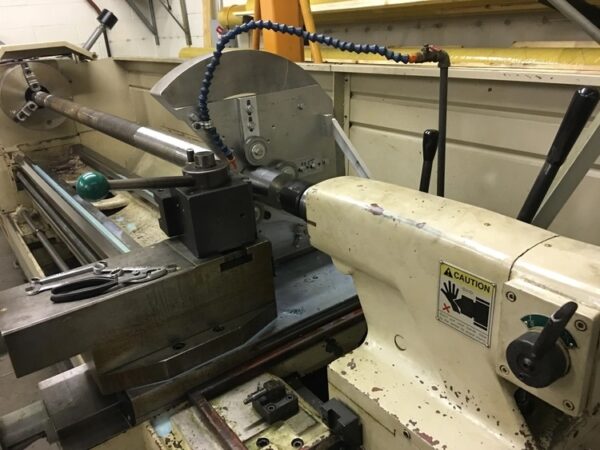

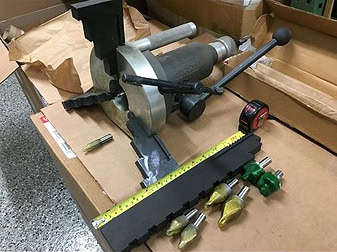

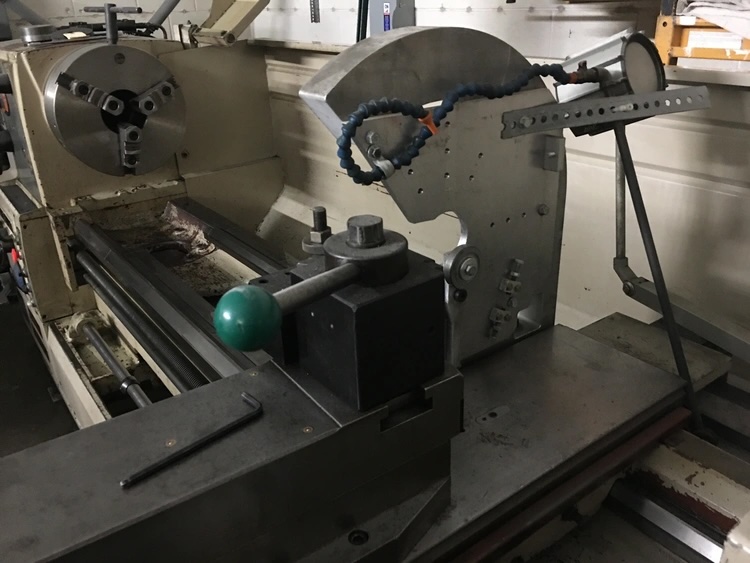

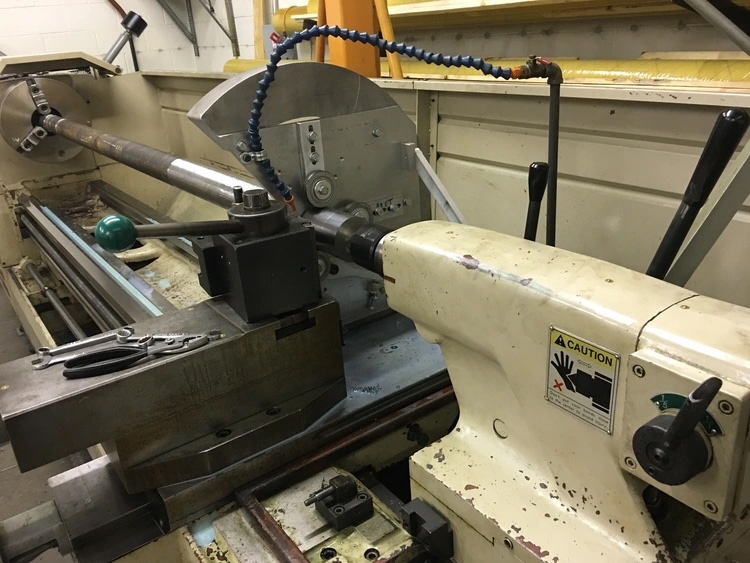

Taper Attachment

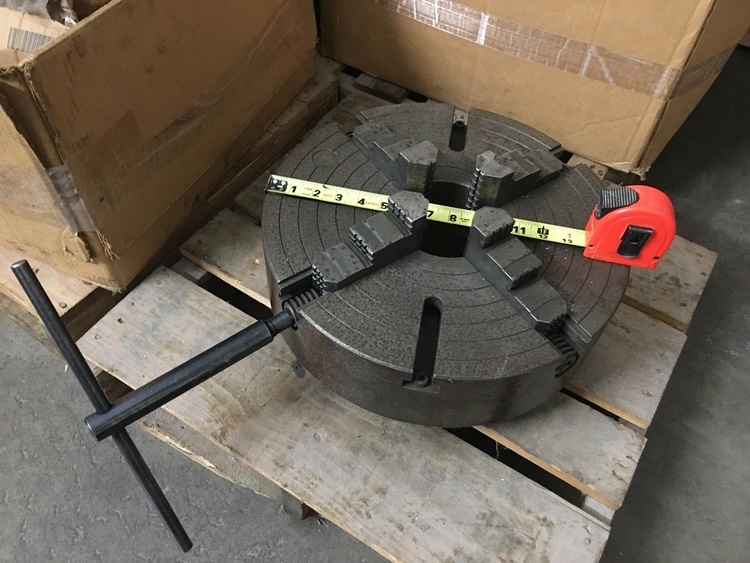

16” 4 Jaw Independent chuck

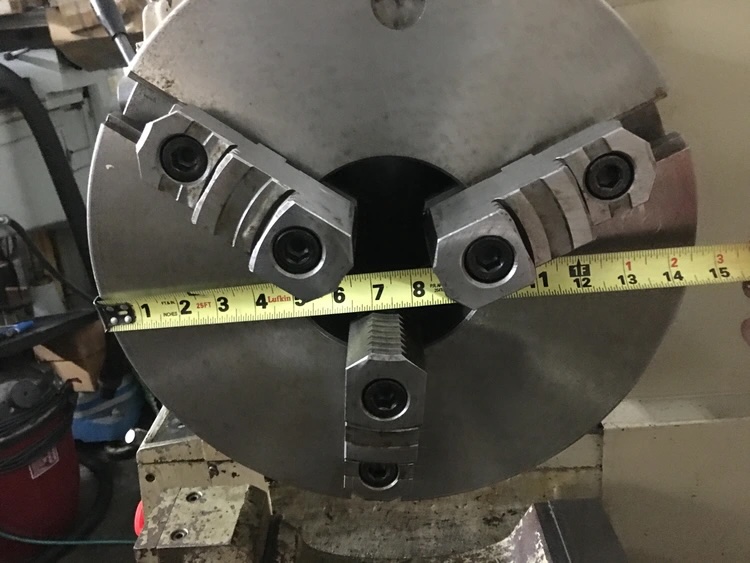

16” 3 Jaw Scroll chuck

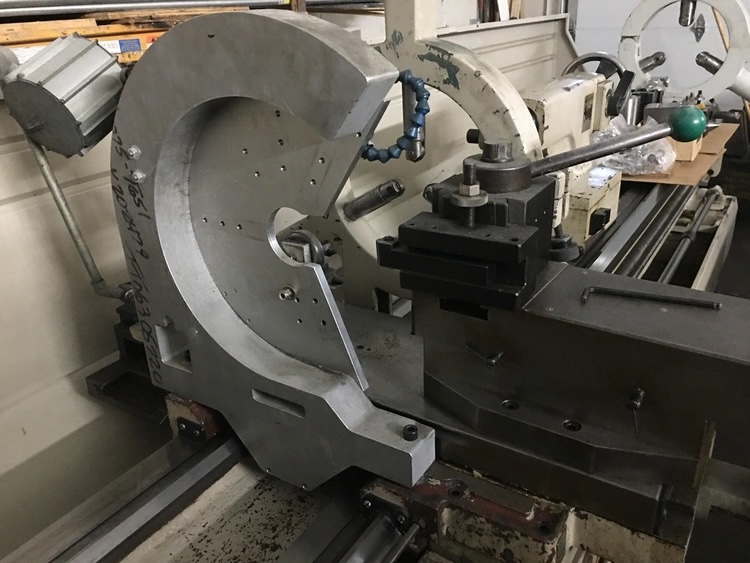

12” + Capacity H.D. Steady Rest

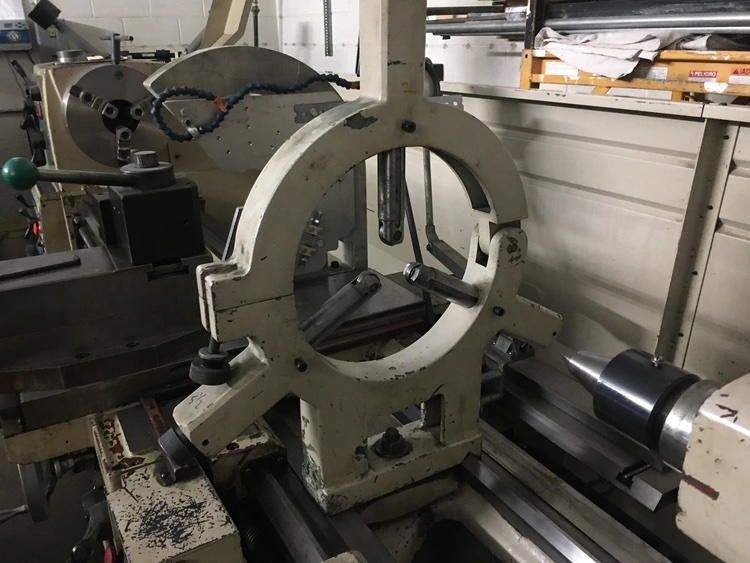

10” + Capacity Steady Rest
8” + Capacity H.D. Follow Rest (DYI)
#5 MT Drill Chucks

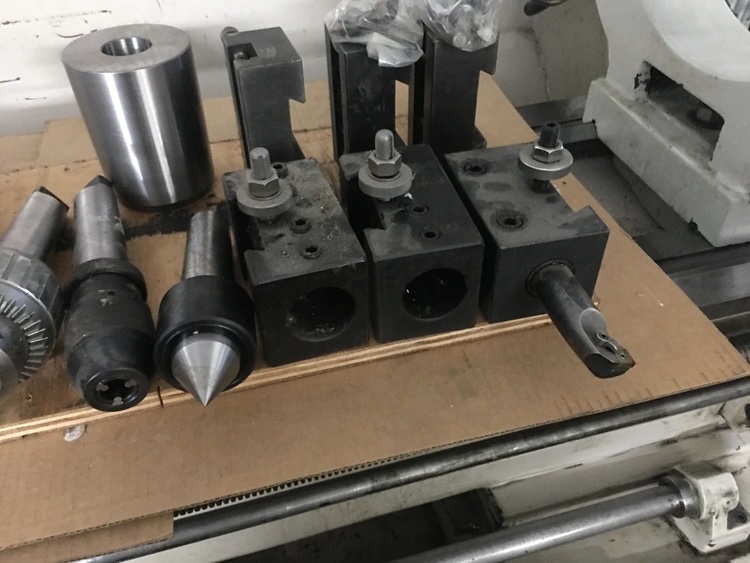

Aloris DA Toolpost
1.5” and 2” Boring Bar Holders for Aloris DA
1.25” Turning Holders for Aloris DA
H.D. Spindle Stop and Bushings
