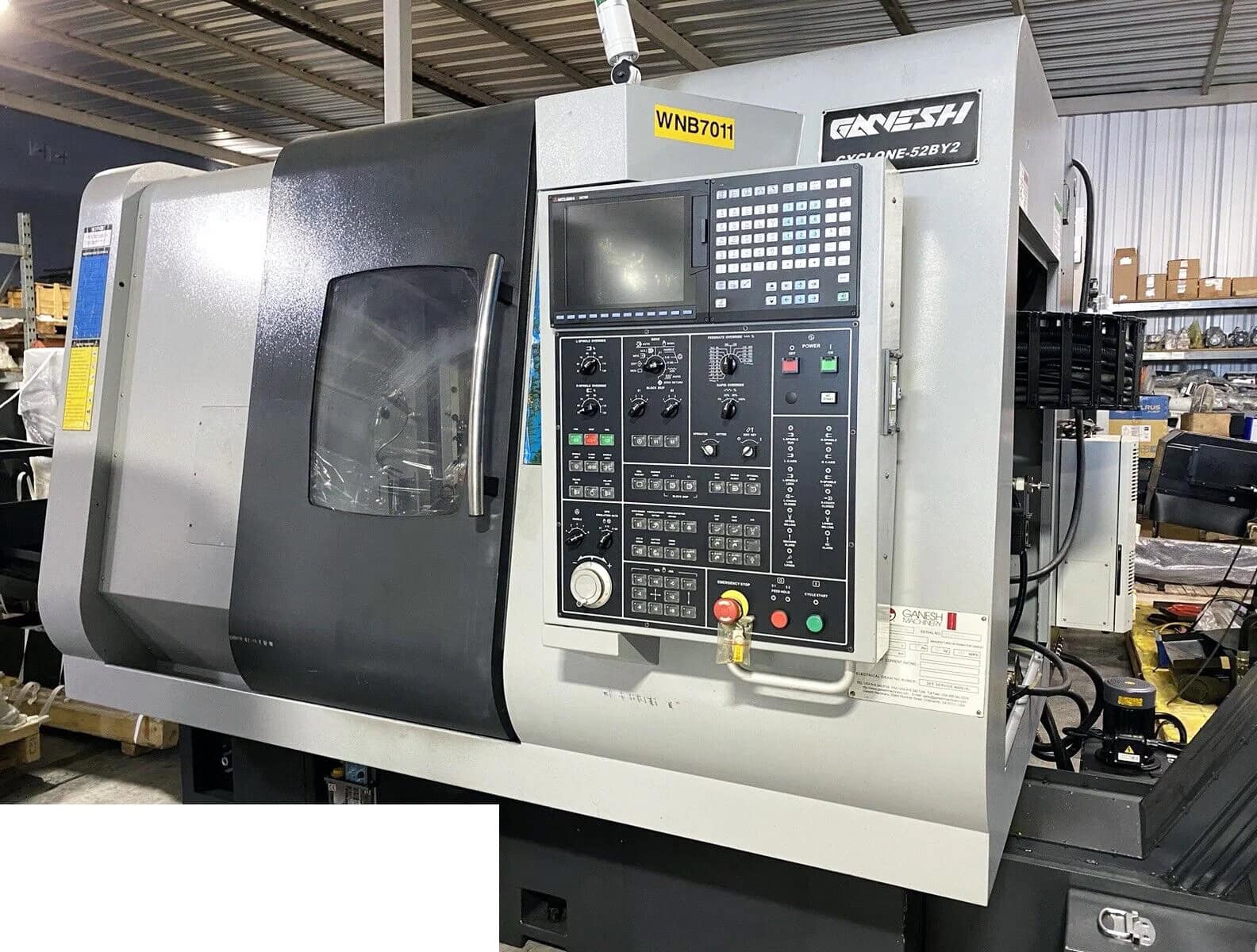

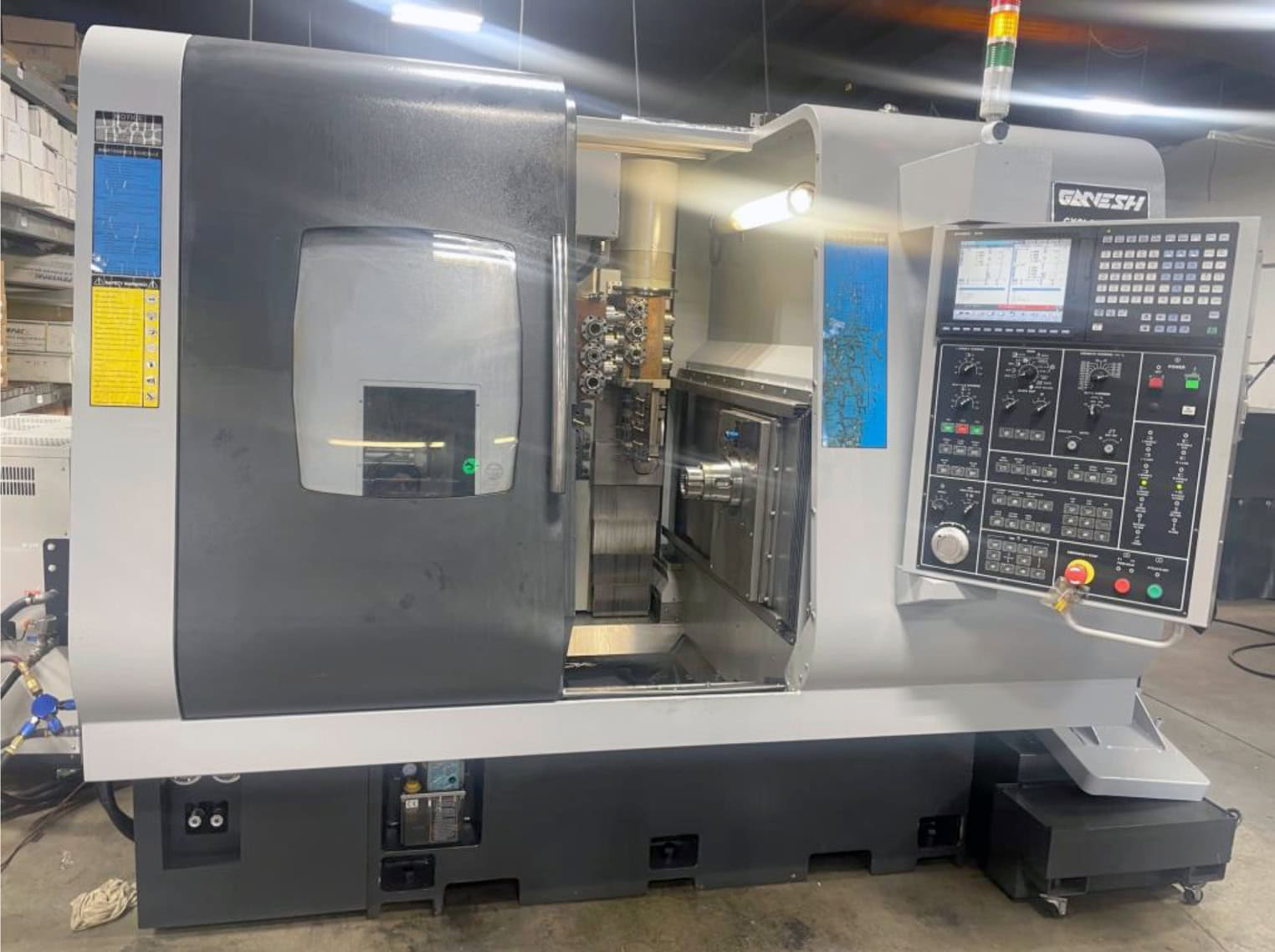

Ganesh Cyclone 52 BY2 9-Axis CNC Lathe, 2016 – 6″ Chuck, Dual Spindle, Live Tooling, Dual Y-Axis

Bar Capacity: 2″
Collet Size: Traub TRB-52

Main Spindle Max Speed: 6,000 RPM
Main Spindle Motor: 15 HP
Max Turning Length: 9.84″
Max Turning Diameter: 2.01″
X1-Axis Travel: 10.63″
Y1-Axis Travel: 18.11″
Z1-Axis Travels: 9.84″
X1/Y1/Z1-Axis Rapid Traverse Rates: 1, 181 IPM

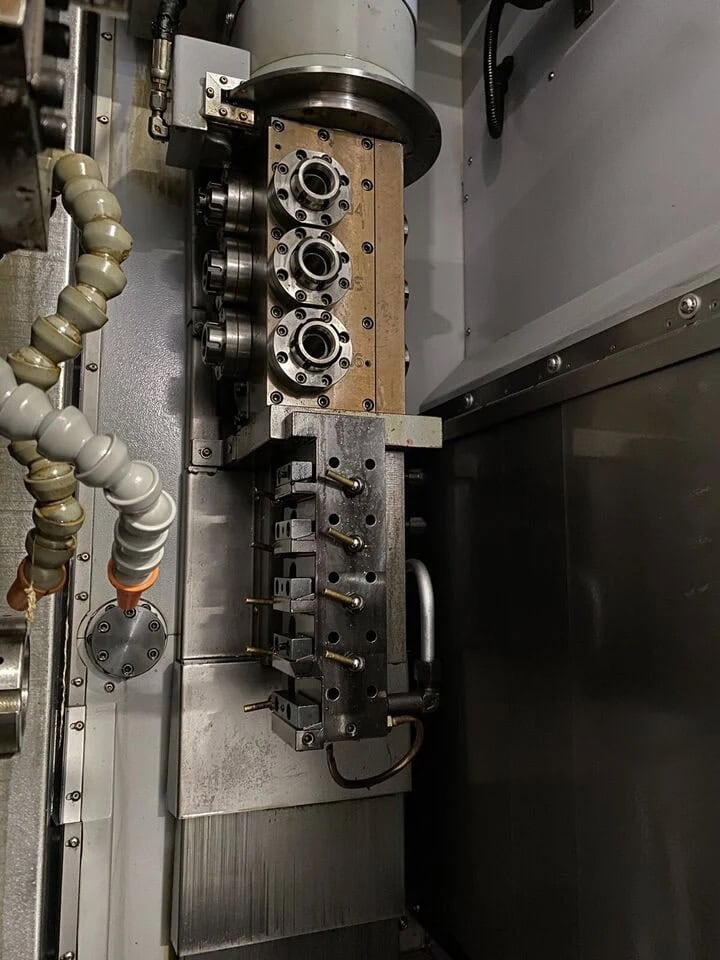

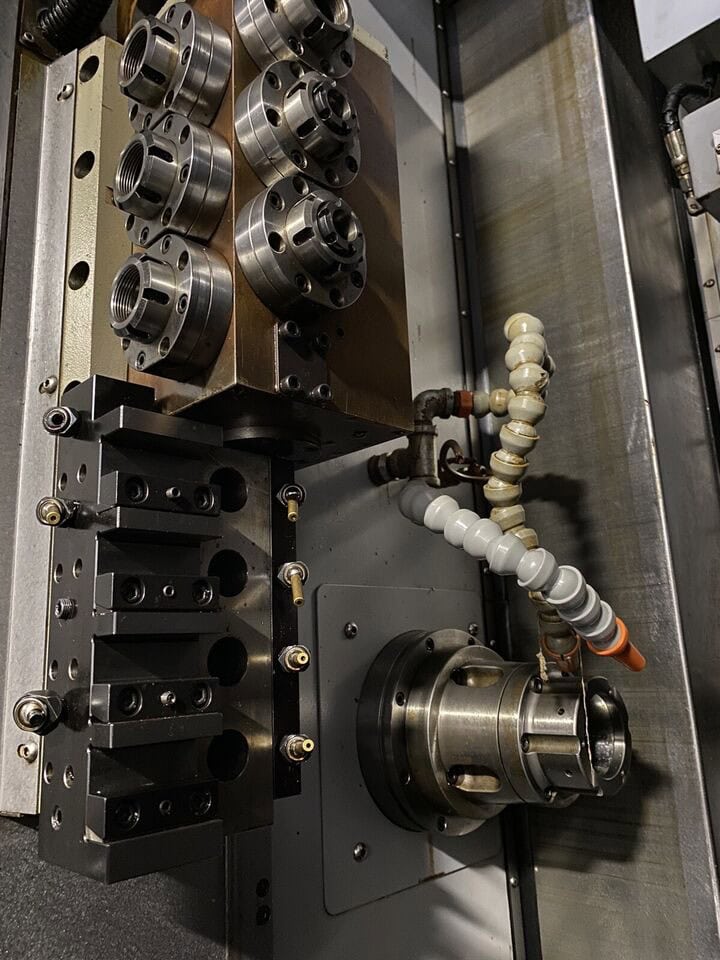

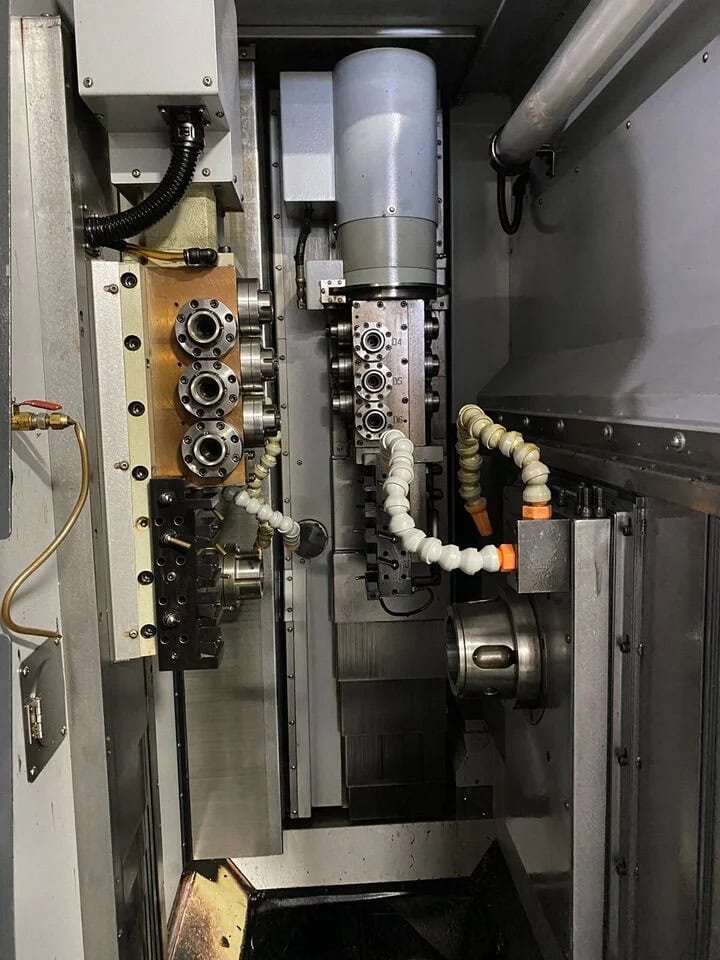

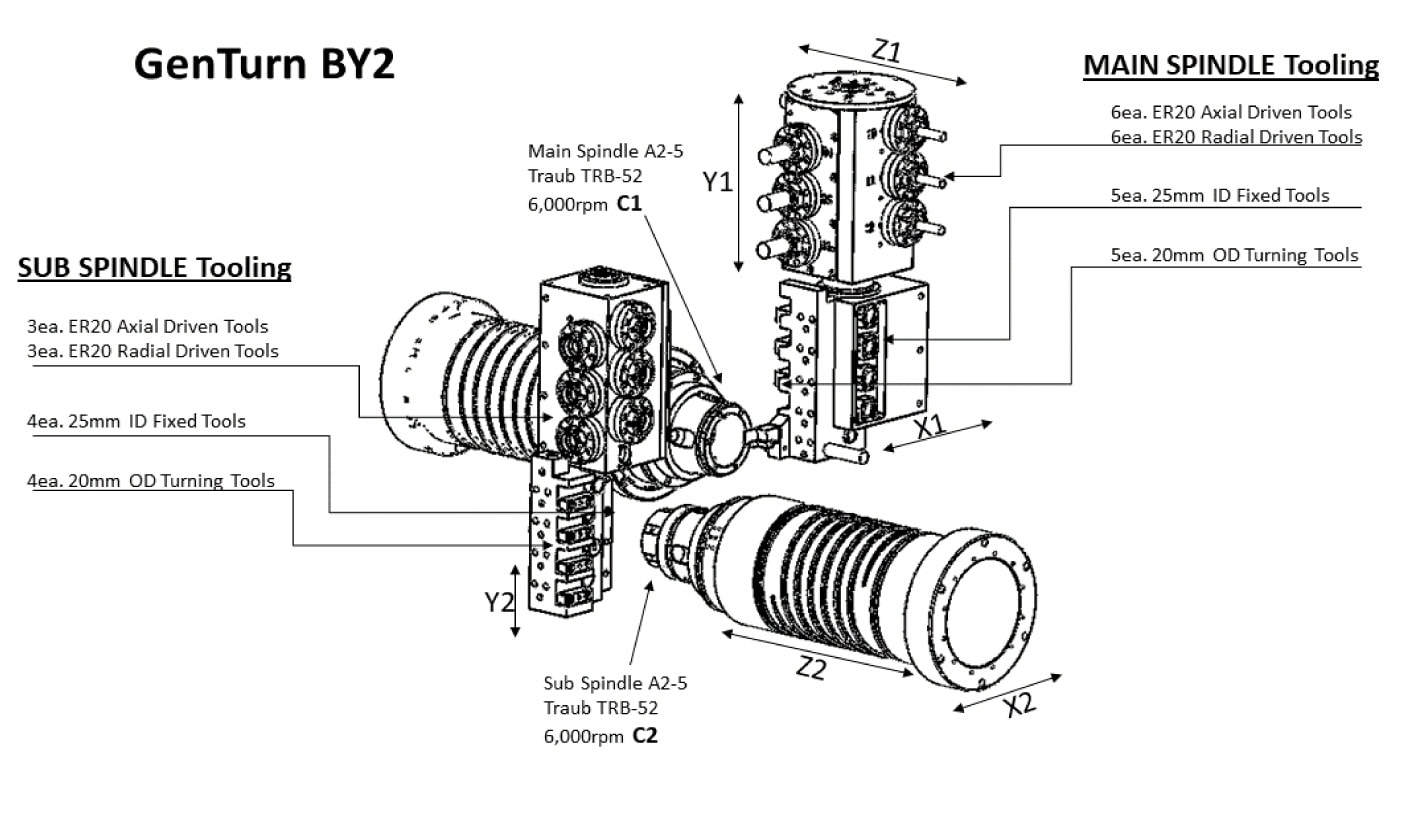

Driven Tools: 12 (6 Axial & 6 Radial)
Driven Tool Motor: 5 HP
OD Turning Tools: 5
ID Boring Tools: 5

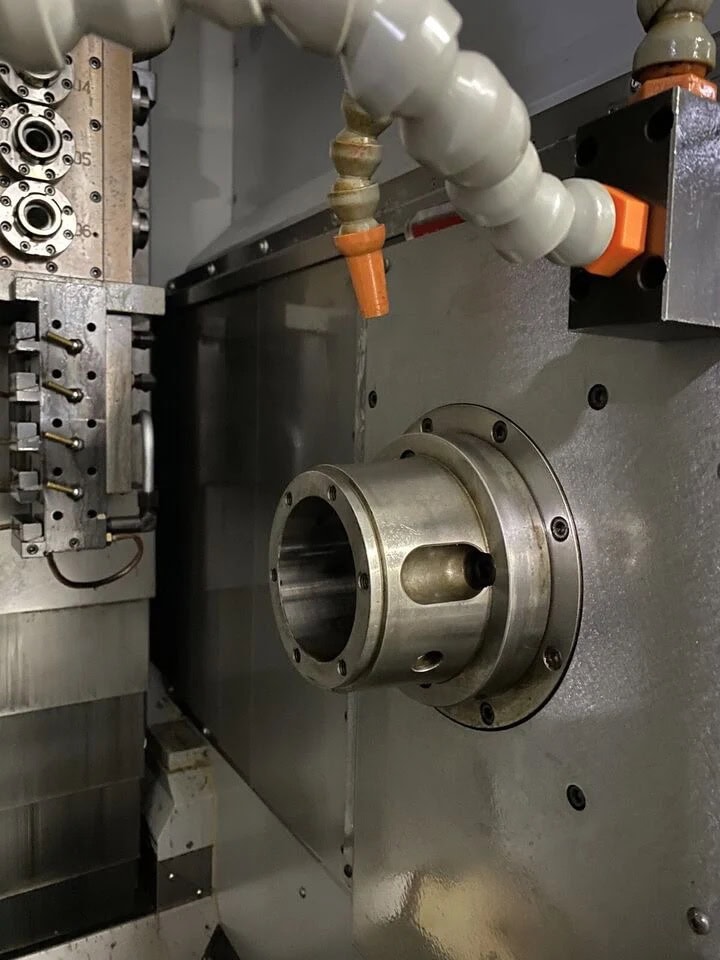

Sub Spindle Max Speed: 6,000 RPM
Sub Spindle Motor: 15 HP
Max Turning Length: 9.84″
Max Turning Diameter: 2.01″
X2-Axis Travel: 18.89”
Y2-Axis Travel: 18.11″
Z2-Axis Travels: 10.63”
X2/Y2/Z2-Axis Rapid Traverse Rates: 1, 181 IPM
Driven Tools: 6 (3 Axial & 3 Radial)
Driven Tool Motor: 2.7 HP
OD Turning Tools: 4
ID Boring Tools: 4

Electrical: 220V, 3-Phase
Approximate Machine Dimensions: 148″ x 85″ x 82″
Approximate Machine Weight: 12,345 lbs

Equipped With

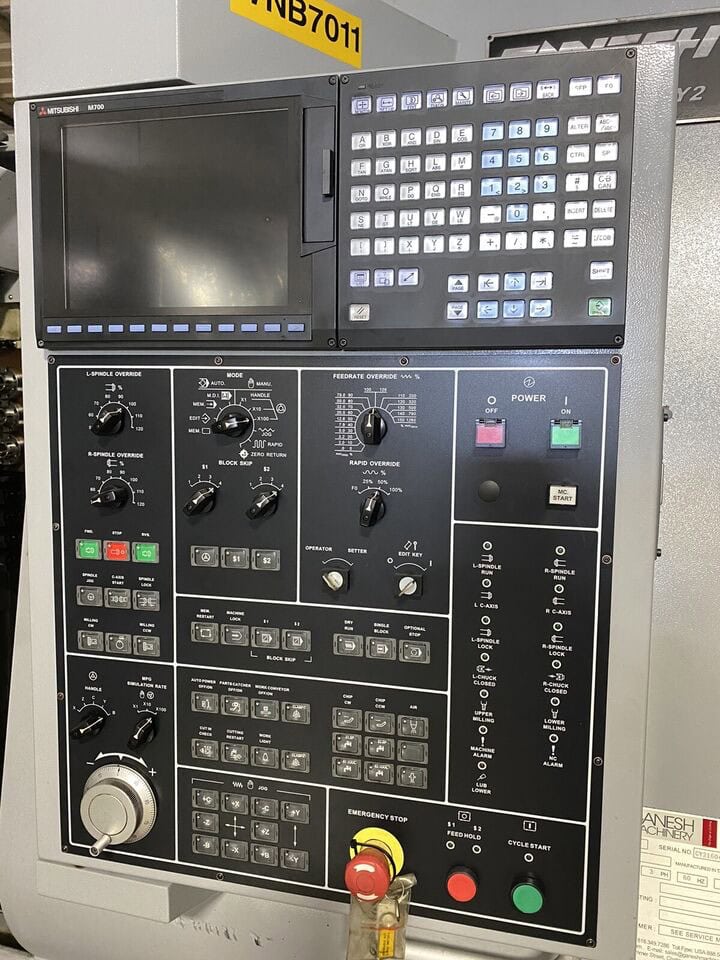

Mitsubishi M700 Series CNC Controller
Sub-Spindle
Dual Y-Axis
B-Axis- Simultaneous Main & Sub-Spindle Machining
36 Tool Positions
18 Live Tooling Stations

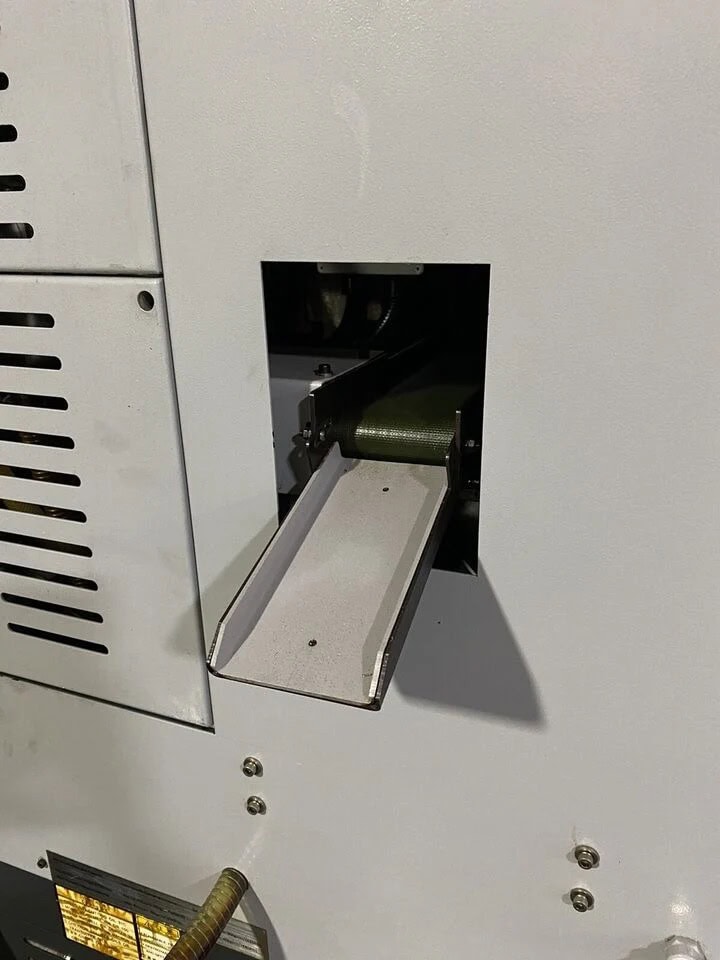

Parts Catcher/Conveyor
Chip Conveyor
