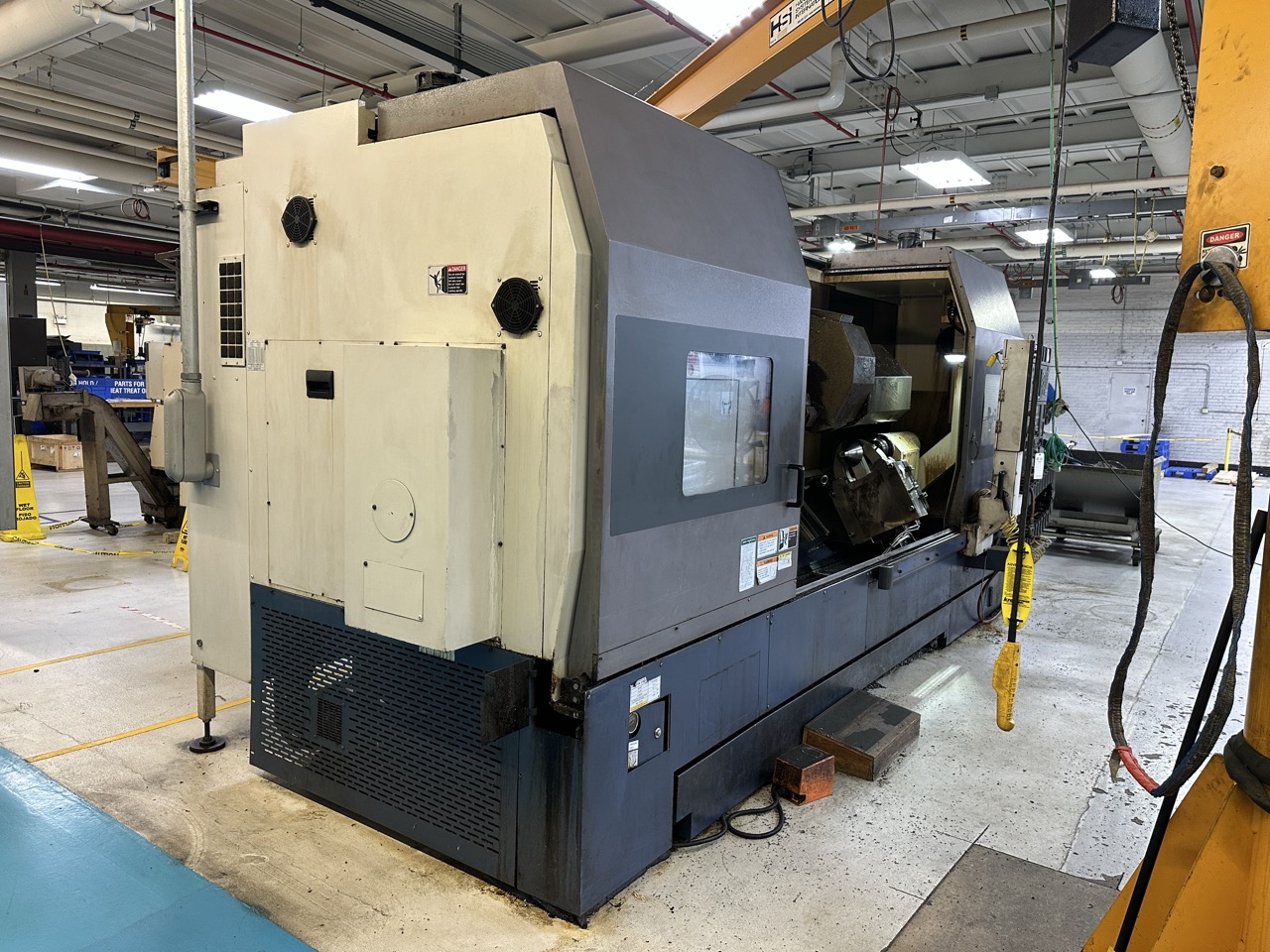

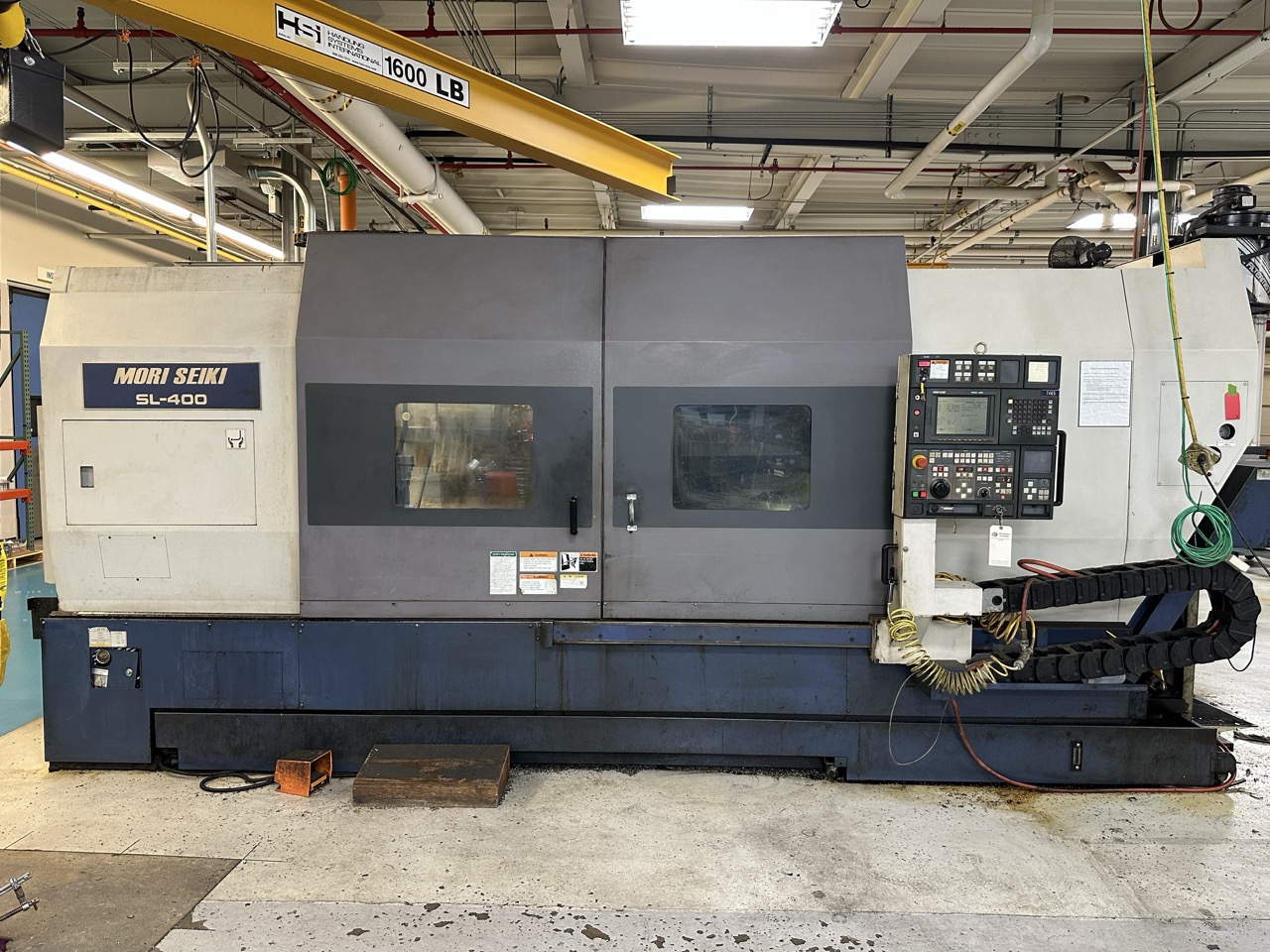

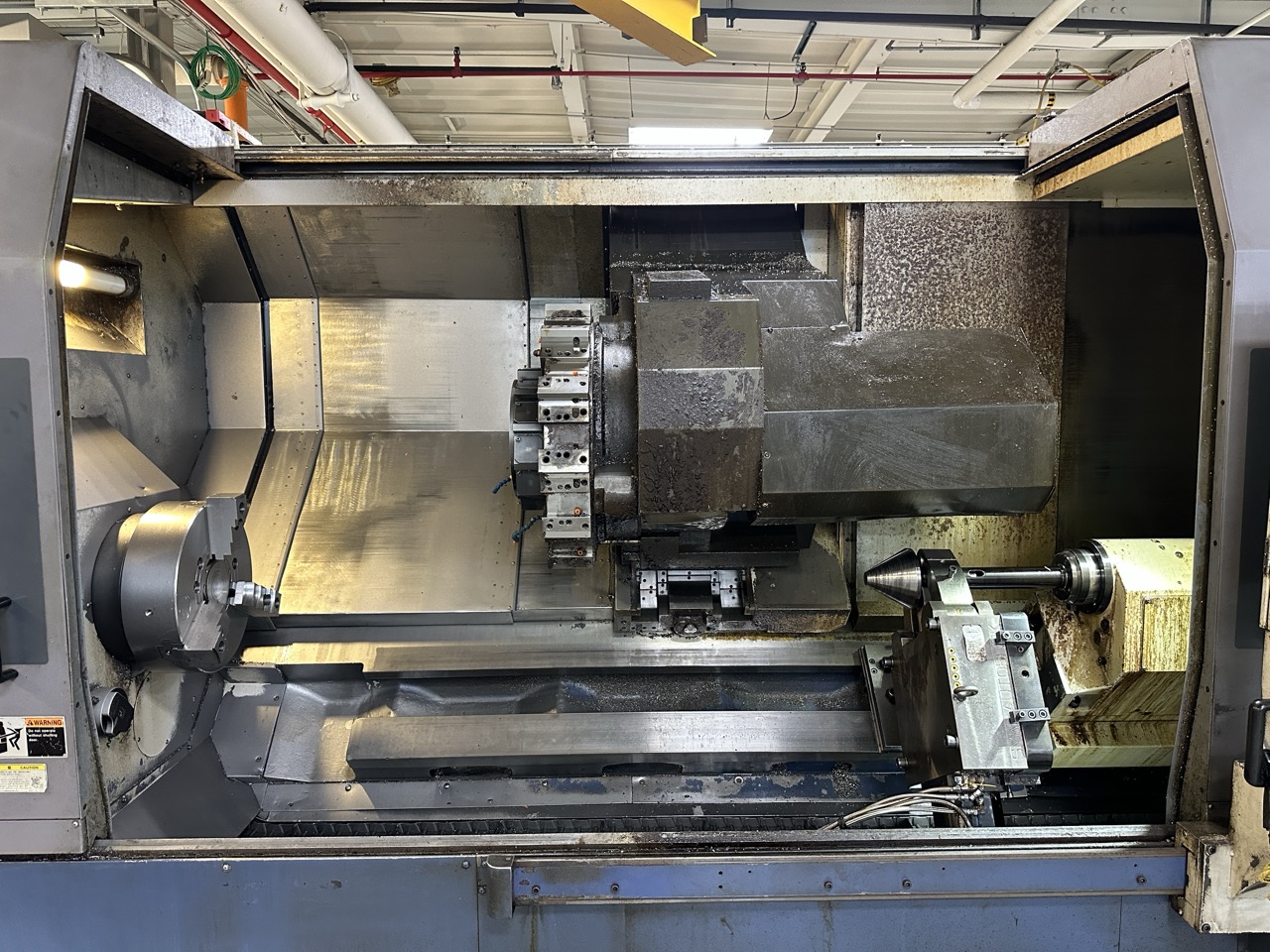

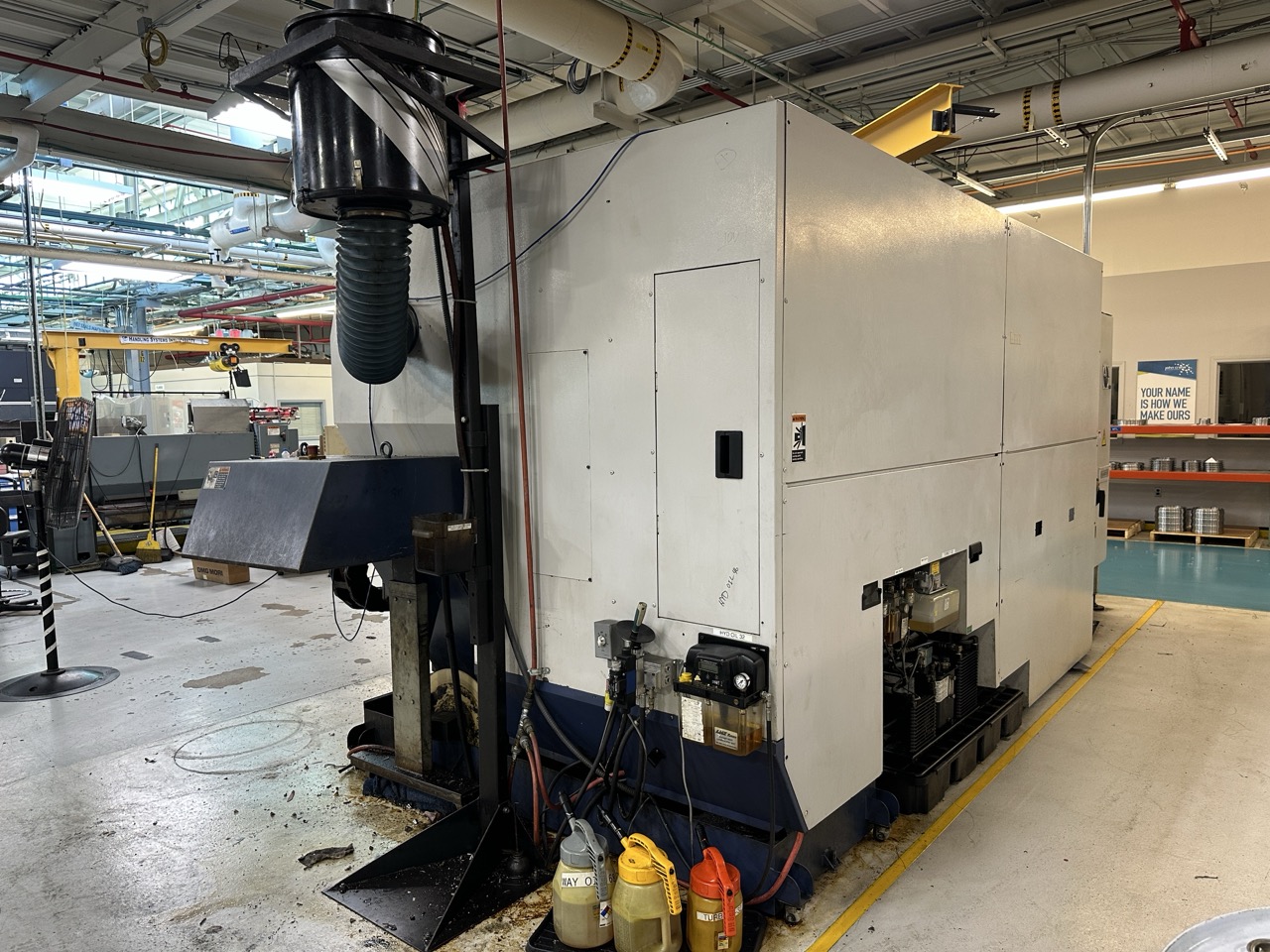

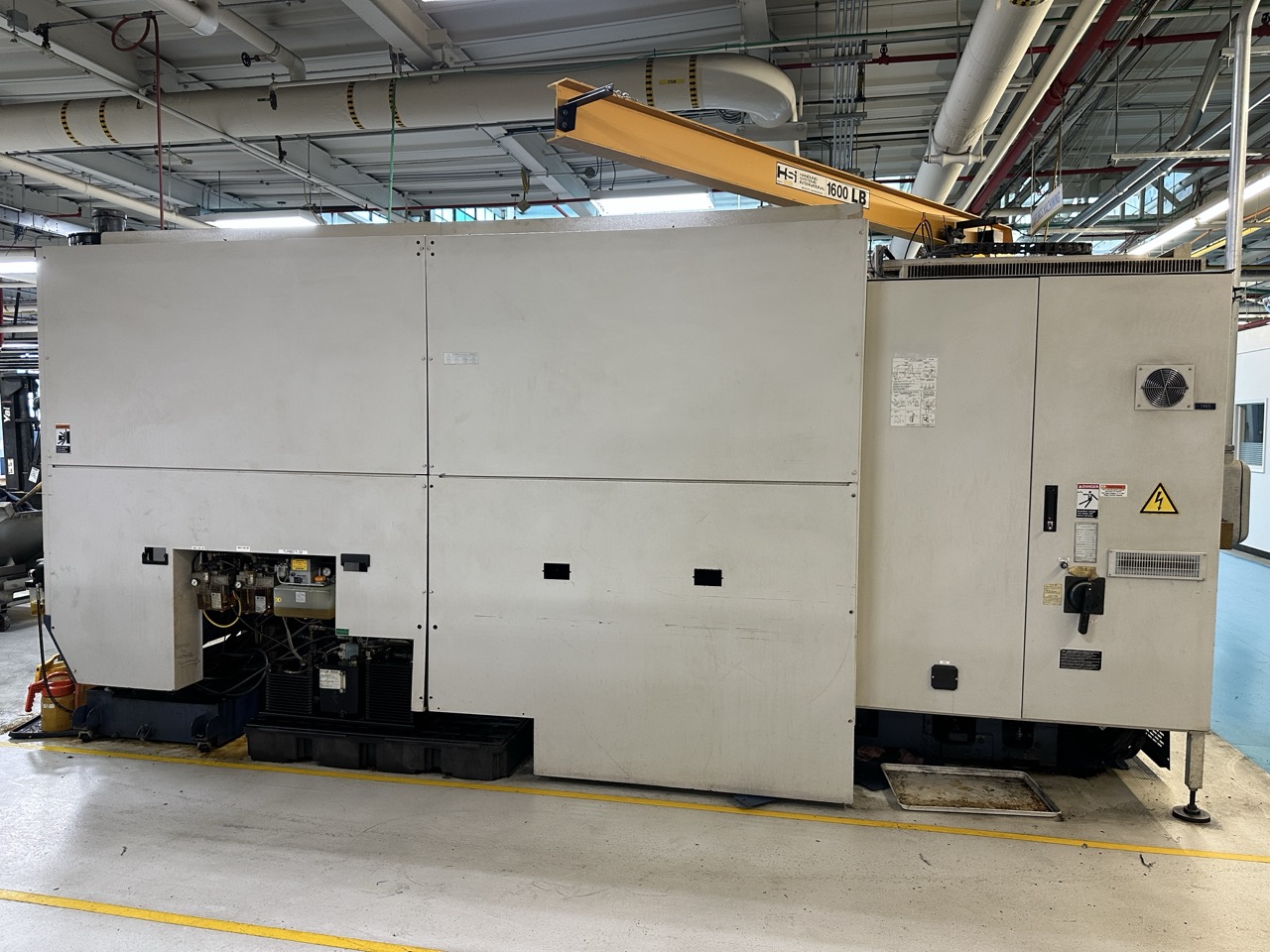

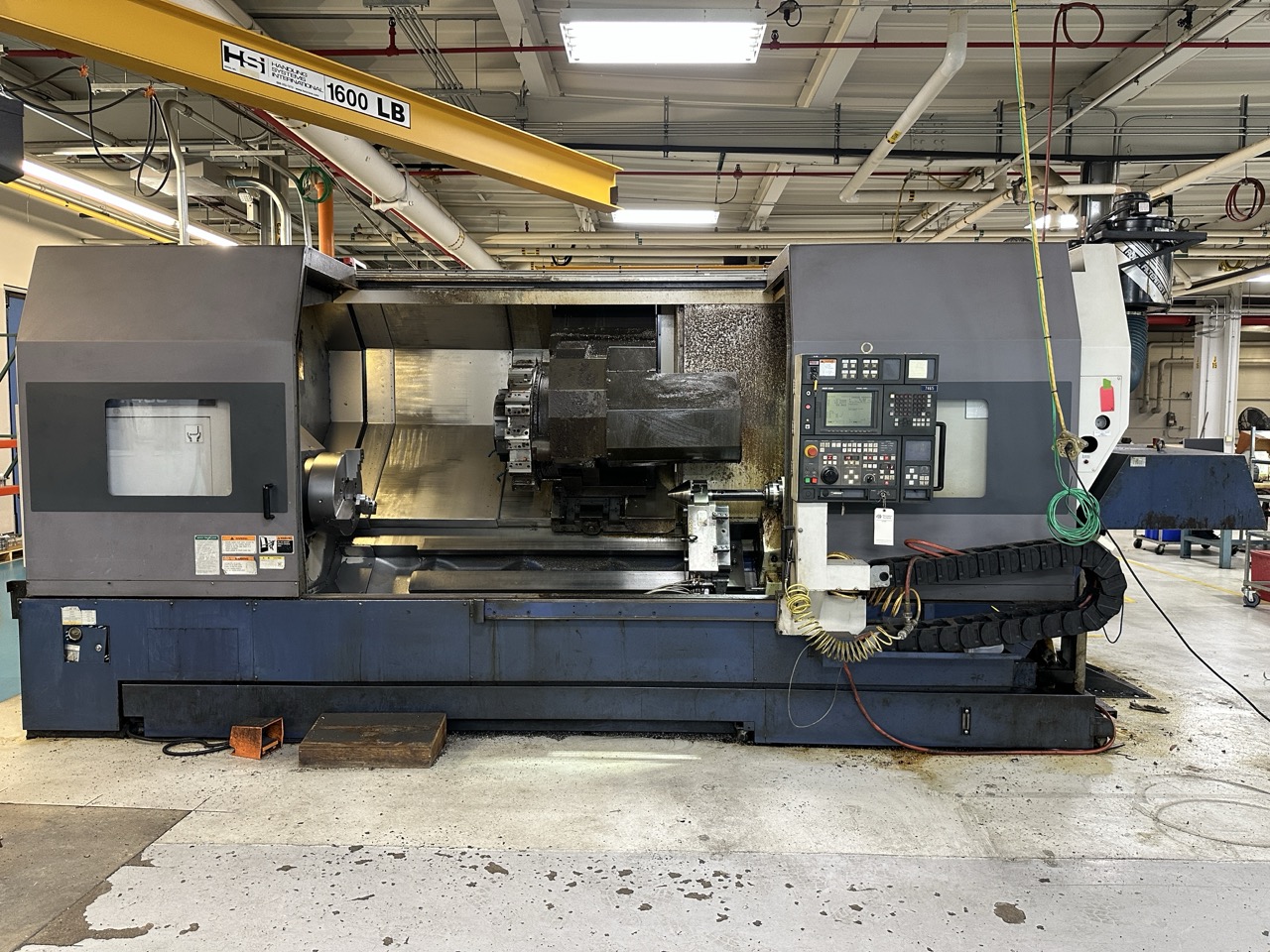

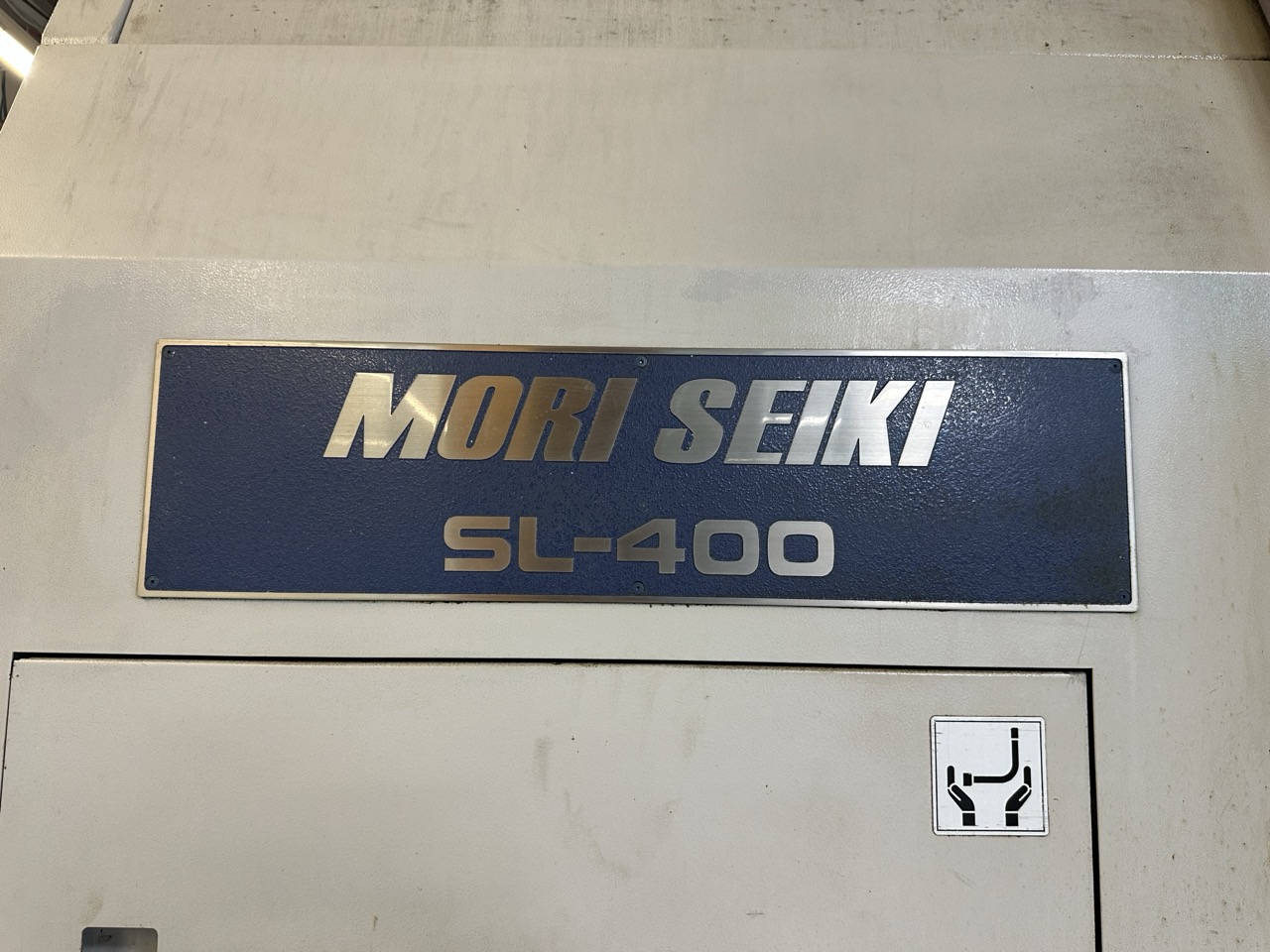

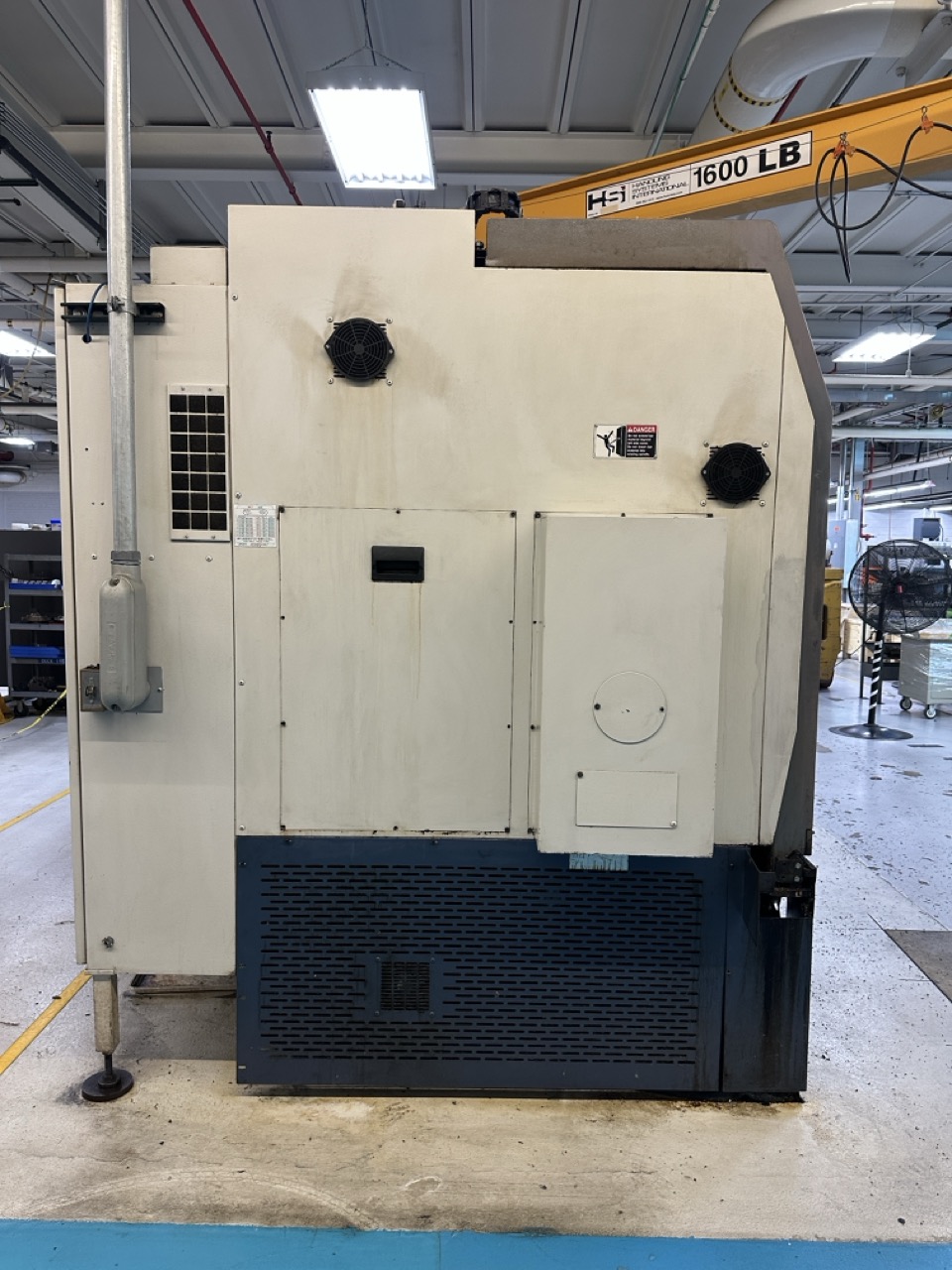

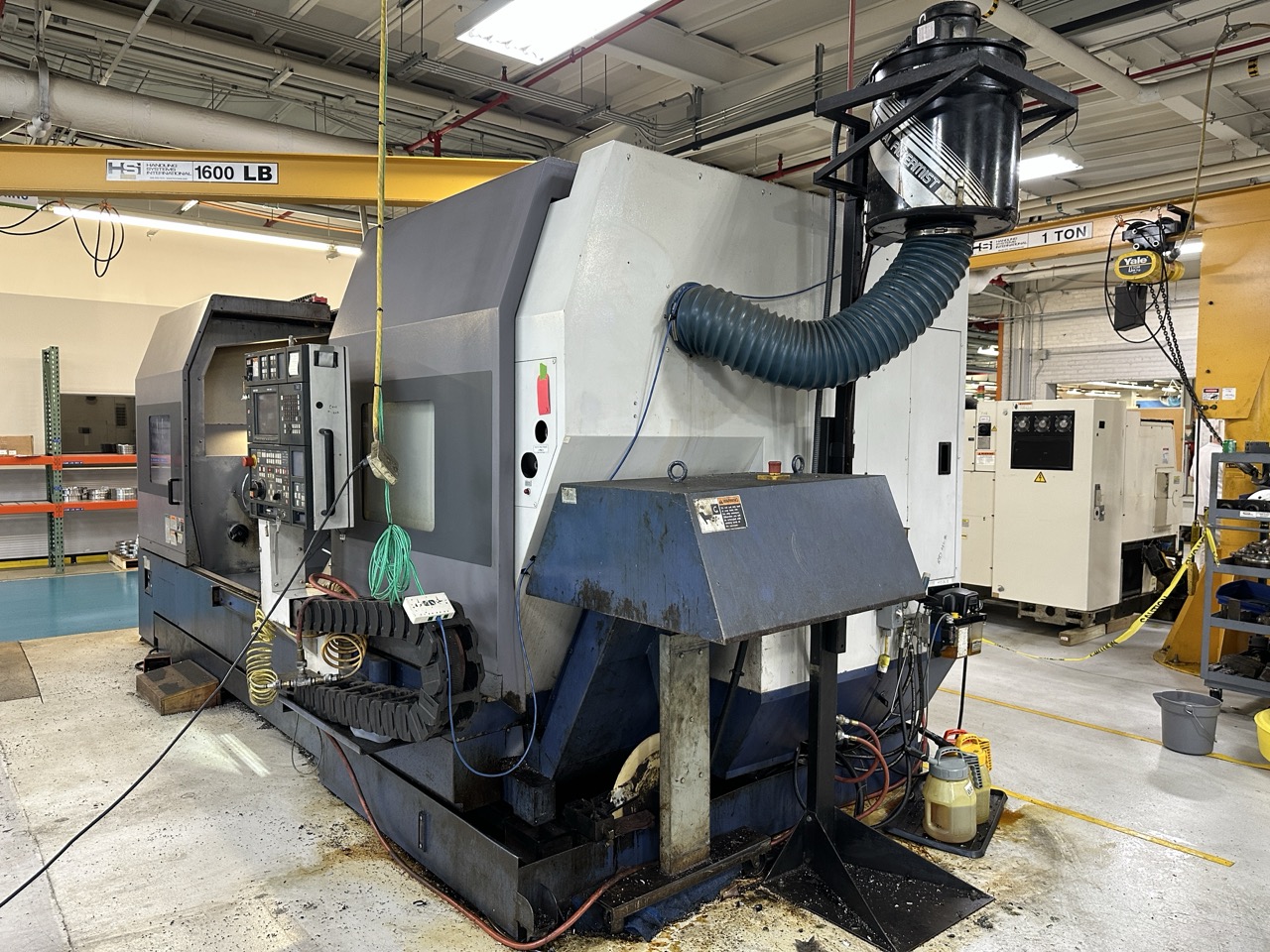

Mori Seiki SL-400 BMC/2000 CNC Turning Center, Live Tooling, SMW Steady Rest, 1999

Max Turning Diameter: 25.4″
Max Turning Length: 33.9″
Max Bar Capacity: 5.11″
Swing Over Bed: 36.8″
Distance Between Centers: 40.0″
X Axis Travel: 11.3″
Z Axis Travel: 36.0 ”
C Axis : 0.01
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2″
Spindle Speed: 10 – 2400 RPM
Spindle Motor: 40 HP

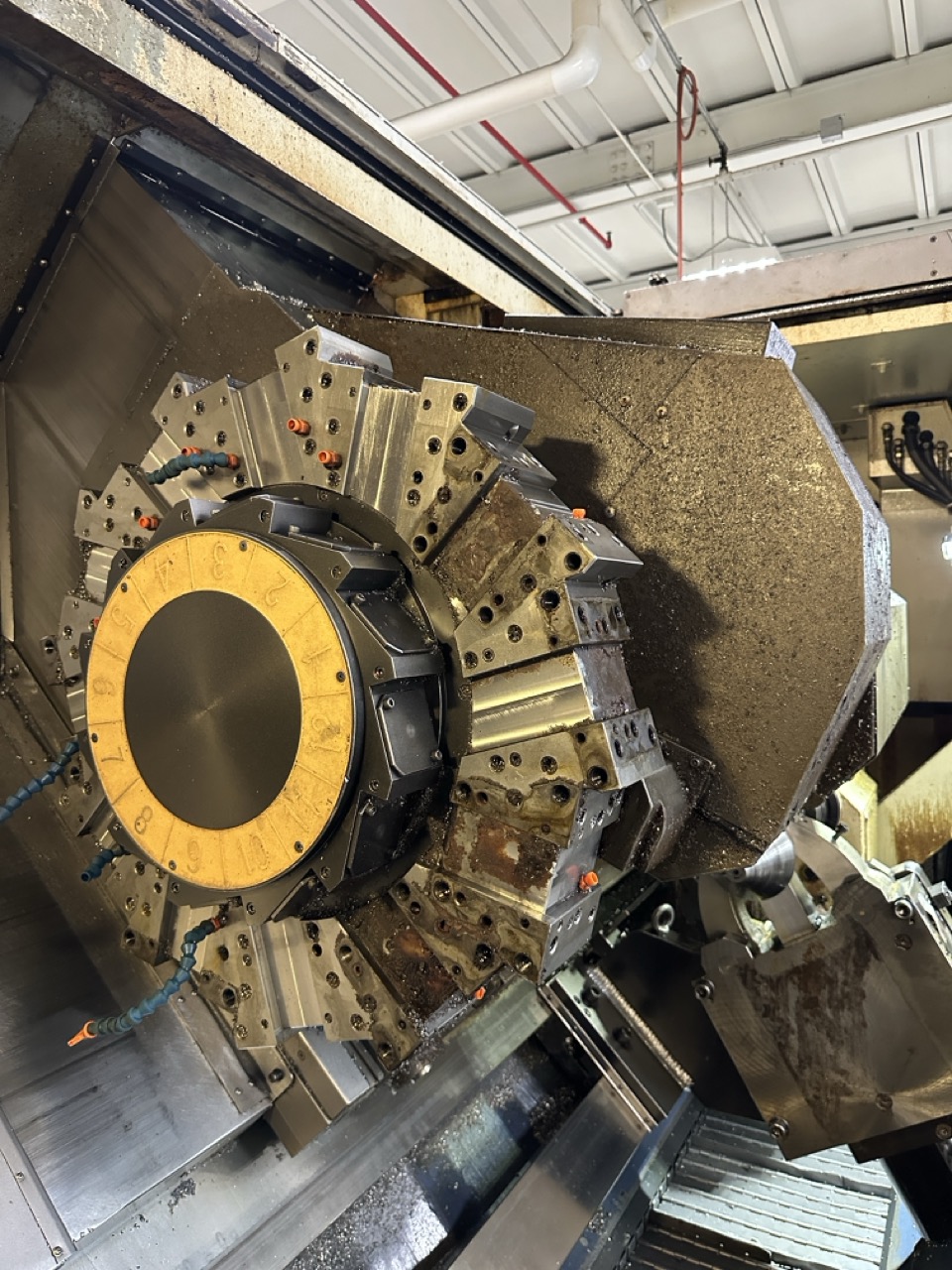

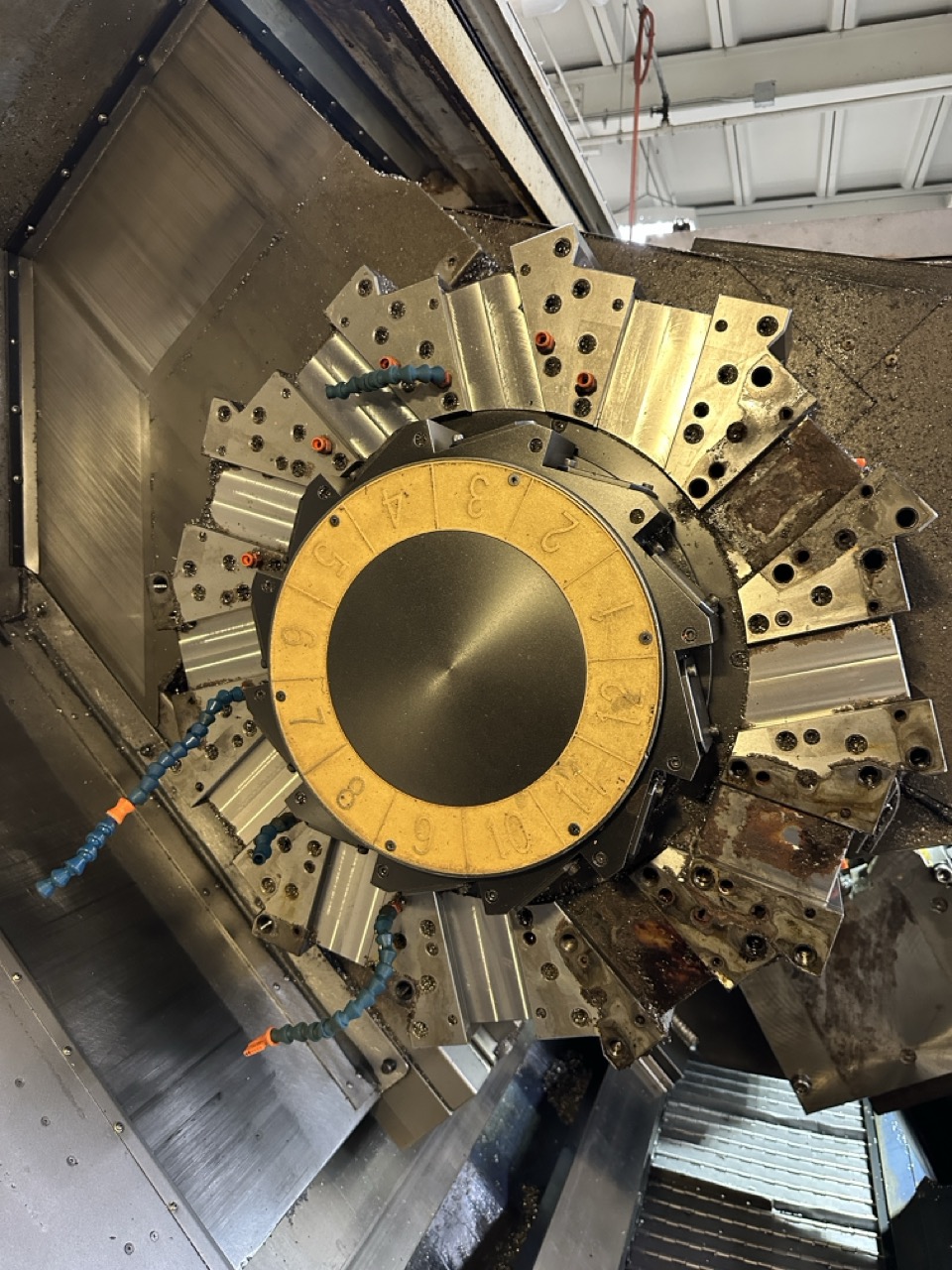

Turret Capacity: 12 Live Stations
Turret Index Time: 1 Second

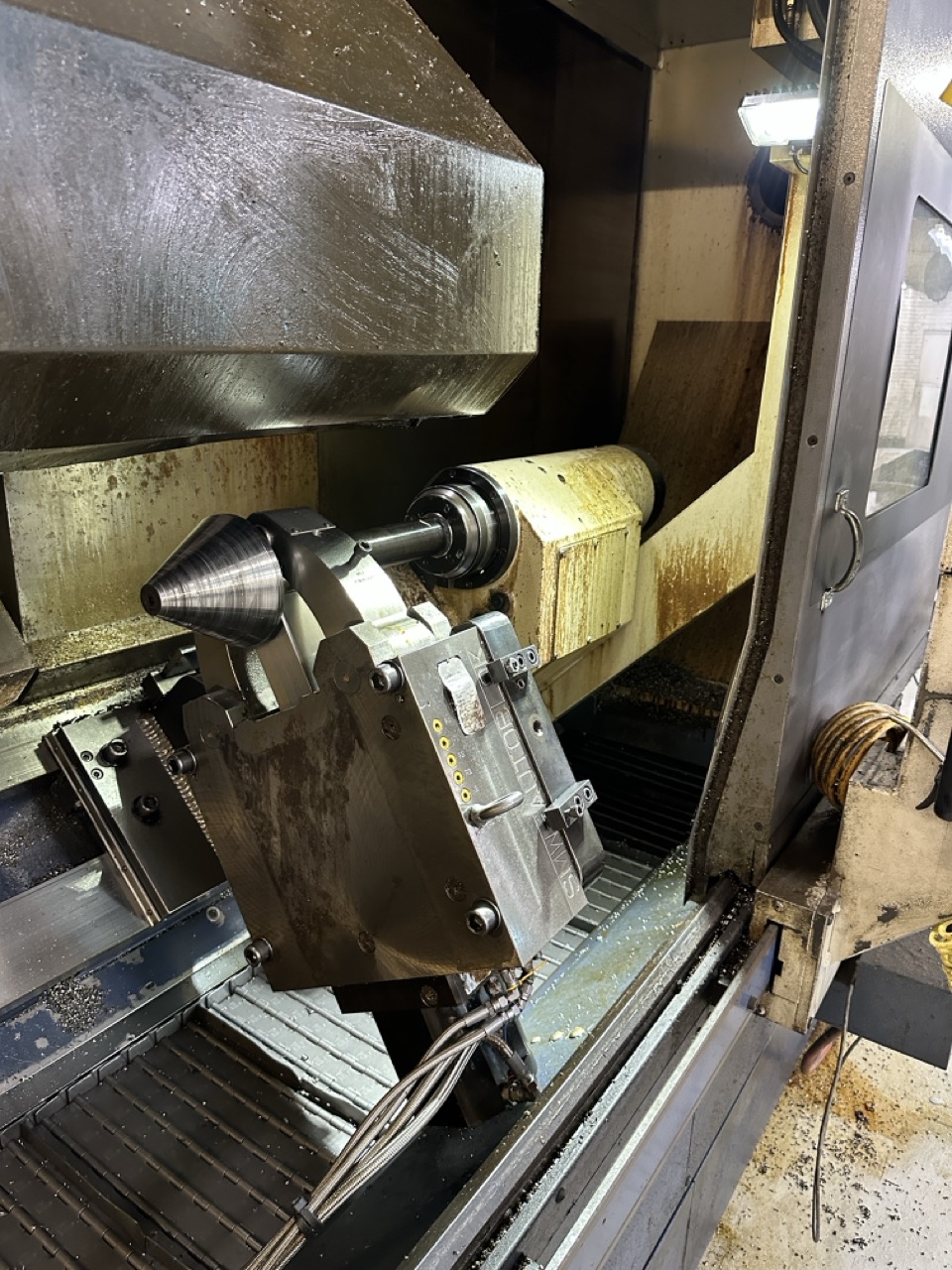

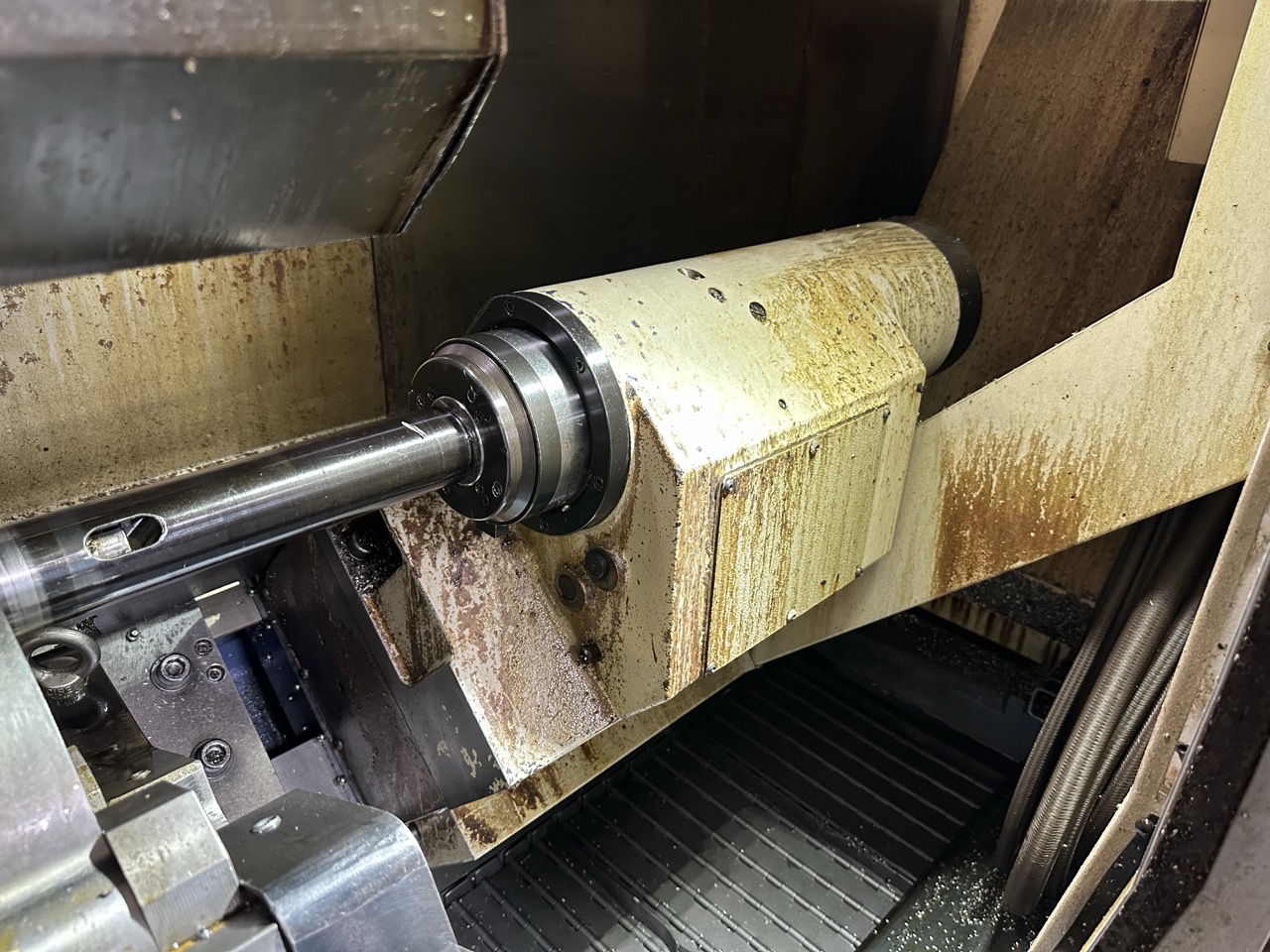

Tailstock Taper: MT-4
Tailstock Body Travel: 24.0″
Overall Dimensions: 230″ X 102″ X 104 ” High
Weight: 25,000 lbs

Equipped With:
LIVE TOOLING

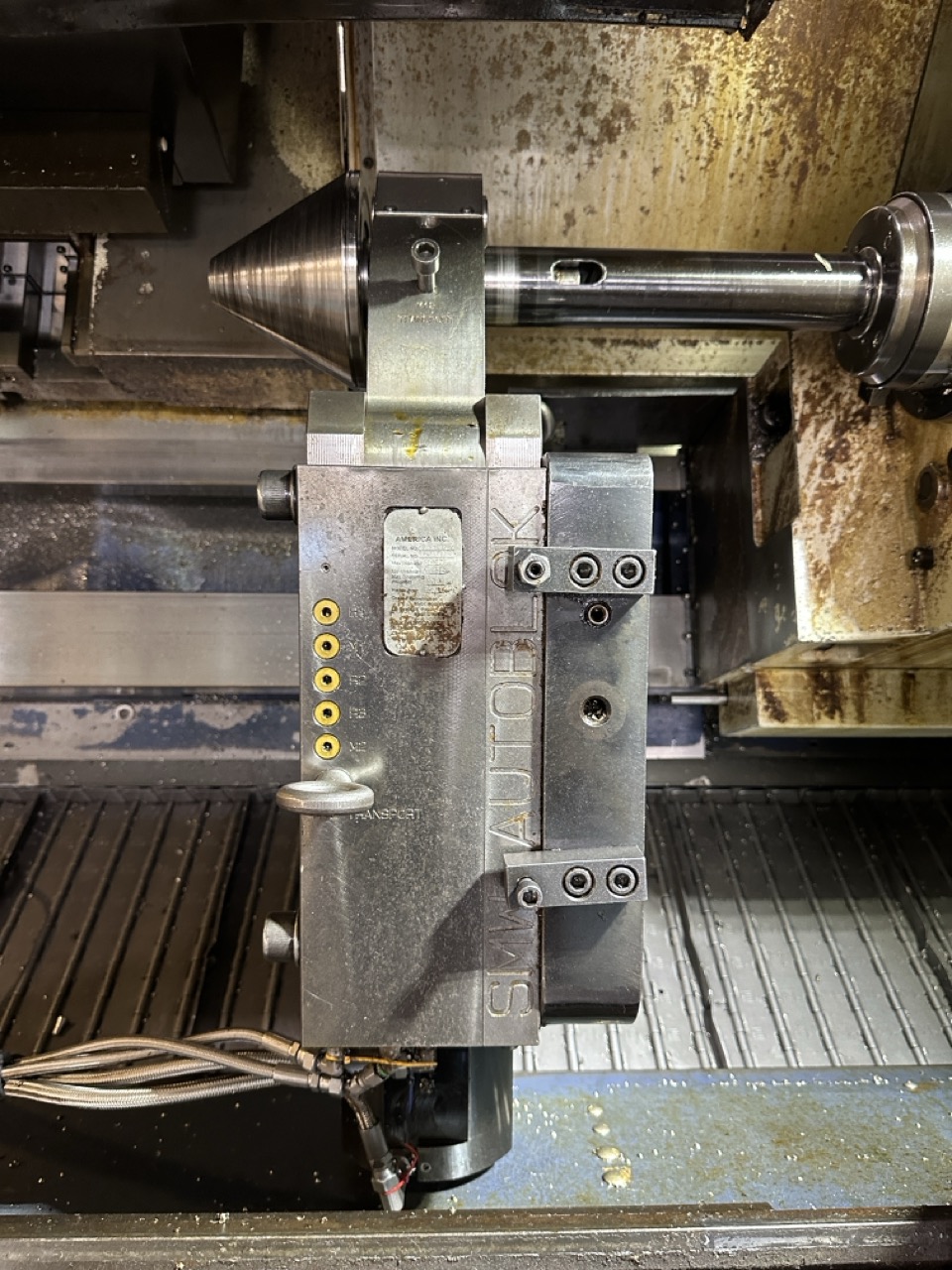

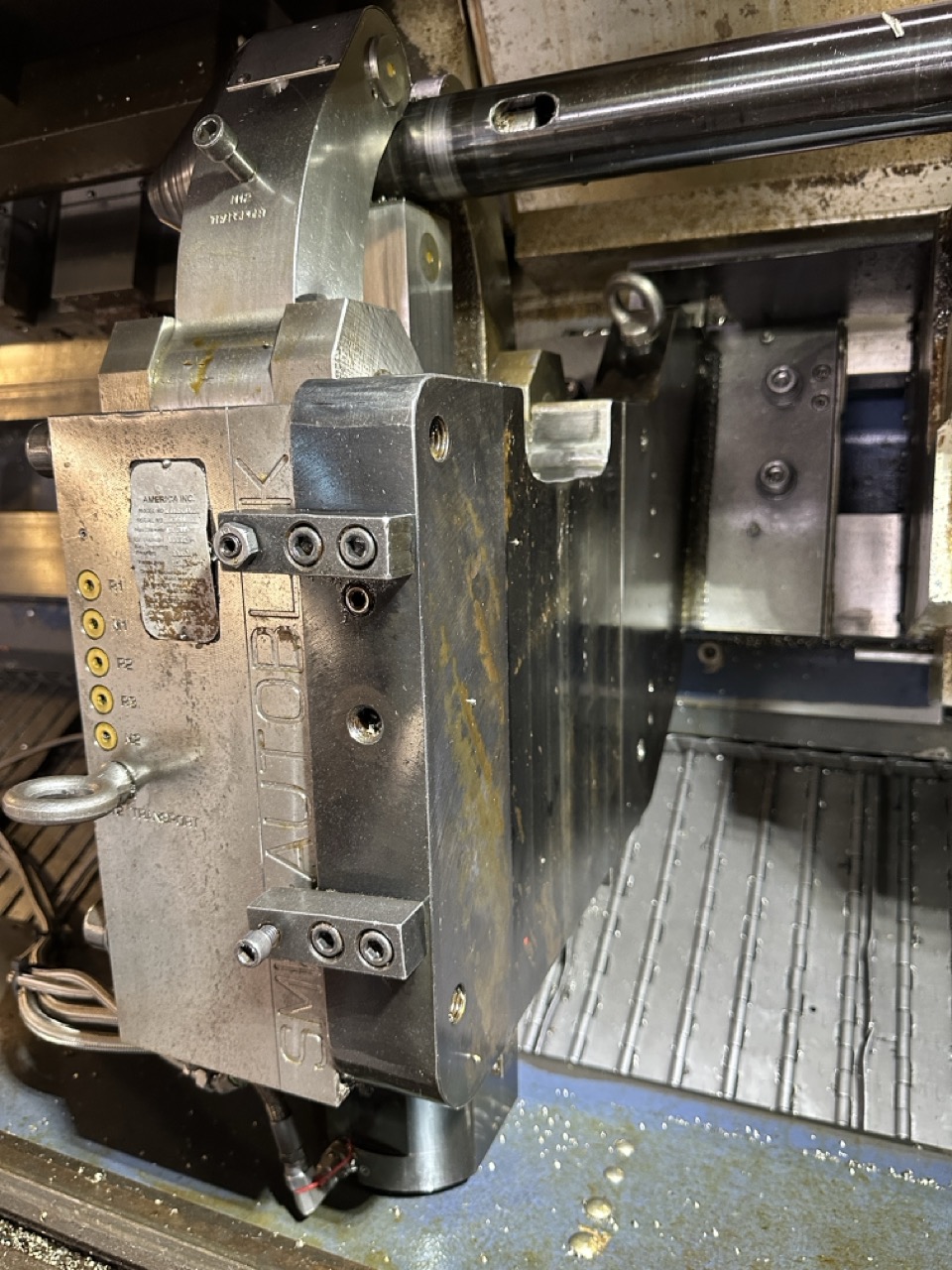

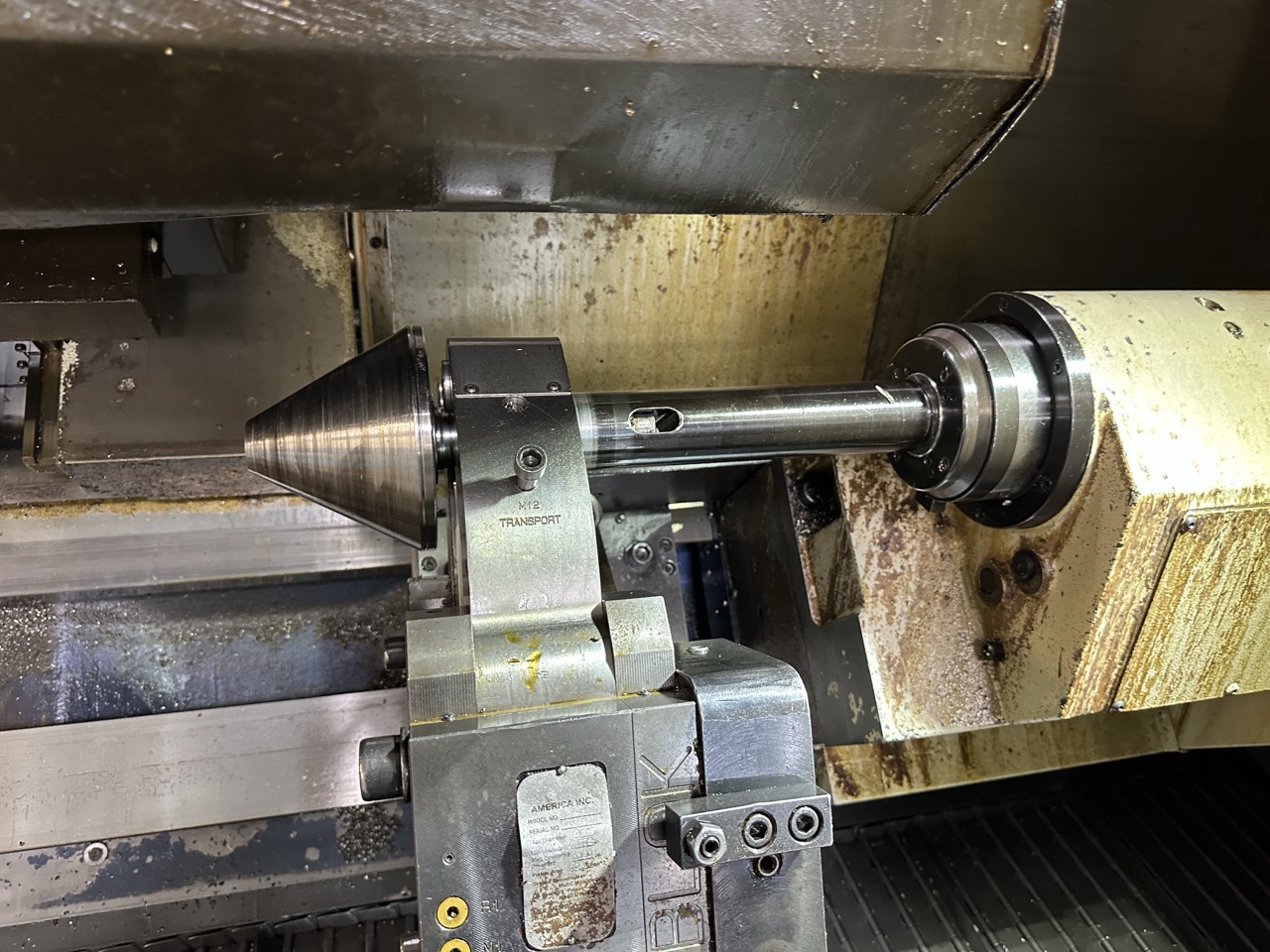

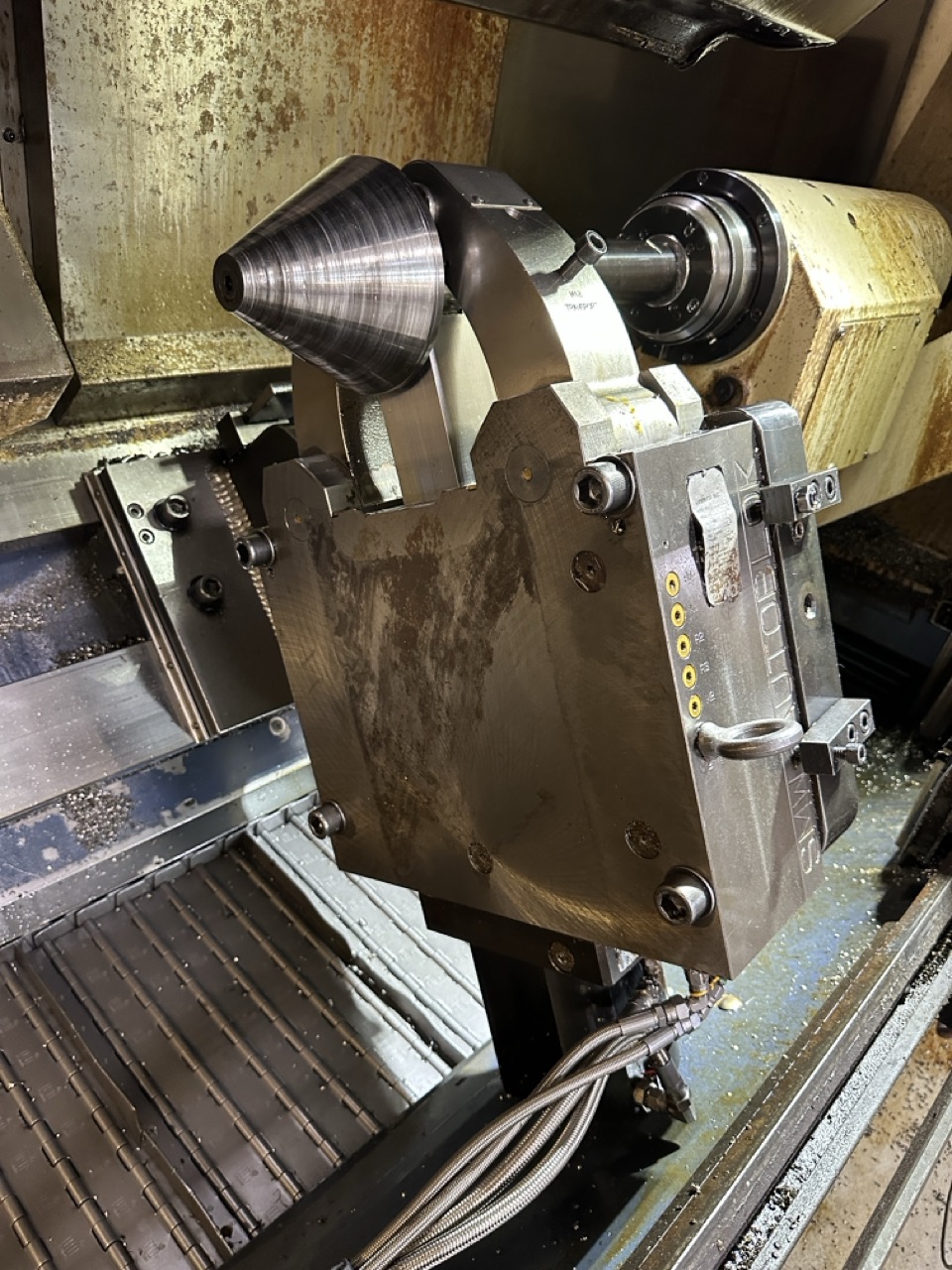

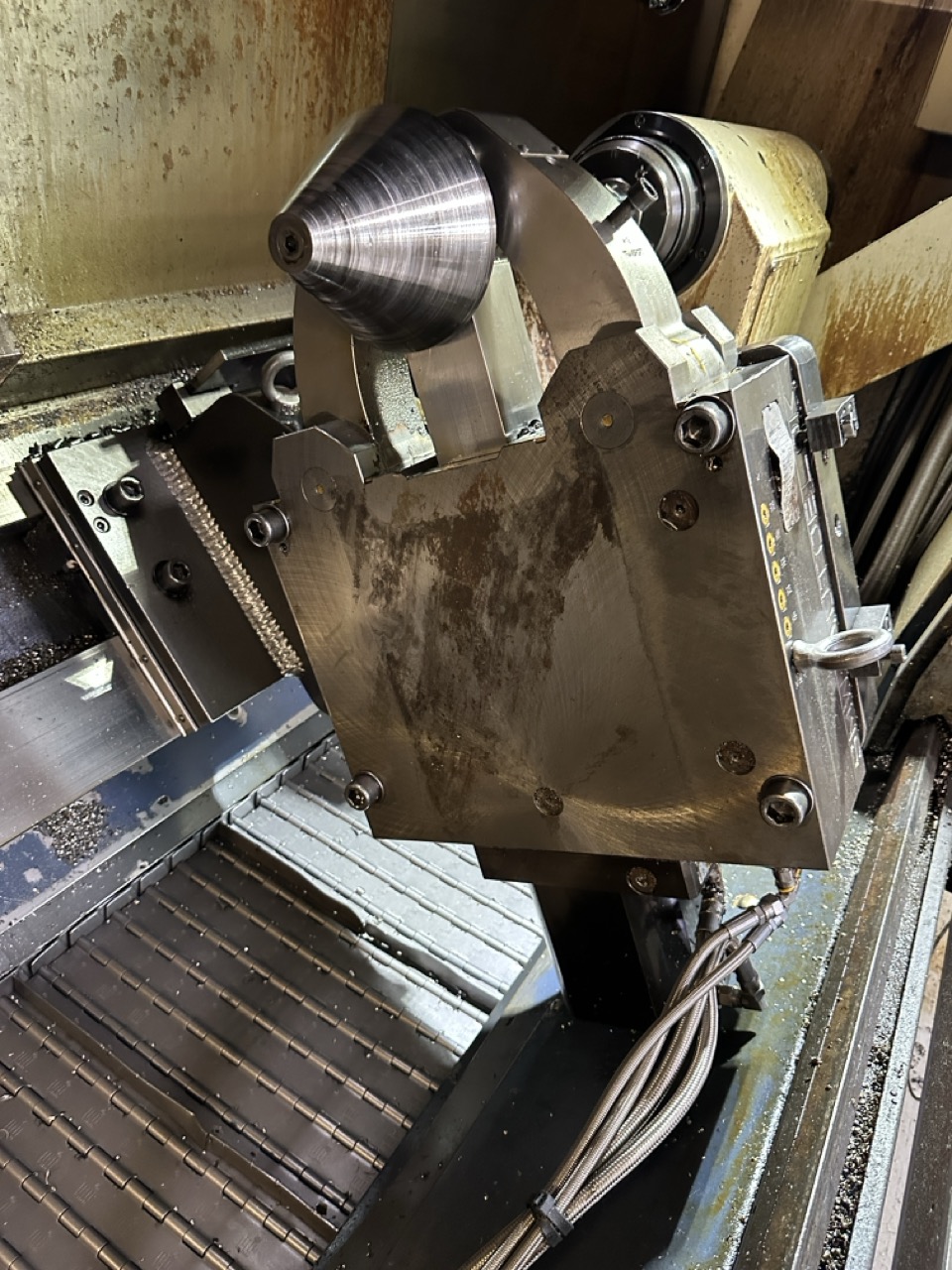

SMW AUTOBLOK SLU-5.0/Z HYDRAULIC SELF-CENTERING STEADY REST

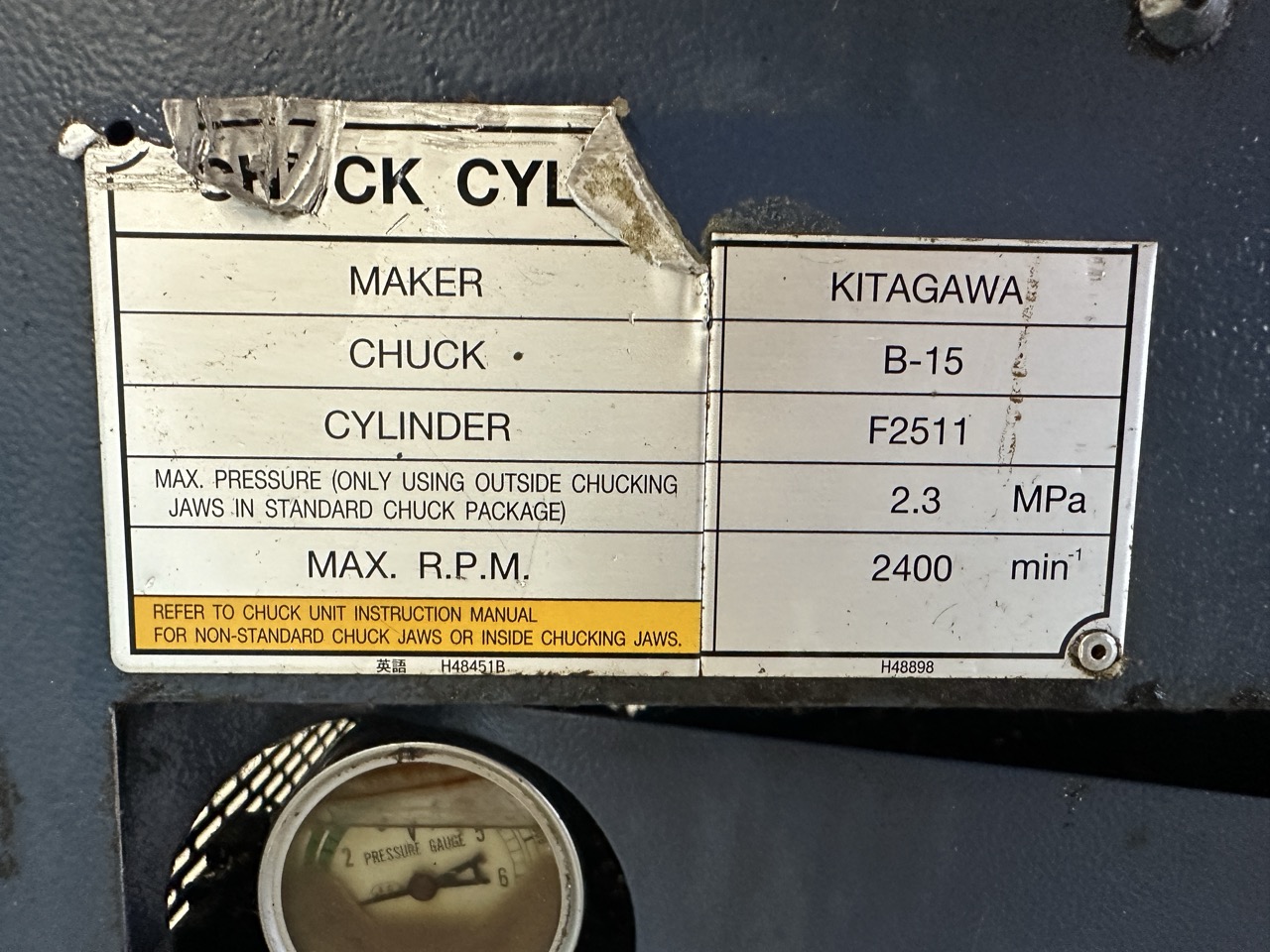

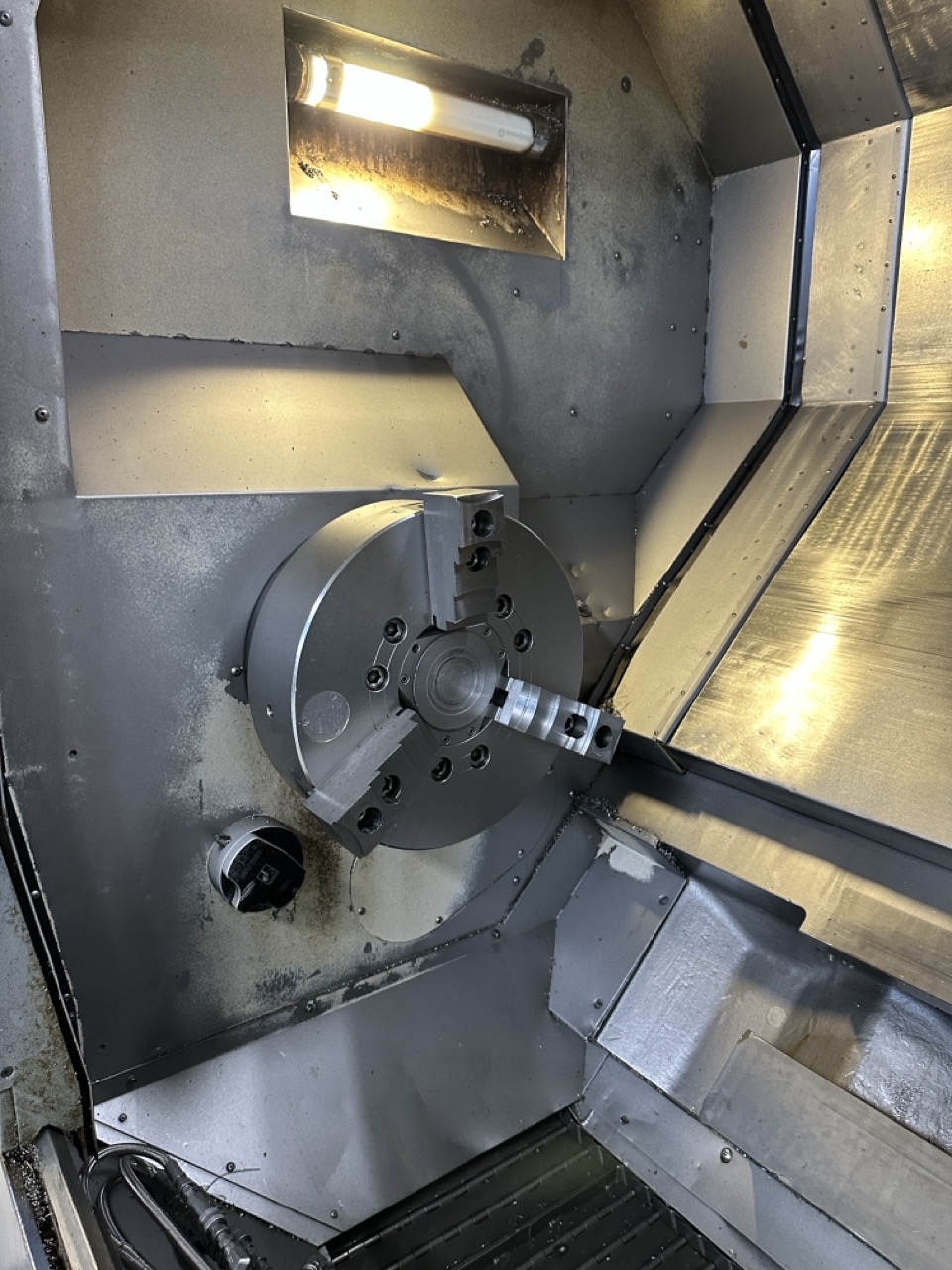

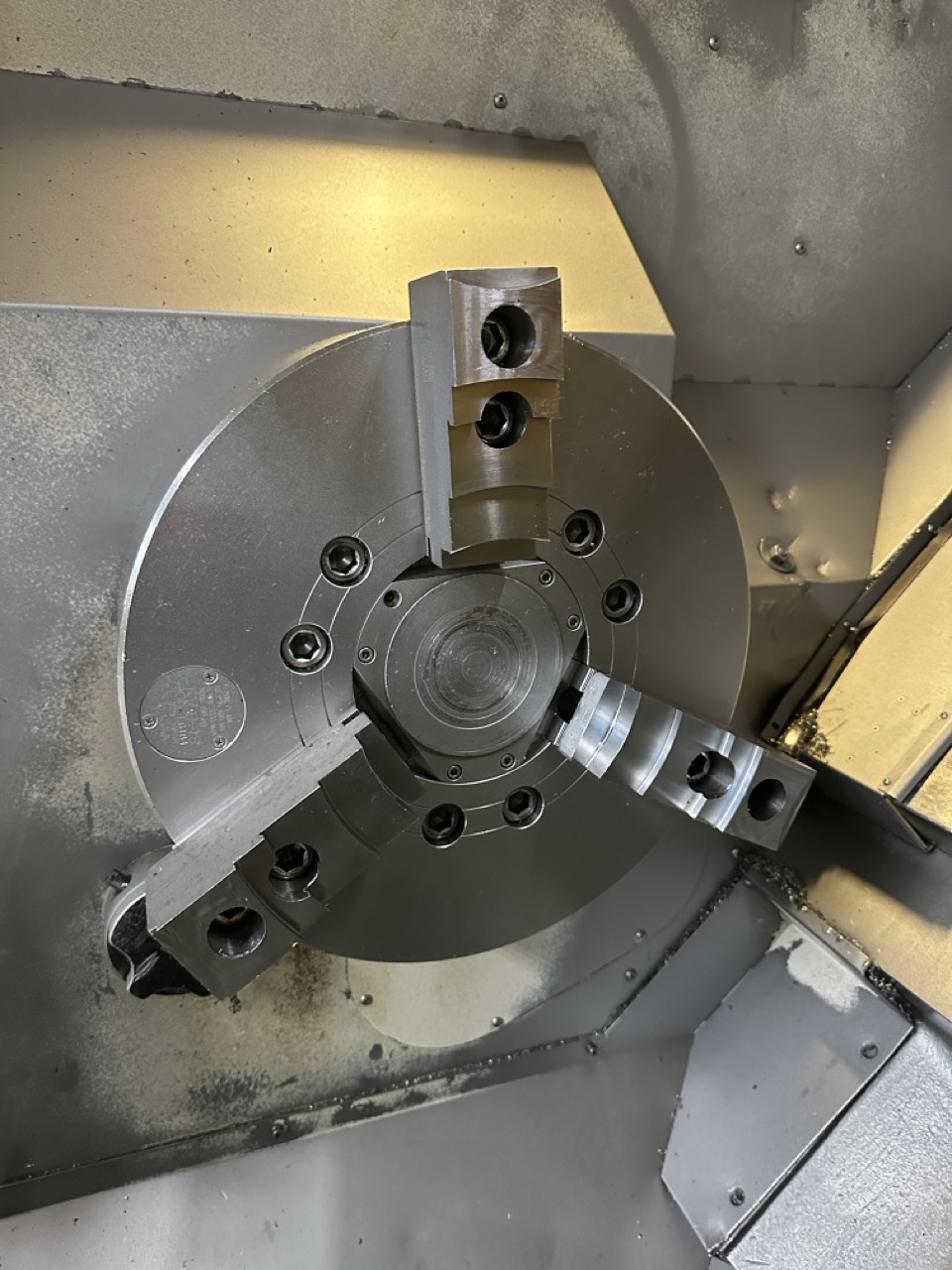

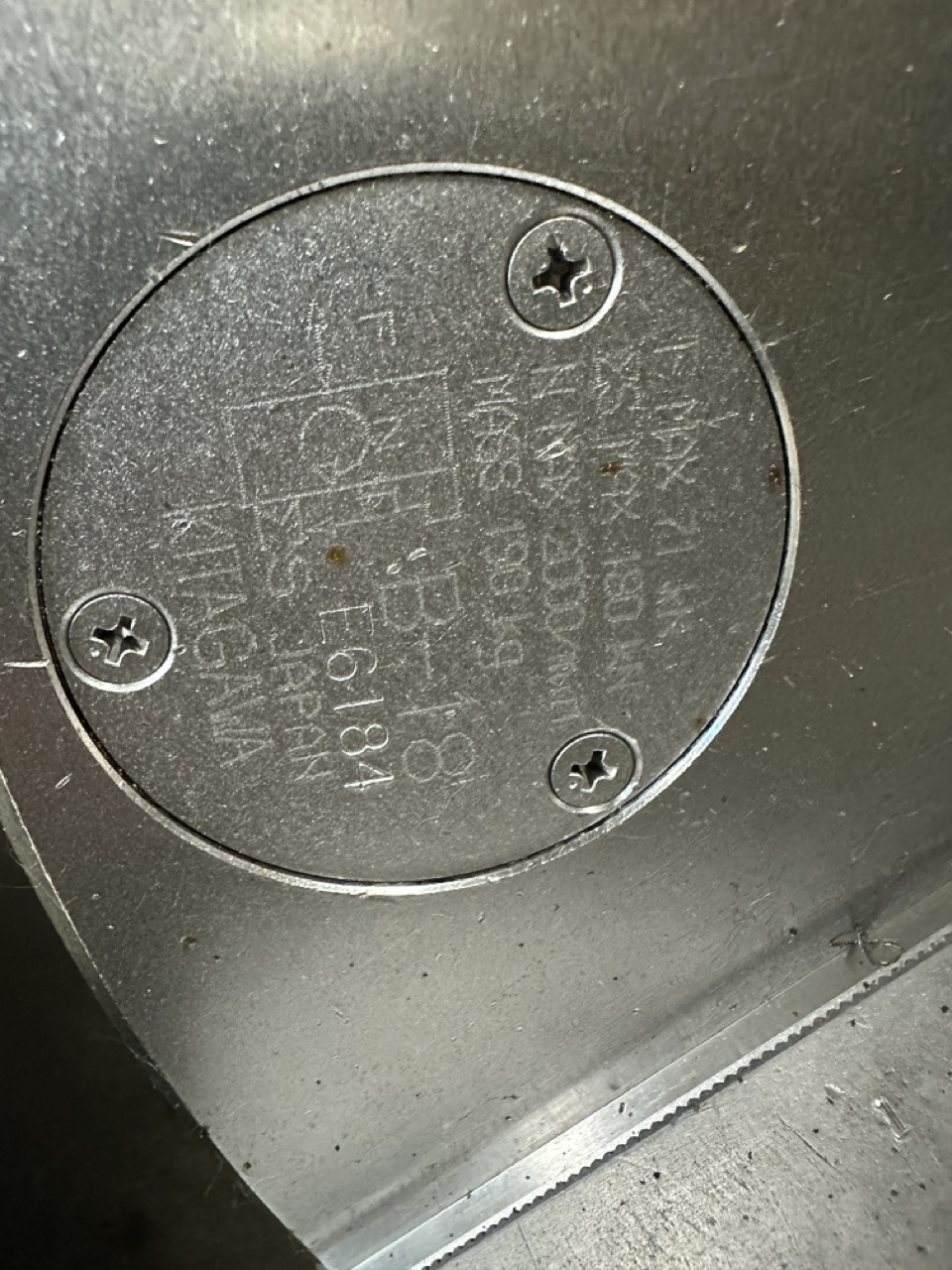

KITAGAWA 18″ 3-JAW HYDRAULIC CHUCK (MODEL B-18)

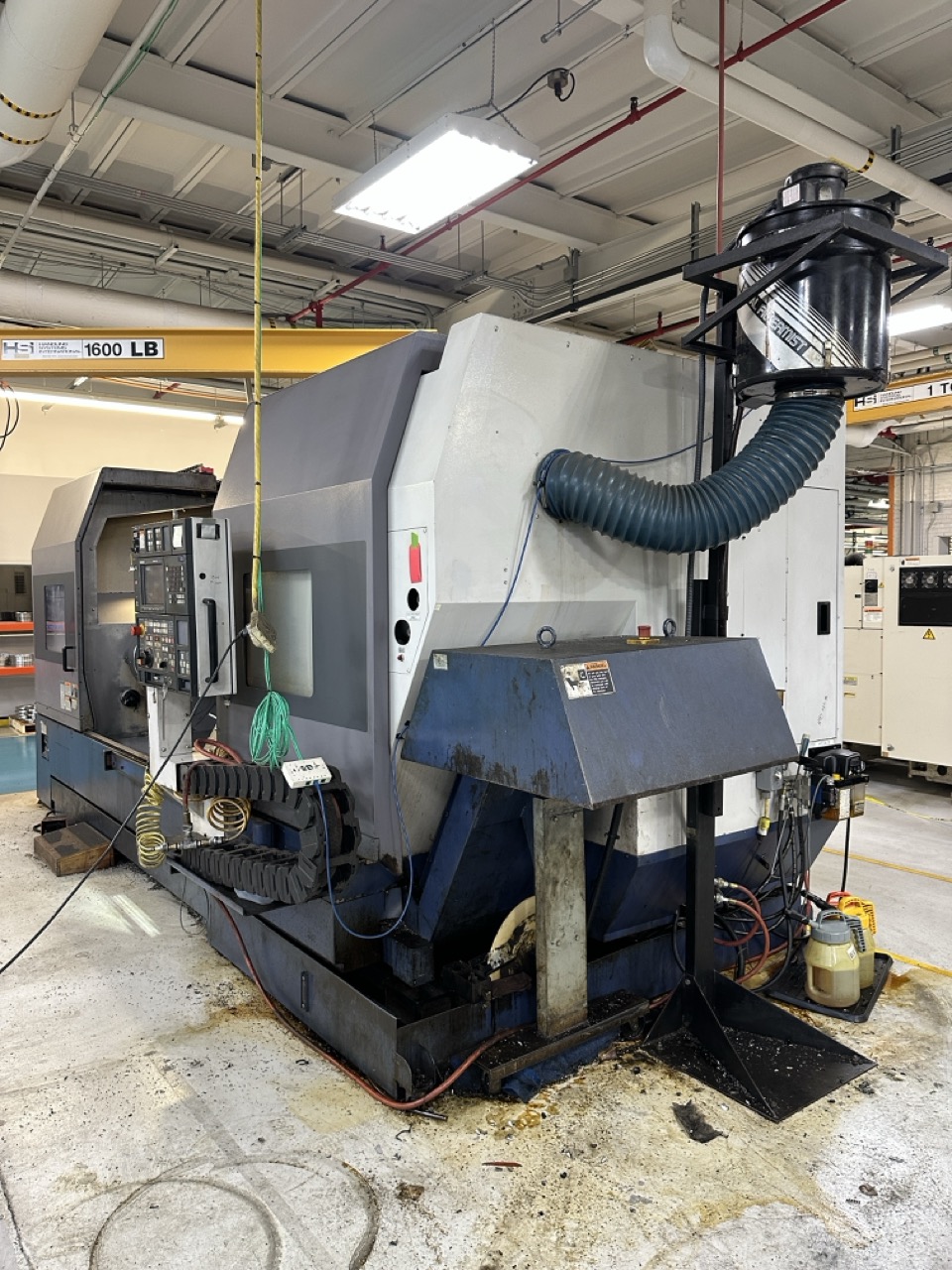

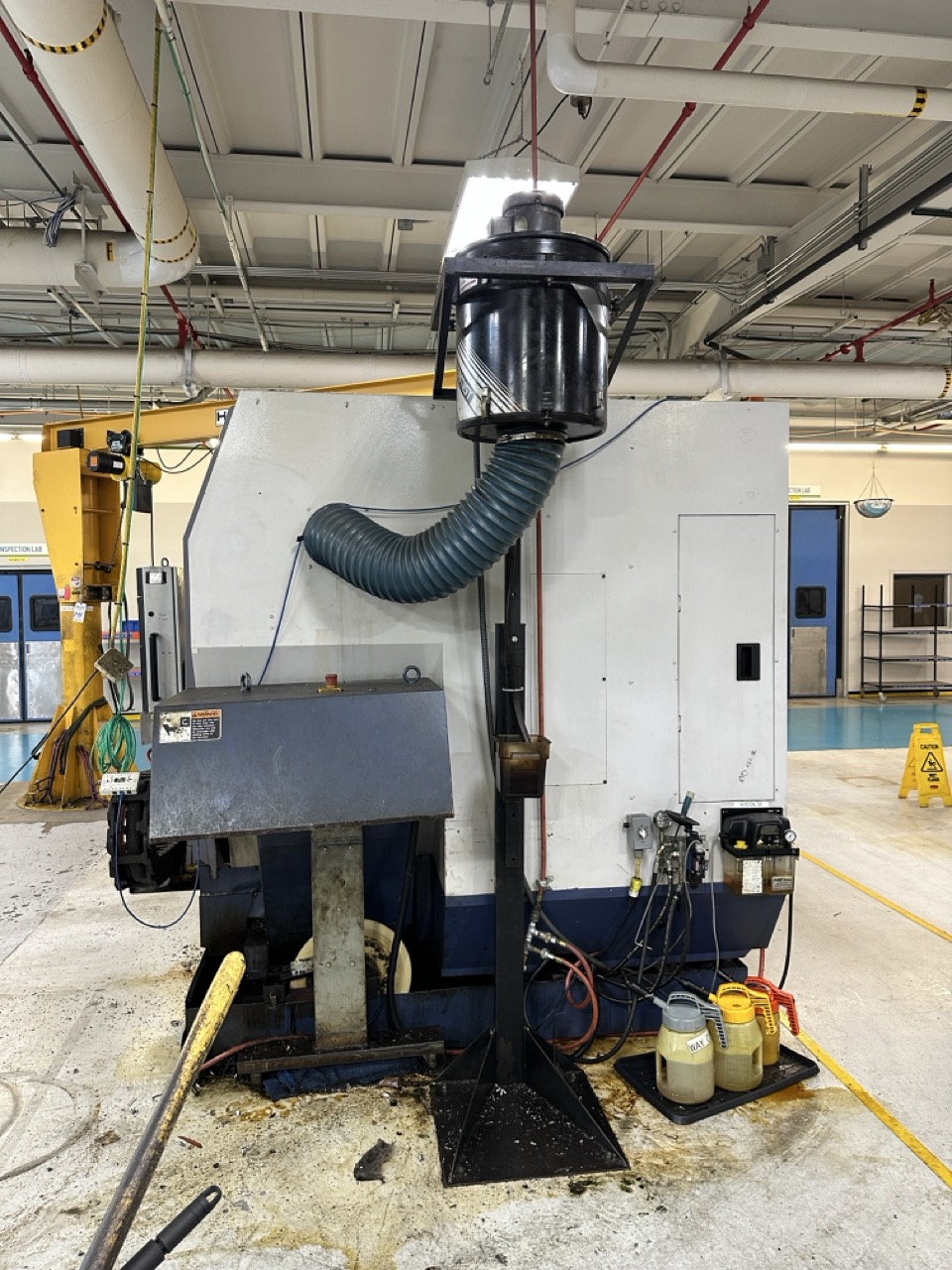

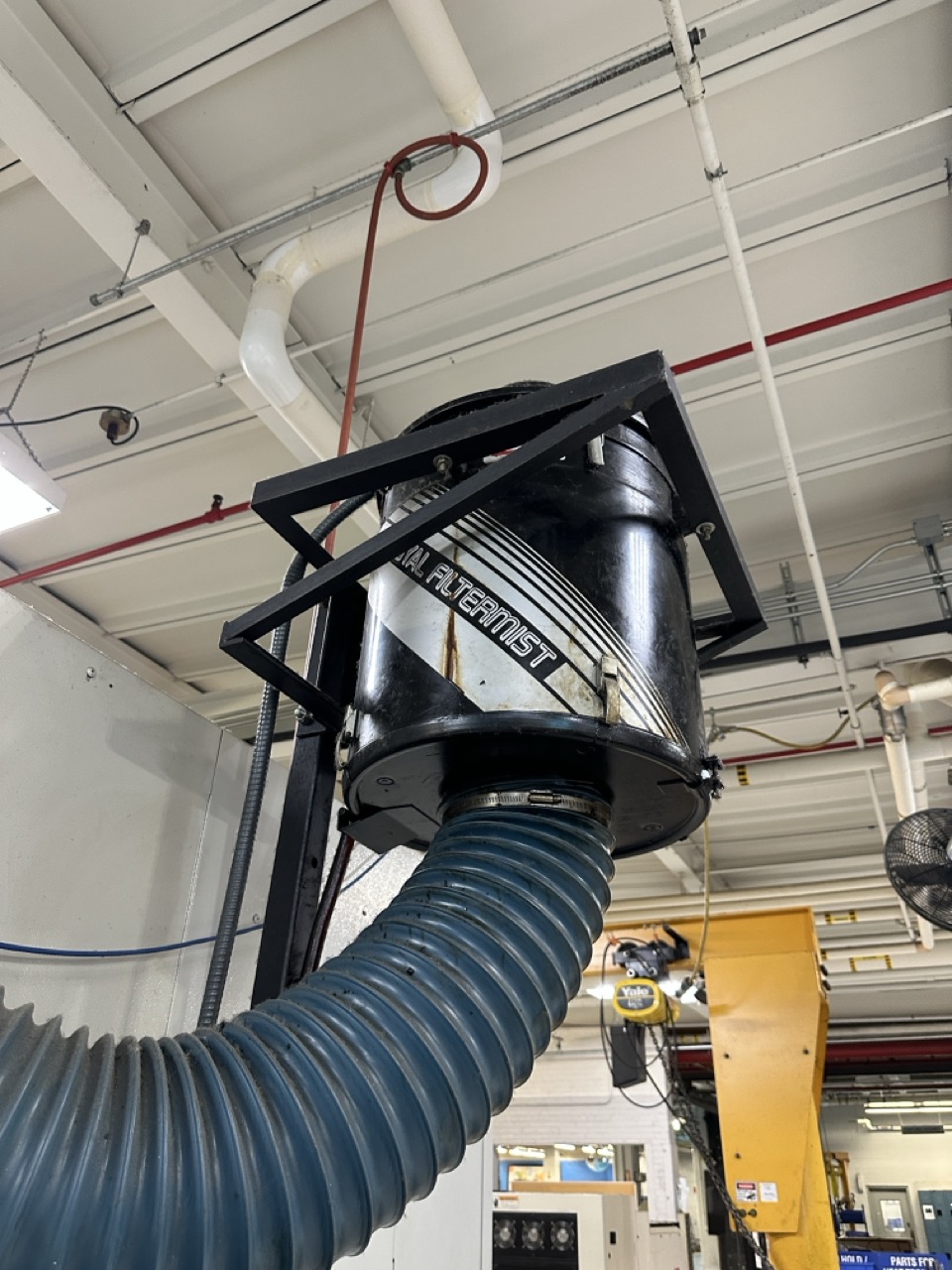

ROYAL FILTERMIST F1200 MIST COLLECTOR
