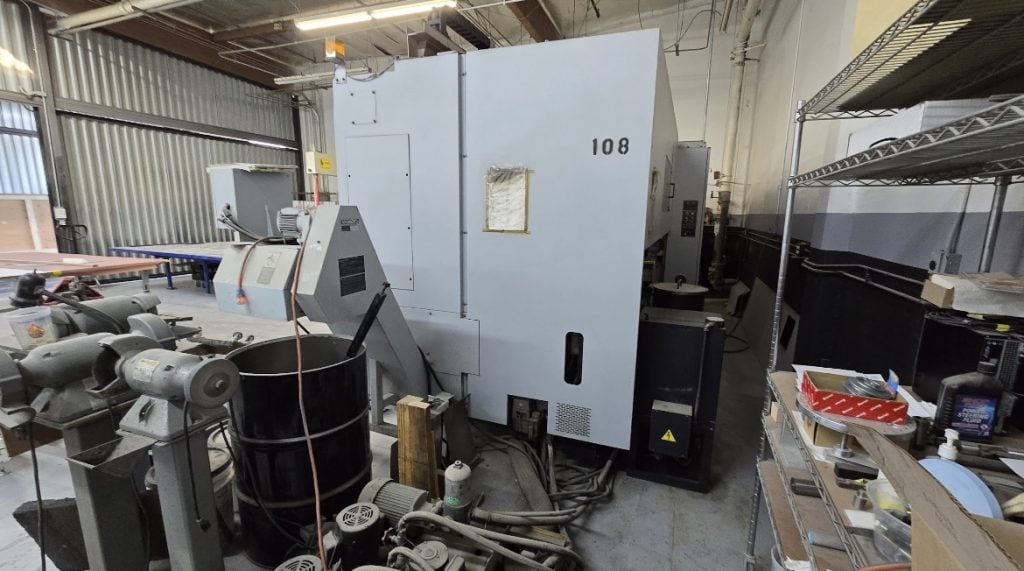

Mori Seiki Hitech Super Hicell 250 Multi Axis Lathe, 2003 – Sub Spindle, Live Tooling

Chuck Size: 10″
Max Diameter Bar Capacity: 2.56″
Max Swing Over Bed: 19.68″
Max Turning Dia (Live/Turning Tools): 19.68″ / 14.56″
Max Machining Length: 28.3″
Main Motor: 25 / 20 HP
Spindle Speed: 30 – 4000 RPM
Tool Magazine: 60
Spindle Bore: 3.1″
Spindle Nose: A2-8
Sub Spindle Chuck Size: 8″
Sub Spindle Bar Capacity: 1.65″
Sub Spindle Motor: 10 / 7.5 HP
Rapid Traverse Rates (X&Z/Y): 1181 / 590 IPM
X-Axis Travel: 23.6″
Z-Axis Travel: 39.5″
C-Axis Index (Main & Sub): 0.001 Degrees
Y-Axis Travel: +/- 2.95″
B-Axis: 0.001
Milling Speed: 80 – 8000 RPM
Milling Motor: 10 / 7.5 HP

Equipped With:

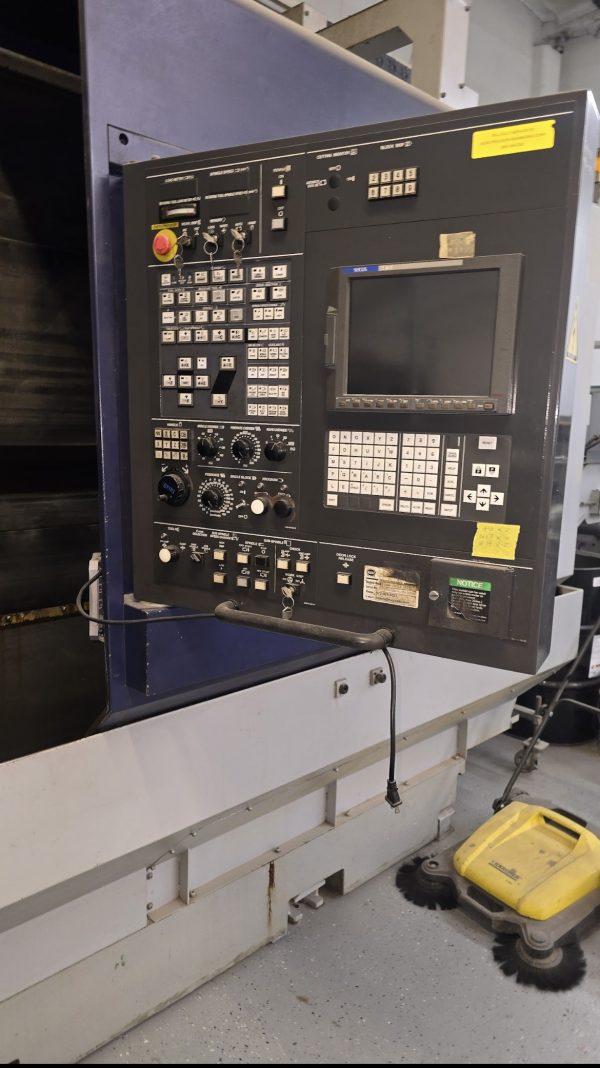

Seicos CNC Control
Sub Spindle
Chip Conveyor
