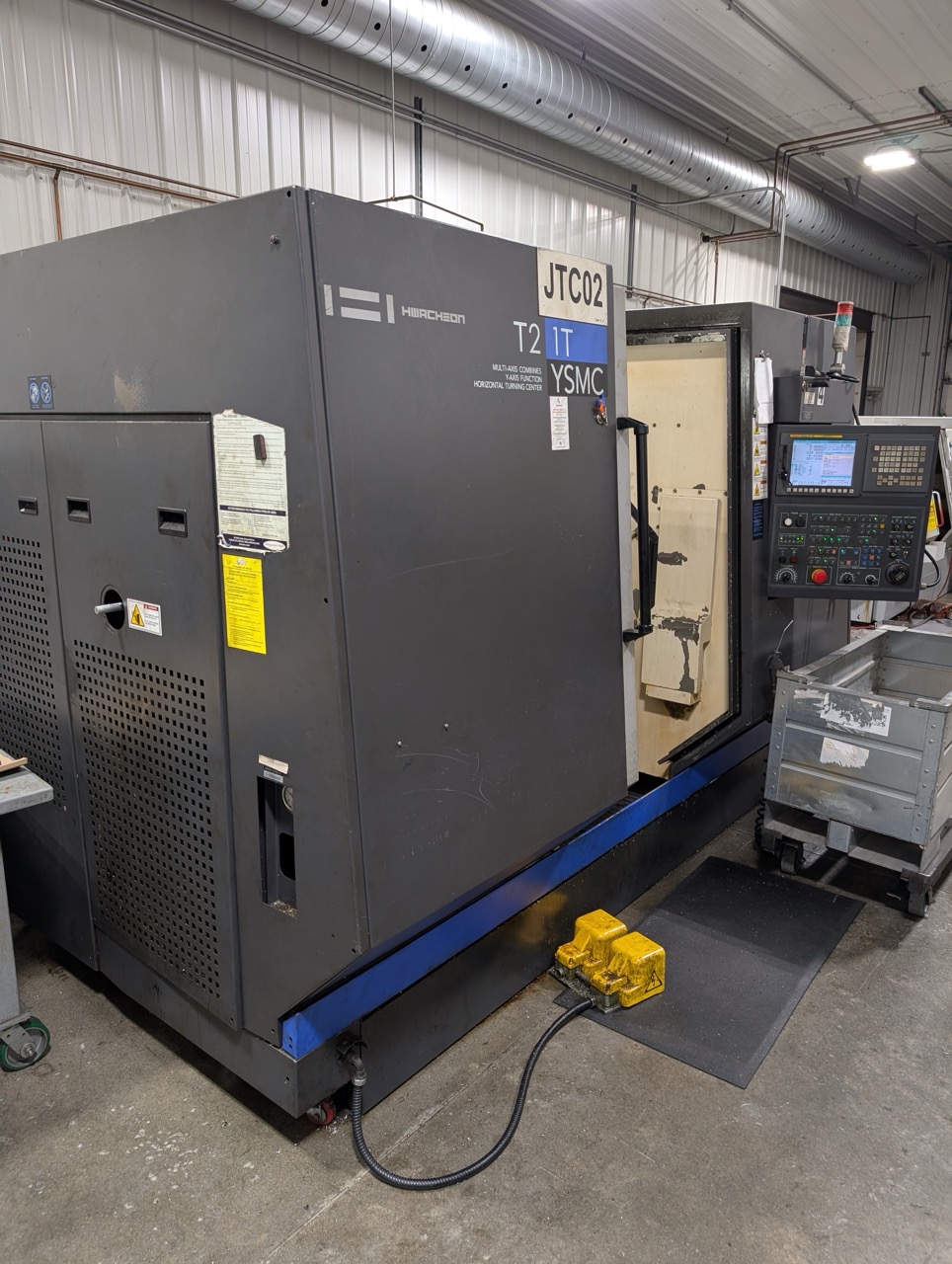

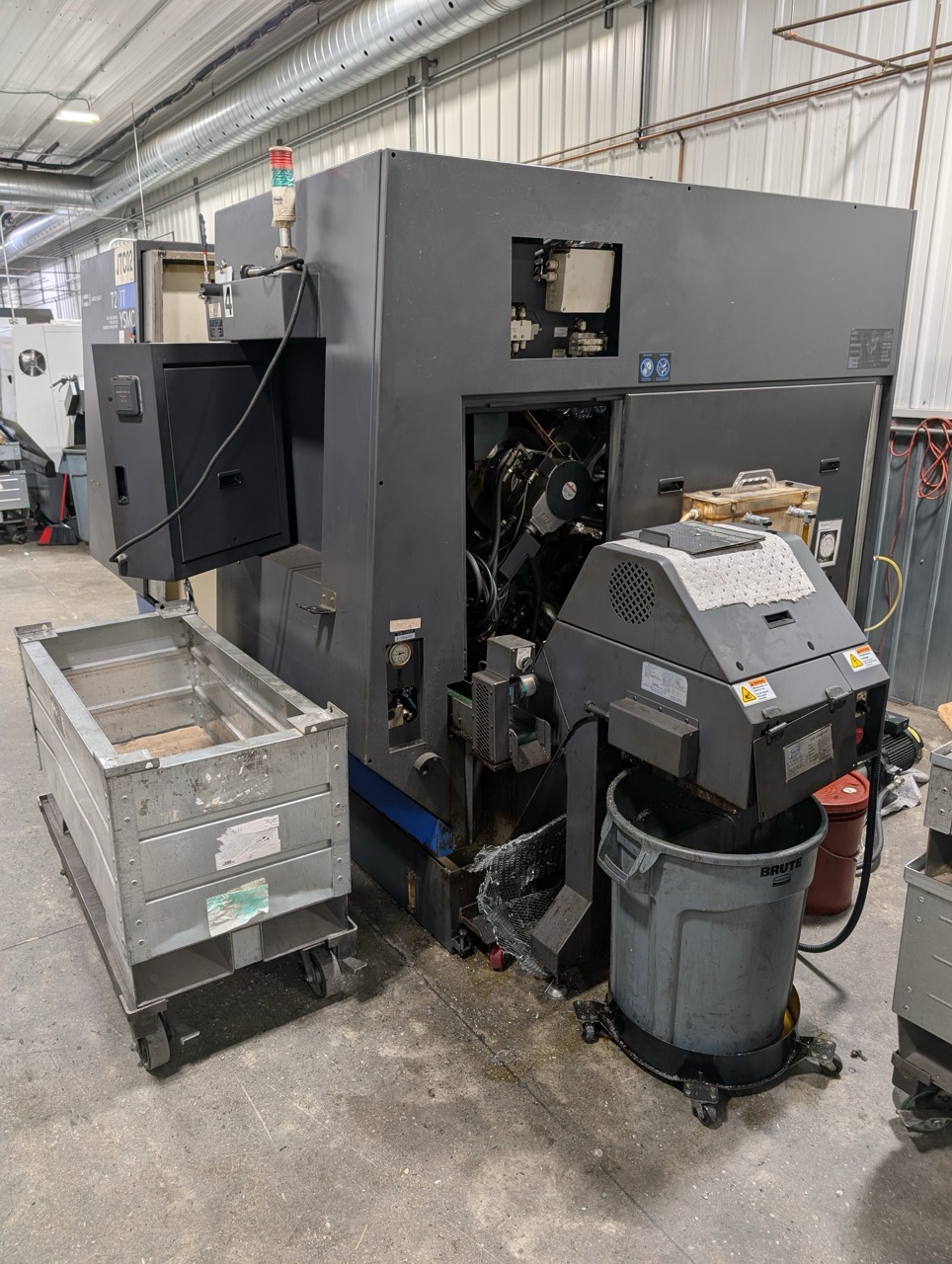

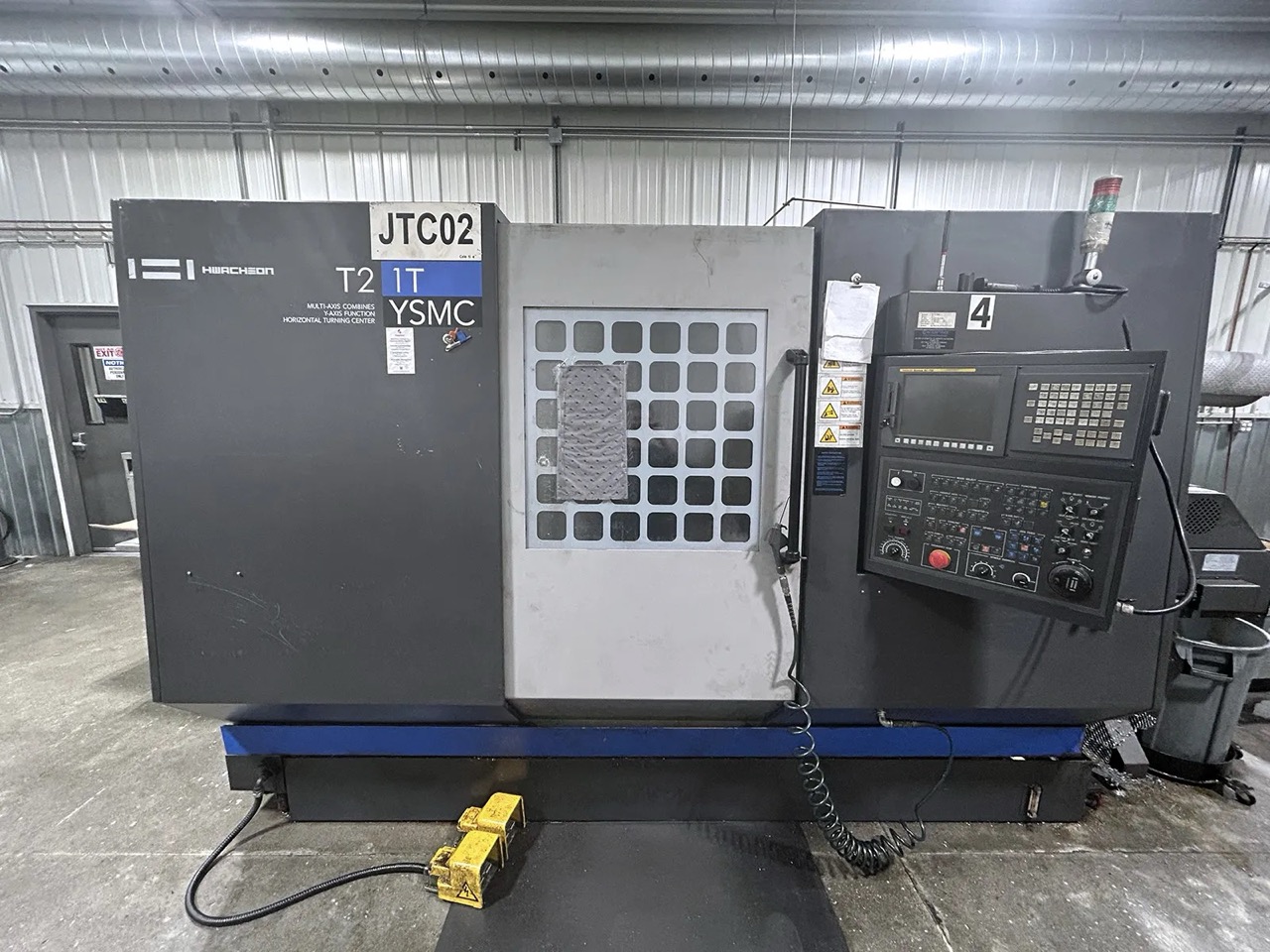

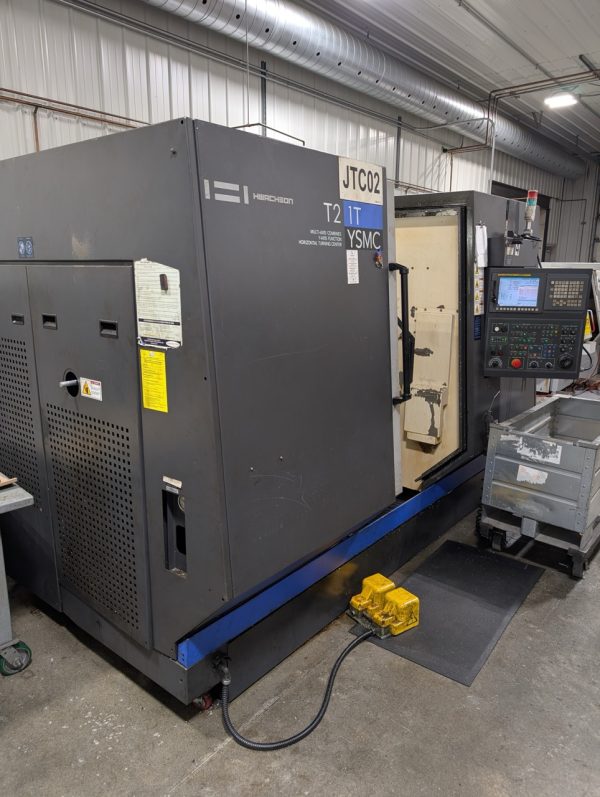

Hwacheon T2-1T YSMC Multi-Axis CNC Lathe, 2012 – Fanuc 0i-TD Control, High Pressure Pump, Chip Conveyor, Twin Spindles

Swing: 34.6″
Turning Diameter: 18.1″
Center Distance: 24.5″
Turning Length: 17.4″
Travel X: 9.65″
Travel Y: 20.47″
Travel Z: 3.94″
Chuck Size: 8″
Sub Spindle Chuck Size: 8″
Spindle Nose: A2-6
Bar Capacity: 2.56″
Spindle Speed: 5,000 RPM
Turret Stations: 12
Live Milling Stations: 12
C-Axis Indexing: 0.001°
Y-Axis Travel: ±1.97″

Equipped With:

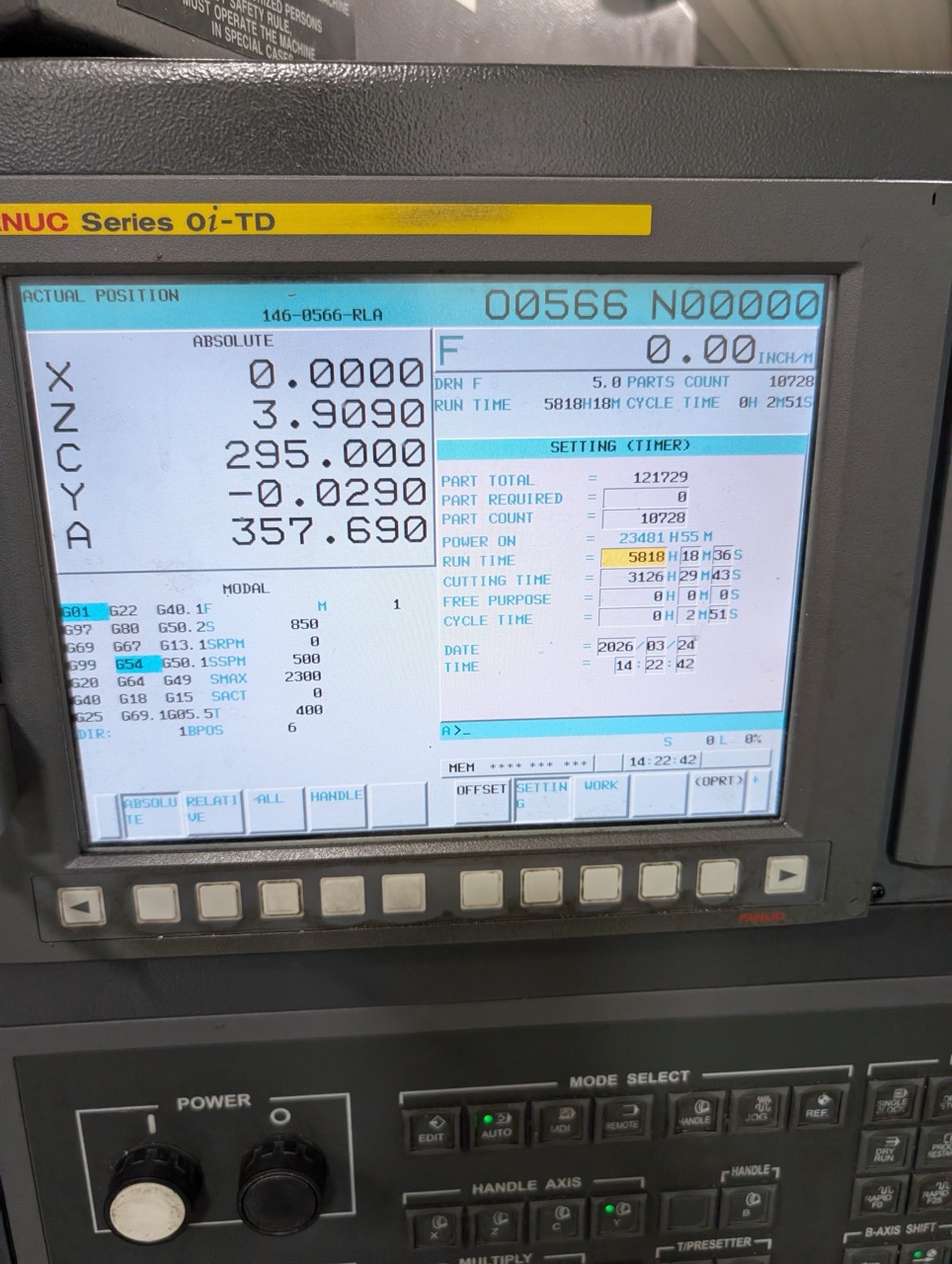

Fanuc 0i-TD Control
High Pressure Pump
Chip Conveyor

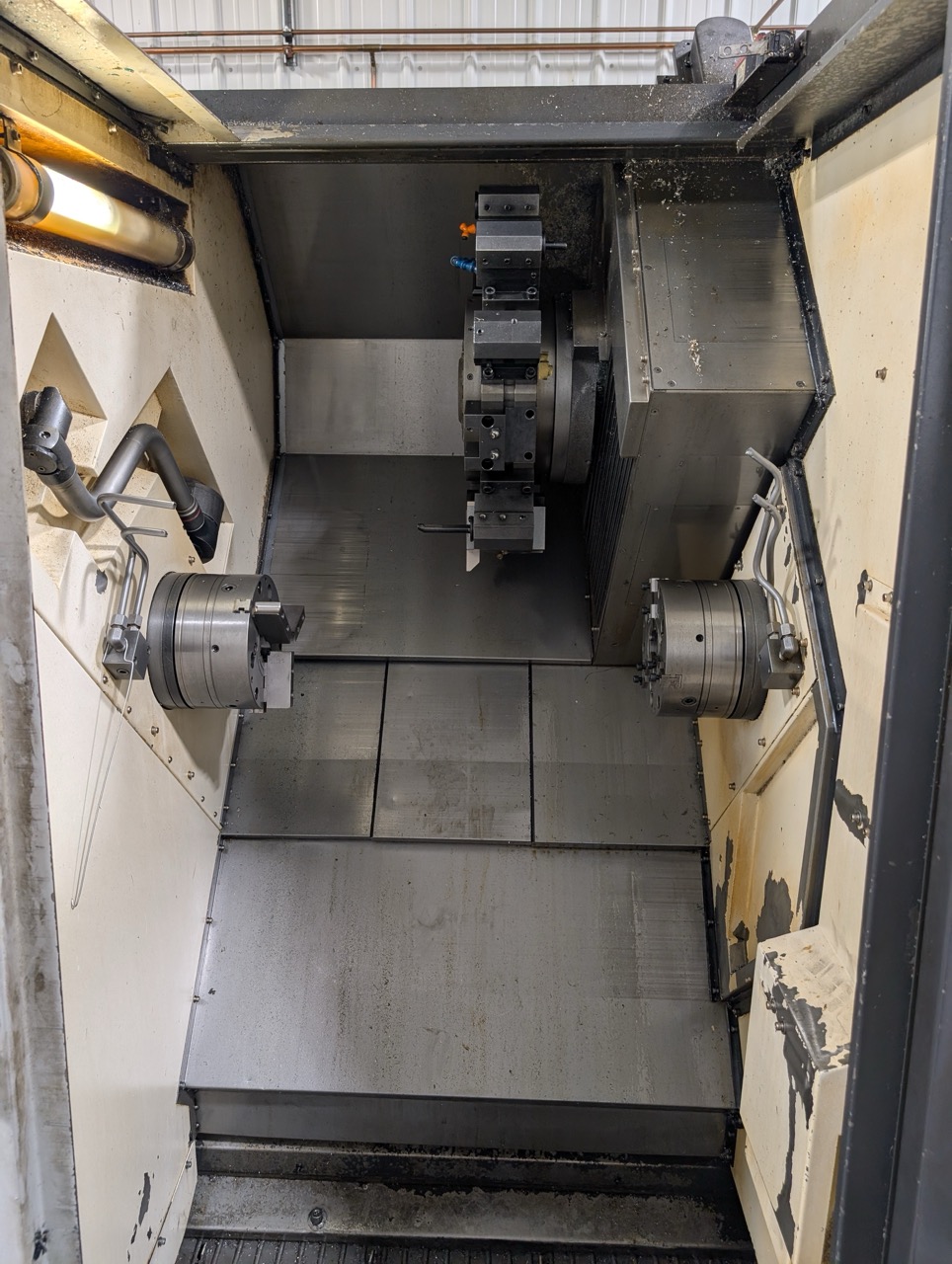

Twin Spindles
