Ganesh GT-3080 BB CNC Lathe, 2015 – 10″ Big Bore, Programmable Tailstock, Chip Conveyor, Steady Rest

Chuck Size: 25″
Max Turning Dia: 24″
Max Turning Length: 80″
Swing Over Bed: 30″
Swing Over Cross-Slide: 19″
Bore Size: 10″
Spindle Speeds: 18 – 600 Rpm
Spindle Motor Horsepower: 30 HP
Dimensions: 222” X 85” X 80”
Weight: 13,300 lbs

Equipped With:

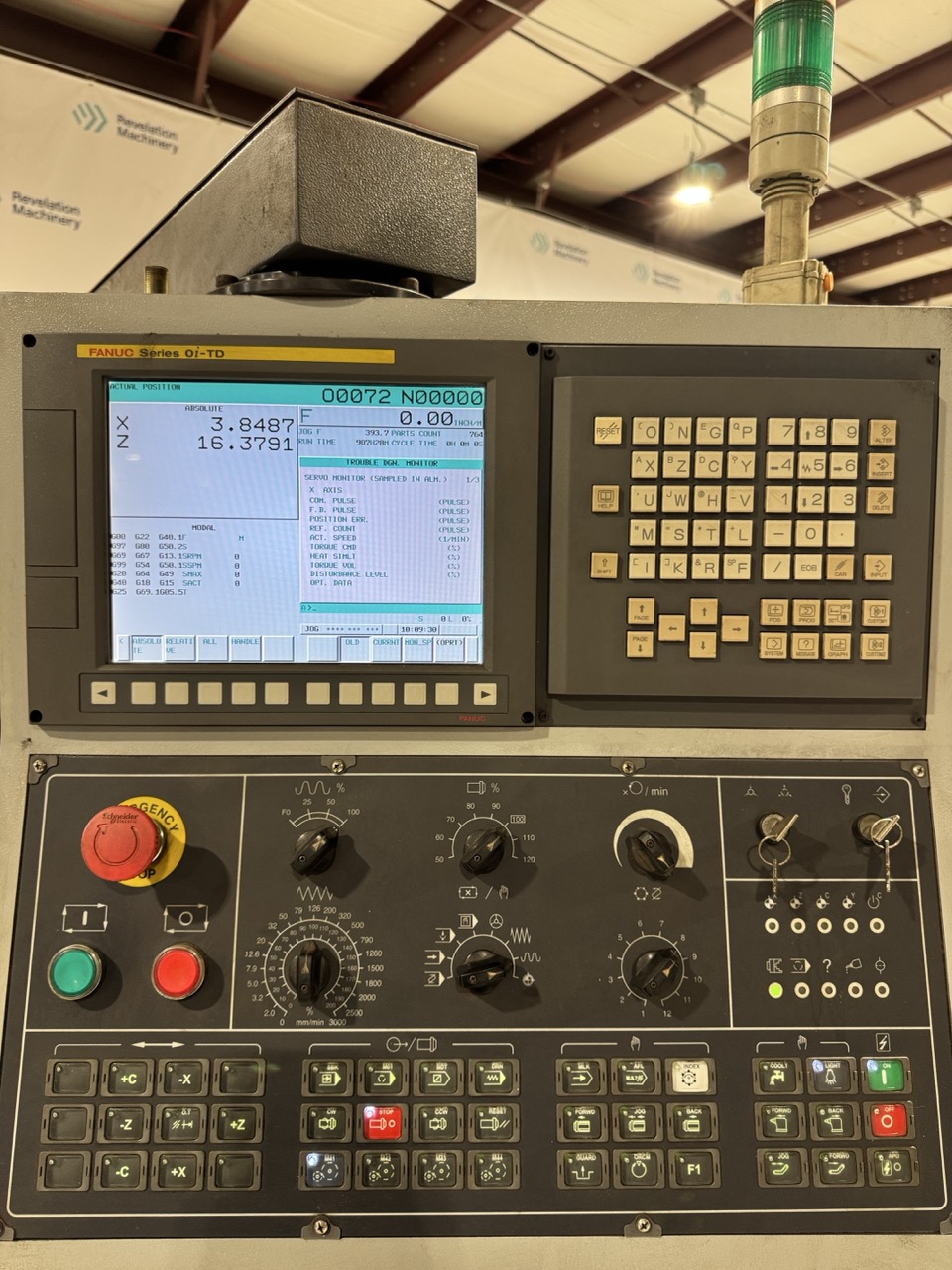

Fanuc Oi-TD CNC Control

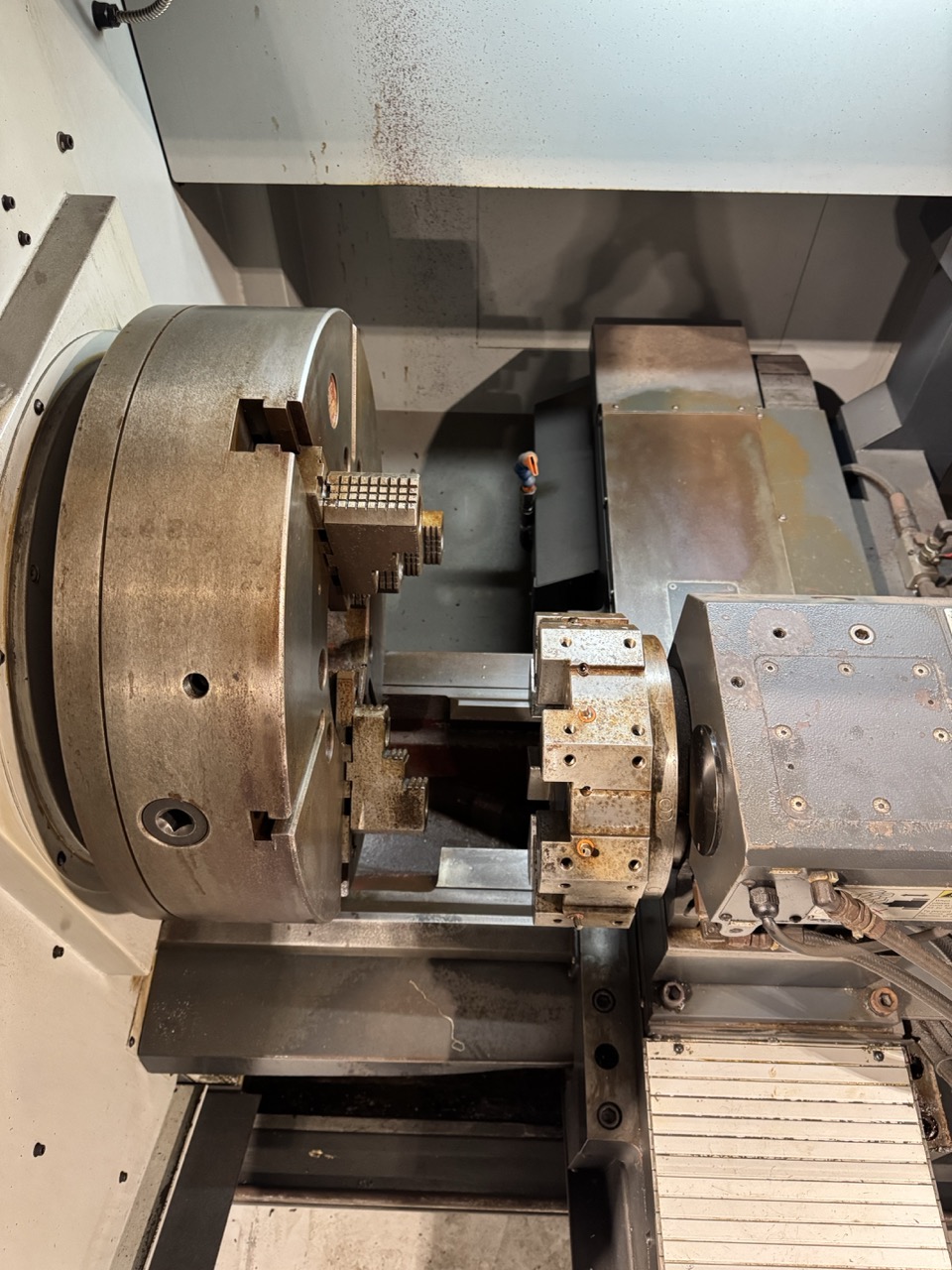

25″ 3 Jaw Chuck

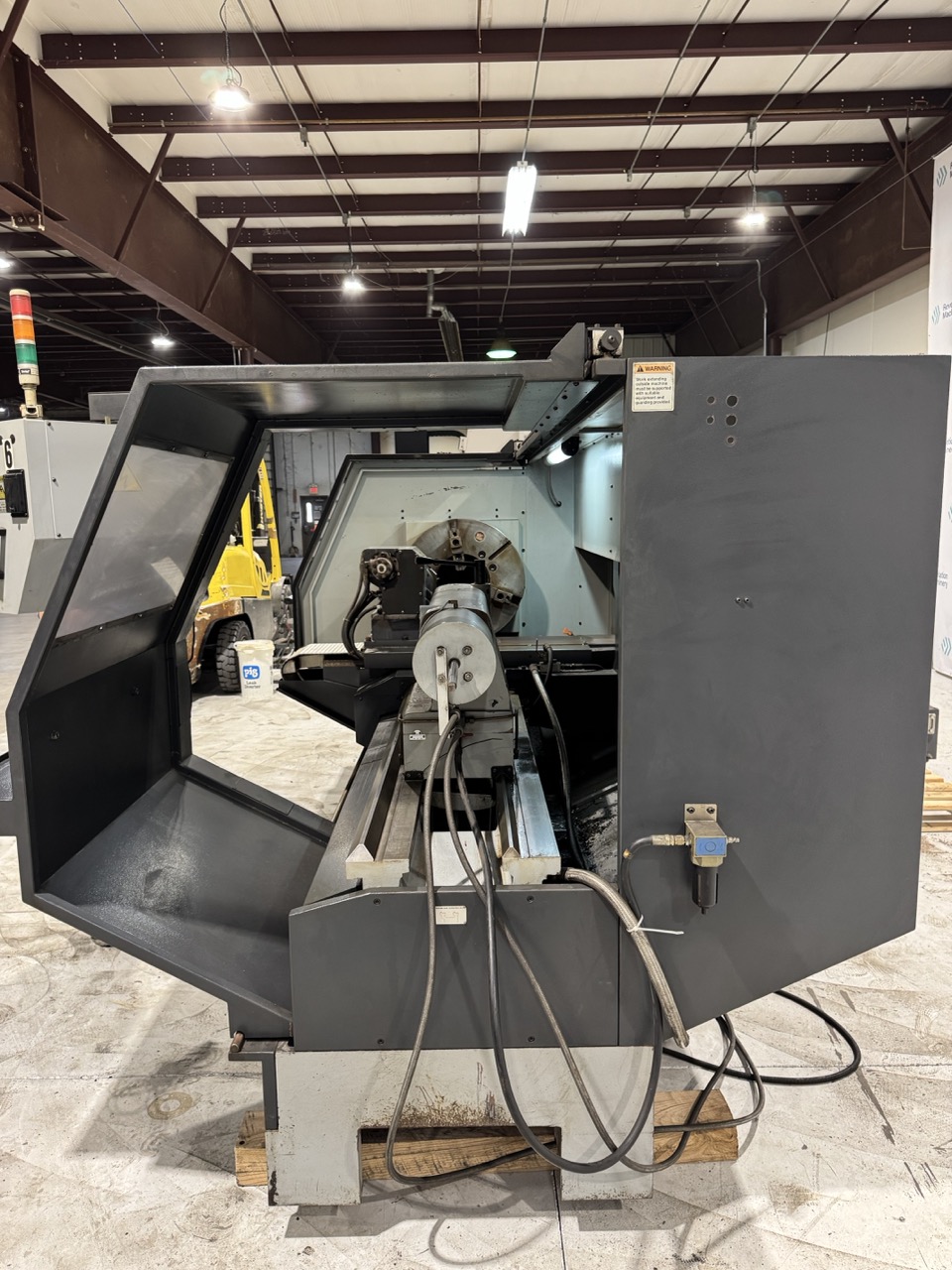

Programmable Tailstock
8-Station Tool Turret
Steady rest
Chip Conveyor
All Available Manuals

Used 2015 Ganesh GT-3080BB CNC Lathe for Sale

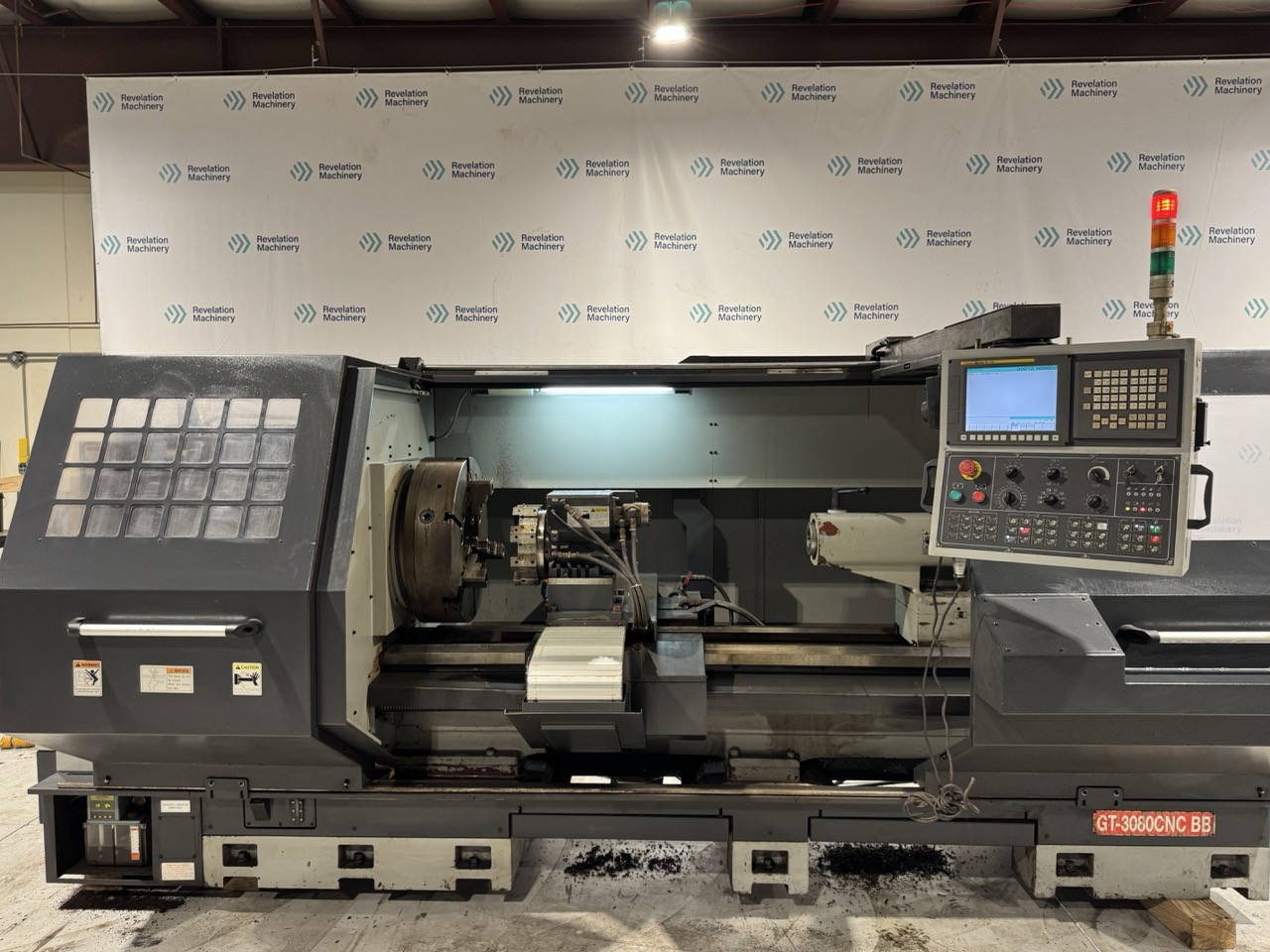

This used 2015 Ganesh GT-3080BB CNC lathe is a big bore turning center with a 10″ spindle bore, 30″ swing over the bed and 80″ max turning length. It runs a Fanuc Oi-TD control.

Start with the bore. At 10″, it’s the headline spec on this pre-owned Ganesh GT-3080BB, and it’s why big bore lathes get shortlisted in the first place: larger diameter tube and bar can pass through the headstock. Up front, a 25″ 3 jaw chuck holds the work. The machine also has a programmable tailstock and a steady rest, both useful when a part runs long on an 80″ bed. A chip conveyor is fitted too, so chips leave the work zone without hand cleanout. There’s a video of the machine on the listing.

Now the GT-3080BB specs that set part size. Max turning diameter is 24″. Swing over the cross slide is 19″. Check your biggest parts against both. Spindle power is 30 HP, with speeds of 18 to 600 rpm. Tooling mounts on an 8 station turret. For rigging and layout, figure 222″ x 85″ x 80″ and 13,300 lbs. All available manuals come with it.

A lathe like this turns long, large diameter shaft and tube work, with the 10″ bore handling stock that won’t fit a standard spindle. Oilfield, pipe threading, job shops and heavy repair shops commonly run big bore CNC lathes.

What is the spindle bore on the Ganesh GT-3080BB?

The spindle bore is 10″. A 25″ 3 jaw chuck is mounted on this machine.

What control does the Ganesh GT-3080BB use?

It uses a Fanuc Oi-TD CNC control.

What is the max turning length and diameter?

Max turning length is 80″ and max turning diameter is 24″. Swing over the bed is 30″.
