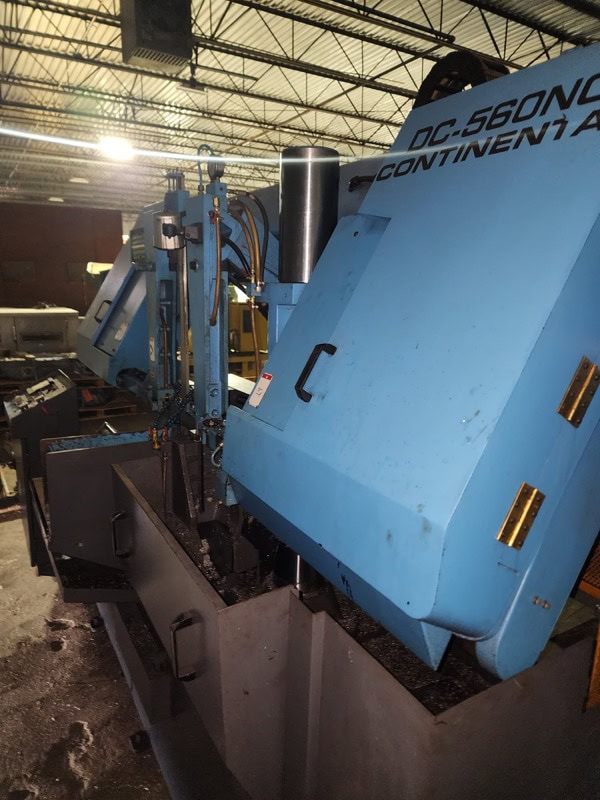

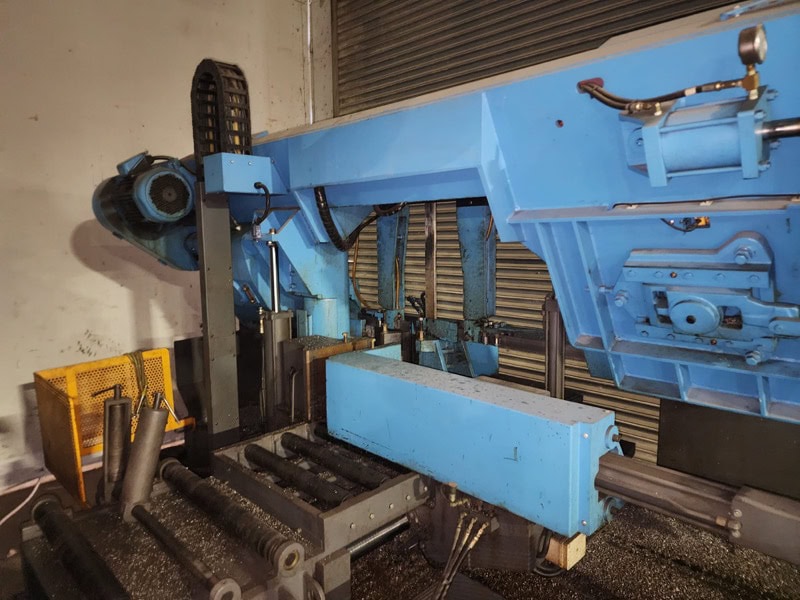

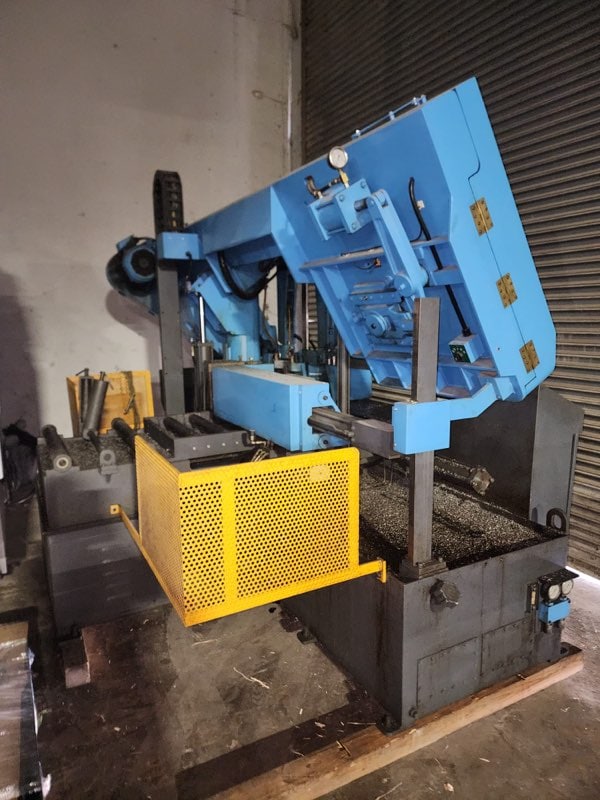

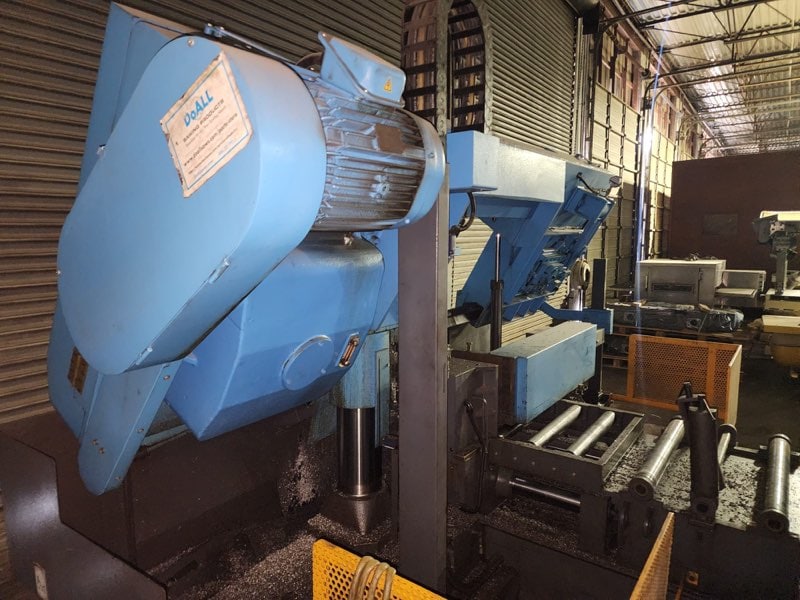

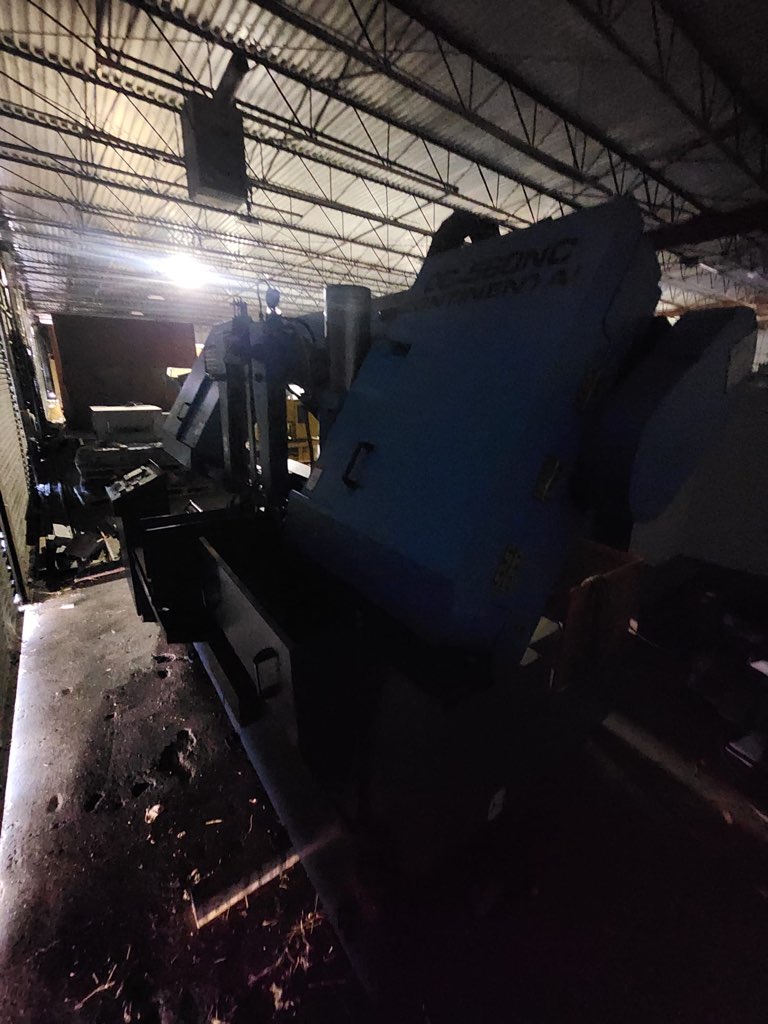

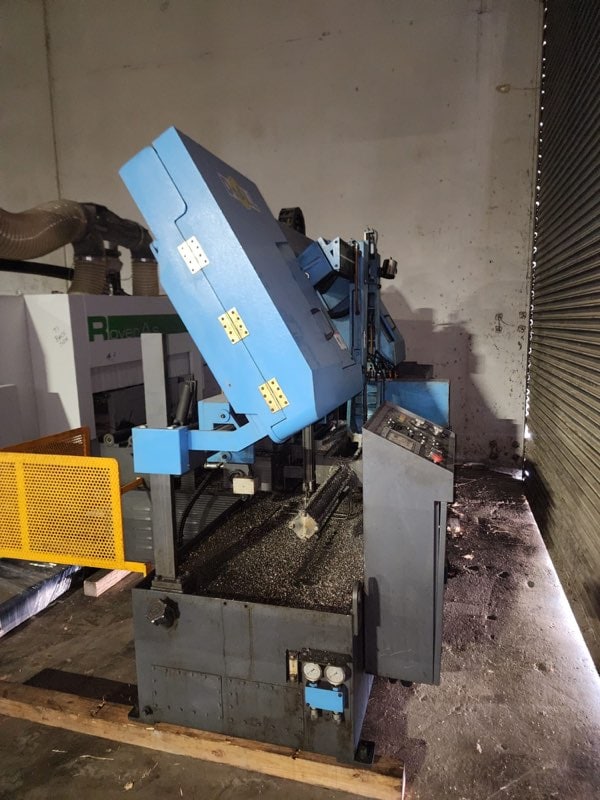

22” x 24” DoAll DC-560 NC Automatic Horizontal Band Saw, 2021 – Hydraulic Feed

Manufacturer: DoAll
Model: DC-560 NC
Type: Automatic Horizontal Band Saw – NC Control

Cutting Capacity (Max)
Round: ~22″ Diameter
Rectangular: ~24″ x 22″ (approx)
Blade: ~1.5″ Wide Industrial Band Saw Blade
Cutting Angle: 0°–60°

Machine Features
Control: NC (Programmable) for Automatic Cycles
Feed: Hydraulic Automatic Feed with Adjustable Speed
Vise: Hydraulic Clamp / Vise
Material Support: Roller Bed / Adjustable Supports
Blade Tension Gauge: Yes
Blade Guides: Carbide Guides
Coolant: Flood Coolant System

Mechanical / Electrical
Drive Type: AC Motor with Gearbox
Voltage: Typically 230 3-Phase
Hydraulic Pump: Variable Speed
Blade Speed: Variable RPM (per material)

Physical & Utility
Overall Length: ~12–14 ft (machine + bed)
Weight: ~8,000–10,000 lbs
Floor Space: Approximate footprint 8’ x 12’
