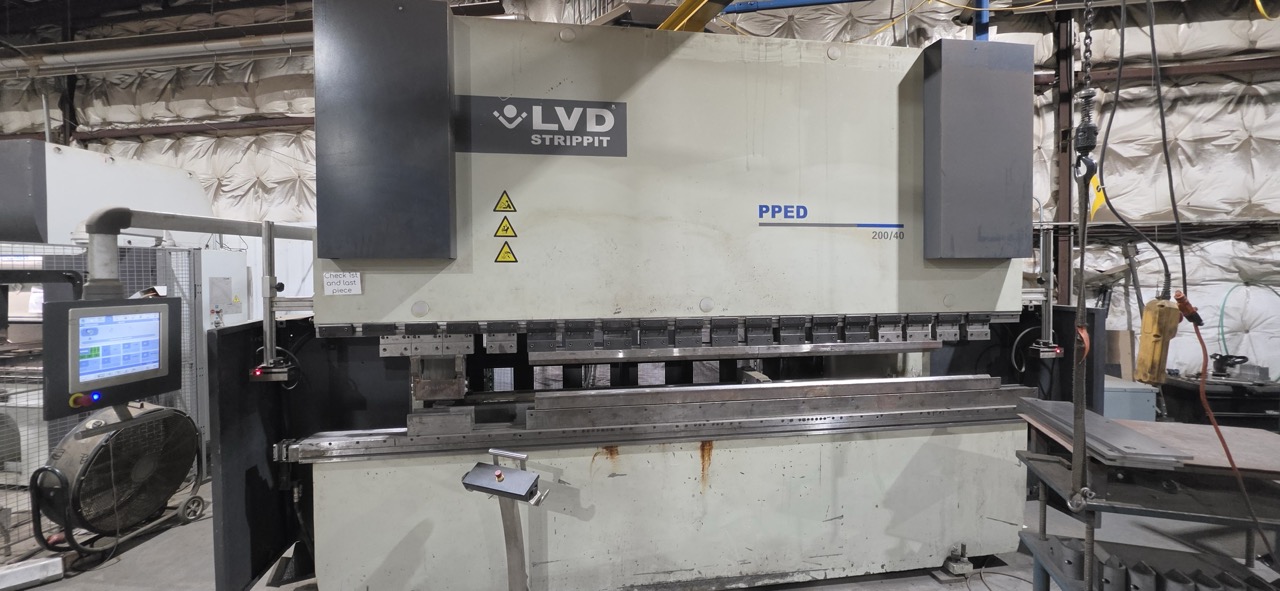

220 Ton x 13' LVD PPED 200/40 CNC Press Brake, 2019 - Great Condition
220 Ton x 13' LVD PPED 200/40 CNC Press Brake, 2019 - Great Condition - Image 2
220 Ton x 13' LVD PPED 200/40 CNC Press Brake, 2019 - Great Condition - Image 3
TK
63717402491

220 Ton x 13′ LVD PPED 200/40 CNC Press Brake, 2019 – Great Condition

$79,900.00

220 Ton x 13' LVD PPED 200/40 CNC Press Brake, 2019 - Great Condition
220 Ton x 13' LVD PPED 200/40 CNC Press Brake, 2019 - Great Condition - Image 2
220 Ton x 13' LVD PPED 200/40 CNC Press Brake, 2019 - Great Condition - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Hydraulic Press Brakes
Make: LVD
Model: PPED 200/40
Year: 2019
Capacity: 220 Ton x 13‘
Machine Location: Upon Request
Stock #: 402491

Pressing Force: 220 US tons (2000 kN / approx. 199.6 metric tons)
Working Length (Overall Bending Length): 157 inches (4000 mm)
Distance Between Uprights (Housings): 124 inches (3150 mm)
Stroke: 7.8 inches (200 mm)
Distance Table to Ram: 19.6 inches (500 mm)
Throat Gap: 11.8 inches (300 mm)
Table Width: 7.0 inches (180 mm)
Approach Speed: 236 inch/min
Working Speed: 21 inch/min
Return Speed: 212 inch/min
Main Motor Power: 18 kWOil
Capacity: 92 gallons (350 liters)

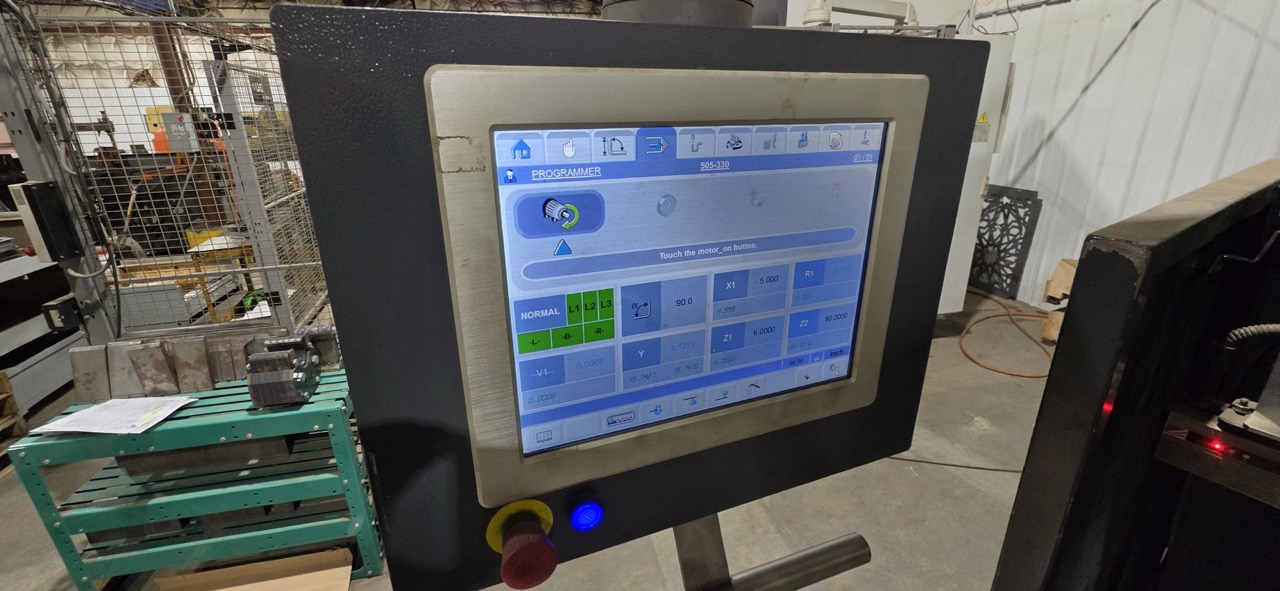

Control Unit: Touch-B touch screen graphical control
Backgauge: 4-axis CNC backgauge (X, R, Z1, Z2 configuration options)
Safety System: Lazer Safe guarding laser system
Crowning: CNC crowning table configuration for deflection compensation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
