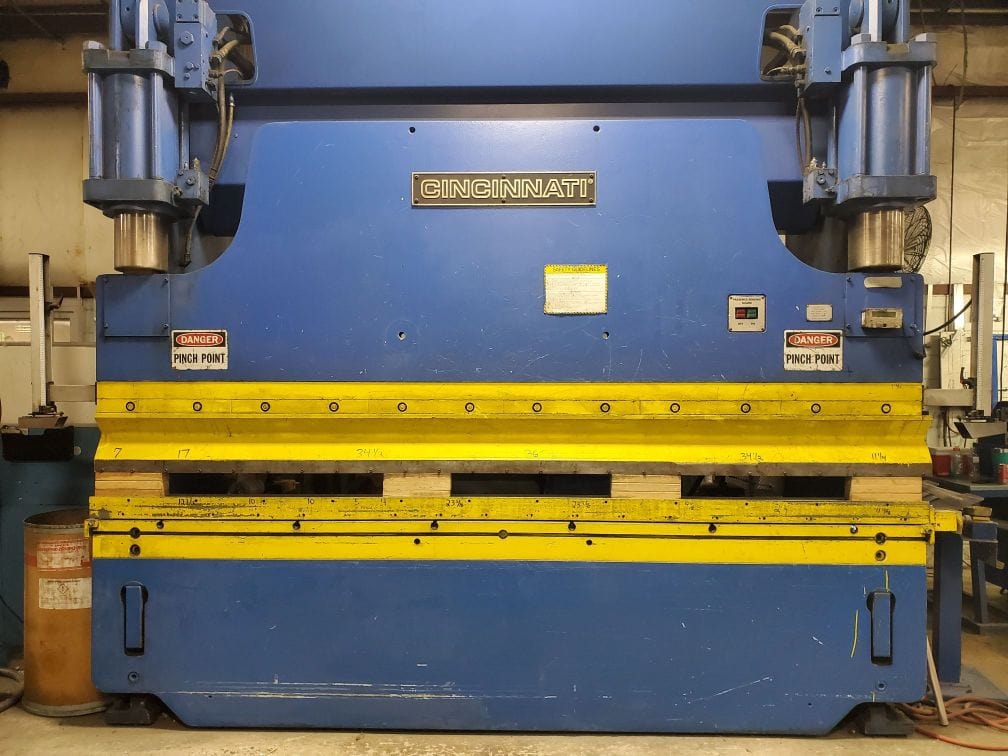

230 Ton x 12′ Cincinnati 230 CB2 Hydraulic Press Brake, 1997 – 16″ stroke
$34,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Overall Length: 12′
Capacity: 230 Tons
Clear Distance Between Housings: 10′ 6.5″
Weight: 29,200 lbs.
Motor: 15HP
Max Tonnage High Speed:172
Standard Stroke: 10″
Throat Clearance from Center: 8″
Die Space Open: 17″
Die Space Closed: 7″
Approach: 155 ipm
Max Forming Speed: 35 ipm
Return: 175 ipm

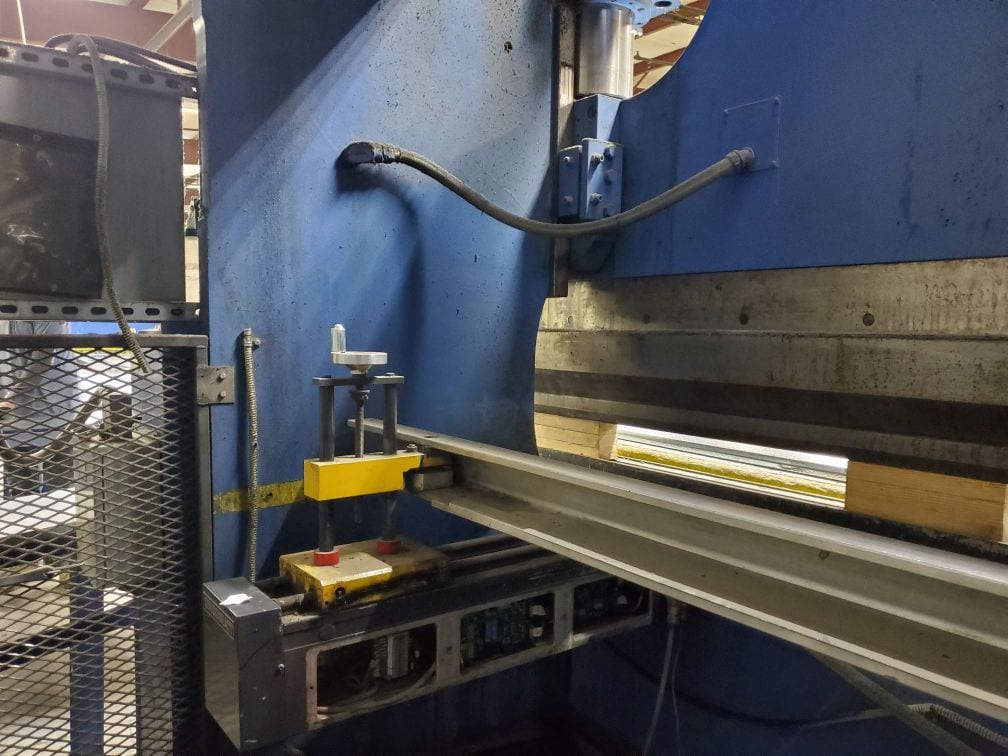

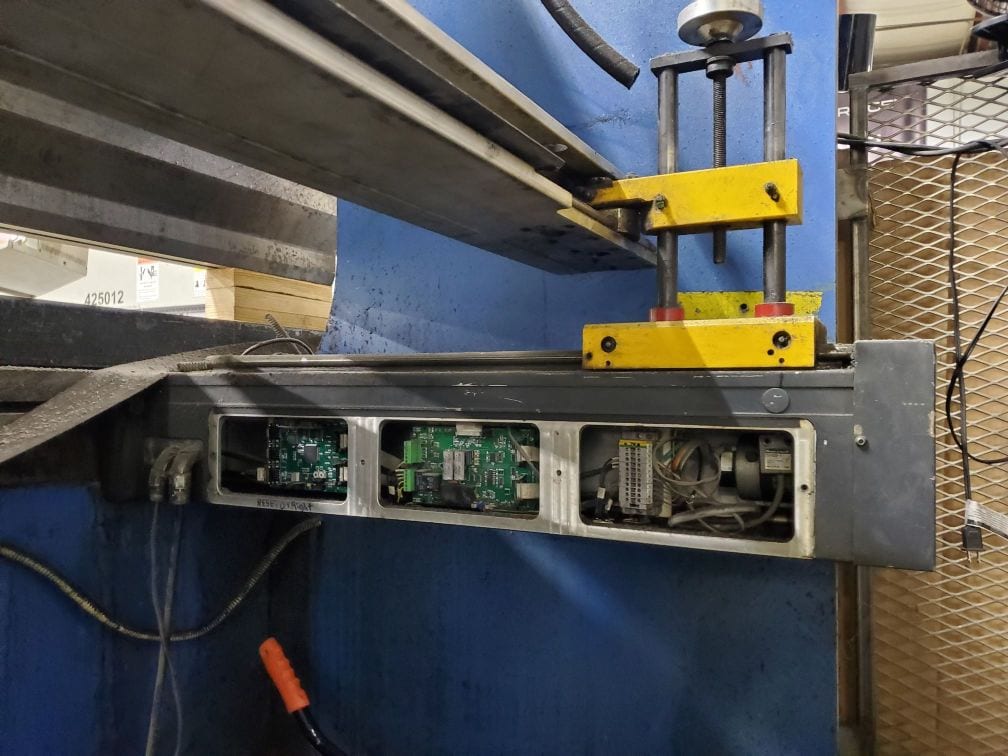

Backgauge servo axis needs repair
