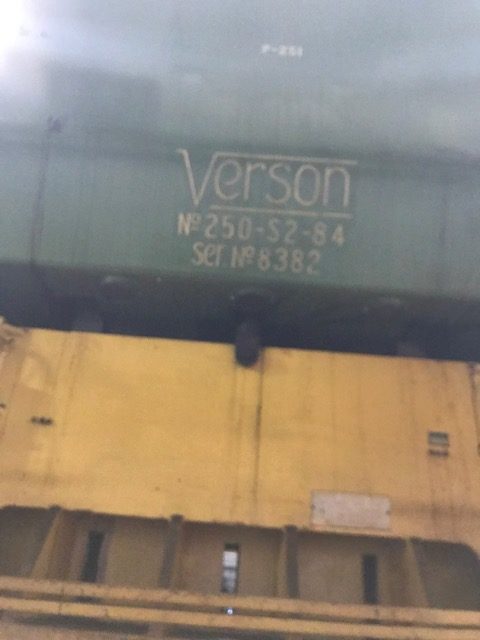

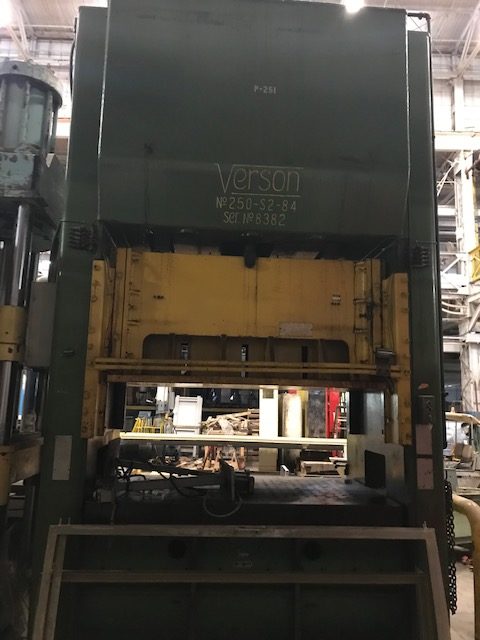

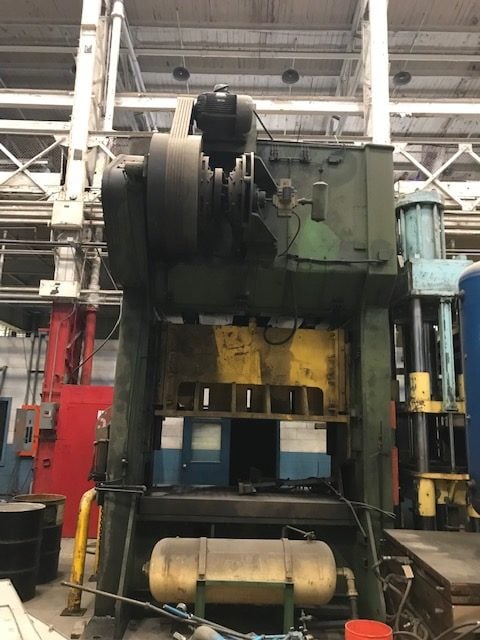

250 Ton Verson Press No. 250-S2-84 Straight Press, 1950

Verson Steel, Eccentri Type, Two Point Suspension, Single Action, Double Gear, Twin Drive Press

Capacity Near Bottom of Stroke: 250 Tons
Type of Frame: Steel – Solid
Distance Between Housings To Clear: 84″
Distance Between Gibs: 80″
Area Of Slide, FB XRL: 48″ x 78″
Adjustement of Slide (Power) : 8″
Area Of Bolster, FB X RL: 52″ x 84″
Opening In Bed, With Separate Ribs: 37″ FB x 72″ RL
Stroke Of Slide: 14″
Shut Height, Stroke Down, Adjustment Up, Bed to Slide: 25″ – 19″ to top of Bolster

Bolster Thickness: 6″
Strokes Per Minute: 12
Size & Speed Of Motor Required – Not Furn. 30HP – 1800 RPM Punch Press Type to Suit

Type of Clutch And Brake Unit: Verson Pneumatic
Type Of Clutch Control: Elec. Push Button
Type Of Drive: “V” Belt
Floor Space Overall, FBxRL (Approx.) : 112″ x 115″
Height Overall (Approx.): 198″
Weight (Approx.): 62,000lbs
Voltage: 550-3-60
