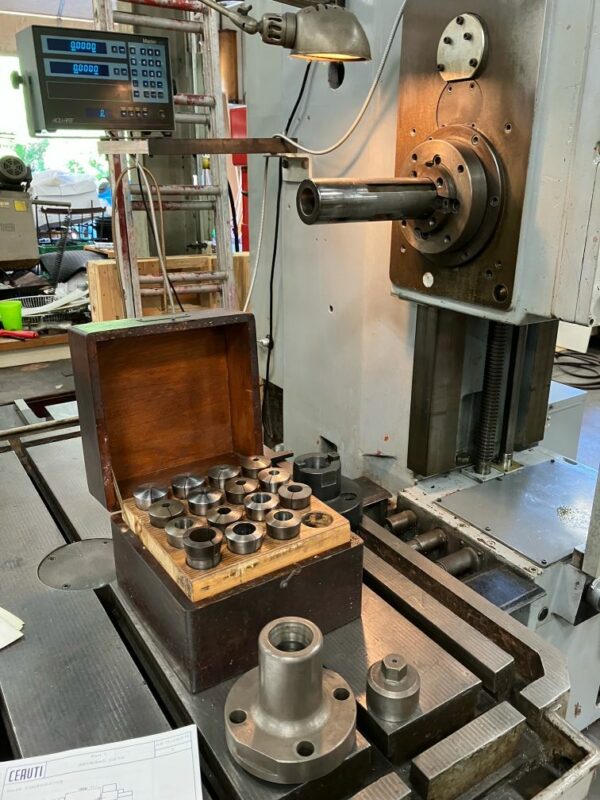

3″ Ceruti ABC75 Horizontal Boring Mill, 1960 – HBM
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
SPINDLE:
Diameter of Boring Spindle: 3″
Morse Taper #5
Diameter of Milling Spindle: 5.040″
Number of Speeds: 16
Speed Range: 15-1500
Minimum and Max. Height over Table Plane:
0 – 31.5″
Axial Movement: 0 – 23.625″
Main Motor: 10 HP
Rapid Movement Motor: 3 HP
FACING HEAD:
Type: Removable
Diameter: 17.75″
Facing Slide Travel: 5.5″
Number of Speeds: 11
Speed Range: 15-270
Max. Facing Diameter: 25.5″
TABLE:
Area: 31.5″ x 39.375″ Rotary Table
Traverse Travel: 31.5″ x 47.25″
Max. Load allowed in the center: 5,500 lbs.
Power: 480V / 240V with Included Transformer
Weight: 13,500 Lbs. (Approx.)
Equipped with:
Acu-Rite DRO – 2 Axis
Transformer Included
Some Tooling Included
