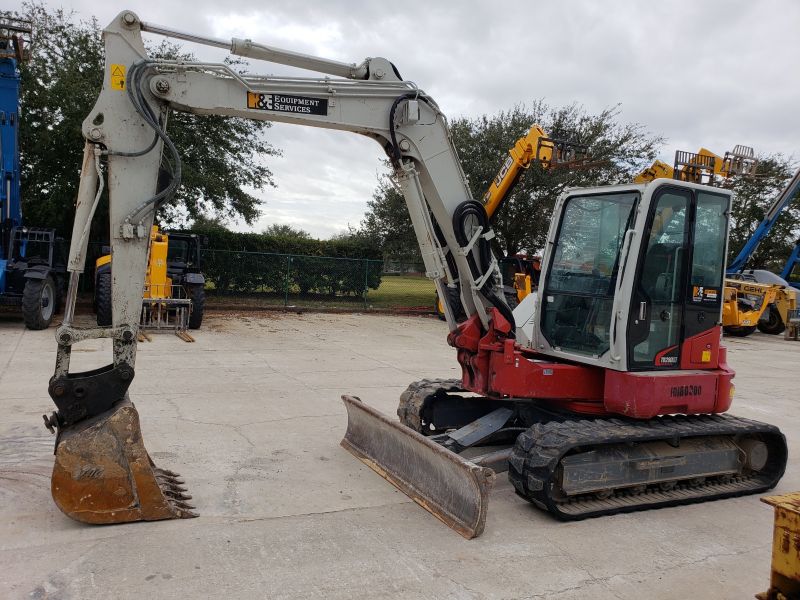

30″ Bucket Takeuchi TB280FR Excavator, 2015 – Full Cab, A/C, ~2600 HRS
$49,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Hours: 2505
OPERATING PERFORMANCE
Maximum Bucket Breakout Force: 16,335 LBS
Maximum Arm Digging Force: 7,037 LBS
Arm Length: 6′ 7″
Slew Speed: 10.0 RPM
Traction Force: 19,783 LBS
Ground Pressure: 5.7 PSI
Travel Speed – Low Range: 1.7 MPH
Travel Speed – High Range: 3.2 MPH
HYDRAULIC SYSTEM
Total Hydraulic Flow: 52.5 GPM
Auxiliary Flow – Primary Circuit: 39.0 GPM
Auxiliary Flow – Secondary Circuit: 15.0 GPM
Hydraulic System Pressure: 3,990 PSI
ENGINE
Make: Yanmar
Model: 4TNV98CT
Displacement: 202 CU IN
Horsepower @2,000 RPM: 69.2 HP
Maximum Torque @ 1,300 RPM: 22.7.2 FT-LB
FLUID CAPACITIES
Engine Lubrication: 9.9 QT
Cooling System: 14.8 QT
Fuel Tank Capacity: 26.3 GAL
Hydraulic Reservoir Capacity: 18.7 GAL
Hydraulic System Capacity: 38.8 GAL
DIMENSIONS
Maximum Reach: 23′ 7.2″
Maximum Reach at Ground Level: 23′ 1.4″
Maximum Digging Depth: 14′ 11.0″
Maximum Vertical Digging Depth: 11′ 5.5″
Maximum Dig Height: 21′ 2.0″
Maximum Dumping Height: 14′ 8.4″
Front Swing Radius: 9′ 5.4″
Front Swing Radius with Boom Offset: 5′ 3.5″
Tail Swing (Slew) Radius: 4′ 2.4″
Ground Clearance: 12.3″
Undercarriage Length: 9′ 4.0″
Track Width: 17.7″
Undercarriage Width: 7′ 7″
Transport Length: 20′ 7.4″
Transport Height: 8′ 11.4″
Operating Weight: 19,240 LBS
