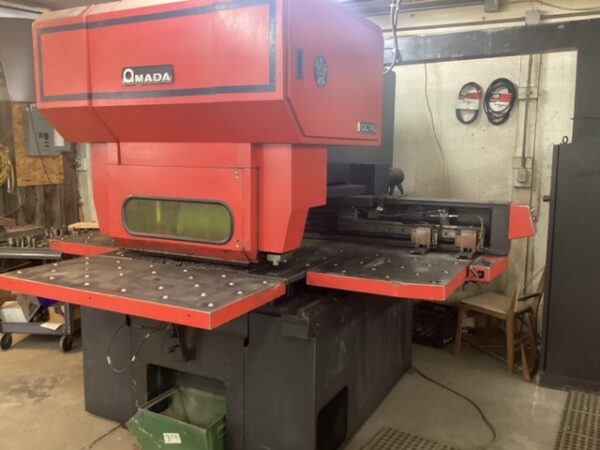

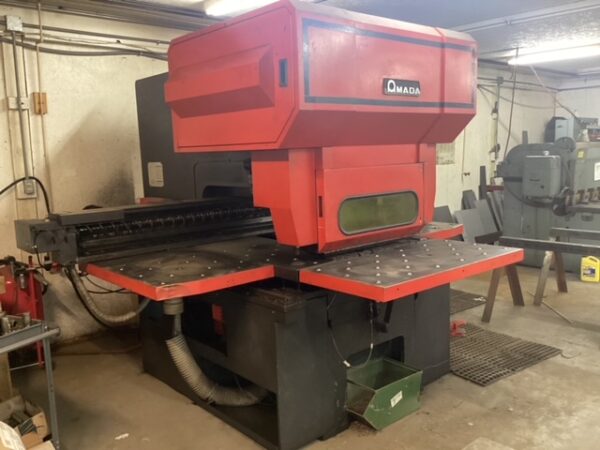

30 Ton Amada Octo-334, CNC Punch Press, 1984

$14,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Turret Punches
Make: Amada
Model: Octo 334
Year: 1984
Capacity: 30 Ton
Machine Location: Pennsylvania
Stock #: 846865

Capacity: 33 tons
Sheet Size: 29.53″ X 78.74
Thickest Material: 1/4 ”
Max Hole Diameter: 3.5″

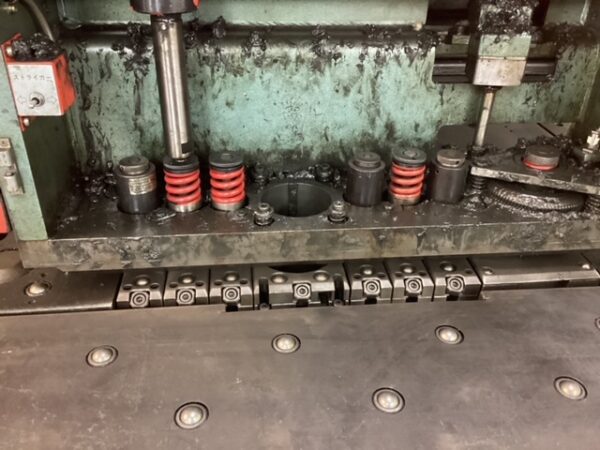

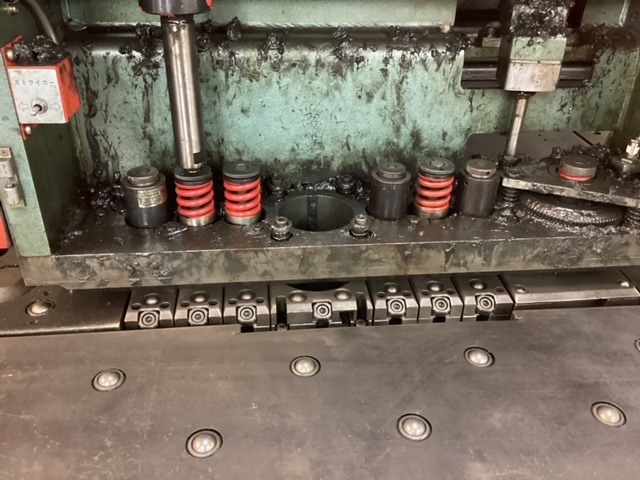

Number of Turret Stations: 9 Station Thick w/ Auto Index
Axis Speed: 1575 IPM
Hits Per Min. 1″ centers: 150 HPM
Drive Motors: DC Servo
Smallest Programmable Increment: .001″
Power Requirements: 230/60/3 phase
Machine Dimensions: 109″ x 120.7″x 87.5″
Machine Weight: 21,600 lbs

Equipped with:

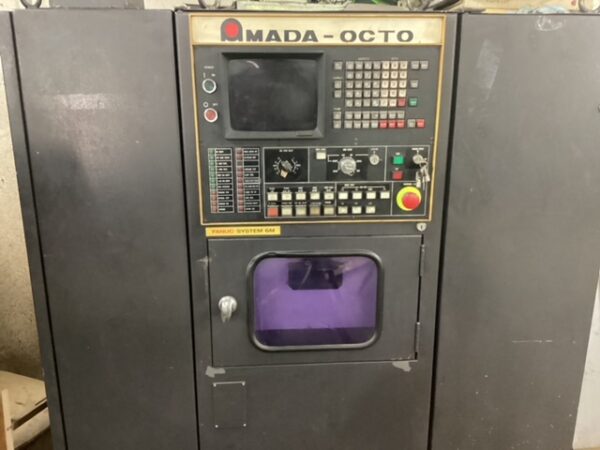

Fanuc 6M Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
