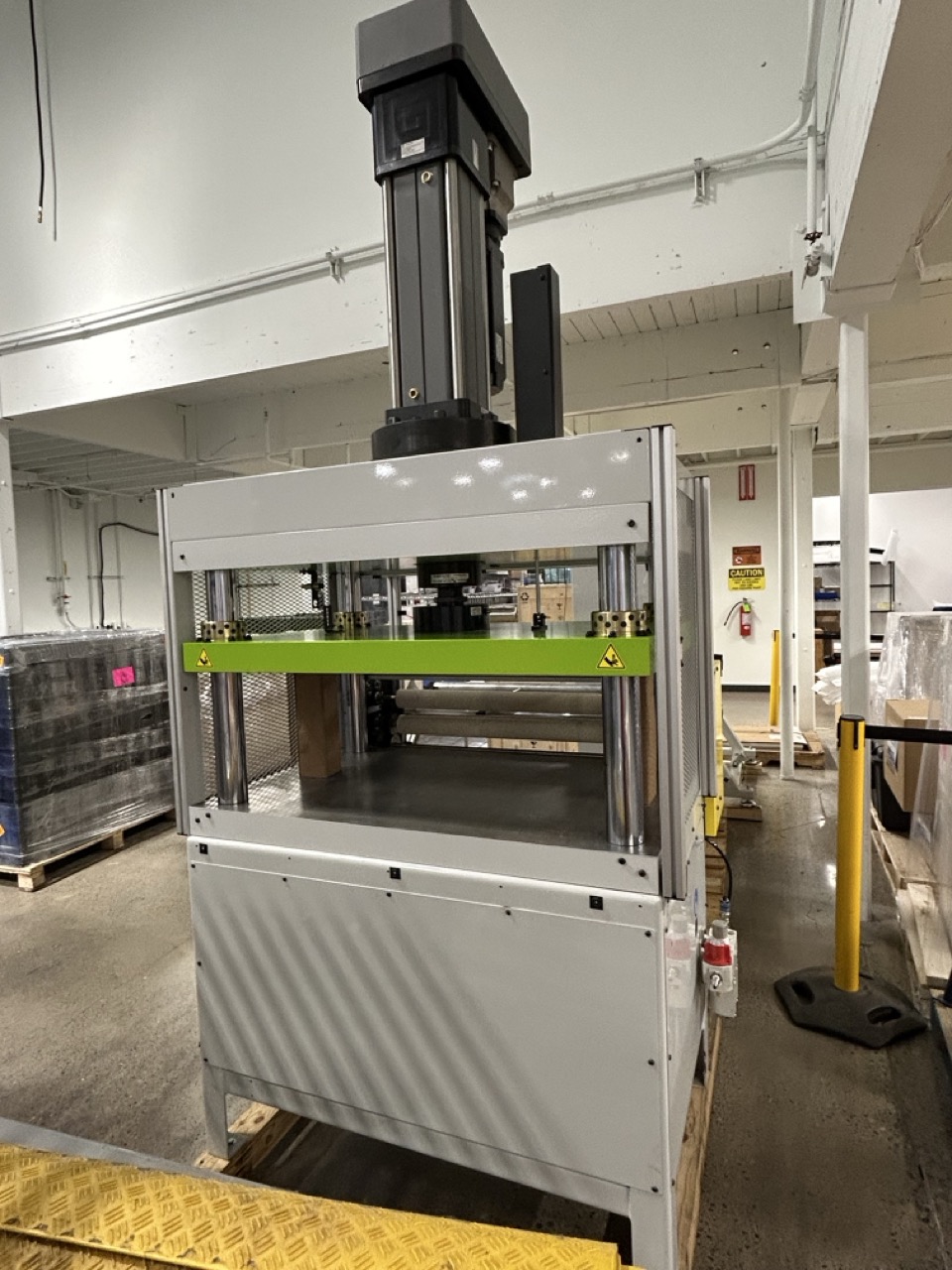

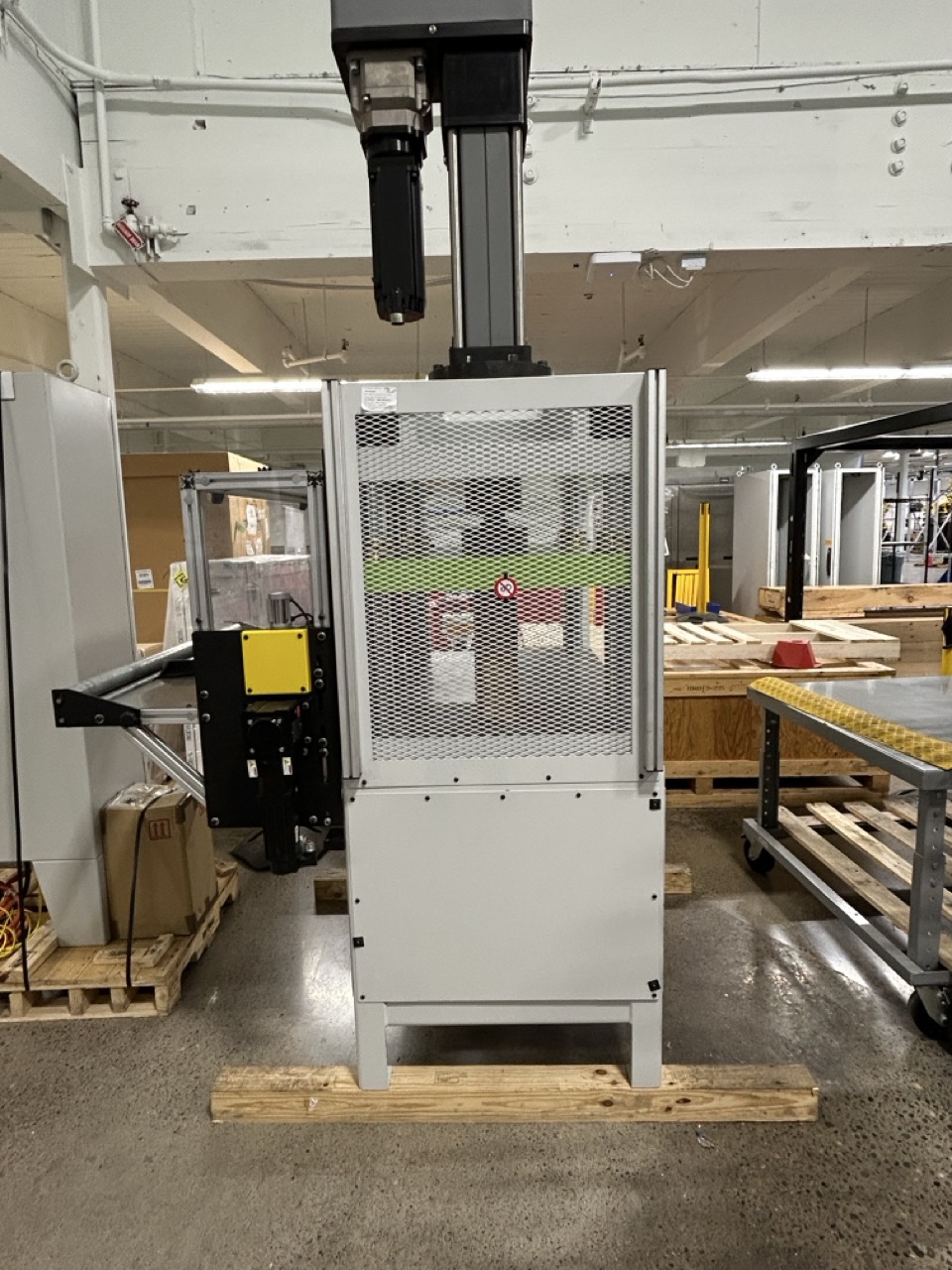

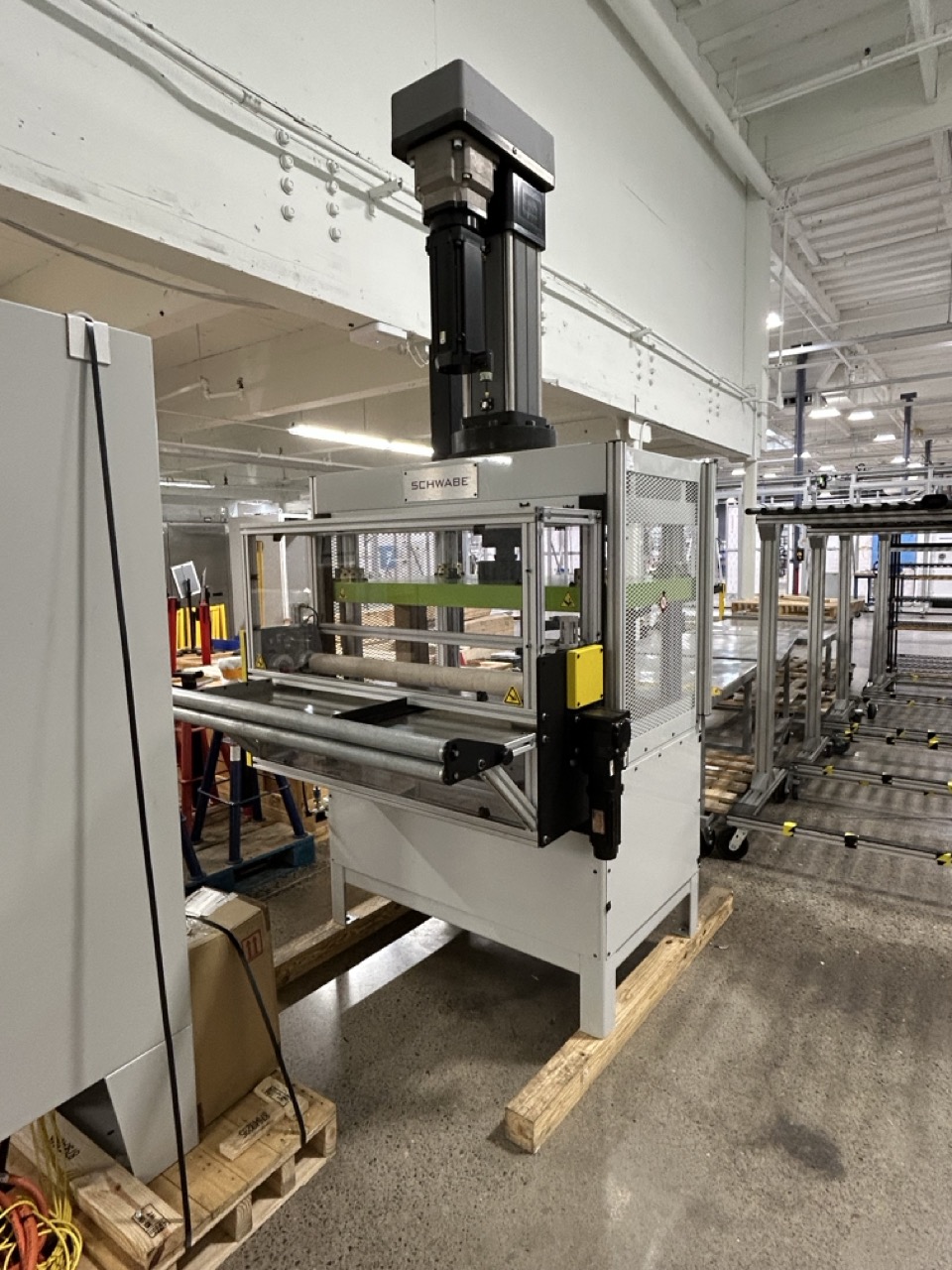

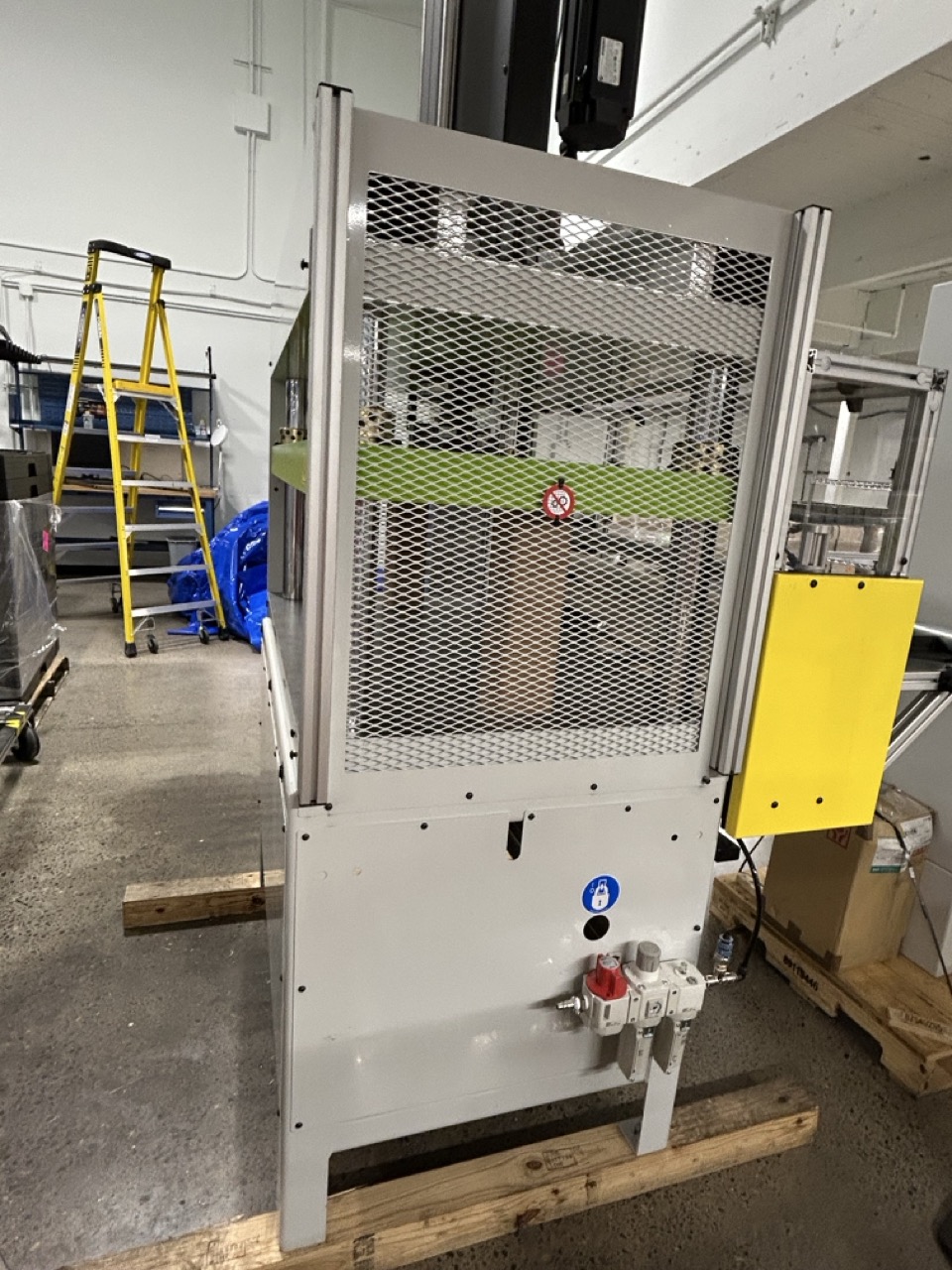

30 Ton Freeman Schwabe SEP30 Servo Electric Die Cutting Press, 2025 – Infeed Nip Roll System, Programmable Servo Control

The Freeman Schwabe SEP30 servo electric die cutting press is a high-precision, clean-room-capable system designed for kiss-cutting, through-cutting, and laminating applications. Featuring advanced servo-driven control with programmable force, speed, and dwell, this press delivers exceptional accuracy and energy efficiency for medical, gasket, and industrial converting operations.

Tonnage: 30 Ton
Press Type: Servo Electric Flat Bed Die Cutting Press
Frame Design: Four-Post
Platen Size: 10″–50″ Range (Application Dependent)
Stroke: Application Dependent Programmable Stroke
Ram Speed: Up To 5 IPS
Positional Repeatability: ±0.0005″
Control: Programmable Servo Control With Load Cell Feedback
Drive System: Roller Screw Servo Actuator
Cutting Capability: Kiss Cutting And Through Cutting
Feed System: Infeed Nip Roll System
Tooling Compatibility: Steel Rule, Match Metal, Male/Female, Flexible Dies
Power Requirements: 230/480V
Energy Efficiency: Up To 70–80% Less Than Hydraulic Systems
Applications: Die Cutting, Laminating, Molding, Embossing

Equipped With:

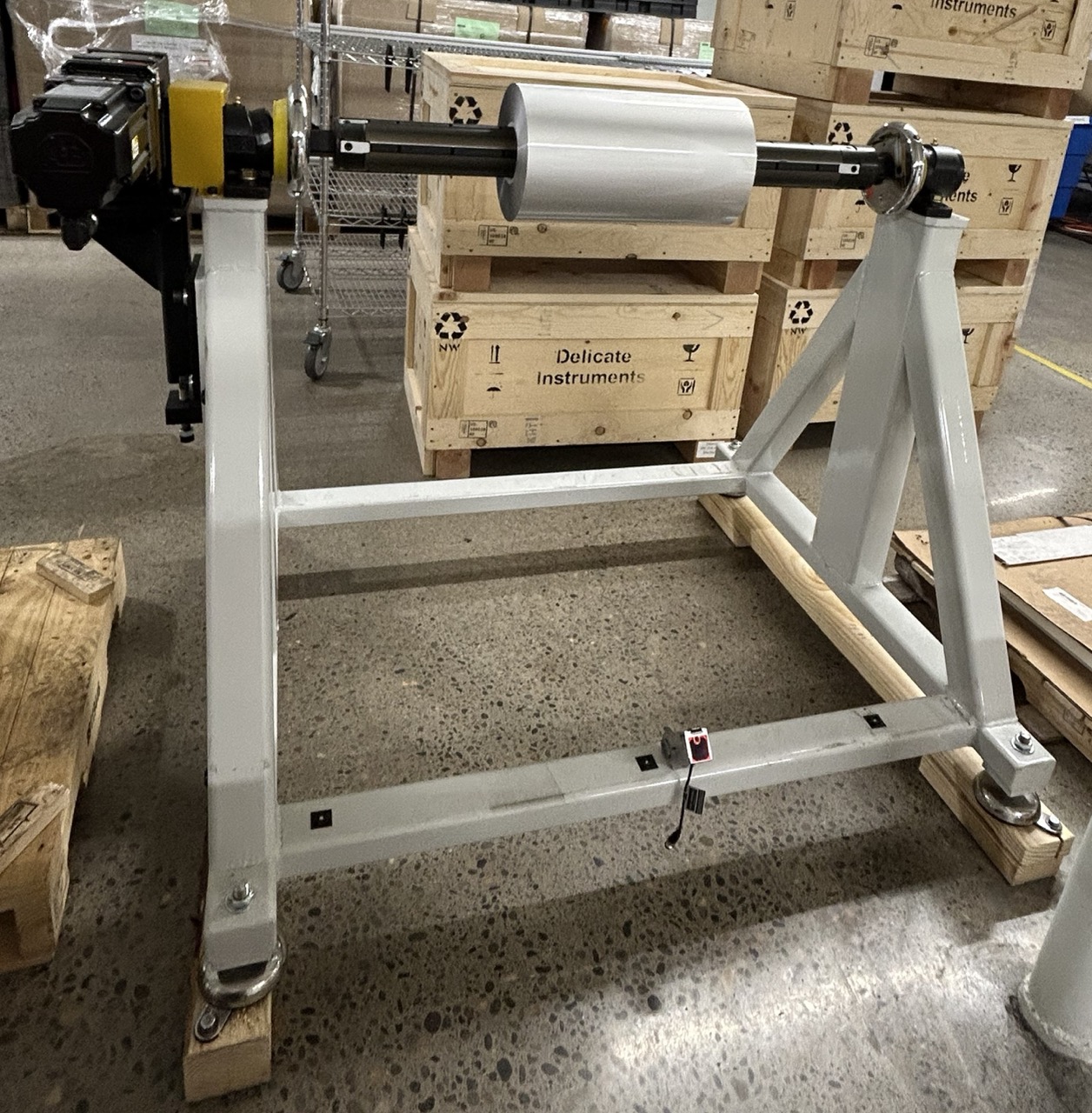

Infeed Nip Roll Feed System
Integrated Load Cell
Programmable Speed Force And Dwell Control
Quick Change Tooling System
Servo Electric Drive System
Clean Room Compatible Design
