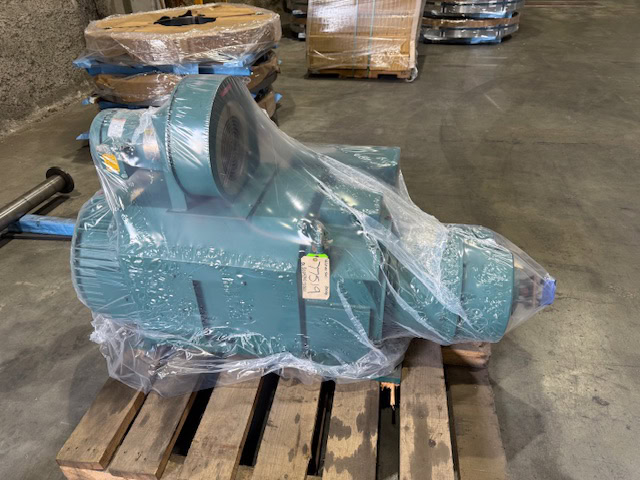

300 HP Baldor-Reliance RPMAC Inverter Duty Motor – Dual Speed, Premium Efficiency
300 HP Baldor-Reliance RPMAC Inverter Duty Motor – Dual Speed, Premium Efficiency - Image 2
JLS
43098957948

300 HP Baldor-Reliance RPMAC Inverter Duty Motor – Dual Speed, Premium Efficiency

$22,500.00

300 HP Baldor-Reliance RPMAC Inverter Duty Motor – Dual Speed, Premium Efficiency
300 HP Baldor-Reliance RPMAC Inverter Duty Motor – Dual Speed, Premium Efficiency - Image 2

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Process Equipment
Make: Baldor-Reliance
Model: B102Z896‑0100G1 RPMAC
Year: 1900
Machine Location: Indiana
Stock #: 957948

Equipment Overview
A highly specialized 300 HP Baldor‑Reliance RPMAC dual-speed inverter-duty motor (1785 / 3570 rpm) configured for 700 V service. Engineered for demanding variable-speed applications, this unit offers premium insulation, fast dynamic response, and suitability for modern PWM drive systems. It is a low-volume, high-spec asset with limited peer comparables in the used market. Factory-new, never installed.

Key Features and Specifications
• Dual-speed base speeds: 1785 RPM and 3570 RPM
• Voltage: 700 V
• Full-load currents: 217 A (1785 RPM), 377 A (3570 RPM)
• Class H insulation, corona‑free, PWM-rated
• Frame: 4009Z
• Bearings: DE 6330C3, ODE 6326C3
• Max safe speed: 5750 RPM
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Service factor: 1.0
• Lubrication: PLS (Positive Lubrication System)
• Thermal protection: Thermostats included
• Low rotor inertia design for fast response to drive changes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
