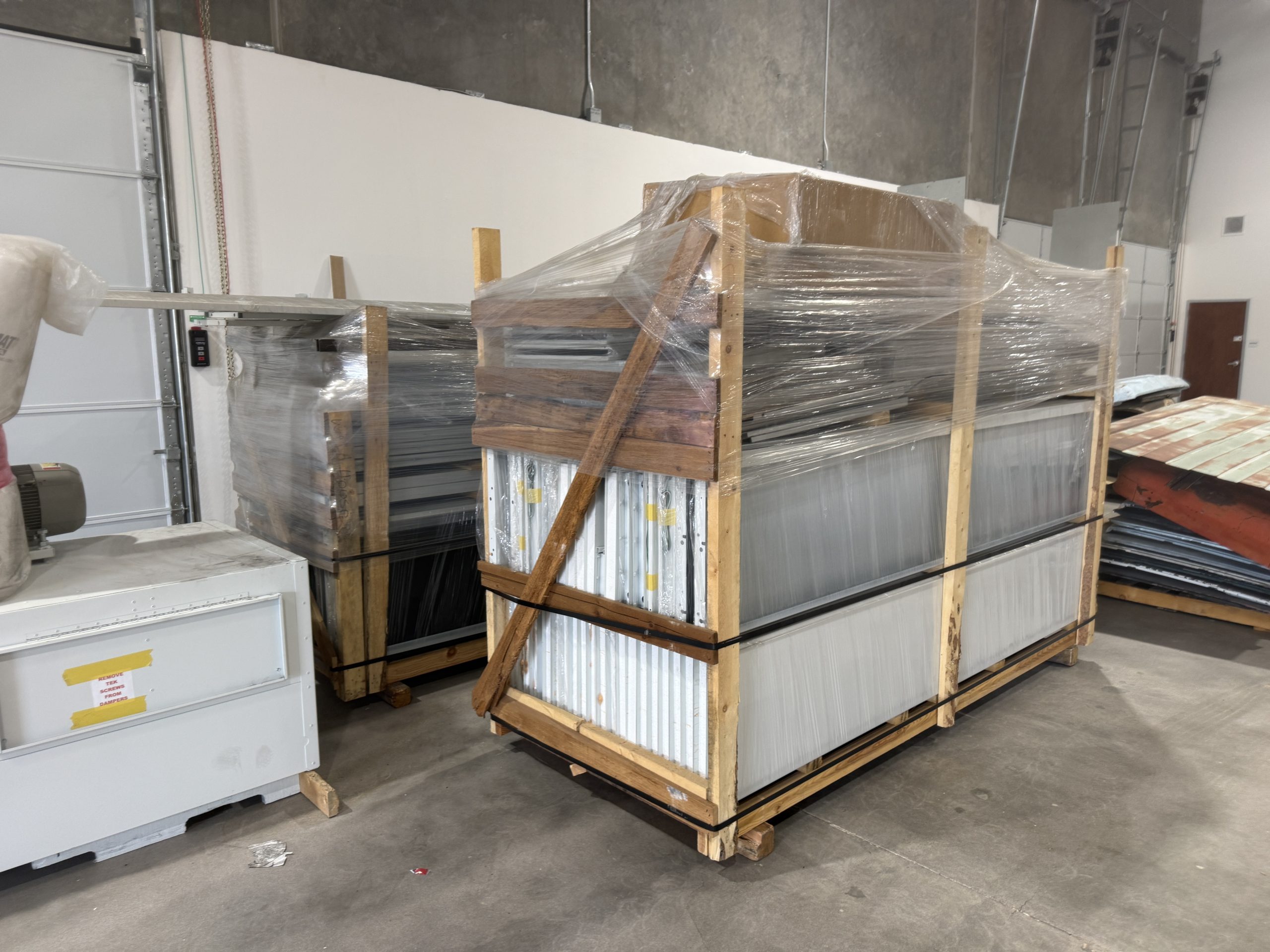

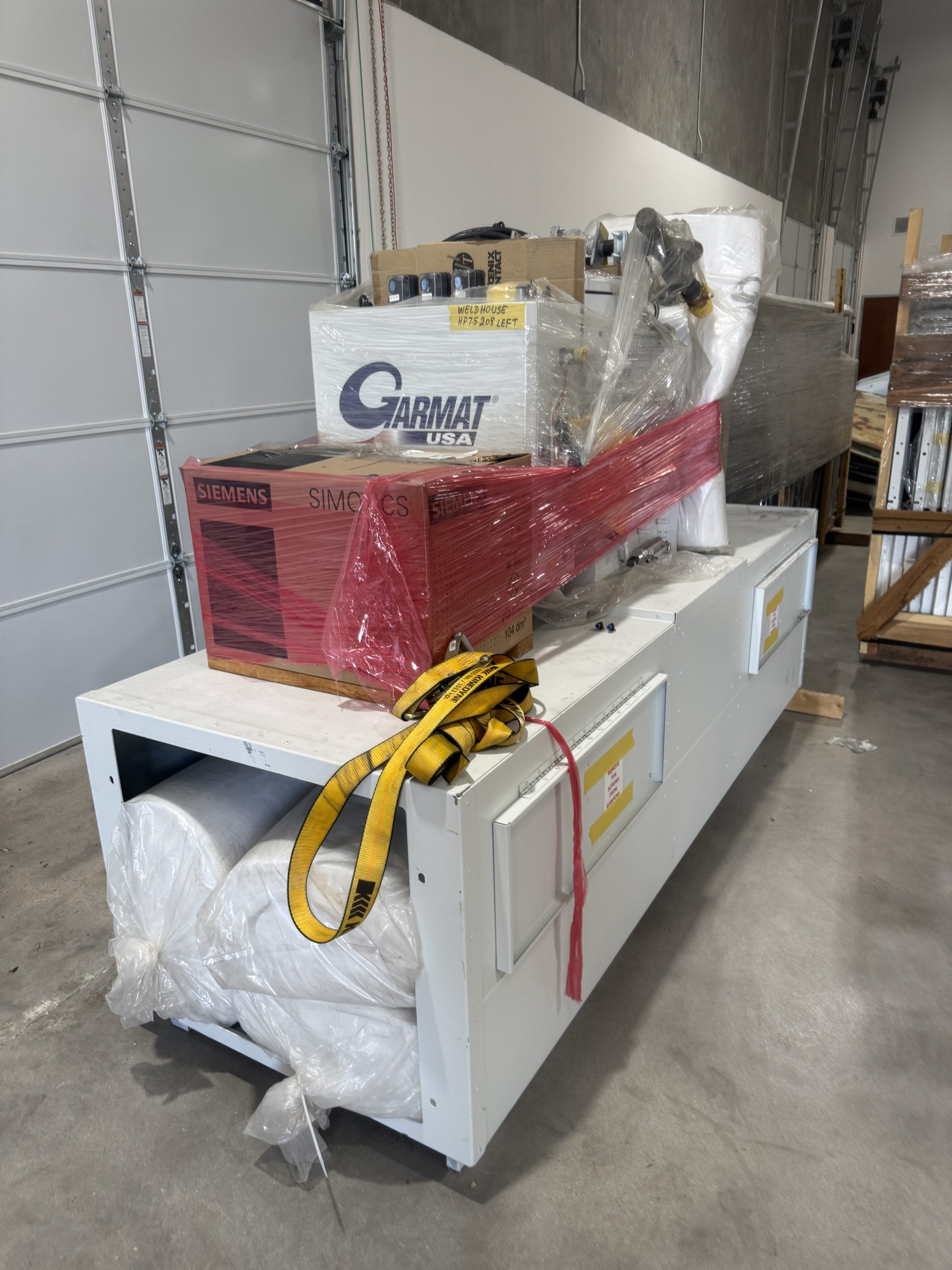

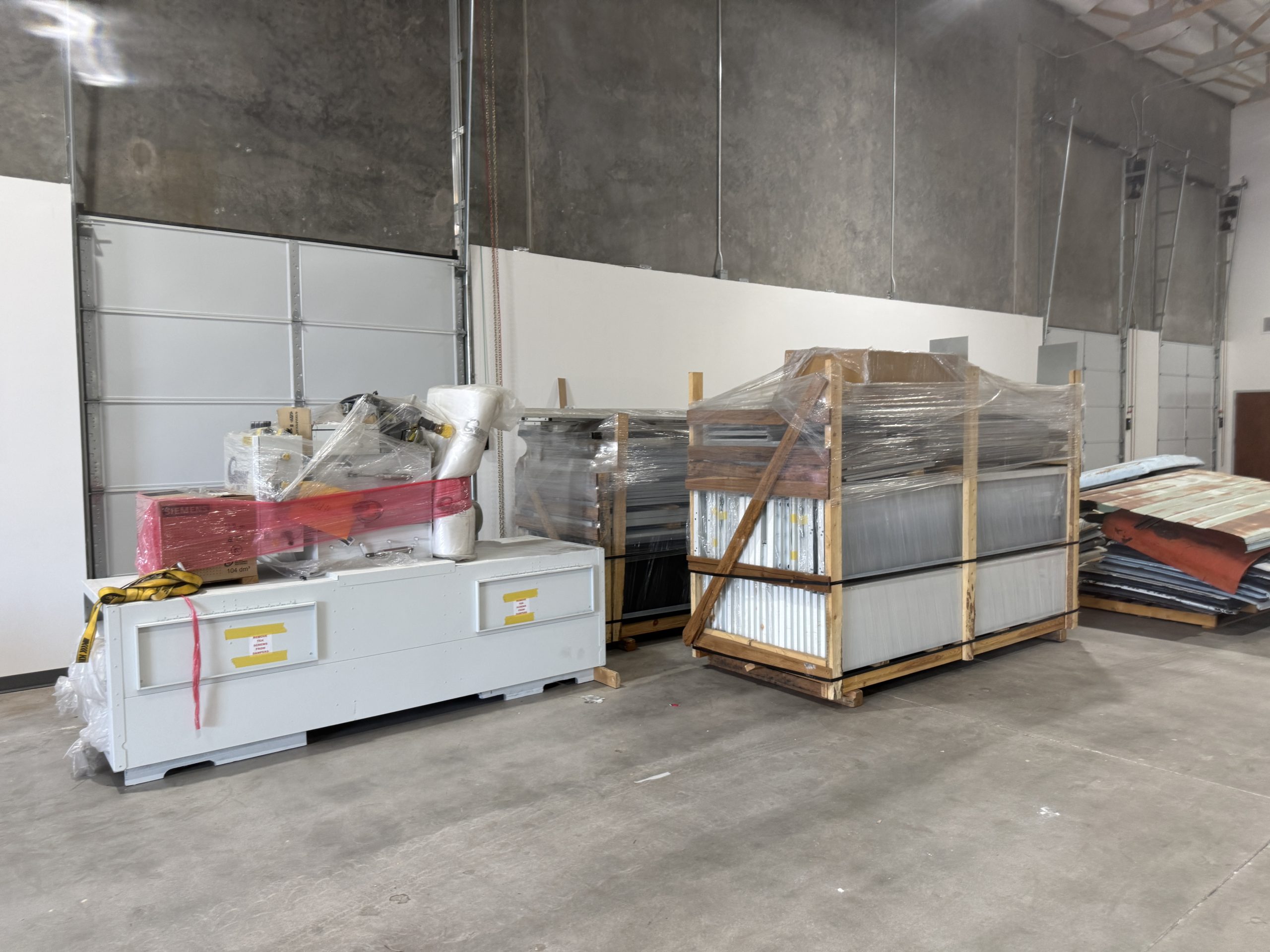

31 Foot Chinook II Downdraft Spray Booth, 2023 – New in Crates

Interior Dimensions:
26′ 9-/1/4″ L x 13 1- 1/2″ W x 8′ 10-1/2″ H

Exterior Dimensions:
27 2-1/4” L x 13 6 -5/8” W x 10’10” H

Light Fixtures:

15 LED light fixtures / 60 LED light tubes
Horizontal orientation for optimal illumination
All interior accessible for ease of maintenance
Exhaust Configuration:

Unlike competing brand of semi downdraft spray booths, the Garmat design pulls the air to the base of the towers, where it is exhausted inside the tower chamber through bag filters
Bag filter design provides 54% more useable surface area than competing brands
Easy access – no grates to remove
Pitless booth, exhausts through the base of the towers
Operations and Controls:

Space saving design features a mechanical built into the roof
Exhaust: 7.5 HP High Efficiency Motors Dual Inlet Reverse Incline Fan featuring Airfoil Blades
Supply: 7.5 HP High Efficiency Motors with Forward Incline Fans
1.0 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel Burner construction
ETL Listed PLC Control Panel which sequences spray and bake mode temperatures settings
Recycle on Bake

4’4” extension
