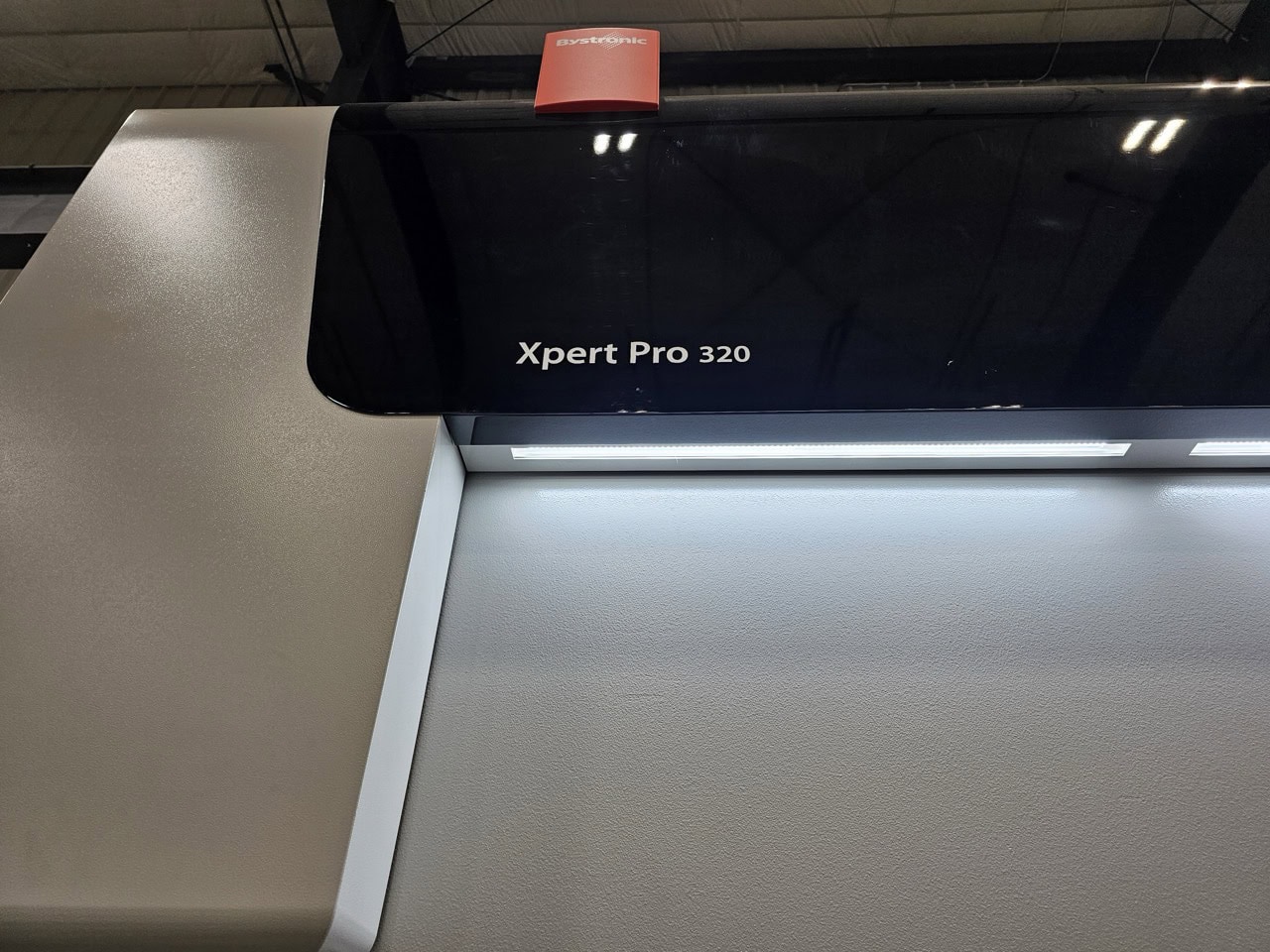

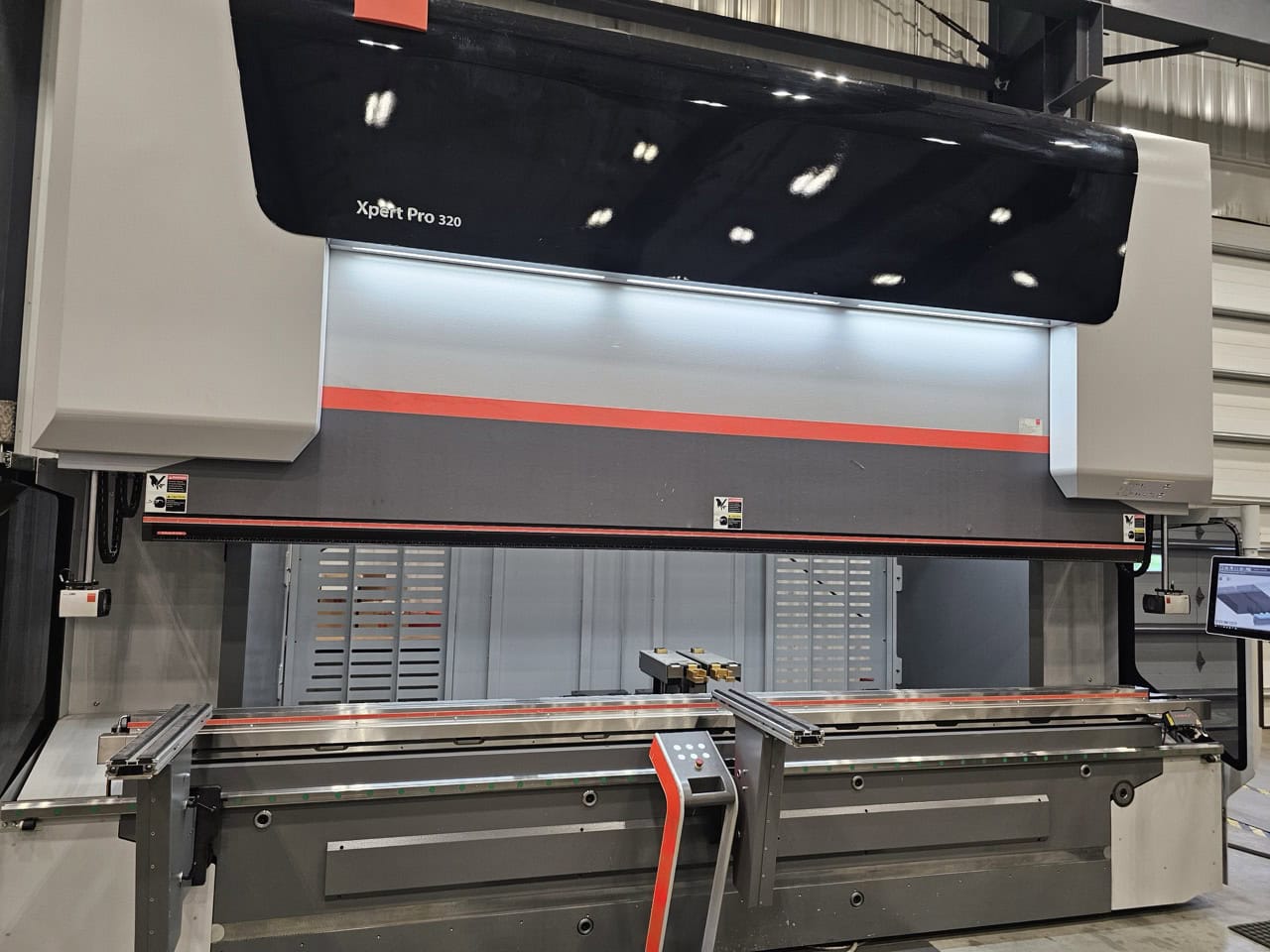

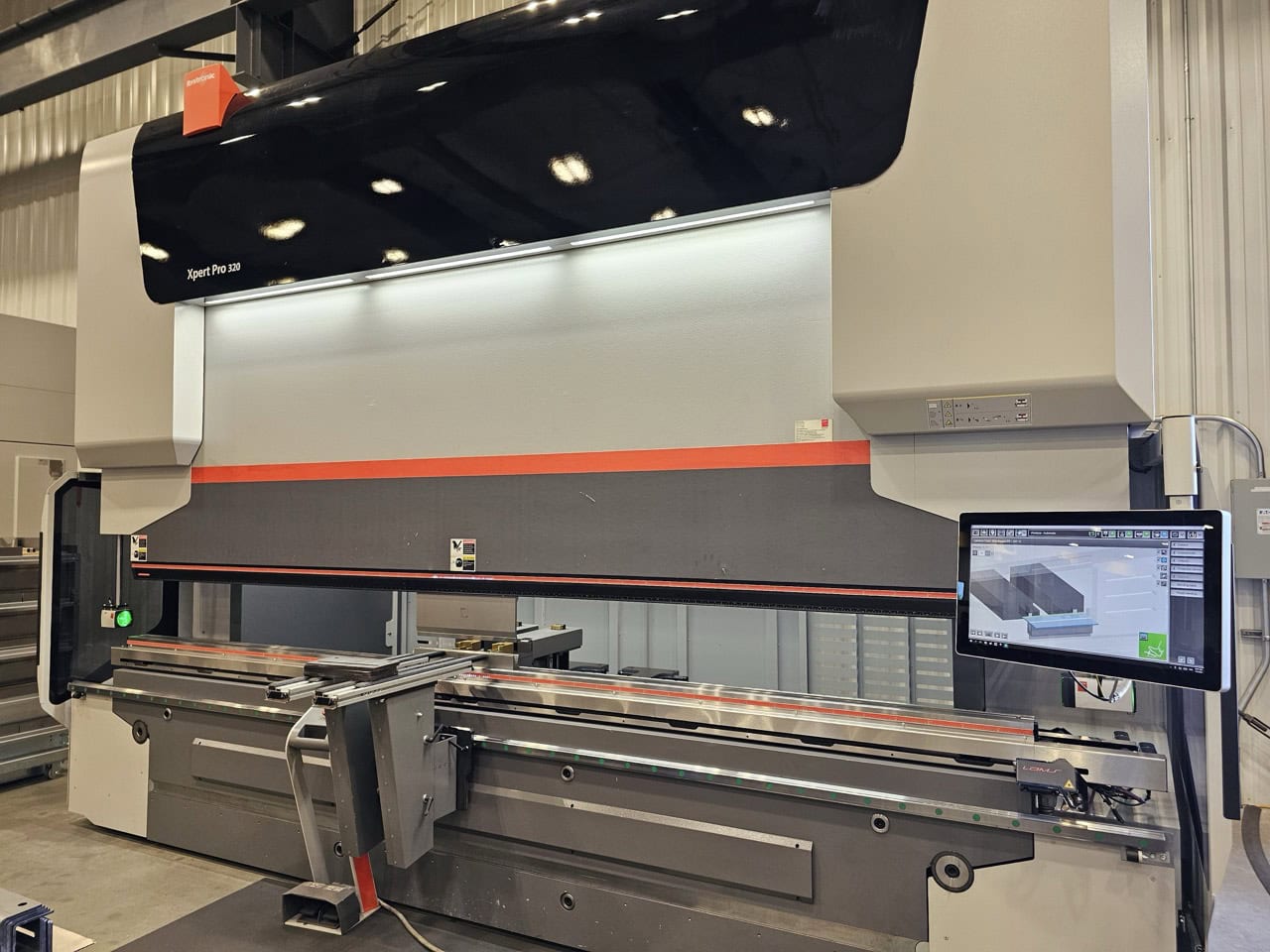

352 Ton x 14′ Bystronic Xpert Pro 320/4300 Extended Hydraulic Press Brake, 2022
$389,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Tonnage: 352 Tons
Bending length: 169.3 in
Standard stroke: 17.7 in
Open height: 33.0 in
Distance between side frames: 147.7 in
Throat: 15.8 in
Table Width: 2.4 in
Max. back gauge range X-axis: 41.4 in
X-axis travel: 23.7 in
X-axis speed: 1536 in/min
X-axis position accuracy: 0.0016 in
R-axis travel: 9.9 in
R-axis speed: 473 in/min
R-axis position accuracy: 0.004 in
Z-axis travel: 114 in
Z-axis speed: 3544 in/min
Z-axis speed for 6-axis: 2834.6 in/min
Z-axis position accuracy: 0.004 in
Y-position accuracy: 0.00016 in
Weight 60186.2 lbs
Length, approx. [L] 207.1 in
Width, approx. [W] 78.7 in
Height, approx. [H] 147.6 in
Proposed foot print approx. [LF x WF x HF] 276x177x165.4 in
Equipped with:

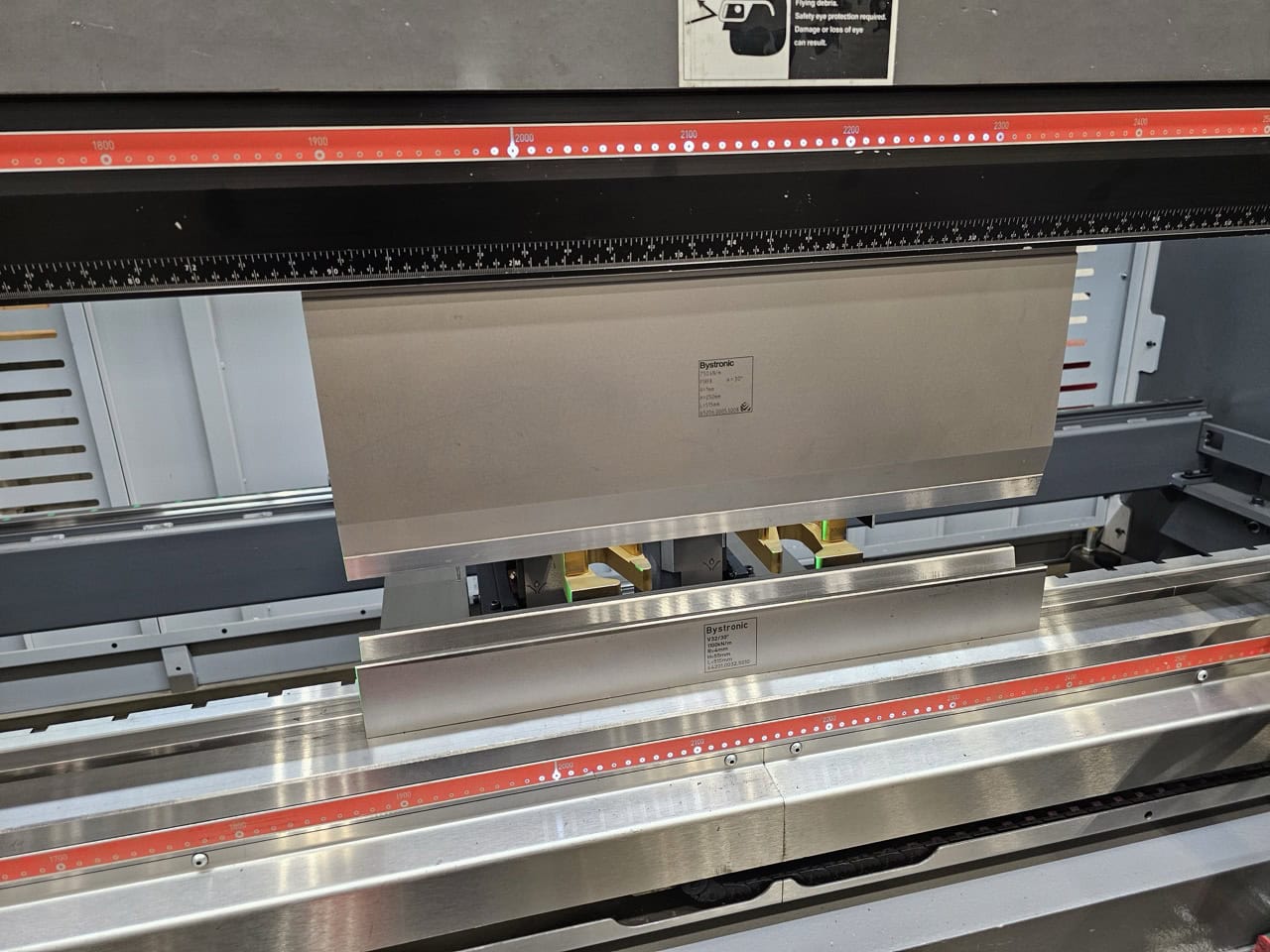

Upper tool clamping type RF-A HD
Hydraulic lower tool clamping

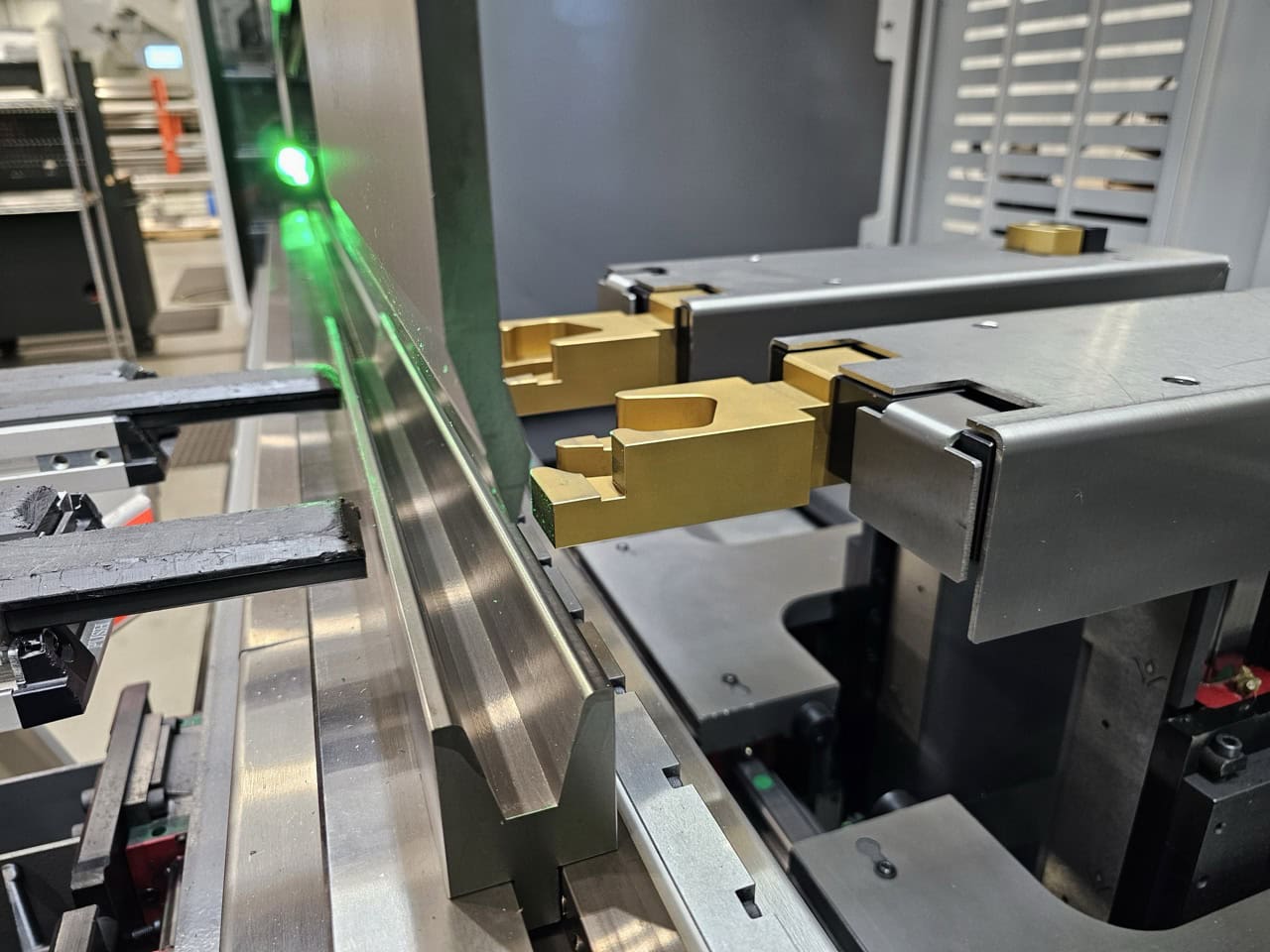

6-axis backgauge
Fast Bend+ G2 safety system with automatic height adjustment,
LED high performance illumination of the working area (front and rear)
Optical Bend Guiding System upper tool clamping

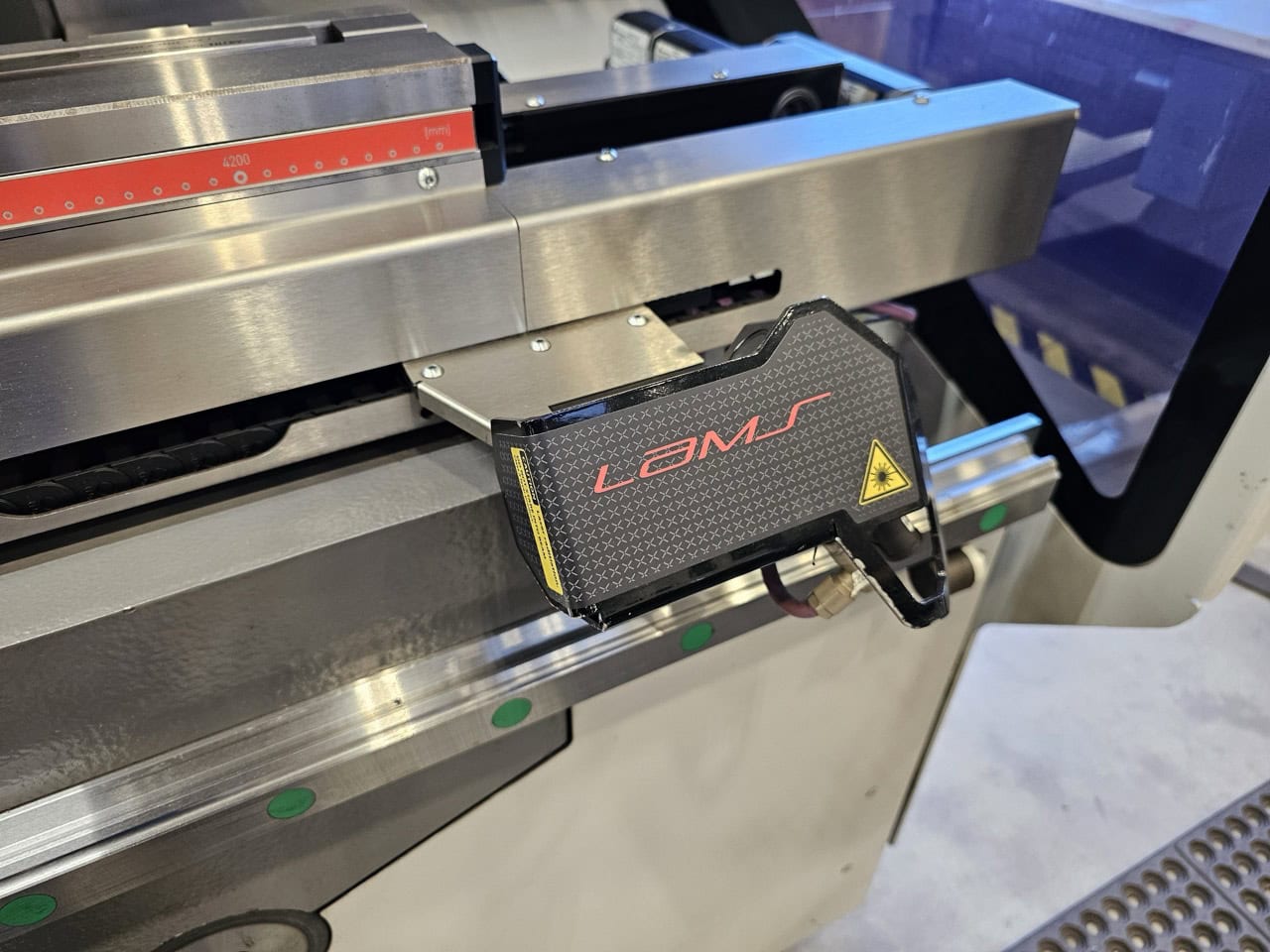

Laser Angle Measuring System (LAMS)
Hardened table

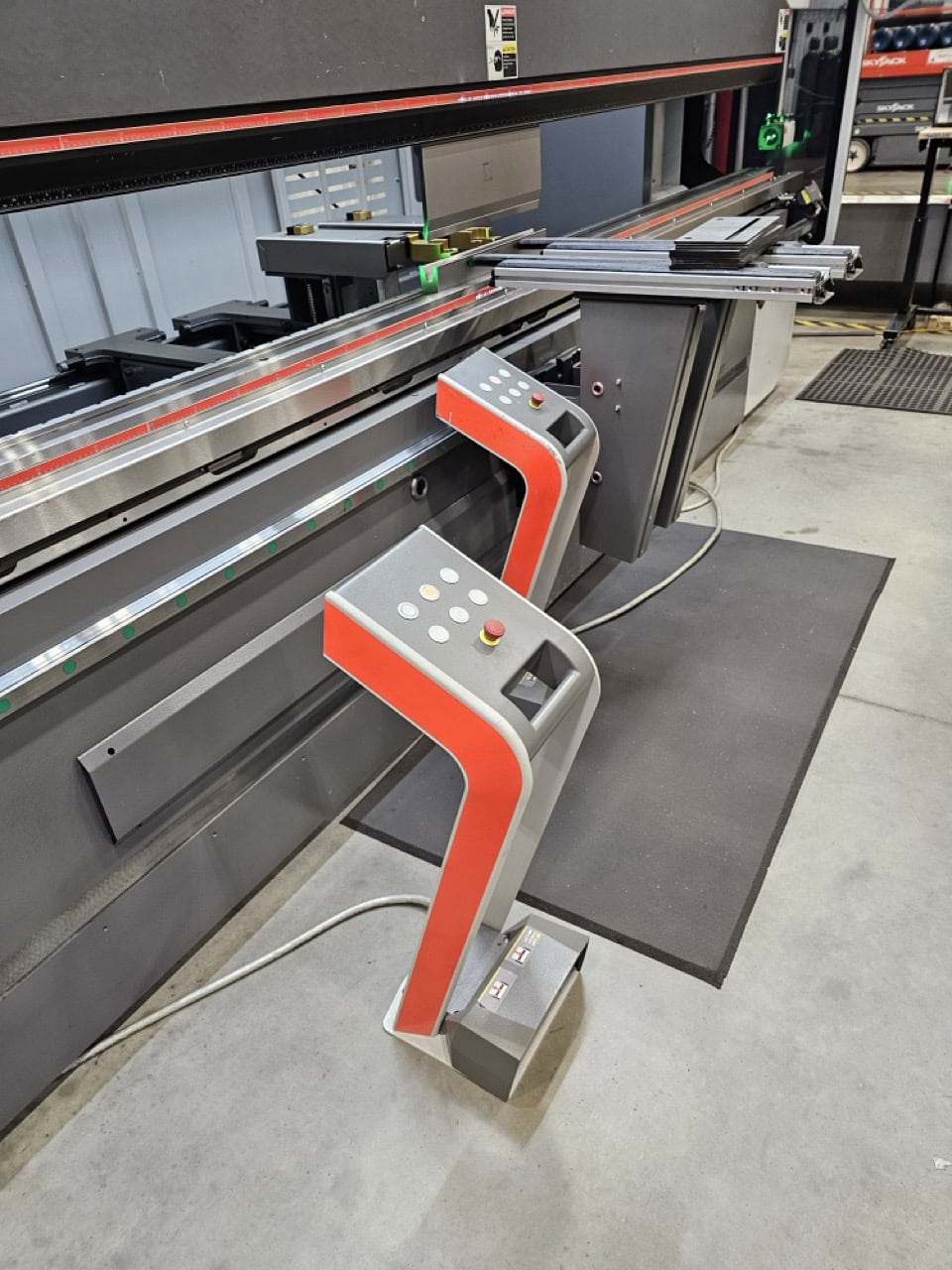

Additional control console with foot switch for 2nd operator or station (programmable)
1 PartID-Scanner

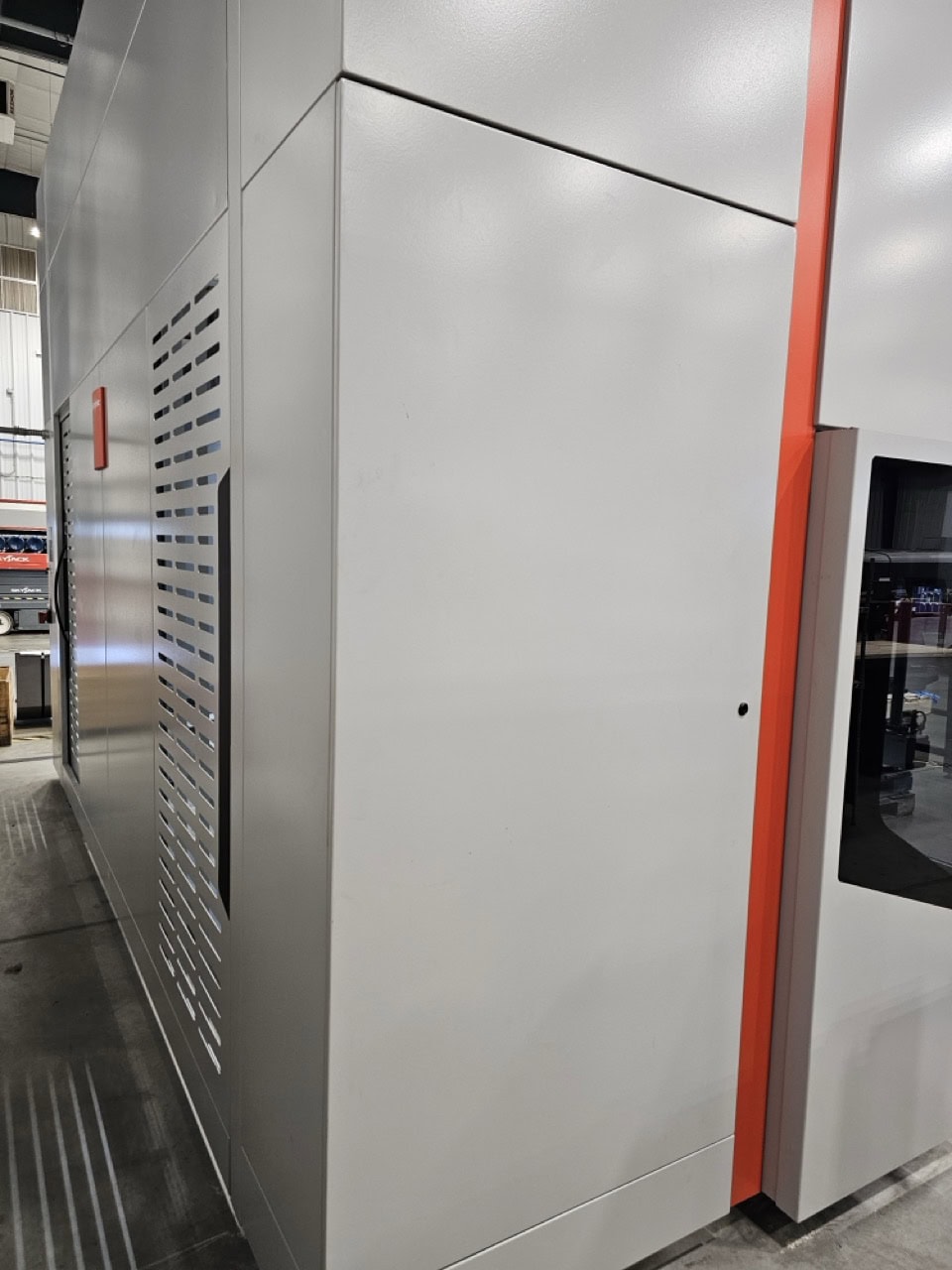

Heat exchanger, assembled on the electric cabinet
Oil cooling unit
