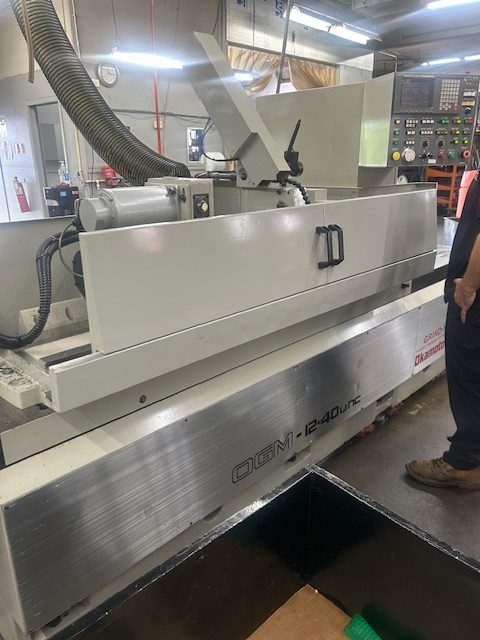

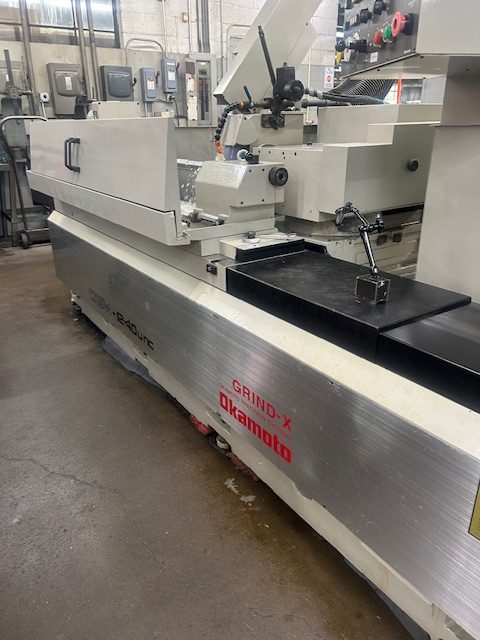

39″ Okamoto 1240 OGM-UNC CNC Grinder, 1998

Swing Over Table: 12.6″
Distance Between Centers: 39″
Maximum Diameter to be Ground: 12″
Maximum Weight between Centers: 330lbs

Grinding Wheel Size: 14″ x 1.5″ x 5″
Wheelhead Total Stroke 11.8″

Table
Maximum Table Travel: 50″
Swivel Angle: +1 ~-5 degrees

Workhead Center: MT No. 4
+30 to-90 Degree Swivel
Grinding Wheel Spindle: 7.5HP

Machine Dimensions: 184″ x 77″ 68″
Machine Weight: 9,250lbs

Equipped With

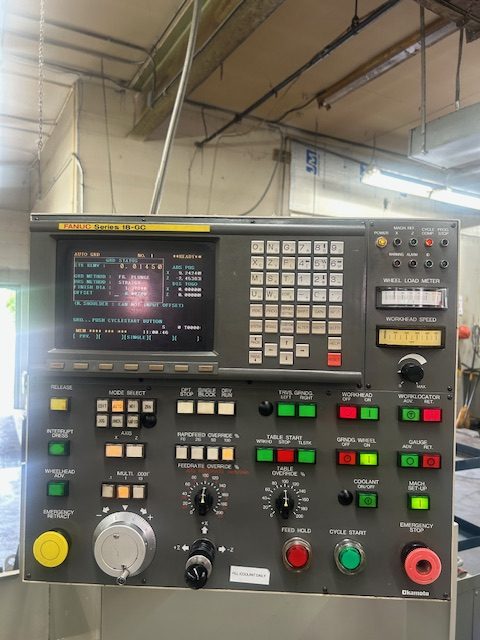

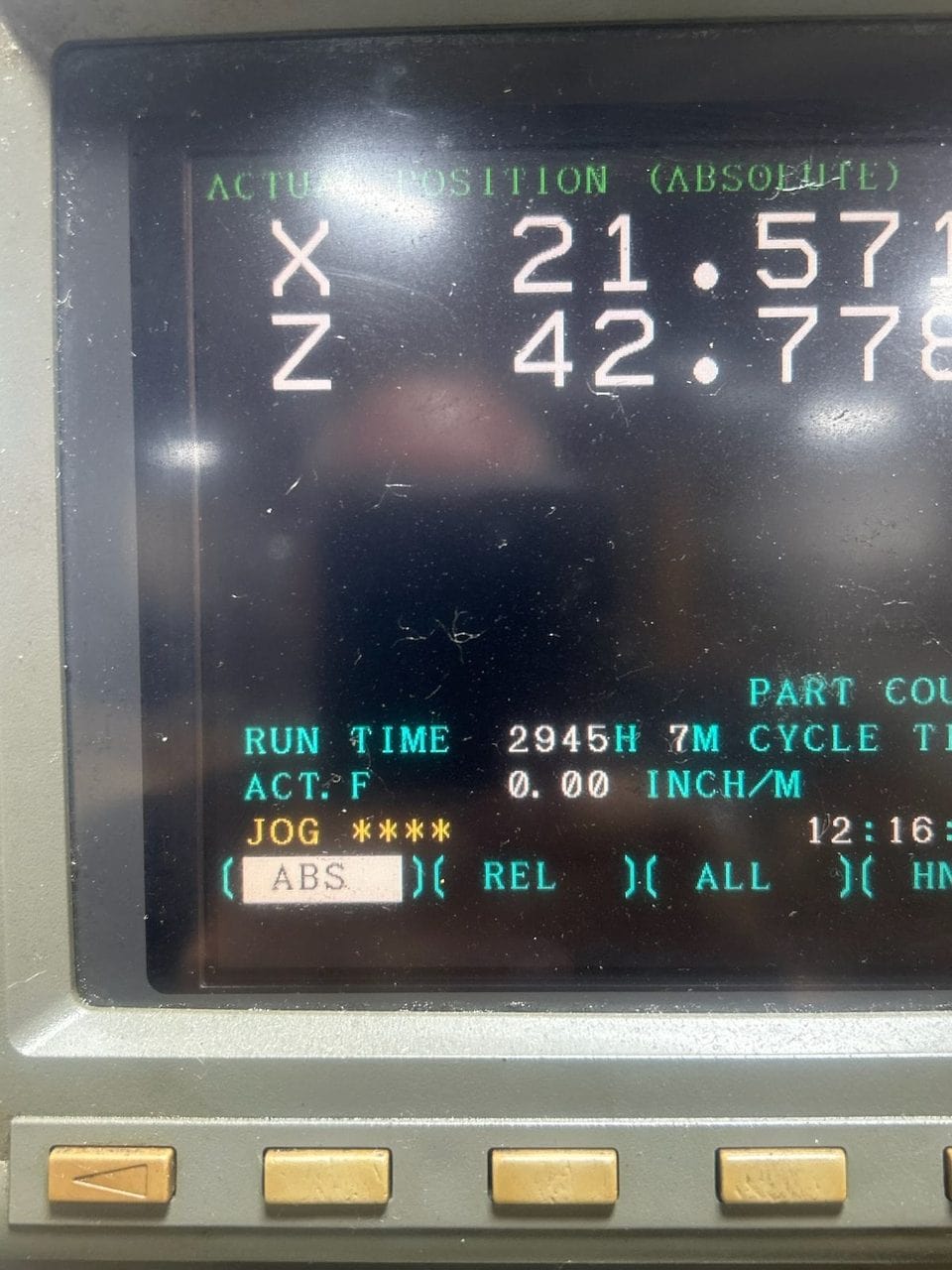

FANUC 18GCA CNC Control
Conversational and G&M Code Programming
Table Swivel Device
Double “V” Ways
I.D. Grinding Attachment
