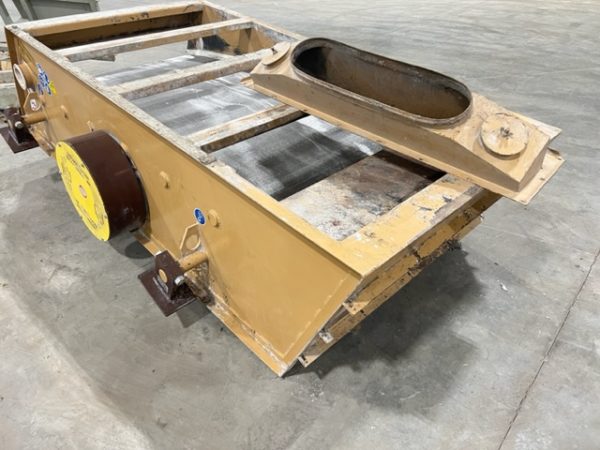

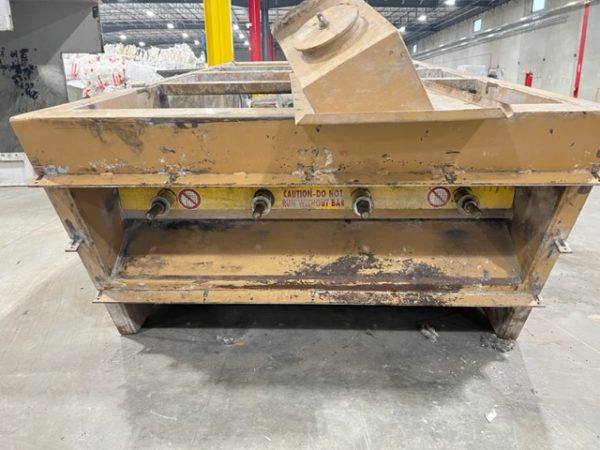

4′ x 8′ Midwestern Industries MEV 48-1 Single Deck Heavy Duty Two Bearing Vibrating Screen, 2020

$23,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Plastics Machinery
Make: Midwestern Industries
Model: MEV 48-1
Year: 2020
Machine Location: Ohio
Stock #: 782628

SQFT Screening Surface: 32

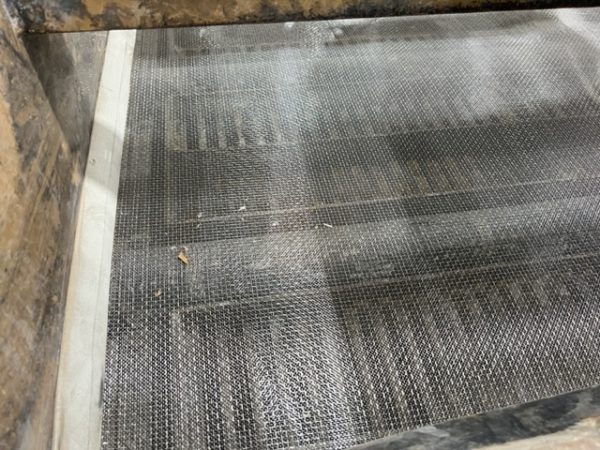

Screen: End Tension Quick Change
Panel Size: 48″ x 96″
Motor: 5 HP
Voltage: 230/460

Unit Loads

Empty Machine: 7,800 Lbs
Weight Of Dynamic Parts… 4,400 LBS
Maximum Vertical Dynamic Load Shutdown: 9,090 Lbs
Maximum Horizontal Dynamic Load Shut Down: 4,550 Lbs
Vertical Dynamic Load At Operation: 740 Lbs
Horizontal Dynamic Load At Operation: 370 Lbs
Maximum Combined Load Static & Dynamic: 16,890 Lbs

Equipped With:

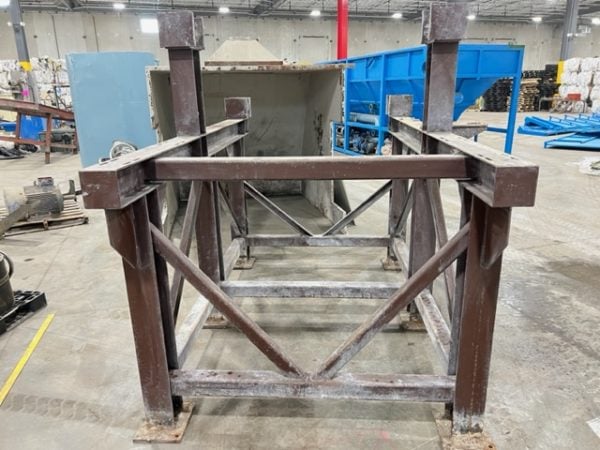

Unit Stand

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
