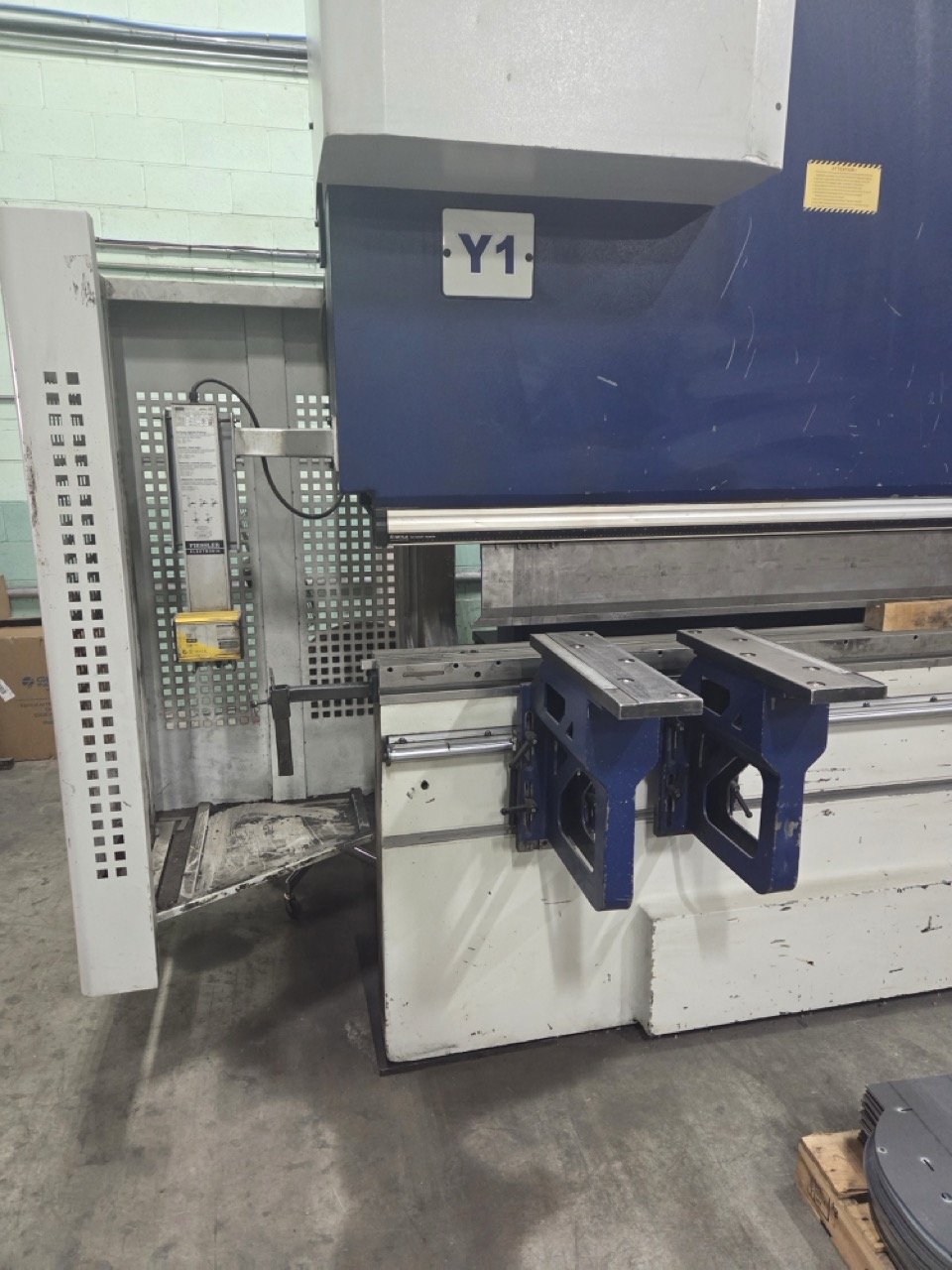

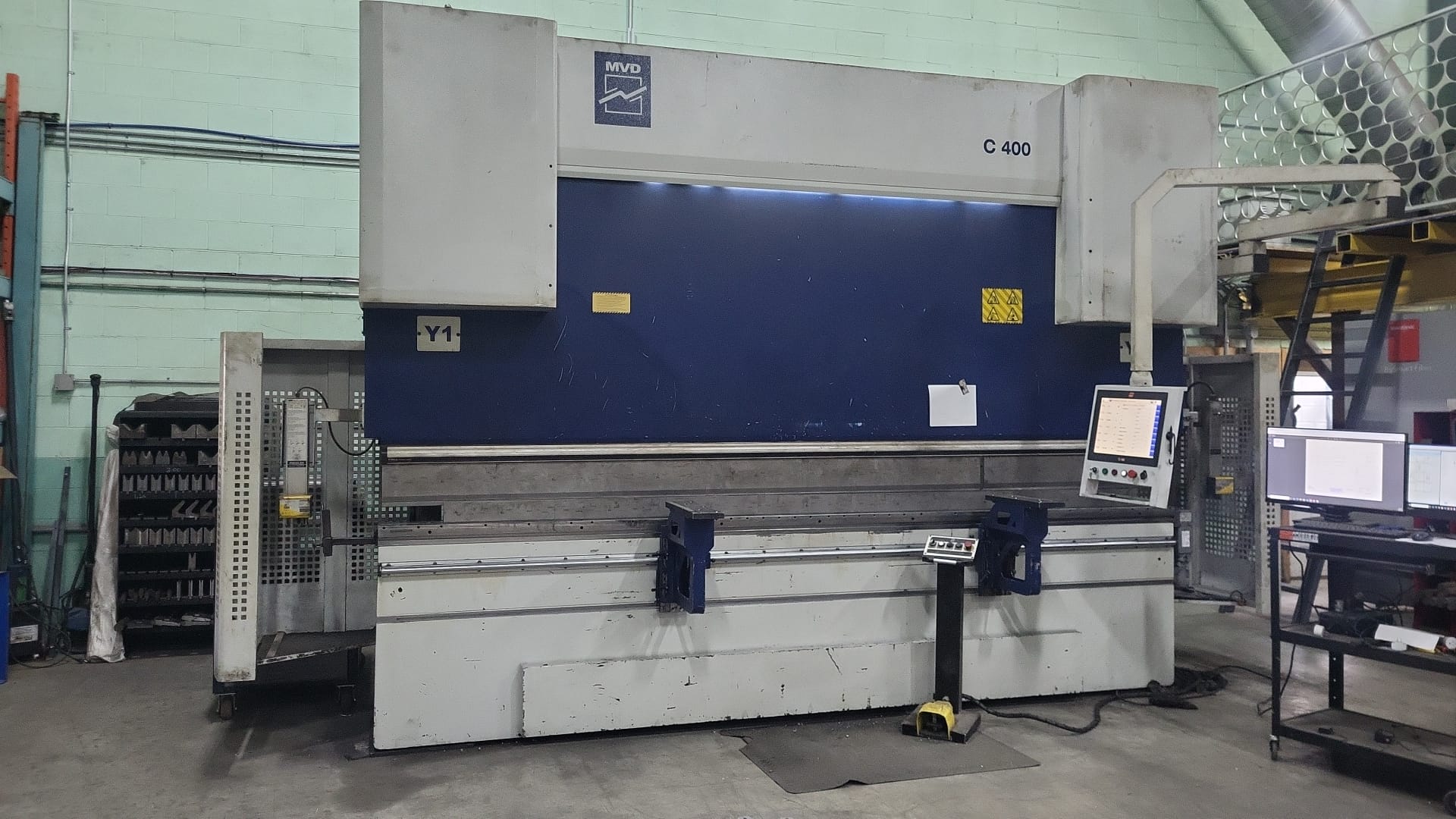

400 Ton x 13′ MVD Wysong CNC Press Brake, 2019 – 4 Axis Backgauge

Press Force: 400 Tons
Bending Length: 160 inches (4060 mm)
Distance Between Housings: 140 inches (3550 mm)
Daylight: 21 inches (533 mm)
Throat Depth: 16 inches (406 mm)
Stroke: 12 inches (305 mm)
CNC Control: ESA S650 or similar unit
CNC Axes: Y1, Y2, X, R (4-axes)
Back Gauge Accuracy: ±0.03 mm
Back Gauge Range: X: 750 mm, R: 250 mm
Hydraulic Clamping: On the ram
Crowning System: Motorized anti-deflection crowning system with Wila wedges
Tool Clamping: Promecam-type quick clamp punch holder
Front Support Arms: Sliding front sheet support arms

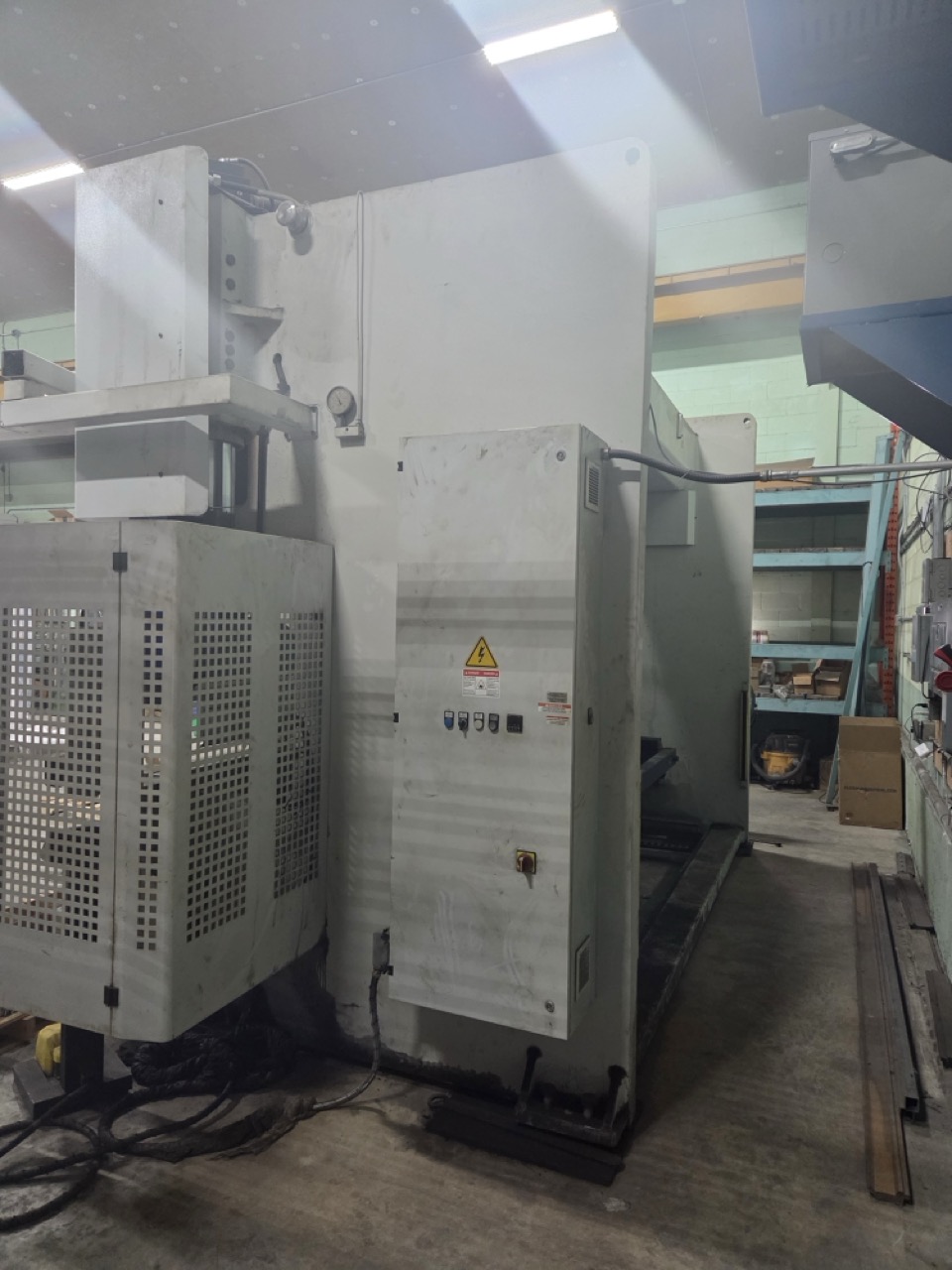

Safety: Rear side protection covers and rear light barriers

TABLE HEIGHT:38.4″
MACHINE DIMENSIONS:240″ X 105.3″ X 132.6″ HIGH
SPEED
APPROACH SPEED: 3.9 IPM
RETURN SPEED: 3.12 IPM
BENDING SPEED:0.312 IPM
WEIGHT:22,500 KG
MAIN MOTOR:30KW
