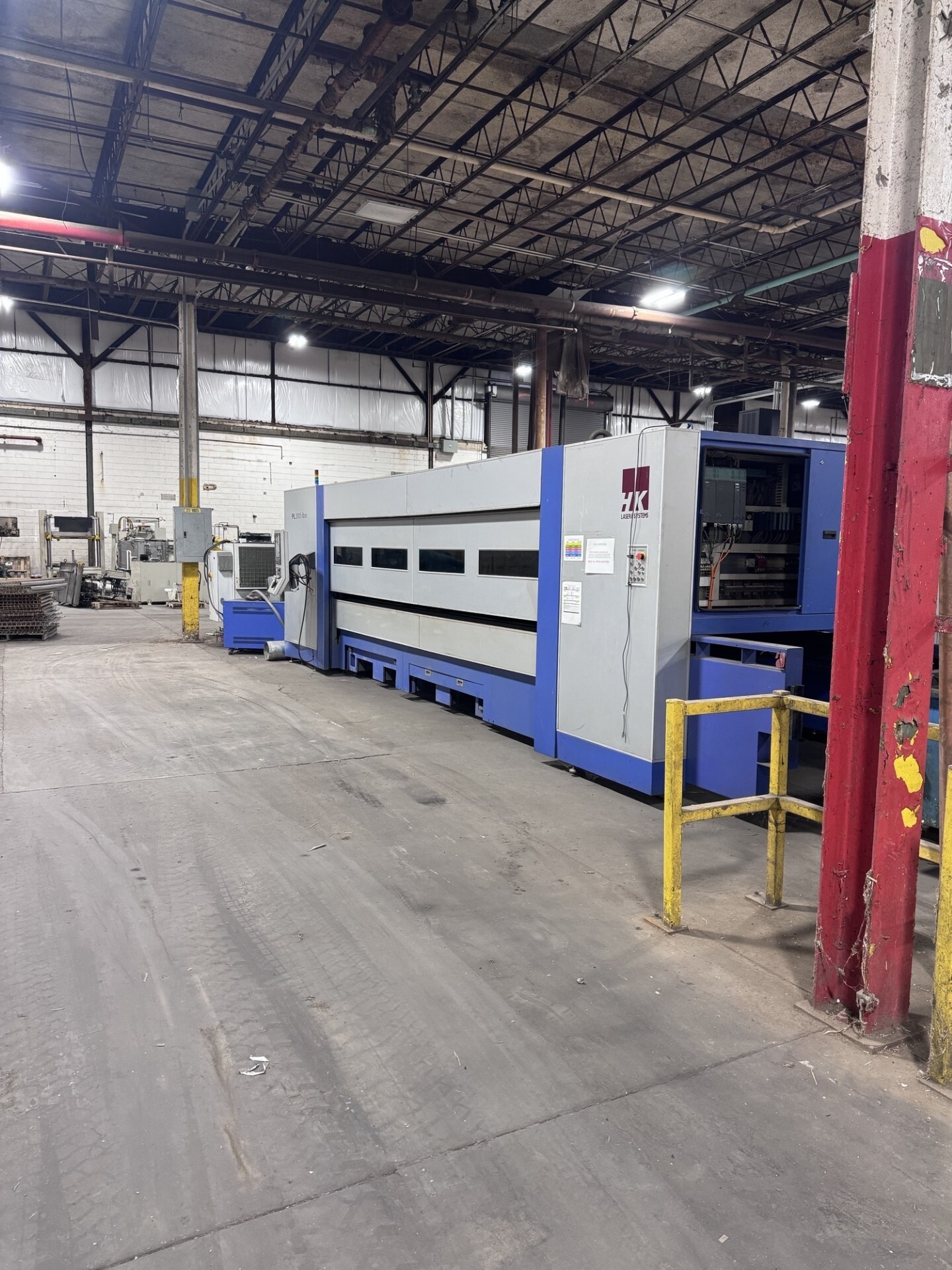

4000 Watt HK PL-3015 Fiber Laser, 2014 – 5′ x 10′ Table, Chiller Included

$69,900.00

4000 Watt HK PL-3015 Fiber Laser, 2014 - 5' x 10' Table, Chiller Included
4000 Watt HK PL-3015 Fiber Laser, 2014 - 5' x 10' Table, Chiller Included - Image 2
4000 Watt HK PL-3015 Fiber Laser, 2014 - 5' x 10' Table, Chiller Included - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Fiber Lasers
Make: HK
Model: PL-3015
Year: 2014
Capacity: 4000 Watt
Machine Location: Upon Request
Stock #: 167863

Table Size: 5′ x 10′
Laser Power: 4,000 Watts
Laser Source: Fiber Laser
X-Axis Travels: 122″
Y-Axis Travels: 62.2″
Z-Axis Travels: 3.9″

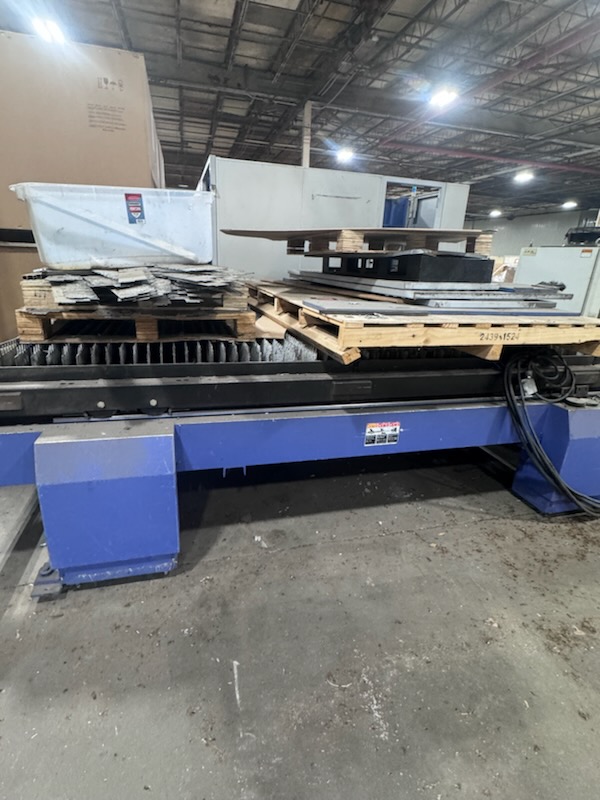

Table Configuration: Dual Shuttle Tables
Max Workpiece Weight: 1,984lbs
Max Positioning Speed: 5,511 IPM
Repeatability: ยฑ 0.0008″
Mild Steel Cutting Capacity: 0.787″
Stainless Steel Cutting Capacity: 0.393″

Approximate Machine Dimensions: 380″ x 120″ x 86″
Approximate Machine Weight: 26,455lbs

Equipped With

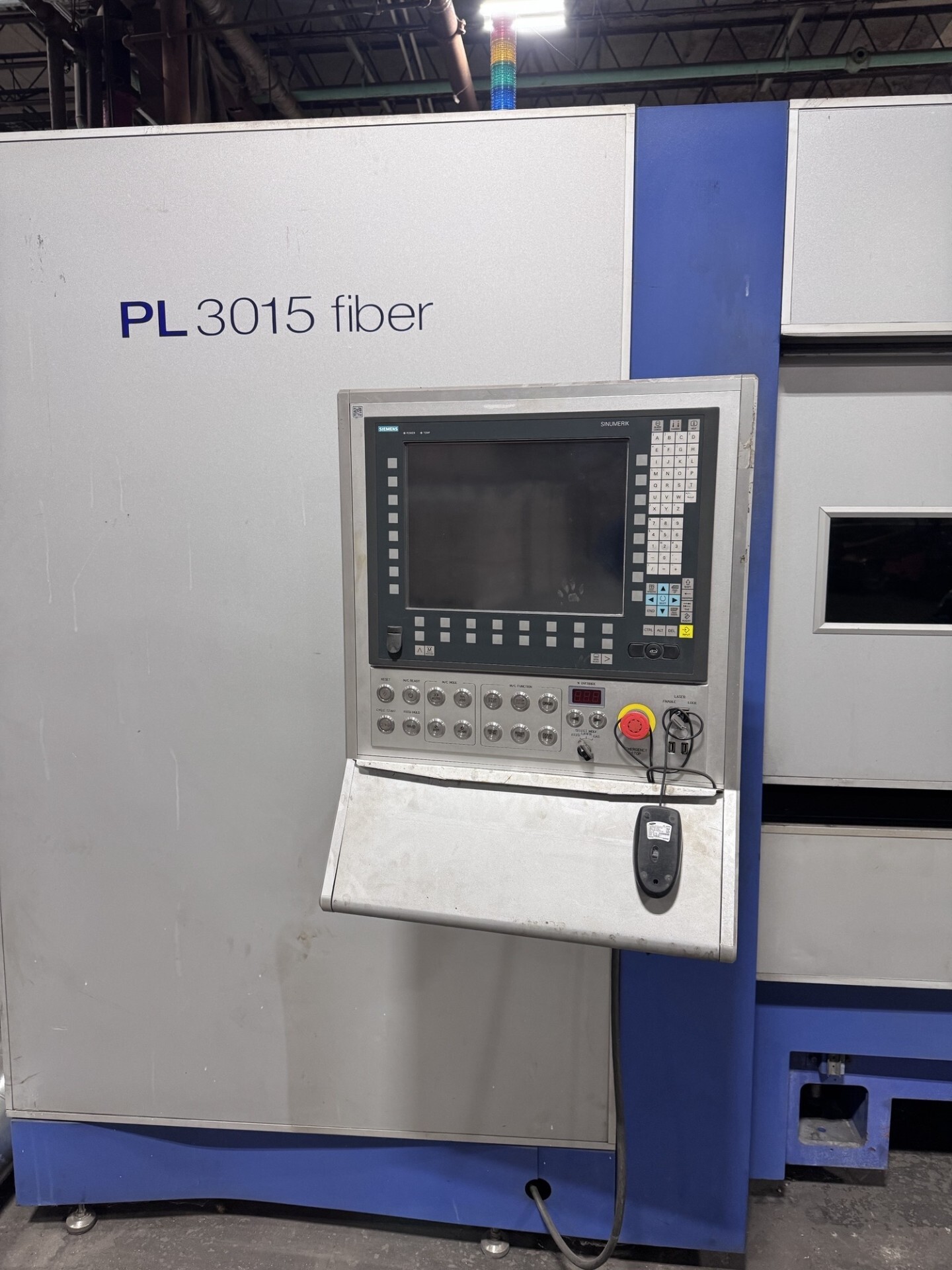

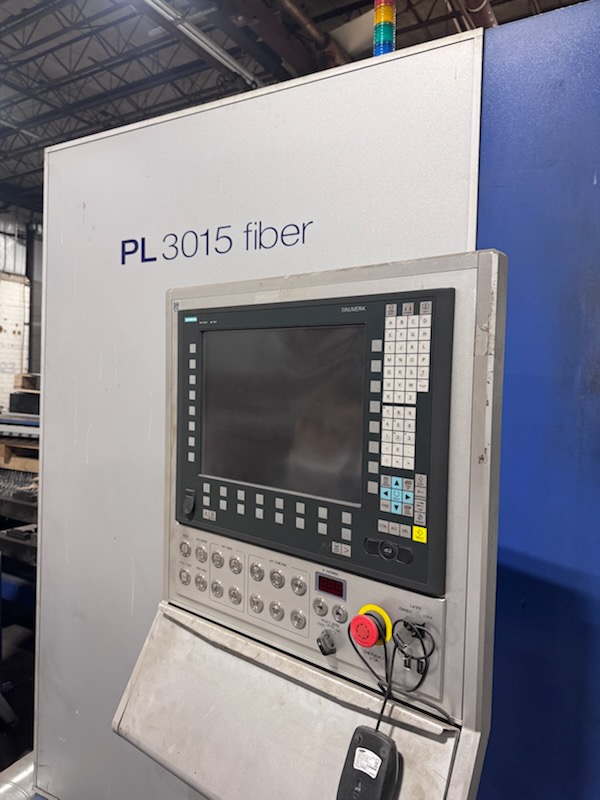

Siemens SINUMERIK 840D SL Controller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
