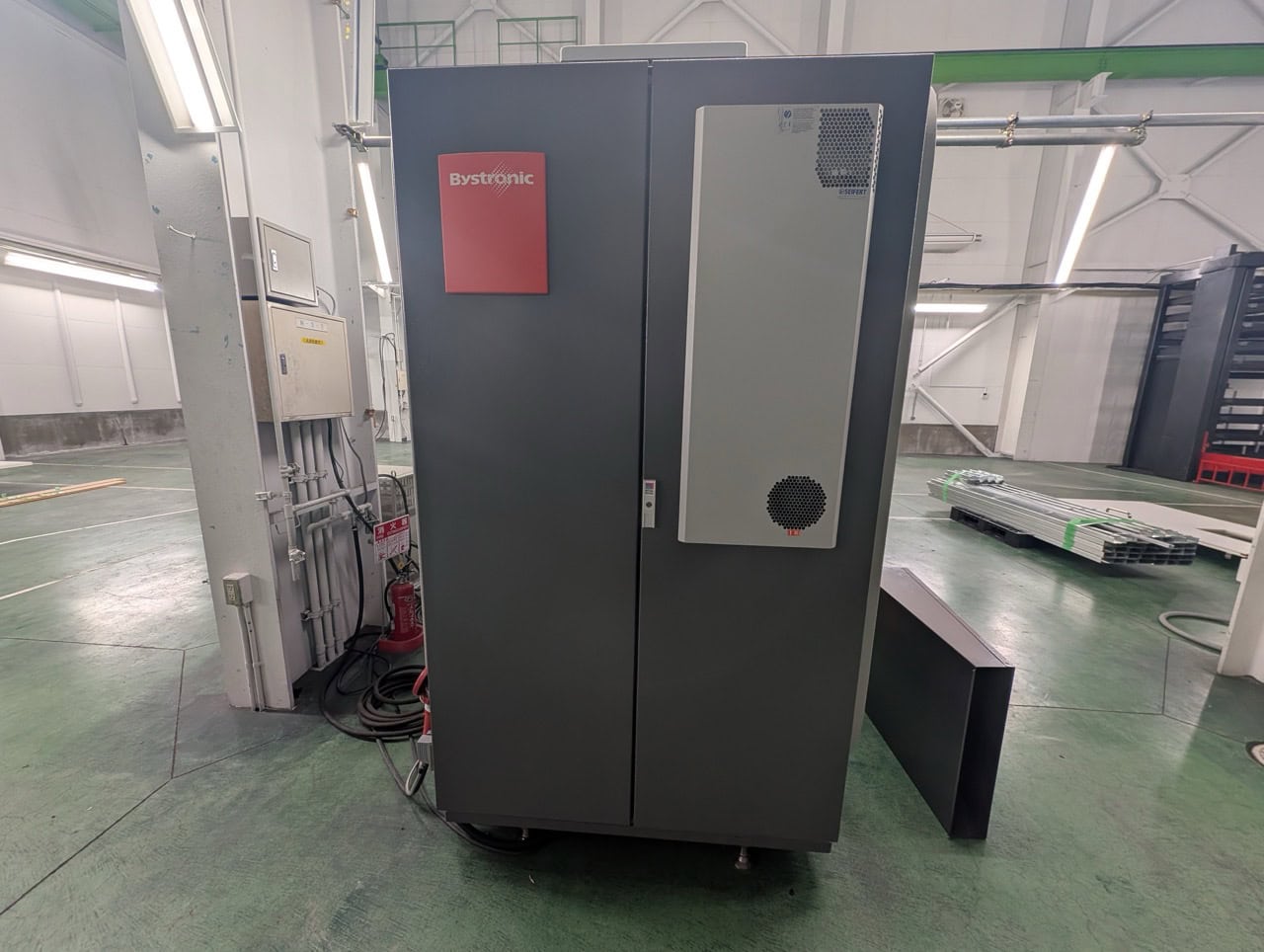

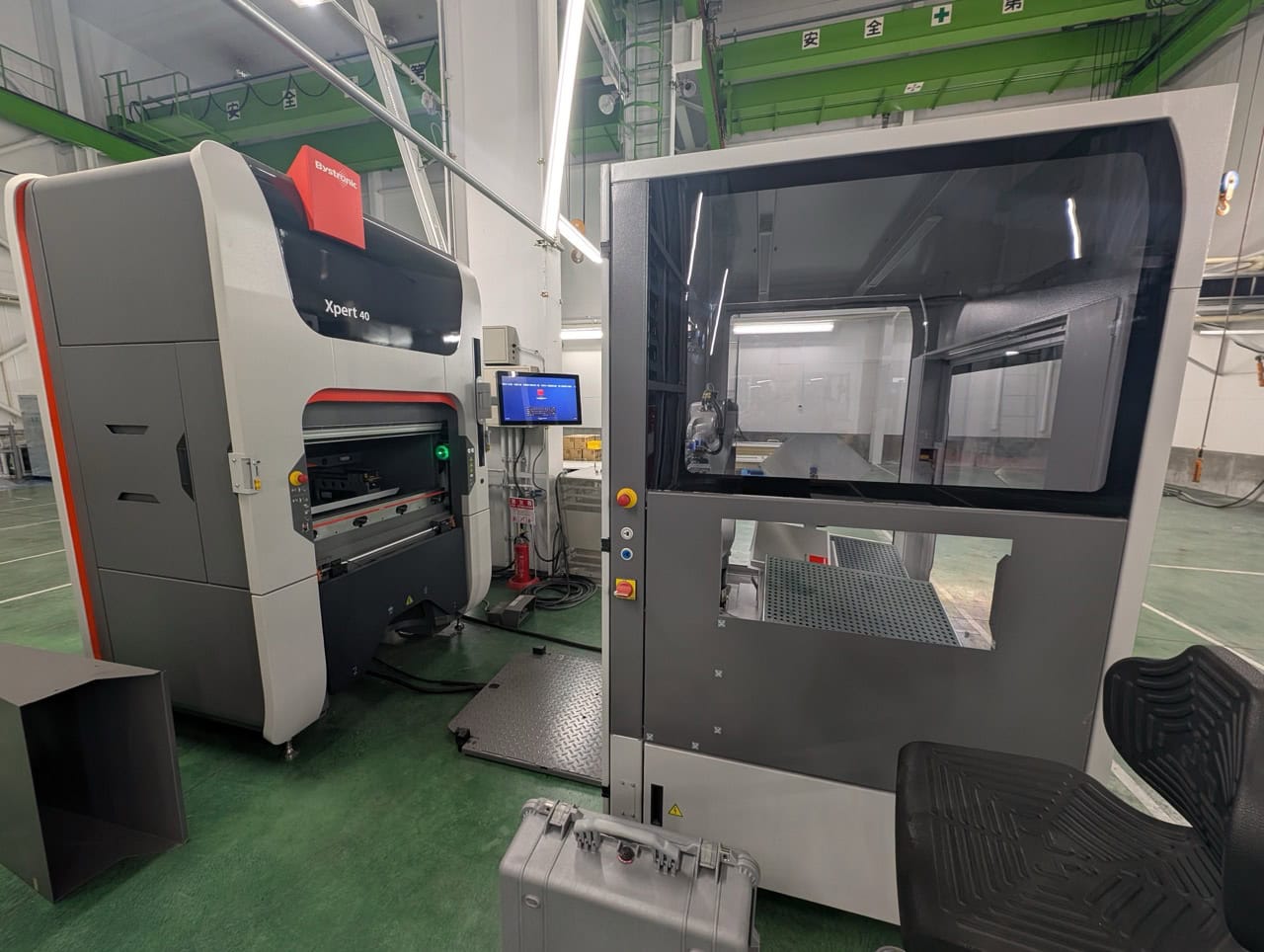

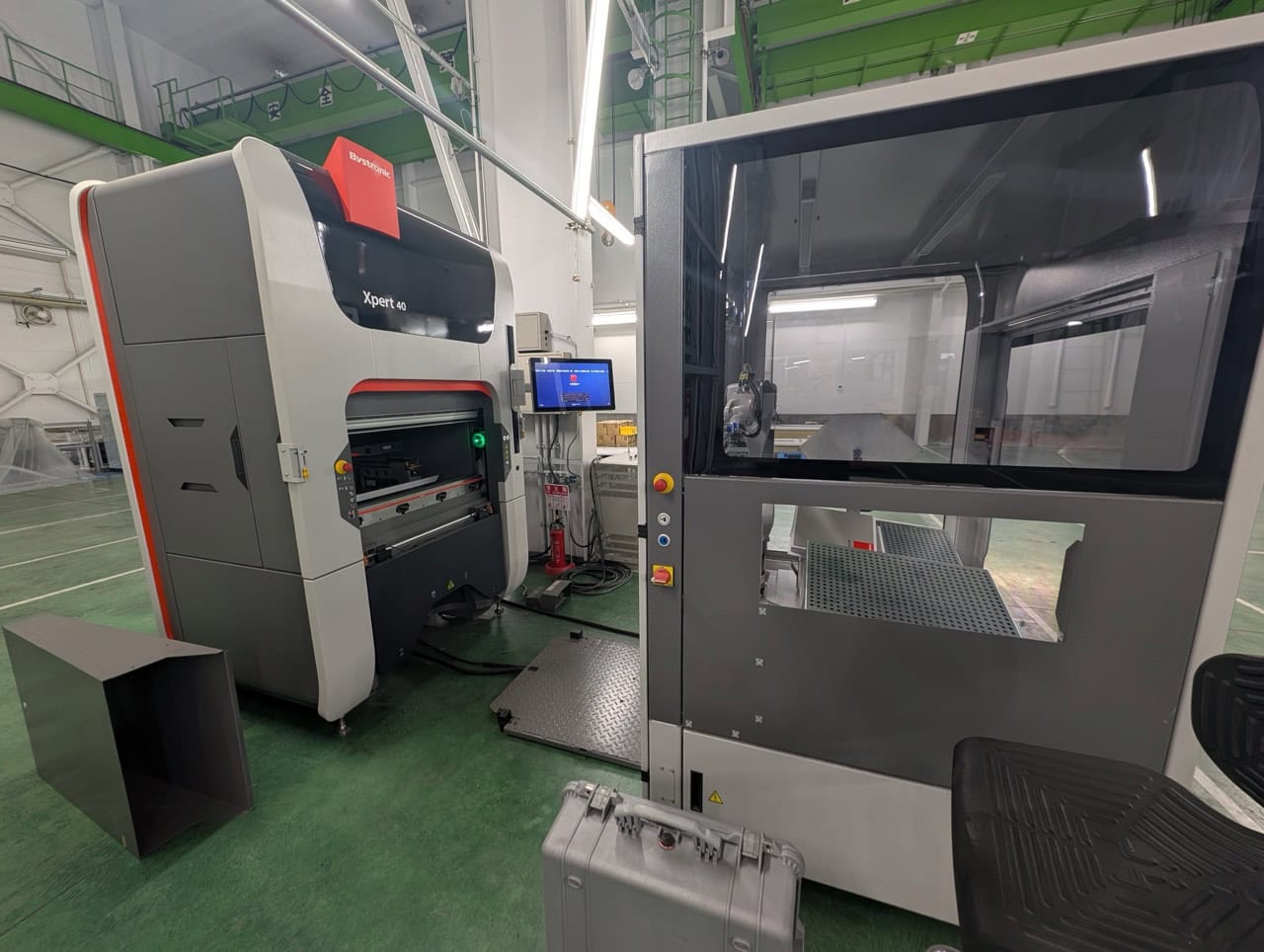

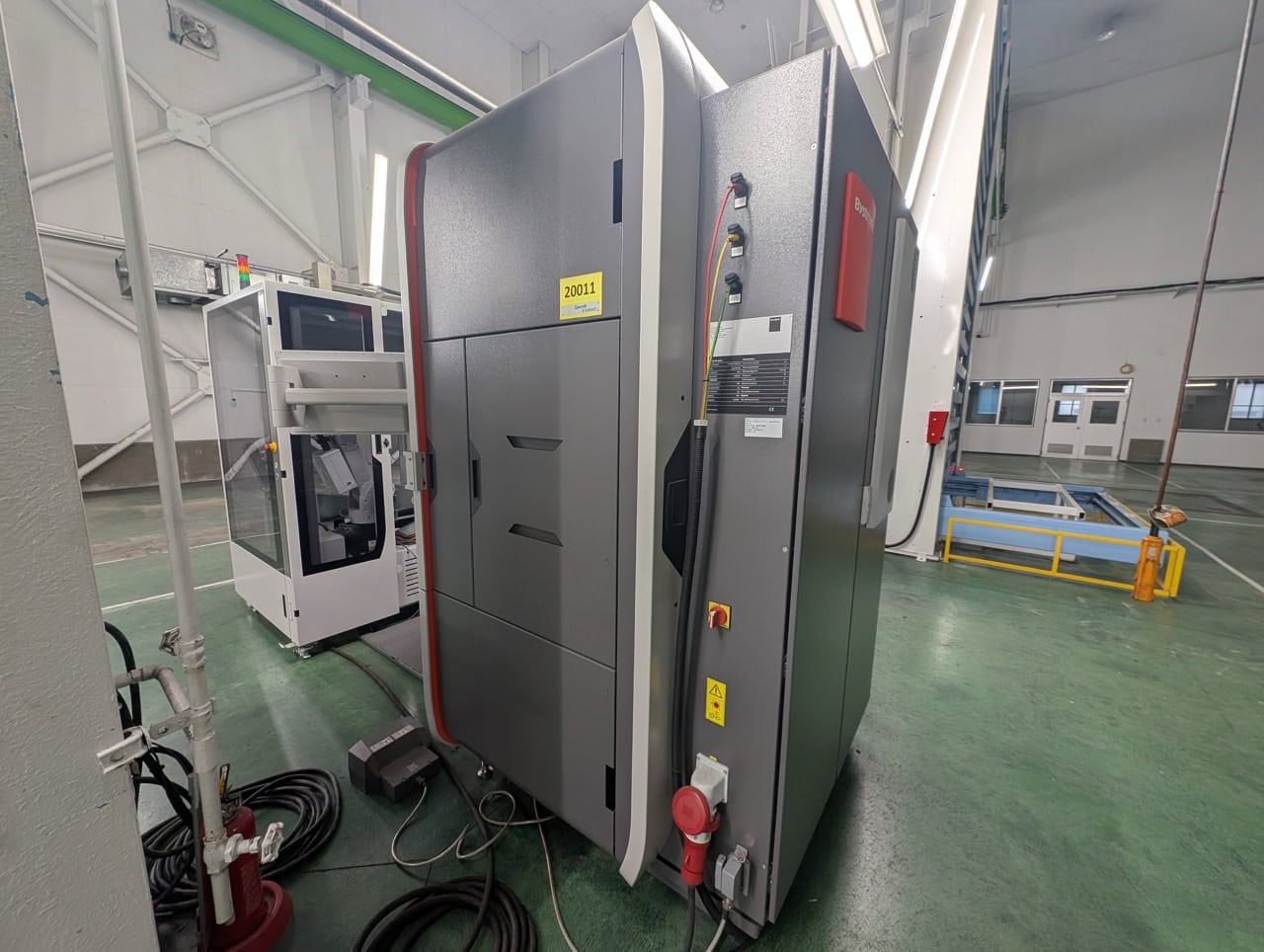

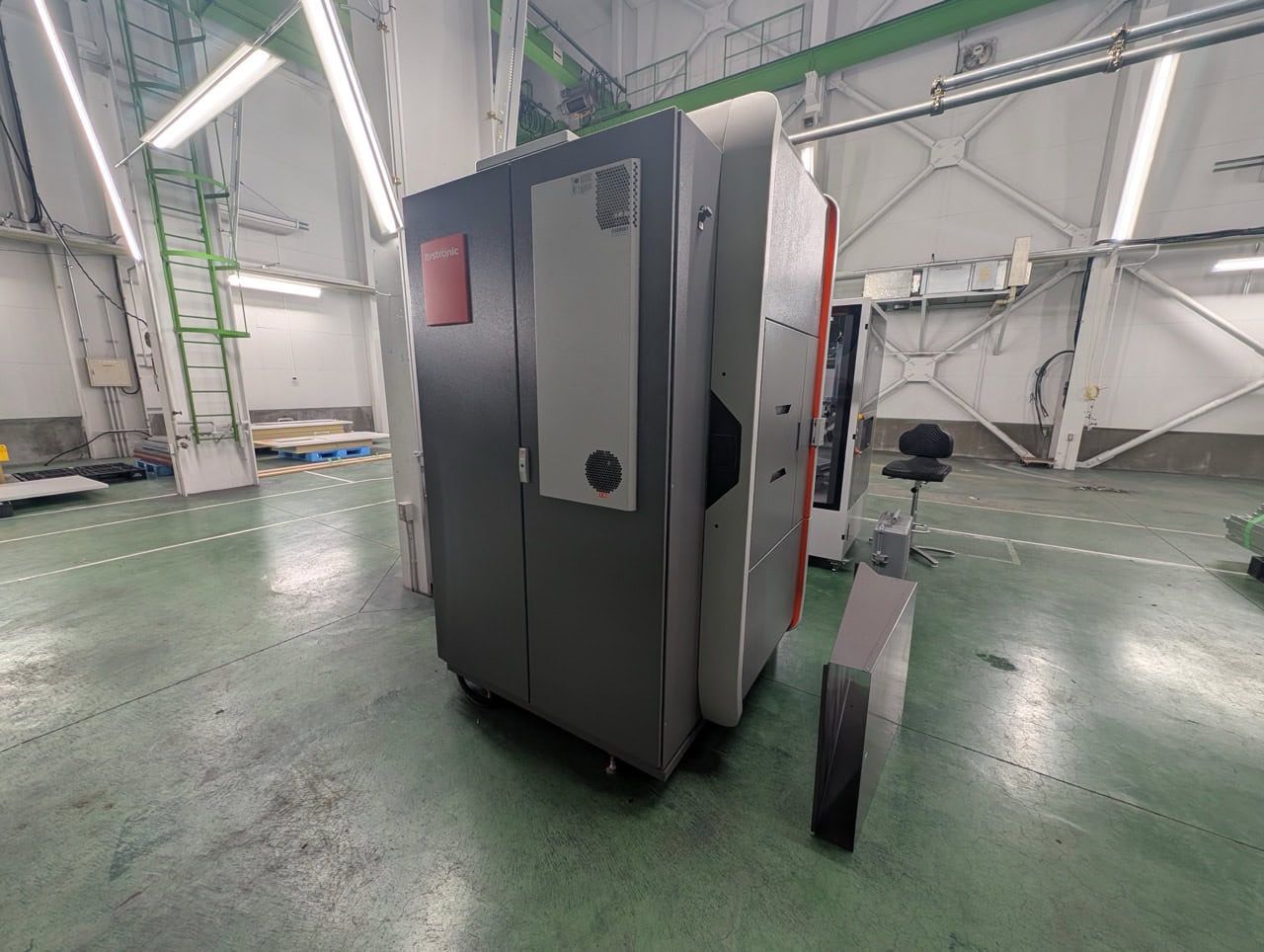

44 Ton x 3.5′ Bystronic Xpert 40/1030 CNC Hydraulic Press Brake, 2019 – w/ KUKA KR10R1100 Robot, 6 Axis Backgauge

Tonnage 44 Tons
Bending length 40.6”
Standard stroke [S] 7.9”
Open height [D] 20.3”
Distance between side frames 41.7”
Table Width 2.4”
Max. Stroke: 8”
Max. back gauge range X-axis 19.7”
X-axis travel 11.8”
X-axis speed 3543”/min
R-axis travel 3.9”
R-axis speed 1181”/min
Z-axis travel 37.6”
Z-axis speed 4724”/min
max. Y-approach speed 591”/min
Max. Y-working speed 59”/min
Y-position accuracy 0.00016”
Oil capacity 26 gal
Main motor power 7.5 kW
Operating voltage V AC: 3 PH 400
Frequency Hz: 50
Control voltage V DC: 24
Nominal current fuse A: 32
Weight 8,818 lbs
Length, approx. [L] 60”
Width, approx. [W] 62”
Height, approx. [H] 96”

Equipped With:

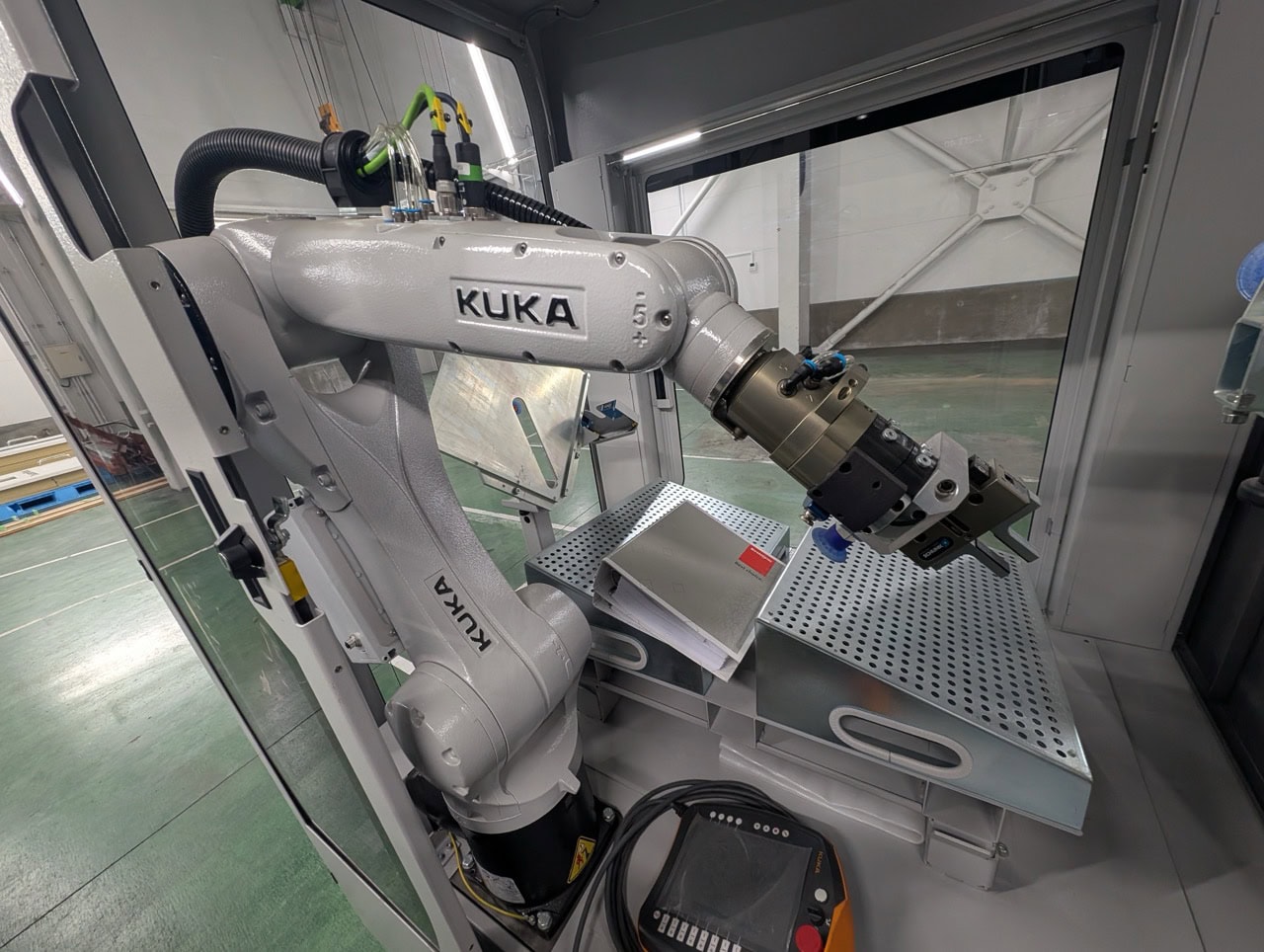

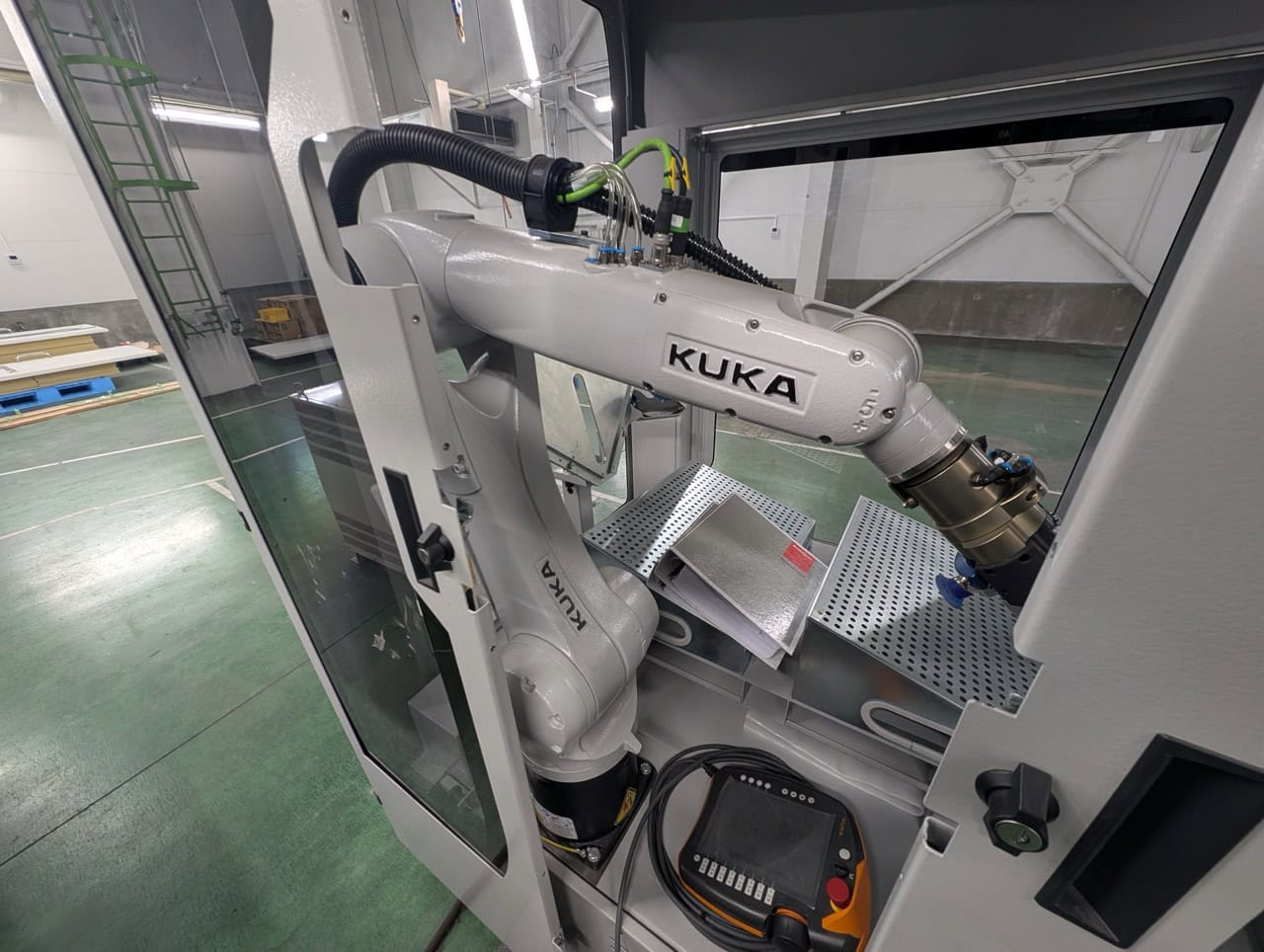

KUKA KR10R1100 Robot
Obligatory options:
Fast Bend G2 – safety system with manual height
Backgauge system:

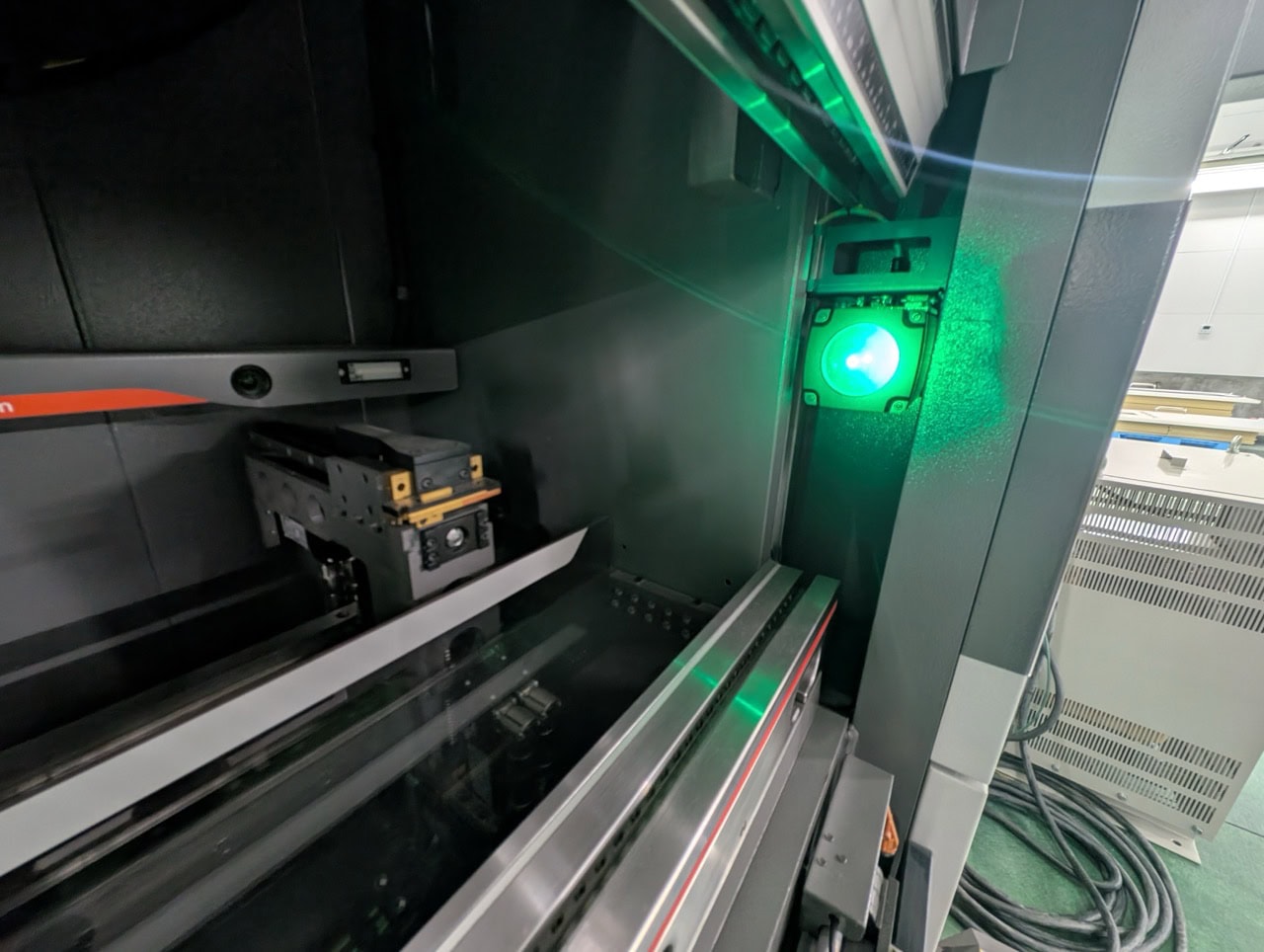

6-Axis back gauge
Other variations:
Hydraulic Oil
User ergonomics:
Ergo LE illumination pack
Ergo arm support
Ergo tool and bend equipment cabinets/.shelfs on each side integrated into the machine housing
Ergo sitting position
Optical Bend Guiding System (with RF-A/XPT only)
Value Packages:
Productive clamping pack RF-A
Tools:
Upper Tool P4 RF-A/85 L=1000 Sect. FSC
(65206.0004.0003)
Upper Tool P4 RF-A/85 L=100 Horn II, +re. (65206.0004.7002)
