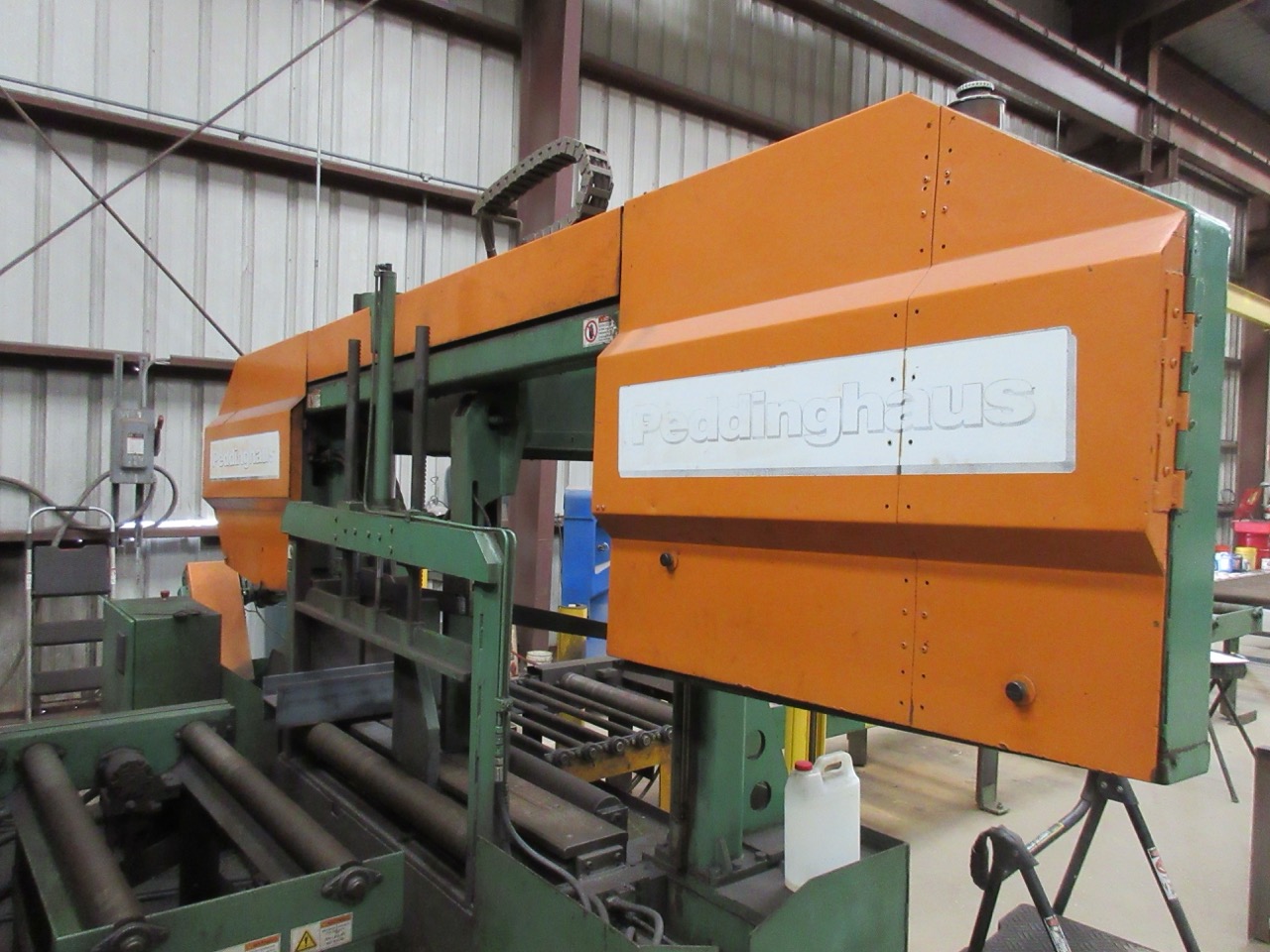

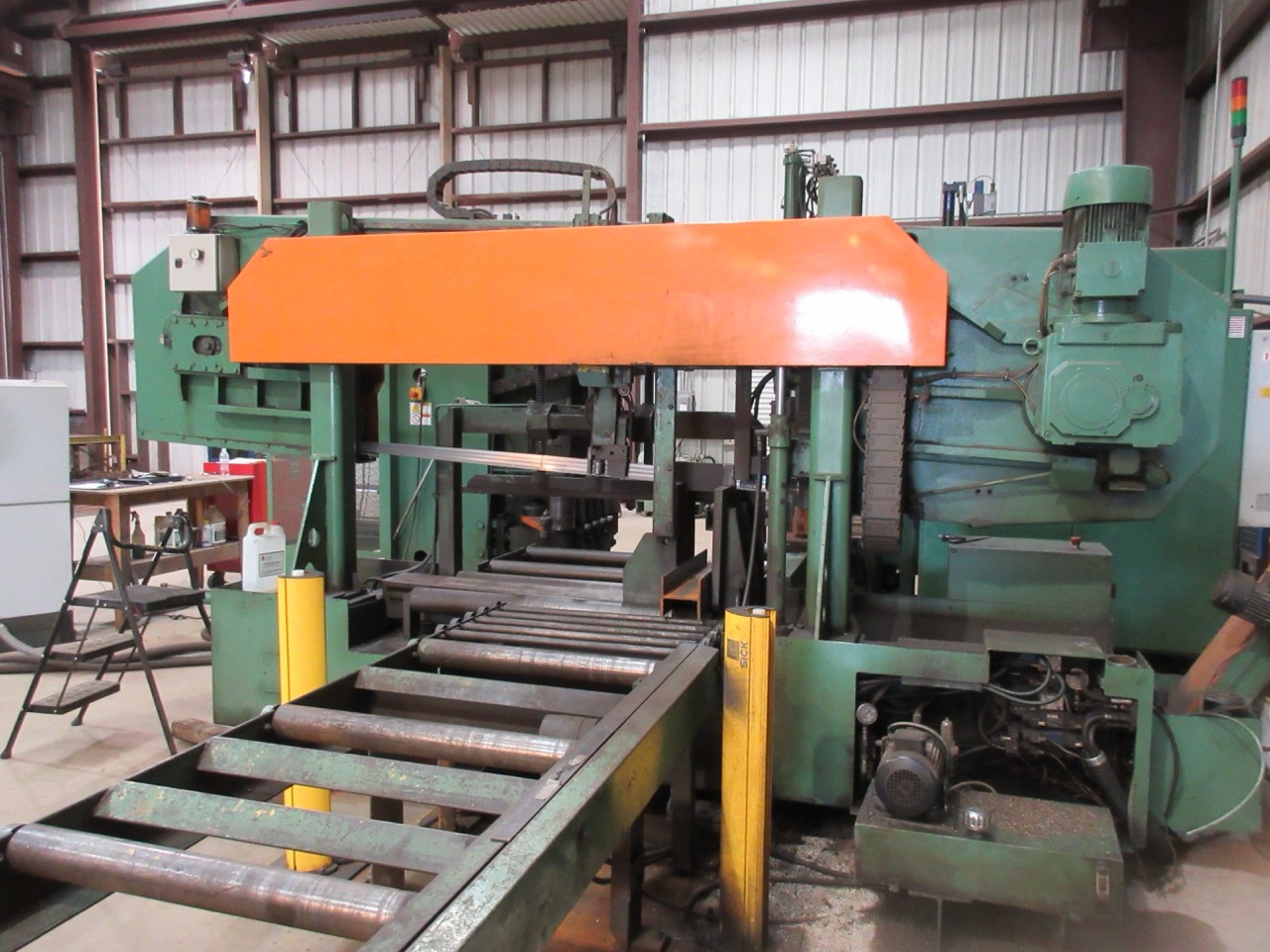

44″ x 20″ Peddinghaus MEBA 1140-510 Semi – Automatic Horizontal Band Saw, 2005

Cutting Capacity at 90°
Round Material: Up to 20″
Rectangular Material: Up to 44.9″ in width and 20″ in height

Motor Power
Saw Drive Motor: 19.4 hp

Saw Blade:
Dimensions: 385.8″ in length × 2.64″ in width × 0.06″ in thickness
Speed Range: Adjustable from 49 to 492 feet per minute (ft/min)

Material Handling:
Minimum Material Diameter: 0.39″
Length of Remaining Piece (Manual Operation):
Without Bundle Clamp: 0.87″
With Bundle Clamp: 8.86″ or 16.93″
Approx. Machine Dimensions: 37.4″ × 183.1″ × 94.5″
